Summary of Contents for Huler Relax 250W

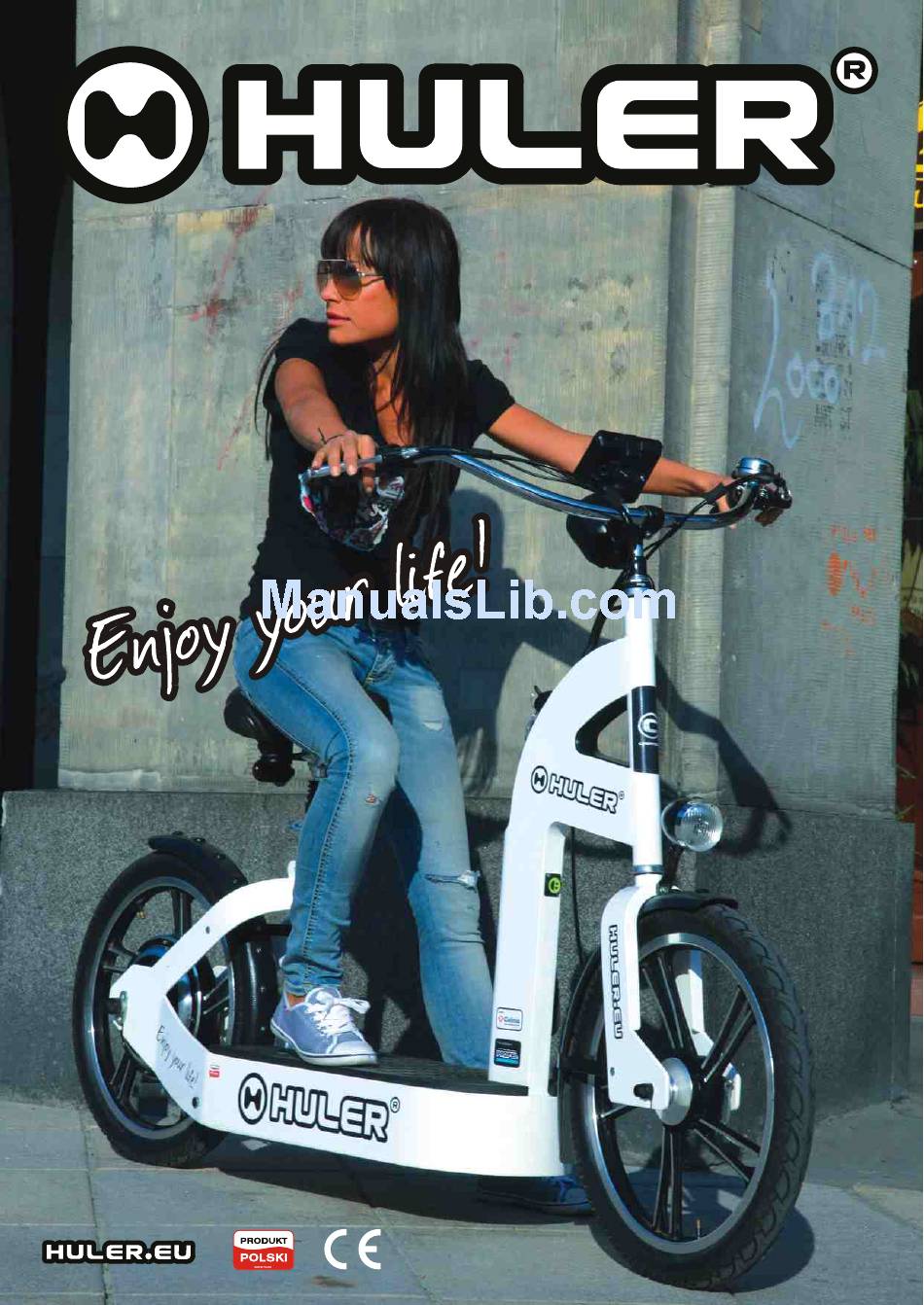

  • Page 1 Manual Manual...
  • Page 2: Table Of Contents

    Safety zone Ride inconsistent with the intended Remember: This instruction is inform about the correct use of Our Huler electric kick scooter.. Following the guidance contained in this manual will prolong durability, aesthetics, and allow for safe and lawful use(!!!).
  • Page 3: Assembly

    Assembly Unpacking After removing the electric scooters from the box and set it in a safe position on the foot, remove from the packaging a key tool to the assembly and securing the steering wheel. Set the steering wheel according to your preference and security policies according to the terms of use, growth, driving skills, long arms, legs.
  • Page 4: Terms Of Use

    Terms of Use Remember: Always check and comply with all local laws and regulations which may affect the place of use of electric scooters and define the technical conditions of vehicles that can be put into service on public roads. The vehicle is designed to drive tourism and recreation and sports are not professionally.
  • Page 5: Protection

    Protection While driving, we recommend the use of conservation measures that meet the requirements covered by the Directive 89686/EWG While driving, we recommend the use of protectors on elbows and knees, and absolute safety helmet with CE Certificate. Helmet may be legally required by local laws or regulations. We recommend the use of clothing with long sleeves, pants and shirts during the long ride and gloves.
  • Page 6: Ride

    Remember: Never turn the ignition "ON" position, while keeping a hand on the lever speed controller. During such an event, you can hand tighten even more on the speed controller which will lead ultimately to uncontrolled engine start, electric scooters rollover and/or dangerous consequences of falling. Put Your feet off the ground, place your right hand on the speed controller (right handlebar grip), and gently turn down (to the left grip of the user).
  • Page 7 Remember: Driving in the standing position is always very dangerous and threatens to collapse. Never let go the wheel while driving in standing or sitting. Loss of balance may end up in very serious consequences of falling. On the scooter can not go more than one person at a time. Do not use a scooter to haul or tow anything.
  • Page 8 Remember: Always switch the key to the “OFF” position if you're going to ride with Your legs! Keep the wheels proper air pressure (280 kPa = 40Psi = 2.7 BAR). Low tire pressure unduly burdening the engine, causing rapid wear on the tires and also clearly reduces the driving range.
  • Page 9: Braking

    Braking For safety, always follow the following precautions: Always when braking keep in mind primarily the safety - of your own and other users. Always keep the increased caution when the brake against the curb, a pit, puddle, or the difference surface.
  • Page 10: Safety Zone

    Safety zone For safety, always follow the following precautions: Never while driving based on safety features leg circles - fenders. Do not expose the leg while driving out of the board. Do not rely leg while driving on the elements of the frame (the frame neck). Do not bend over while driving backwards or forwards or in a different direction You can not put your fingers in the space between the brake lever and brake lever handle.
  • Page 11: Scooter Support

    Scooter Support Battery The scooters are installed two types of maintenance-free batteries for electric vehicles. SLA Batteries Gel - gel batteries are widely used in UPS, telephone exchanges, electric mopeds and scooters as well as electric toys, alarm systems, emergency lighting, medical equipment, cash registers and many others.
  • Page 12 Do not: Use only the original battery, which was part of the set. Use of any other battery may not only damage the product and cause a fire. The battery can be charged only in the cassette battery. Destroy, modify or disassemble or reconstruct battery. Short-circuit the positive and negative battery terminals.
  • Page 13 Note: Use only a dedicated charger for the battery type and capacity. Different charging characteristics can lead to leakage, excessive heat generation or explosion as well as batteries for a clear weakening of her life. Bad connection terminals may cause skin burns, damage to the battery and cause fire. Be careful when using metal tools like;...
  • Page 14: Charging The Battery

    Charging the battery 1. Plug the XLR cable (connector) into the slot in the frame Huler. 2. Connect the charger DC output cable to XLR cable. 3. Plug the cable into the AC to 220V AC network For charging, you can only use chargers supplied with batteries.
  • Page 15: General Safety

    Remember: Driving at full throttle is always strongly reduces the range of the Huler. Try to drive economically, and use the legs to push.
  • Page 16 Engine In Huler are mounted brush DC motors POLARIS brand model R198. The electric motor is located in the rear wheel, which makes it all the generated torque is available immediately to the rear wheel axle.
  • Page 17: Specifications

    2) Sensor power cut - cut off the power switch is integrated with the brake lever. During braking, turns off the motor. 3) Throttle speedl - In Huler was installed speed control type "twist". Twisting the throttle to the left, increasing the Maximum speed.
  • Page 18 14) Charger Plug - External charger plug is made of plastic and hermetically seal protects the contacts closed flip "C". 15) Saddle - The nice and safe saddle, with a very modern shape makes riding on Huler in the sitting position is a pure pleasure.
  • Page 19 Engine parameters HULER „Relax” 250W Drive: Electric Brakes - Front and Rear: Drum Voltage: 48VDC C02 Emissions [g / km]: 0 Rated Power: 250W Minimum turning radius [m]: 1.5 Torque [Nm / r / min]: 52 / 25 The maximum angle of inclination [°]: 25 °...
  • Page 20: Battery Parameters

    Battery parameters Gel Battery 48V 10Ah SLA Output voltage: 48V DC Charging voltage: 58V DC Charging time: 7 hours Weight of casket: 13 kg The amount of charge and discharge cycles: 400 - 600 Specifications: http://hpgbatteries.com/pdf/HPG120100.pdf Gel Battery 48V 14Ah SLA Output voltage: 48V DC Charging voltage: 58V DC Charging time: 7 hours...
  • Page 21: Maintenance

    Maintenance Washing and cleaning scooters Cleaning the steam or water under pressure is prohibited. There is no incentive to use any brushes. Do not use harsh measures. Cleaning the steam or water under pressure is prohibited. The manufacturer is not liable for damages resulting from the application of unsuitable cleaning agents.
  • Page 22: Warranty

    Chabrowa 43 Str., 25-205 Kielce, POLAND phone. +48 41 361 86 02, e-mail: baza@creatoria.pl www.creatoria.pl Need help?. Visit our website www.huler.eu where you will find information on spare parts, technical assistance and receive a list of service centers www.huler.eu. Welcome.
