Original instruction

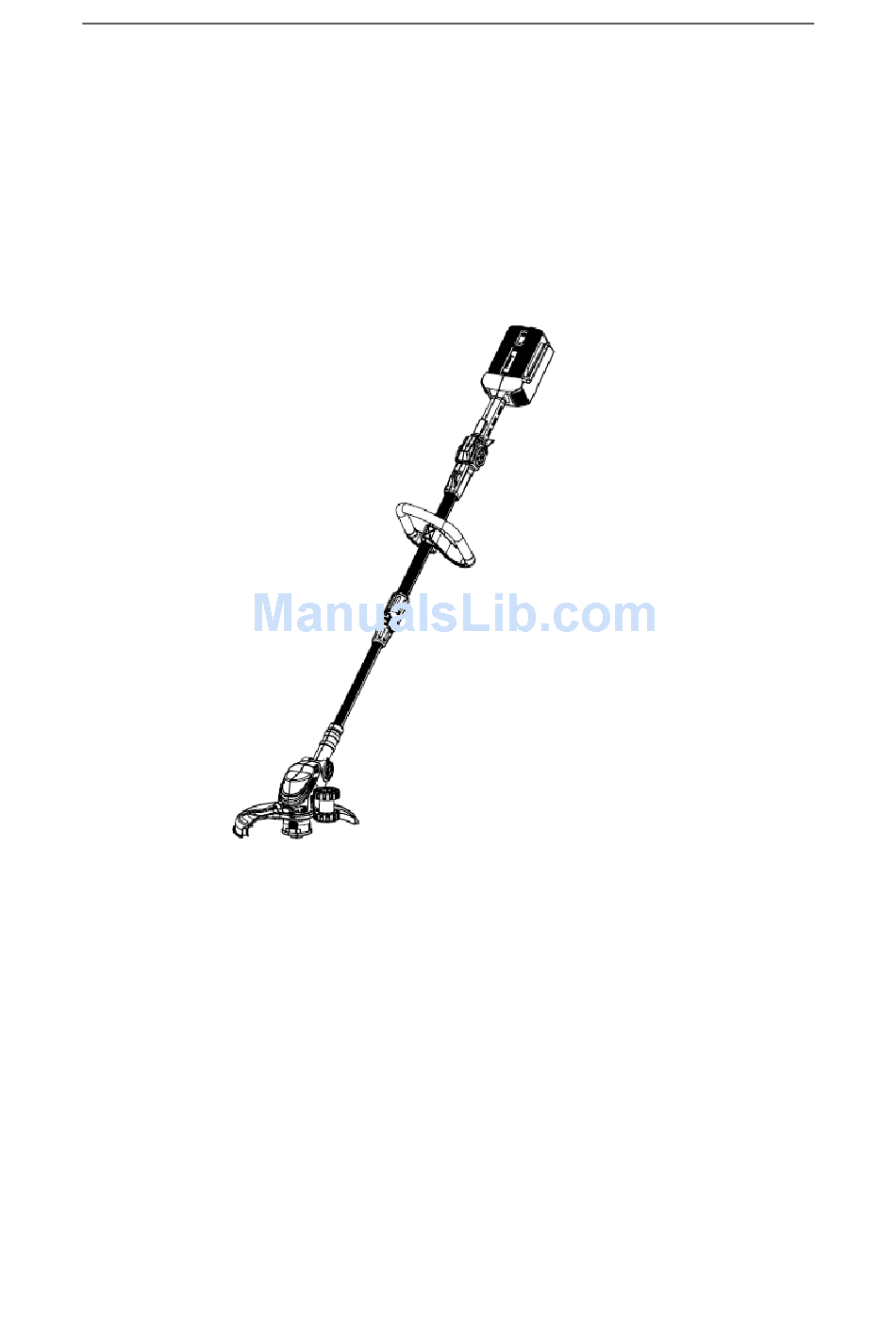

40V LITHIUM-ION CORDLESS LINE

TRIMMER

Model: E312D

Operator's Manual and Part List

Before use please read & understand this manual, paying particular attention

to the safety instructions.

Retain these instructions for future reference

Manufacturer: Ningbo NGP Industry Co., Ltd.

Address: No. 88, Lane 666, Jinshan Road, C Zone Jiangbei Investment Center, Ningbo

315020, P. R. China

1 / 14

Table of Contents

Need help?

Do you have a question about the E312D and is the answer not in the manual?

Questions and answers

Summary of Contents for Ningbo E312D

Page 1 Before use please read & understand this manual, paying particular attention to the safety instructions. Retain these instructions for future reference Manufacturer: Ningbo NGP Industry Co., Ltd. Address: No. 88, Lane 666, Jinshan Road, C Zone Jiangbei Investment Center, Ningbo 315020, P. R. China 1 / 14...
Page 2: Table Of Contents
Original instruction CONTENTS • Contents………………………………………………………….2 • Specifications…………………………………………………….3 • Symbols…………………………………………………………..4 • Safety Instructions………………………………...………...…..5 • Major Parts of the Line Trimmer………………………………..6 • Assembly and Operation……..……………………..………7-12 • Exploded View and Part List…………………………………13 • EC Declaration of Conformity…………………………………14 2 / 14...
Page 3: Specifications
Original instruction PRODUCT SPECIFICATIONS Model E312D Rated Voltage 40V DC No Load Speed 8300rpm Cutting head Bump feed Cutting Line Diameter 1.6mm Cutting Swath Diameter 12“/300mm Weight (w/o battery pack) 3.1kg Guaranteed sound power 96 dB(A) level Battery Pack Lithium Ion – EP20, EP40 or EP60 (2.0, 4.0 or 6.0Ah).
Page 4: Symbols
Original instruction SYMBOLS Warning, safety alert. Read and follow all safety precautions in the owner’s manual. Protective goggles/visor, protective helmet & hearing protection. Do not expose to rain. Beware of thrown or flying objects to bystanders. Keep bystanders a safe distance away from the machine.
Page 5: Safety Instructions
Original instruction SAFE OPERATING PRACTICES 1. Training a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine. b) Never allow children or people unfamiliar with these instructions to use the machine. Local regulations can restrict the age of the operator.
Page 6: Major Parts Of The Line Trimmer
Original instruction MAJOR PARTS OF THE LINE TRIMMER Battery 2. Safety switch 3. Trigger switch 4. Trimmer shaft 5. Auxiliary handle 6. Lock sleeve and edging function button 7. Angle adjustment button 8. Edger wheel 9. Guard 10. Plant protector 11.
Page 7: Assembly And Operation
Original instruction ASSEMBLY Warning! Remove the battery pack before cleaning or maintaining the tool, fitting the edger wheel or plant guard or before making any adjustments to the tool, especially around the string head. Remove battery pack before transporting or storing the tool Fitting the guard The guard is an essential part of the tool and must ALWAYS be used.
Page 8 Original instruction The battery should always be removed whenever you are not using the tool and especially when you are adjusting or transporting the tool to avoid accidental operation. To insert the battery, slide it into the battery cradle on the top of the line trimmer, aligning the ribs in the cradle with the slots in the battery until it latches into place.
Page 9 Original instruction side. Thread the string guides onto the line as shown Slide into place. Do the same on both sides. Position the cover in place as shown and press the cover onto the housing until the clips snap into place. Pull on both ends of the line to free them from the notches in the spool.
Page 10 Original instruction Setting the trimmer head angle The angle of trimmer head can be set to different working positions. Press the “PUSH” button with one hand and rotate the trimmer head to the required position. Release the “PUSH” button and the head will lock into place. There are 5 preset lock positions push Setting the handle length Turn the lock sleeve towards the ‘unlock’...
Page 11: Battery Charger
Original instruction Maintenance, storage and disposal Disconnect the machine from the battery pack before carrying out maintenance or cleaning work. When not in use store the machine out of the reach of children. Use only manufacturer recommended replacement parts and accessories. To clean the tool, remove battery pack and use only mild soap and a damp cloth to clean the tool.
Page 12: Exploded View And Parts List
Original instruction - Once the battery is fully charged, the LED indicator will show a steady green light. - Remove the battery by pressing and holding the latch button and sliding out of the charger Lithium Ion batteries have no memory effect – a partial charge will not damage your battery Storage of the charger and battery For long-term storage, it is preferable that the battery is fully charged and stored in a dry place at a temperature between 10 -25 °...
Page 13 Original instruction gear box 20910050 Locking plate 60070180 Screw 20910060 Rubber box 70670320 Motor wheel 20910130 Lock rubber 20930030 protection cover 60070110 Tapping screw 60480070 Self tapping screw Head part 20910040 auxiliary handle assembly 20340140 Foam tube 60170690 Self tapping screw Aluminum pipe Blade...
Page 14: Ec Declaration Of Conformity
Original instruction EC Declaration of conformity Herewith we, Manufacturer: Ningbo NGP Industry Co., Ltd. Address: No. 88, Lane 666, Jinshan Road, C Zone Jiangbei Investment Center, Ningbo 315020, P. R. China declare that the machine/s Designation: LITHIUM-ION CORDLESS LINE TRIMMER...
