Performax 240-8514 Owner's Manual

Performax 240-8514 Owner's Manual

75amp inverter arc welder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

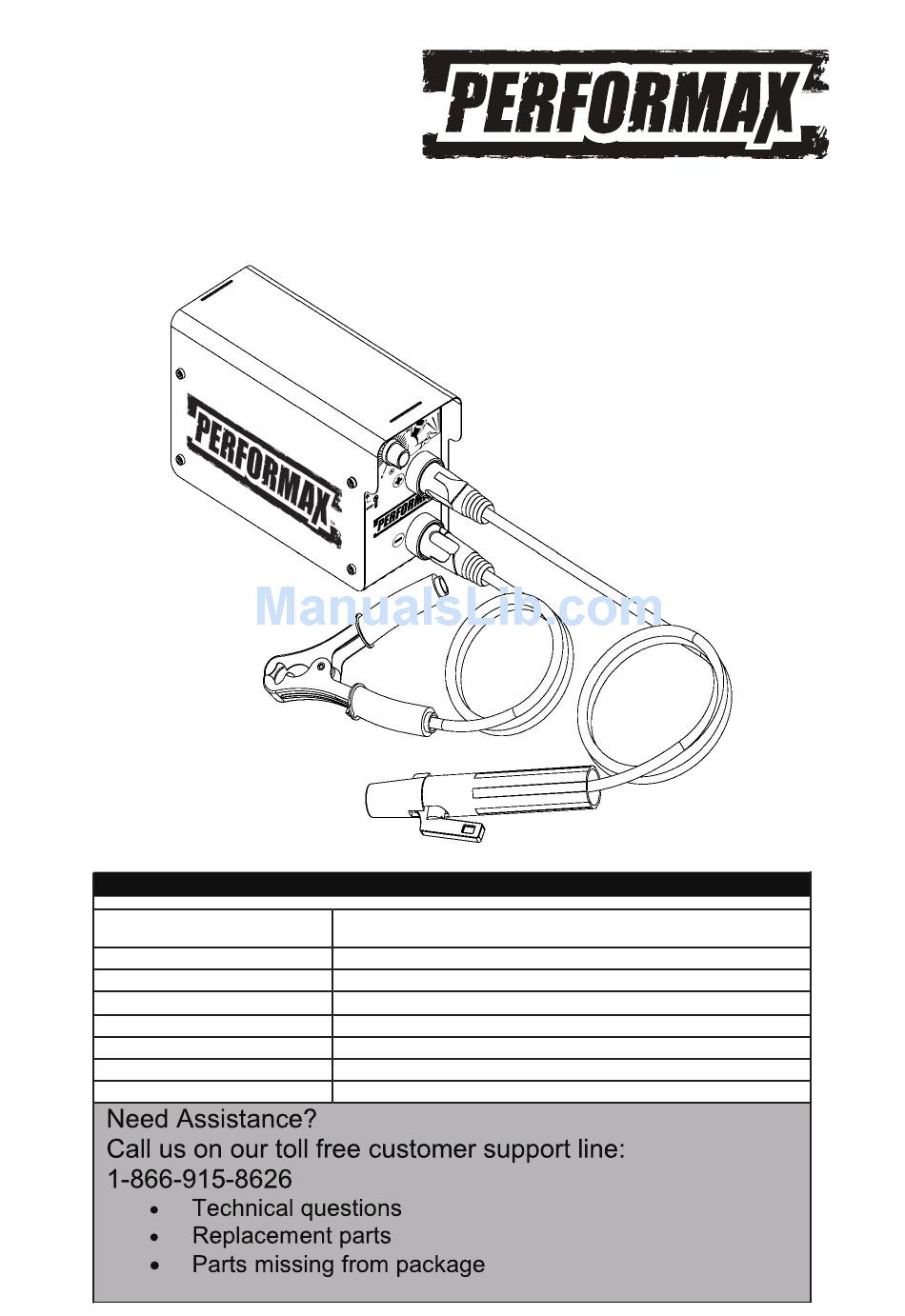

75Amp Inverter Arc Welder
SPECIFICATIONS
Electrical Input
Electrode Sizes
Duty Cycles
Electrode Cable
Ground Clamp Cable
Overall Dimensions
Additional Features
Welding Capacity
120 V~ / 60 Hz / 20 A Power Cord: 12 Gauge With 3-Prong Plug
Thermal Overload Protection
1/16" - 3/32" (1.6mm) - (2.5mm)
25%@75A
60%@50A
6 Gauge x 5'5" Long
6 Gauge x 5' Long
9-1/2" x 5-5/8" x 3-3/4"
Amber Temperature Warning Light
6 Gauge Steel
240-8514
Owner's Manual
100%@40A
TM

Advertisement

Table of Contents
loading

Summary of Contents for Performax 240-8514

  • Page 1 75Amp Inverter Arc Welder 240-8514 Owner’s Manual SPECIFICATIONS Electrical Input 120 V~ / 60 Hz / 20 A Power Cord: 12 Gauge With 3-Prong Plug Thermal Overload Protection Electrode Sizes 1/16” - 3/32” (1.6mm) - (2.5mm) Duty Cycles 25%@75A 60%@50A...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Symbols ……………………………………………………………… Page 2 Rules for safe operation …………..………………………………..Page 3 Grounding Instructions …………..……………………………………Page 5 Description …………..……………………………………………… Page 8 …………..……………………………………………… Page 9 Assembly Welding Operation ……………………………………….……………Page 9 Inspection Maintenance and Cleaning …………….……………Page 10 …………………………………… Page 11 Troubleshooting Guide Parts list …………..…………………………………………………...

  • Page 3: Rules For Safe Operation

    THIS SYMBOL DESIGNATES THAT THIS TOOL IS LISTED BY THE UNDERWRITER LABORATORIES INC. TO UNITED STATES AND CANADIAN STANDARDS. CONFORMS TO UL STD. 60974-1 CERTIFIED TO CSA STD. E60974-1-12 4010745 RULES FOR SAFE OPERATION GENERAL SAFETY RULES WARNING! Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.
  • Page 4 ELECTRICAL SAFETY Grounded tools must be plugged into an outlet properly installed and grounded in accordance with all codes and ordinances. Never remove the grounding prong or modify the plug in any way. Do not use any adapter plugs. Check with a qu- alified electrician if you are in doubt as to whether the outlet is properly grounded.

  • Page 5: Grounding Instructions

    es before turning the power tool on. A wrench Remove adjusting keys or wrench or a key that is left attached to a rotating part of the power tool may result in personal injury. at all times. Proper footing Do not overreach. Keep proper footing and balance and balance enables better control of the power tool in unexpected situations.
  • Page 6 The grounding prong in the plug is connected through the green wire inside the cord to the grounding system in the tool. The green wire in the cord must be the only wire connected to the tool’s grounding system and must never be attached to an electrically “live”...
  • Page 7 serious drop in voltage, resulting in loss of power and possible tool damage. The smaller the gauge num ber of the wire, the greater the capacity of the cord. For example, a 14 gauge cord can carry a higher current than a 16 gauge cord. When using more than one exten sion cord to make up the total length, make sure each cord contains at least the minimum wire size required.

  • Page 8: Description

    DESCRIPTION KNOW THE INVERTER ARC WELDER (Fig. 1) Fig.1 1. Welding currrent setting knob 2. Power light(Green) 3. Thermal overload indicator light(Yellow) 4. Positive(+) quick connector 5. Negative(-) quick connector 6. Power cord 7. Welding cable with electrode holder 8. Ground cable 9.

  • Page 9: Assembly

    ASSEMBLY WARNING: Remove the welder from the carton and examine it carefully. Do not dispose of carton or any packaging material until all parts are examined. WARNING: To avoid injury, always turn the tool off and disconnect the welder from the power outlet before installing.

  • Page 10: Inspection Maintenance And Cleaning

    NOTE: The Inverter Arc Welder is equipped with an automatic “Hot Start”. This feature momentarily surges the current output, which makes starting the electrode easier. Should the electrode stick to the work piece, usually a quick twist of the electrode holder will break the electrode free. If the electrode is not broken loose, shut down the Inverter Arc Welder and physically remove the electrode from the electrode holder and work piece.

  • Page 11: Troubleshooting Guide

    Before each use , inspect the general condition of the Inverter Arc Welder. Check for damaged electrical wiring, loose connections, cracked, burnt, or broken parts, and any other condition that may affect its safe operation. If abnormal noise or vibration occurs, have the problem corrected before further use. Do not use damaged equipment.

  • Page 12: Parts List

    Make sure the electrode is in good condition, and that the welding current output is properly adjusted. ( Increasing the current output usually improves this situation.) PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the Inverter Arc Welder.

  • Page 13: Exploded View

    EXPLODED VIEW...

  • Page 14: Warranty

    At its discretion, PERFORMAX agrees to have the tool or any defective part(s) repaired or replaced with the same or similar PERFORMAX product or part free of charge, within the stated warranty period, when returned by the original purchaser with original sales receipt.
