Audiolab 8200T Service Manual

Hide thumbs Also See for 8200T:
Table of Contents

Advertisement

Quick Links

See also: Instructions for Using
8200T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8200T and is the answer not in the manual?

Questions and answers

Related Manuals for Audiolab 8200T

Summary of Contents for Audiolab 8200T

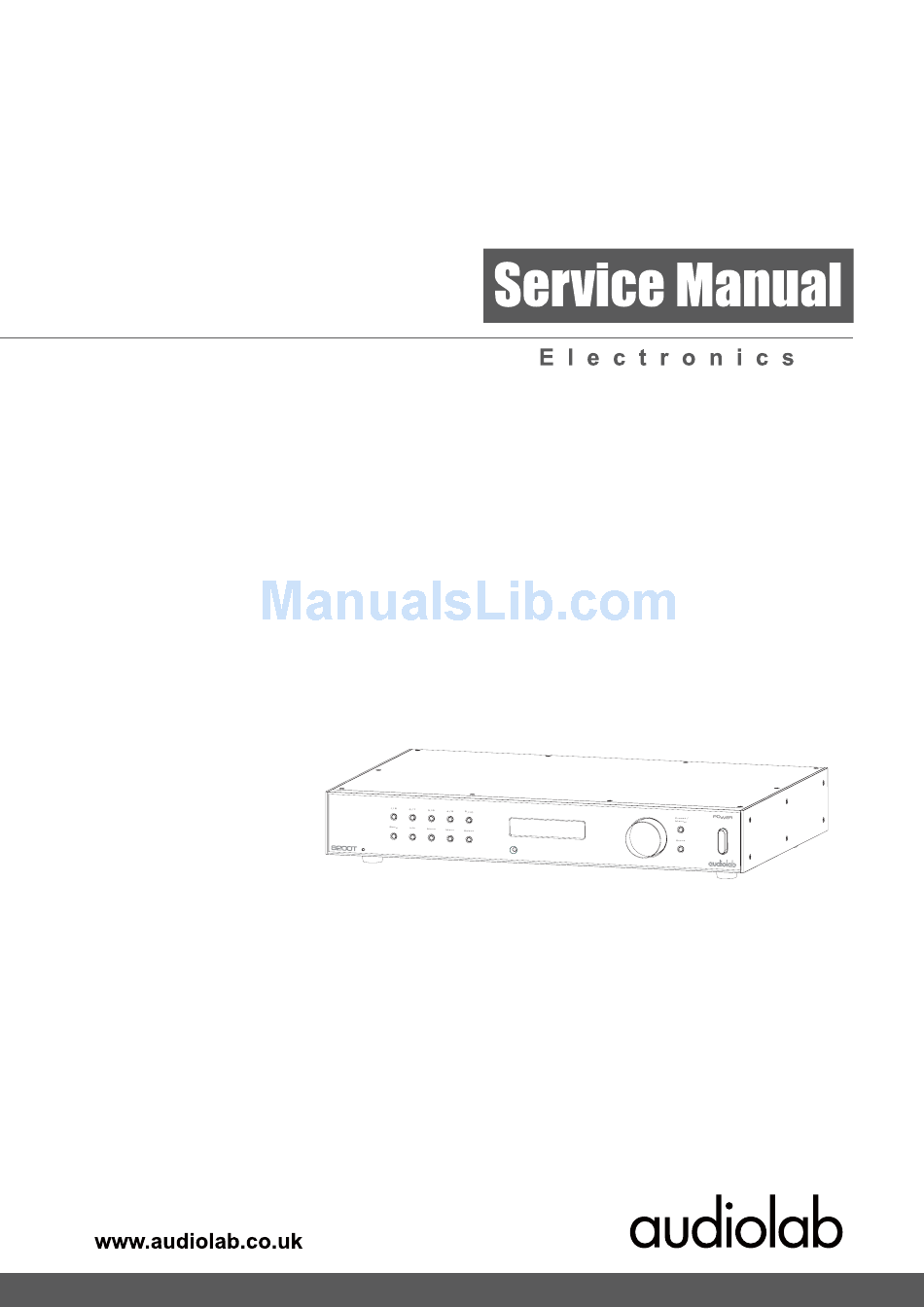

  • Page 1 8200T...
  • Page 2 VERSION HISTORY Date Update Content 2011.06.10 First Version 8200T...

  • Page 3: Table Of Contents

    CONTENT Introduction Specification Assembly Sketch Schematic Diagram Wir ng Di gram Silk screen of Bottom 10-13 Maintenance Alignment Procedure Assembly Parts List 15-16 Electronic Parts List 17-22 8200T...

  • Page 4: Introduction

    This manual has been prepared with the greatest care, it is intended for information only and no liability shall be accepted for errors or changes to specification. For further service information, parts lists and updates, please contact our web-site at www.international audio group.com . 2011 International Audio Group Limited. All rights reserved. 8200T...

  • Page 5: Specification

    Frequency response 20Hz-15KHz (1KHz 98MHz ≤-3 Ref, UL=75uS,CE=50uS) Channel Separation (60dBu IHF A wtd) 98MHz ≥32 Alternate channel selectivity 98MHz ≥60 (+/400KHz,IHF) FM output Level 98MHz 1.8 to 2.2 Output DC offset 98MHz ≤3 RDS decode sensitivity , 4% 57KHz ≤32 DEVIATION 8200T...
  • Page 6 Play G06P01T1.PLY 42HZ- response(42-20KHz) 20KHZ signal Play G06P01T1.PLY, 1KHZ THD (1KHz) signal Play G06P01T1.PLY, 1KHZ Output Level 1.4±0.2 signal Play G06P01T1.PLY,1KHZ ≥65 signal(OFF RF) Play G06P01T1.PLY, 1KHZ sensitivity ≥80 signal Play G06P01T1.PLY, Channel Separation ≥60 1KHZ signal (OFF RF) 8200T...
  • Page 7 ±10 from AC voltage UL Operating Temperature ℃ 0 to +45 IR output voltage Level 2.8V to 3.5V IR accept input volaget 3 to 12 Range COAXIAL output Level 75 OHM loading 0.5 to 1 COAXIAL THD 1KHz ≤0.2 8200T...

  • Page 8: Assembly Sketch

    ASSEMBLY SKETCH 8200T...

  • Page 9: Schematic Diagram

    SCHEMATIC DIAGRAM 8200T-Mainboard-P1/2 8200T...
  • Page 10 SCHEMATIC DIAGRAM 8200T-Mainboard-P2/2 8200T...

  • Page 11: Schematic Diagram

    SCHEMATIC DIAGRAM 8200T Front Board-P1/1 8200T...

  • Page 12: Wir Ng Di Gram I A

    WIRING DIAGRAM 8200T Wiring Diagram-P1/1 8200T...

  • Page 13: Silk Screen Of Top / Bottom

    SILK SCREEN OF BOTTOM 8200T-MainBoard Top Silkscreeen-P1/1 8200T...
  • Page 14 SILK SCREEN OF BOTTOM 8200T Voltage Convert Silkscreeen-P1/1 8200T...
  • Page 15 SILK SCREEN OF BOTTOM 8200T Front Board Top Silkscreeen-P1/1 8200T...

  • Page 16: Silk Screen Of Top / Bottom

    SILK SCREEN OF BOTTOM 8200T Front Board Bottom Silkscreeen-P1/1 8200T...

  • Page 17: Maintenance Alignment Procedure

    MAINTENANCE ALIGNMENT PROCEDURE 8200T -Ageing test step-P1/1 1.Device connecting & setting 1):Plug the ageing test special power supply to the power socket on the rear panel of the unit. 2):Plug the Antenna of tuner in the jack of rear panel;...

  • Page 18: Assembly Parts List

    19 534-3002060021R Plastic screw M3*6 20 053-1020410152R POWER PCBA POWER PCBA 21 500-6010500300AR 22 513-6412150780R Washer 6.4*12*1.5 23 022-2000042360R Power transformer AUDIO LAB 8200T 24 231-2087007100R Transformer Washer Φ68 25 263-0020100102R 20*10*10 26 588-3000086037R Screw M3*8 27 226-1550830331R Feet Φ23*Φ19*13...
  • Page 19 ASSEMBLY PARTS LIST 8200T-Assembly Bom-P2/2 PART NAME DESCRIPTION 34 215-1027410000R Power Button painted 35 243-1009410000R Plastic Washer Φ6*Φ9*6.5*18 36 574-3002100803AR Knob paited Φ38 37 206-1020410000R Display Window Glass 34*93*1.5 PMMA 38 111-0100183000R Double-sideTape1 34*93*0.12 39 206-2024000001R IR Display Window D12*2.5...

  • Page 20: Electronic Parts List

    3PIN PH=3.96MM L=150MM 23 055-0403015111R Terminal Wire Blue and Brown 24 071-3200000000R Tie Wrap Black 200*2.2MM 25 088-1030414001R 8200T PCBA 8200T Front PCBA 26 056-4120001144R Male Connector 20PIN 2.54MM Verical PCB Hole Size 2.5mm，PCB 27 271-0260000000R PCB Bracket PH=6mm 28 271-0060000000R...
  • Page 21 ELECTRONIC PARTS LIST 8200T - Electronic Bom -P2/6 PART NAME DESCRIPTION LOCATION QTY BTC-2002K-GDWD-G-B- 29 030-6121000000-1R LCD Display A01,20*2 Black Background LCD1 and White Word，DFSTN PH=2.5MM Double 30 057-2541222161R Connector LCD1 Row16PIN 31 039-3000000000R Switch TC-17XA 7.8*7.8*5 ROHS S1-S12 2*13PIN PH=2 。 54MM...
  • Page 22 Transistor Q12,Q11 R67~76,R78 RES 4.7K OHM 1/10W 1% ~80,R83.R84 60 002-4702021010R Resistor 0603 R85,R86,R87 ,R91~93 8200T Front PCB 2-Layer 61 053-103041A048R Front PCB FR4 1.6mm 1OZ 62 002-8201032010R Resistor 820Ω 1/8W 1% 0805 R131 63 002-1502032010R Resistor 1.5K 1/8W 1%...
  • Page 23 ELECTRONIC PARTS LIST 8200T - Electronic Bom -P4/6 PART NAME DESCRIPTION LOCATION QTY 87 071-0010000002R Wire Holder Producion TYPE:MWS-7 88 604-1020410000R Radiator 8200T IC9~13 Metal Film Registor 22K 89 001-2203205010R Resistor 1/4W F 5K 25% BOURNS 90 020-5022121317R potentiometer 3329H-1-502LF...
  • Page 24 ELECTRONIC PARTS LIST 8200T - Electronic Bom -P5/6 PART NAME DESCRIPTION LOCATION QTY R7,R8,R47,R 48,R51,R52, 114 002-1000011010R Resistor 10K 1% 0603 50V R100,R160,R 158,R161,R1 52,R151 R49,R97,R14 115 002-1201032010R Resistor 120Ω 1/8W 1% 0805 R33~36,R14 116 002-1802011010R Resistor 0603 1.8K F 1/16W...

  • Page 25: Electronic Parts List

    143 002-2200032050R Resistor 22R 1/8W 0805 5% R145,R156 R11,R12,R88 RES 4.7K OHM 1/10W 1% 144 002-4702021010R Resistor ,R89,R157,R 0603 8200T Main PCB 2-LayerFR4 145 053-103041A000R Main PCB 1.6mm1OZ 146 088-1020410400R 8200T PCBA Voltage Convertion PCBA AUDIOLAB8200CD/T Voltage Voltage Convertion 147 053-1020410104R Convertion PCB 1-Layer FR4 1.6MM...
