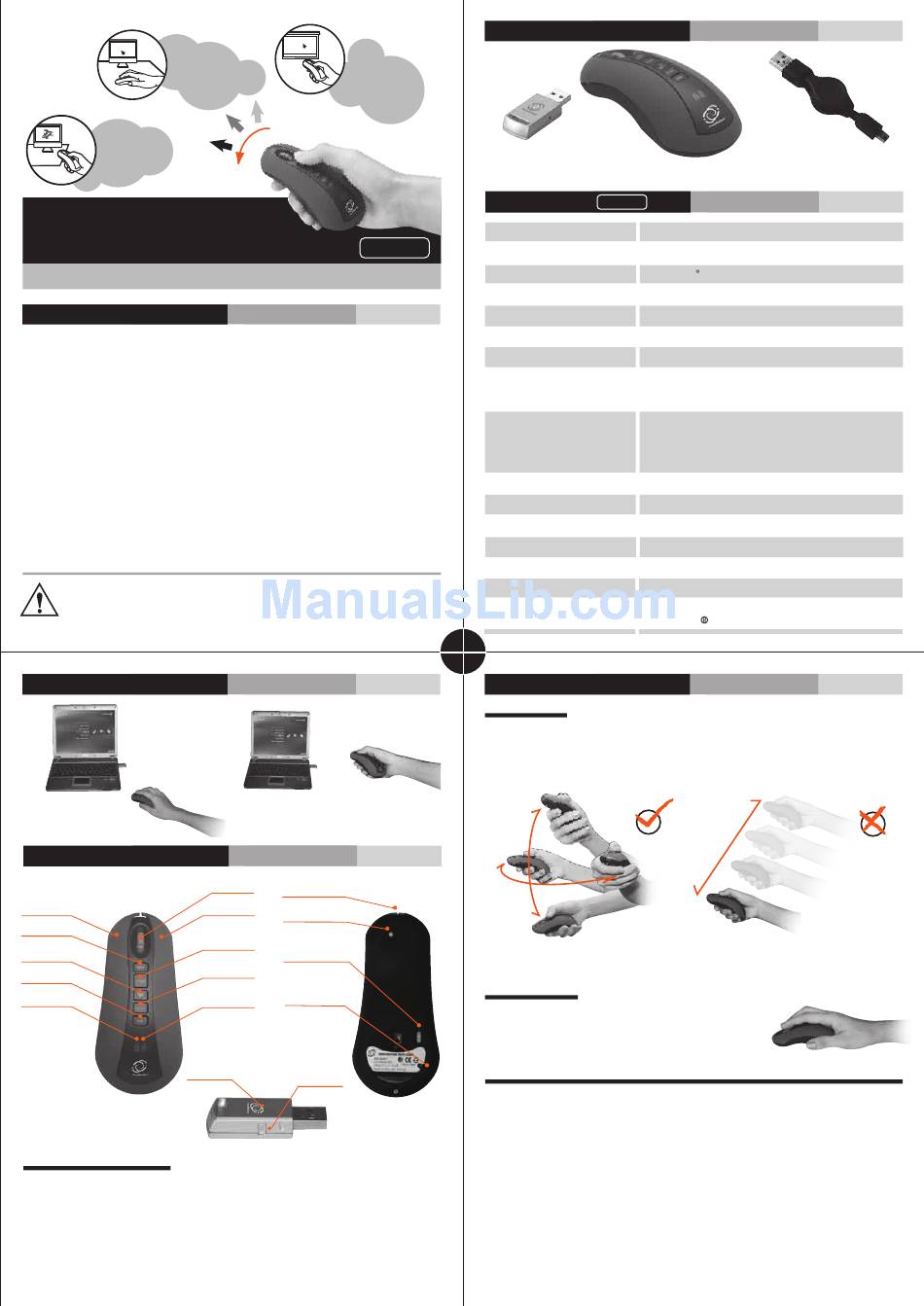

Omni Motion WM001 User Manual

Desktop
Cursor Control
Game Device
Rechargeable
Wireless Air Mouse
User Manual
Brief
The Rechargeable Wireless Air Mouse WM001 is a multiple-axes hand-held pointing
device for computer. It is able to transform the space movement of the human hand in
the air into an accurate displacement of the screen pointer. Its movement detection
technology relies on a multi-axes motion detector encapsulated in the device that
analyze the rotation of the wrist or elbow. In conclusion, this is the perfect device to
control the accurate movement of a screen pointer in an intuitive way.
Limiting within 10 meters communication range, users can control the mouse pointer
intheair shown in the screen in freely roaming once they push the start button. Besides,
the device is also equipped with four multimedia buttons whose function can be
user-defined according to his usual practice just like a remote controller(Driver
together). In addition, the device acts as a normal wireless mouse when it is put on the
flat desk surface. Moreover, a rechargeable battery through USB port assures its power
autonomy.
While WingMouse is used at first, you should charge battery to be full (about 4 hours, the charge
LED changed from Red color to Green color), then you also have to make the positioning process
at first usage after battery charged fully (refer to user manual on Special Operations section of
page 5 for positioning procedure.)
Install
(Figure Description)
On the desk
Functions
Top
Left button
Backspace
Left button
End button
Battery Low LED
LED for RF
connection
Buttons Functions
1. Mouse buttons and Scroll wheel have similar functions as the standard mouse.
2. Push the 'BACK' button for previous operation.
3. Push the 'SEL' button just like using the mouse Left button (Holding START and
SEL buttons simultaneously allows for mouse drag function)
4. Push the 'PLAY' button for multimedia play and pause functions.
5. Push the 'END' button to close the last-layer window.
Teaching,
Presentation
WM001
Patent:M324249
In the air
Roller
USB charge port
Right button
Touch switch
Start button
Power Switch
Play button
Connection
button
Charge LED
Connection
button
Package
Dongle
Specification
Product Name
Motion Detector
Sensor Resolution
PN Code/Channel
Wireless Communication Range
Modulation
Transmission Frequency
Receiver Interface/Battery
Charge Pattern
Battery Life
Output
Operation Voltage
Operation Current
Human-Oriented Interface
Mechanical Size
Weight
Support OS
1 2
3 4
Operations
In the air
The pointing apparatus is able to control the mouse cursor corresponding to the arbitrary
planar of the human hand. It detects the movement of the wrist or elbow, as shown in the
Left Figure. If there is only a linear motion in the air, the rotation sensor of the mouse will
give no output and the mouse cursor almost stops moving, as shown in the Right Figure.
Buttom
Note:It is normal that the cursor of mouse will jump sometimes, because the shaking of
the hand will accumulate the input
On the desk
The mouse can be used on the desk. A touch switch on the
lower part of the mouse triggers the optical sensor, which
allows working on the table.
Rechargeable Wireless Air Mouse and Dongle (RF receiver) setup
1. Plug in the Dongle to the USB port of the PC, then wait about 30~60 seconds for the
first.time.
2. Turn on the Power Switch on the back of the Wireless Air Mouse.
3. Hold the START button to run the mouse cursor control by Gyro sensor in the air, or
push function buttons to test RF communication
skip Step 4 and Step 5)
4.
Push and then release CONNECTION button (Con.) of the Dongle, and the RED LED
of the Dongle glimmers.
5.
When the red led of the Dongle is flashing, use a pencil to push and then release
ONNECTION button under the back of the Wireless Air Mouse until the Dongle RED
LED is OFF and the GREEN LED is ON. Then again test the function as described in
(3), if the mouse still can not work, please repeat step (4) and (5) again.
Rechargeable Wireless Air Mouse
WM001
Rechargeable Wireless Air Mouse
Gyro or Optical
Gyro 0.15 /s ; Optical 800DPI
64/36 sets
about 30 m
DSSS
CH01:2406MHz, CH02:2434MHz, CH03:2466MHz
USB Port
Rechargeable battery fully,
air mouse about 8 days each day working 2 hrs,
or desk mouse about 6 days each day working 5 hrs
84mW
Mouse 3V / Receiver 5V
Mouse 28mA / Receiver 37mA
Bettery status LED indicator
56(W) x 38(H)x 120 (L)mm
73g
．Windows 7 ． Windows Vista™ USB Port ．PS3
．Windows XP ．Mac OS X ．Linux ．XBOX
(if this step is workable, you should
Retractable USB Cable
