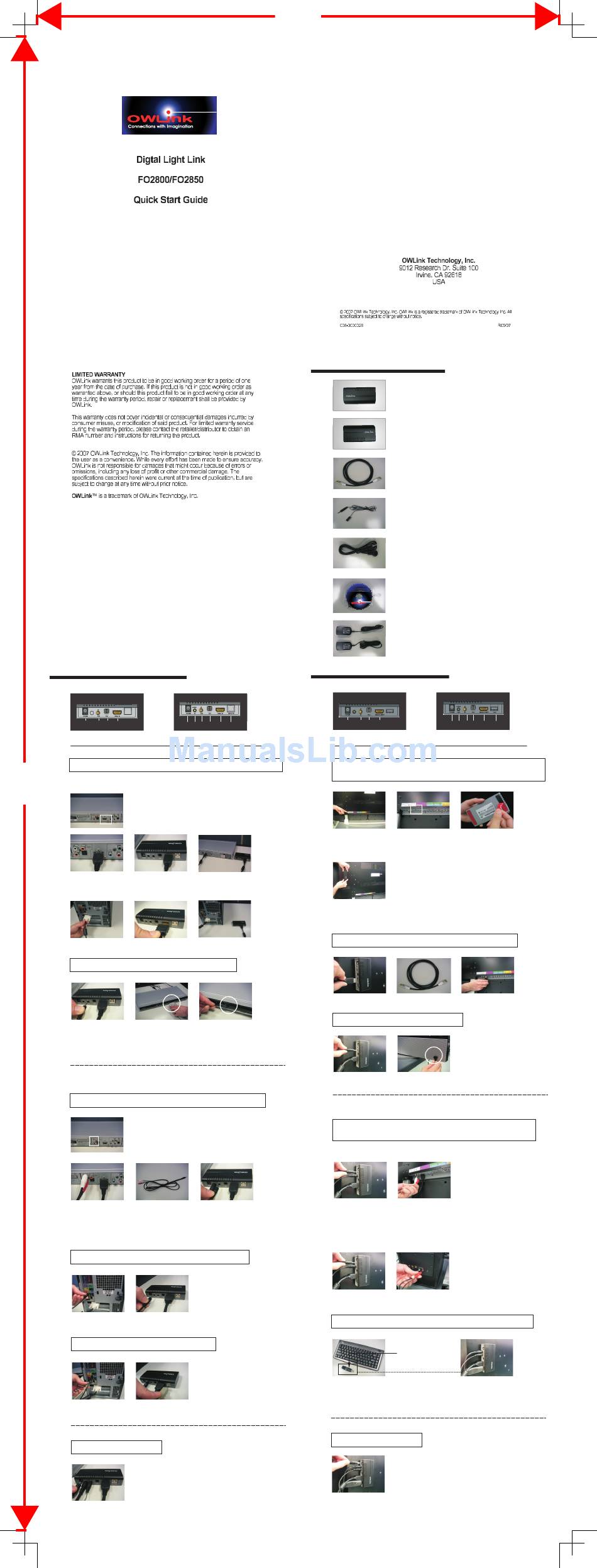

OWLink FO2800 Quick Start Manual

TX (Transmitter) Installation
OWLink FO 2800 TX
Power IR DLI HDMI
Power
OUT IN
STEP 1: Connect Video Source to FO 2800 TX/ FO 2850 TX
1-A: Connect DVD, STB, Video Game Box to TX
DVD player video source
Connect HDMI to DVD
Connect HDMI to FO 2800 or FO 2850 TX
1-B: Connect PC to TX
Connect DVI to PC Connect PC to FO 2800 or FO 2850 TX using DVI to
HDMI cable
STEP 2: Connect IR emitter to source device
Connect IR emitter to Locate IR sensor on DVD
FO 2800 TX / FO 2850 TX or other source device
(* You may use the remote
control to locate the IR
sensor )
(Option: for FO 2850 only)
STEP 3: Connect Stereo Audio source to FO 2850 TX
DVD player Stereo Audio source
Connect stereo audio cable
Stereo (red / white)to mini
to DVD or other audio source
jack cable
(not provided)
* Note: Audio source does not need to be the same as video source ex; iPOD, XM radio
STEP 4: Connect PC Stereo Audio to FO 2850 TX
Connect stereo audio Connect PC audio to FO 2850 TX
cable to PC using stereo 3.5mm mini to mini
cable
STEP 5: Connect PC USB to FO 2850 TX
Connect USB cable to PC Connect USB cable to FO 2850 TX
STEP 6: Connect power
Connect power to FO 2800/ FO 2850
210mm
OWLink FO 2850 TX
Audio IR DLI HDMI USB to PC
IN OUT IN
Stick IR emitter on DVD
or other source device
sensor
Connect audio source to
FO 2850 TX using stereo
mini jack cable
Checking supplied items
FO 2800 TX / FO 2850
FO 2800 RX / FO 2850 RX (Receiver)
2 OWLink HDMI to HDMI Cables
IR Emitter
IR Sensor
Transparent Fiber Optic Cable (30M) / spool
Connections with imagination
2 Power Adapters
RX (Receiver) Installation
OWLink FO 2800 RX
Power DLI HDMI to
IR
HDTV
IN
STEP 1: Locate and Secure FO 2800 RX/ FO 2850 RX to
the back of HDTV
Locate the HDMI IN
HDMI IN connector on the
connector on the back
back of HDTV
of HDTV
Place RX near HDMI IN
connector and secure TX
by using sticker or velcro
STEP 2: Connect FO 2800 RX/ FO 2850 RX to HDTV
Connect FO 2800 RX/ FO 2850 RX to HDTV by using OWLInk 50 cm HDMI to HDMI cable
STEP 3: Connect IR sensor to HDTV
Connect IR sensor to
Stick IR sensor on front of
FO 2800 RX / FO 2850 RX
HDTV
(Option: for FO 2850 only)
STEP 4: Connect FO 2850 RX Stereo Audio output to
speaker system
4-A: Connect FO 2850 RX stereo audio output to HDTV
Connect audio cable to Connect audio cable to
FO 2850 RX HDTV stereo audio input
4-B: Connect FO 2850 RX stereo audio output to PC Speaker
system
Connect audio cable to Connect audio cable to
FO 2850 RX PC speaker stereo audio input
STEP 5: Connect FO 2850 RX to USB Keyboard /Mouse
Wireless USB adapter
Wireless USB Keyboard/ Mouse
*
Note: A Wired USB keyboard or mouse can also be used
STEP 6: Connect power
Connect power to FO 2800 RX / FO 2850 RX
TX (Transmitter)
OWLink FO 2850 RX
Power Audio DLI HDMI to
IR K/M
OUT HDTV
IN
Peel off the protection
backing from the mounting
tape on the back of
FO 2800 RX /FO 2850 RX
Connect wireless USB adapter
to FO 2850 RX
