HANDLEIDING – MANUAL – MANUEL – ANLEITUNG

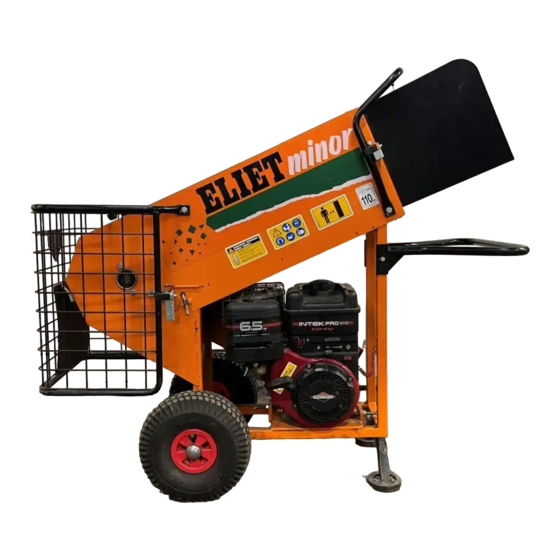

Minor
HAKSELAAR
SHREDDER
BROYEUR
HÄKSLER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Minor and is the answer not in the manual?

Questions and answers

Related Manuals for Eliet Minor

Summary of Contents for Eliet Minor

  • Page 1 HANDLEIDING – MANUAL – MANUEL – ANLEITUNG Minor HAKSELAAR SHREDDER BROYEUR HÄKSLER...

  • Page 2: Introduction

    1. Introduction 1.1 Read the operating instructions Eliet machines have been designed for safe and reliable use as long as they are operated in accordance with the instructions described. Carefully read the operating instructions before using the machine. Failure to do so can result in personal injury or damage to the equipment.

  • Page 3: Welcome

    3. Welcome Welcome to the family of ELIET customers. We would like to thank you for the trust you have shown in ELIET and we are convinced that you have purchased the very best machine. The operating life of your ELIET machine is determined by the way in which you look after your machine.

  • Page 4: Table Of Contents

    4. Table of contents 1. Introduction ..........................43 1.1 Read the operating instructions ........................43 1.2 Identification details - Minor ..........................43 2. Guarantee ............................43 2.1 Guarantee card................................ 43 3. Welcome............................44 4. Table of contents ...........................45 5. Safety signs............................46 5.1 For information ............................... 46 5.2 Caution ..................................

  • Page 5: Safety Signs

    5. Safety signs A number of symbols are included in the manual to provide additional information and point out any hazards. 5.1 For information For information: This symbol is used to draw your attention to special information and/or actions or it indicates further information on the subject in question can be found elsewhere.

  • Page 6: Main Parts

    6. Main parts In order to fully understand the content of this manual it is important to familiarise yourself with the terminology used in the descriptions. This chapter refers to a series of parts and lists them by name. It is advisable to thoroughly examine the machine beforehand in order to obtain a better insight into the descriptions which have been included in this manual.

  • Page 7: Engines

    For information: Your ELIET dealer is at your disposal, ready to provide you with maintenance or advice so that your ELIET machine always remains in the best possible condition. You can contact him for genuine ELIET service parts and lubricants.

  • Page 8: Safety Regulations

    7. Safety regulations 7.1 Safety announcements This sticker is attached to the safety net and warns against the danger of injury to hands. The screen on the shredding chamber should only be opened once the knives have come to a complete standstill.
  • Page 9 This sticker is attached to the machine at engine height. This sticker reminds the operator to switch off the engine and release the spark plug cap before carrying out maintenance on the machine. This sticker is attached in the input opening. The sticker emphatically points out the risk of injury to hands which is inherent in wood shredding.

  • Page 10: Safety Precautions

    Belt guard : The guard ensures that the rotating parts which could cause injury are sufficiently guarded. Safety kit : With regard to your safety ELIET strongly recommends the use of the supplied safety kit. This kit consists of safety glasses, ear...

  • Page 11: General Safety Regulations

    The machine must therefore be used for these applications only. * The maximum branch diameter as prescribed by ELIET for this model is 40 mm. In the interest of your own safety, this diameter should not be exceeded.
  • Page 12 * When leaving the machine, the engine must be switched off. * When parts are to be replaced as a result of wear or failure, always contact your ELIET dealer for orginal ELIET spare parts. This is important in the interest of your own safety.

  • Page 13: Dealer Tasks

    * The dealer adjusts the belt tension in accordance with the description in the maintenance section of this instruction manual. Each ELIET dealer is responsible for the long operating life of the ELIET machine. He will lubricate all hinge points of the machine again before delivering the machine to the customer.

  • Page 14: Operating Instructions

    9. Operating instructions 9.1 Preliminary checks Caution: Before using the machine, it is recommended to make a habit of checking the following points. 9.1.1 Checklist 1. Check whether there is sufficient oil in the machine. To this end, remove the dipstick and check the oil level has not dropped below the minimum level.

  • Page 15: Refuelling

    * Only use fresh petrol. For environmental reasons, ELIET recommends the use of unleaded petrol. Additives may be added in order to extend the freshness life.

  • Page 16: Preparation Of The Working Area

    9.3 Preparation of the working area * The location where the machine is to be used must first be tidied up. The sources of supply for pruning materials should also be cleared to prevent the operator from tripping. The operator must also ensure that his safety is not compromised. * The machine should not be used if it is on a slope (forward or side slope).

  • Page 17: Starting The Engine

    9.4 Starting the engine Caution: Never start the machine if there is dust or dirt on the engine or between the cooling fins of the engine This prevents optimal cooling of the engine and more importantly can cause fire. Warning: The drive shaft for the blades is directly driven by the engine.
  • Page 18 Warning: Before starting up the machine, be sure to wear the supplied ear defenders. Start the engine by pulling strongly on the starter cord. • • Once the engine is running, quickly move the choke lever to OPEN. This to prevent the engine being flooded with petrol. If this action is omitted, the motor will slow down and will start to smoke fiercely.

  • Page 19: Working With The Machine

    9.5 Working with the machine Caution: CAUTION As long as the engine has not completely stopped after it has been switched OFF, the blades continue to rotate. Consequently, do not perform any maintenance work whilst the blades are still rotating. Warning: Guards offer protection against rotating parts.
  • Page 20 If only a small volume of leaves is to be processed, they can easily be shredded • using the standard screen. However, in this case, ELIET recommends that leaves and branches should be shredded alternately. The wood chips will prevent the screen openings from becoming blocked.
  • Page 21 9.5.3 After switching off the engine The engine may cut out due to overloading, wood being fed in too quickly or lack of petrol. It is not possible to keep on restarting it. The following operations should be carried out: 1.

  • Page 22: Stopping The Engine

    9.6 Stopping the engine RAISING SAFETY NET = ENGINE SWITCHED OFF 9.6.1 Petrol engine To stop the engine, move the throttle (control lever) or turn the knob to the OFF • position. • The machine can also be switched OFF by moving the emergency stop lever backwards.

  • Page 23: After The Work Has Finished

    9.7 After the work has finished 9.7.1 Cleaning the machine Not cleaning the machine will speed up the wearing process. If the machine no • longer operates at its best, the safety of the user is compromised. Adverse effects of not cleaning: 1.

  • Page 24: Transporting The Machine

    10. Transporting the machine * The shredding chamber must be empty before the machine can be moved. The input opening should not contain any branches. * If the machine is moved (more than 5 m), the engine should always be switched OFF. * Only adults may move or transport the machine.
  • Page 25 * The maximum allowable sideways gradient for the shredder is 10°. * During transport never tilt the shredder by more than 12° because this could cause the machine to topple over.

  • Page 26: Maintenance

    ELIET dealer for a complete inspection. * Your ELIET dealer is always at your disposal for maintenance and advice. He has genuine ELIET service parts and lubricants in stock. His personnel can always obtain advice and service from ELIET, so that they can provide you with an impeccable after- sales service.

  • Page 27: Maintenance Schedule

    11.2 Maintenance schedule Detailed maintenance after 20 working hours Routine check before every job. Description Visual inspection of machine condition § 11.4.1 Checking oil level in engine § 11.4.2 Cleaning the air filter § 11.4.3 Sharpening the blades § 11.4.4 Checking the belt tension §...

  • Page 28: Lubricants

    If abnormalities can be established, the necessary repair work should be carried out. Check whether the machine is running at the prescribed speed (3200 rpm) (a revolution counter can be obtained from your ELIET dealer). Never attempt to change the standard setting of the engine.

  • Page 29: Sharpening The Blades

    The paper filter type can only be cleaned by dusting it off or by blowing • compressed air through it. Once cleaned, all items should be reassembled in their original position. • Caution: If the machine accidentally falls over, it should be placed upright again as soon as possible.

  • Page 30: Checking The Belt Tension

    When sharpening, rub the grindstone or the angle grinder along the bevelled • cutting edge. Ensure the cutting edge keeps the same angle. The top of the blade endures the heaviest load during shredding. This should therefore be sharpened as little as possible so that it is not weakened. Correct and timely sharpening of the blades will extend their operating life For information: As soon as the top of the...

  • Page 31: Maintenance After 20 Operating Hours

    Refit and tighten the plug into the drain. Use a clean cloth to wipe away any spilt • oil. Refill the engine with new four-stroke oil. For this purpose ELIET recommends a • top quality oil with a high detergent content : SUNOCO DENALUBE SAE 20W50 API SF / CC.

  • Page 32: Checking Or Changing The Spark Plug

    11.5.2 Checking or changing the spark plug ELIET recommends the following makes of spark plug. B&S Vanguard 6 pk Champion QC 12 YC B&S Intek Pro 6.5 pk Champion QC 12 YC Honda GC 160 5 pk NGK BPR 6 ES Honda GX 160 5.5 pk...

  • Page 33: General Lubrication

    11.5.4 General lubrication ELIET feels it is important to use high-quality materials because these will prolong the life of the machines which are sometimes used in rather extreme working conditions. Special lubricants have therefore already been used in the factory. ELIET also...

  • Page 34: Adjusting The Belt Tension

    11.5.5 Adjusting the belt tension Caution: The engine should always be switched off and the spark plug cap should be disconnected when adjusting the belt tension. • To adjust the belt tension, remove the guard. To this end, remove the four M6 bolts (without nuts).
  • Page 35 11.5.6 Reversing and replacing the blades Warning: Wear gloves because the blades are razor-sharp! • If the blades are sharpened regularly, a tool life in excess of 50 hours per cutting edge is guaranteed. • When one cutting edge has been used-up, the blade may be turned so it can be used for another 50 operating hours.
  • Page 36 • When replacing the blades, the nuts and bolts should be replaced at the same time. Your ELIET dealer always has new blades in stock. • Once the blades have been disassembled, remove the dirt which is stuck between the two plate halves before reassembling the blade.

  • Page 37: Storing The Machine

    Always allow the engine to cool down before storage. • If the machine is to be stored outside, it must be well protected with tarpaulin. • Ensure water does not directly fall onto the machine. ELIET strongly recommends the machine is stored in a sheltered location.

  • Page 38: Technical Information

    13. Technical information Max. branch diameter ................................40 mm Capacity..........................16 wheelbarrows of chips per hour Dimensions..............................1250 x 520 x 1100 mm Input opening ................................220 x 300 mm Input height .....................................750 mm Transport wheels.............................Pneumatic tyres 400 x 4 Total Weight....................................65 kg Drive shaft for blades........................

  • Page 39: Ce-Conformity Declaration

    ISO 11684 : Safety signs and hazard pictorials • The ELIET factory herewith declares they have carried out a risk analysis in order to find out the risks and hazards of the machine. In the light of this, the necessary precautions have been taken in accordance with machine guideline 89/392/EEG to guarantee the complete safety of the operator when the machine is used correctly.

  • Page 40: Parts List

    15. Parts list To order parts, the following numbers must be stated. 40.040 + number as stated in list below. Rubber shoe Plastic pinion Balance base Safety net Bolt Rubber buffer block Pinion V-Belt XPA 1600 Bolt tightening screw Blade shaft pulley Steering handle Pop rivet Bolt...
  • Page 41 To order parts for the drive shaft for the blades, the following numbers should be stated: 40.041 + number as stated in list below. Drive shaft for blades Bolt Blade...
