Summary of Contents for Ascendent FLEX-37X-IR

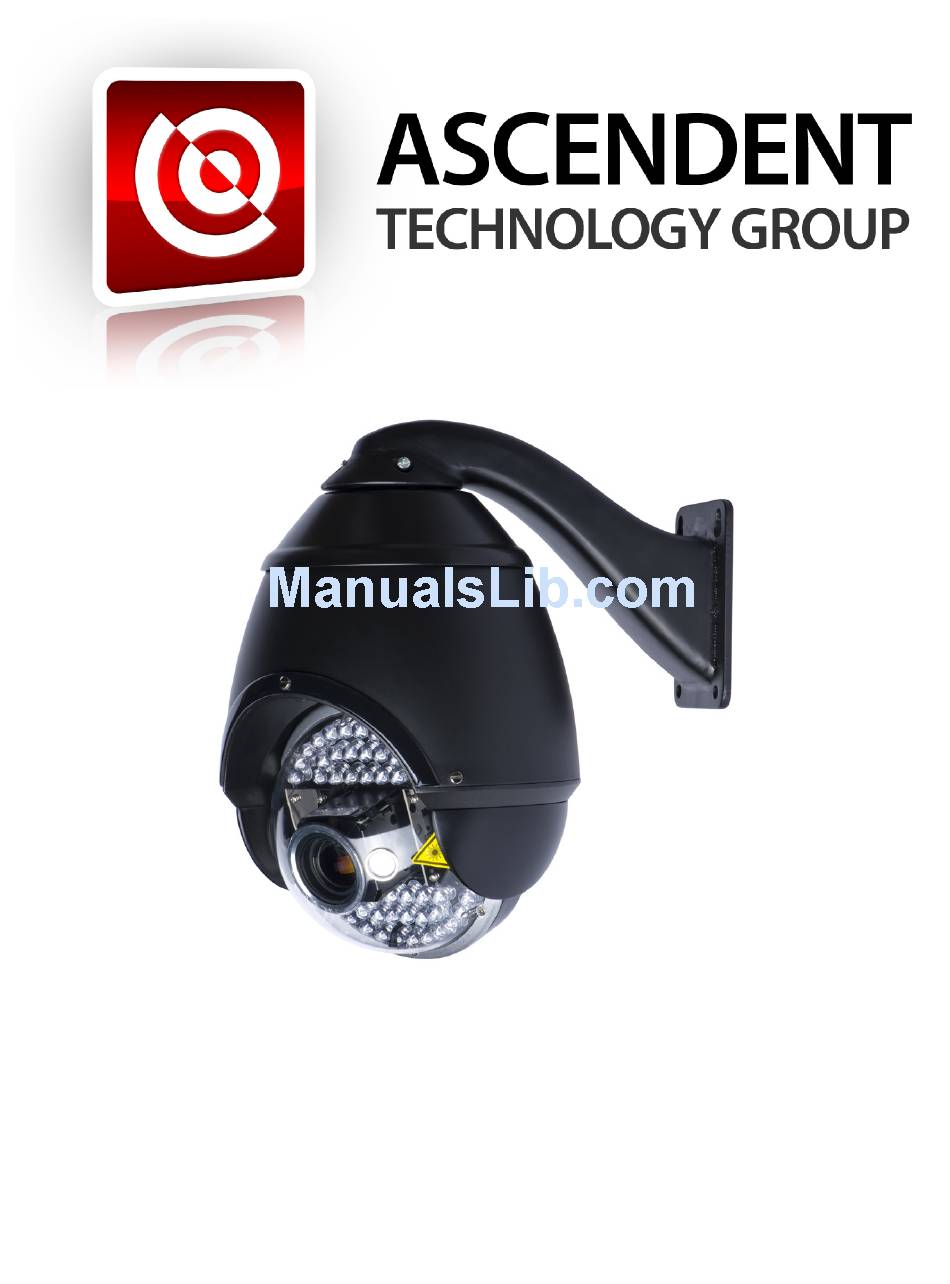

- Page 1 FLEX-37X-IR User's Guide...
- Page 3 Thank you for choosing Ascendent's FLEX series PTZ camera. Please read this manual carefully before you begin using your PTZ and retain it for future reference. Always refer to this manual before attempting to configure your PTZ camera. Features: – Pan Speed: 0.1º~220º/sec –...
- Page 4 Binary Code List The 9~10 digits of the dial codes are used to set the baud rate. You can choose 2400bps / 4800bps / 9600bps /19200bps. Set both "9" and "10" to be "ON": the value is "1", both "OFF": the value is "0" Baud rate and dial codes switch matching sheet Please set this baud rate according to the communication baud rate of any controlling equipment.
-
Page 5: Camera Setup
Camera Setup Install PTZ camera to a secure place ensuring no movement. Connect the BNC video output to a monitor or DVR. Connect the RS485 control to a joystick keyboard or other controlling device. Lastly, connect the 12VDC/5A power supply to the PTZ camera. - Page 6 route. The camera will auto scan according to your set order. This PTZ can set 8 cruise routes with a maximum of 16 preset positions per route. Call automatic cruise route Control the machine through joystick keyboard or DVR. Calling preset 41 will make the camera execute cruise route No.
- Page 7 Reset factory settings To restore your PTZ to factory defaults call preset 40. a. Press "set" b. Enter number "40" c. Press "enter" Camera menu setting Basic operation a. Using controlling keyboard / DVR, press "iris" to open main menu b.
