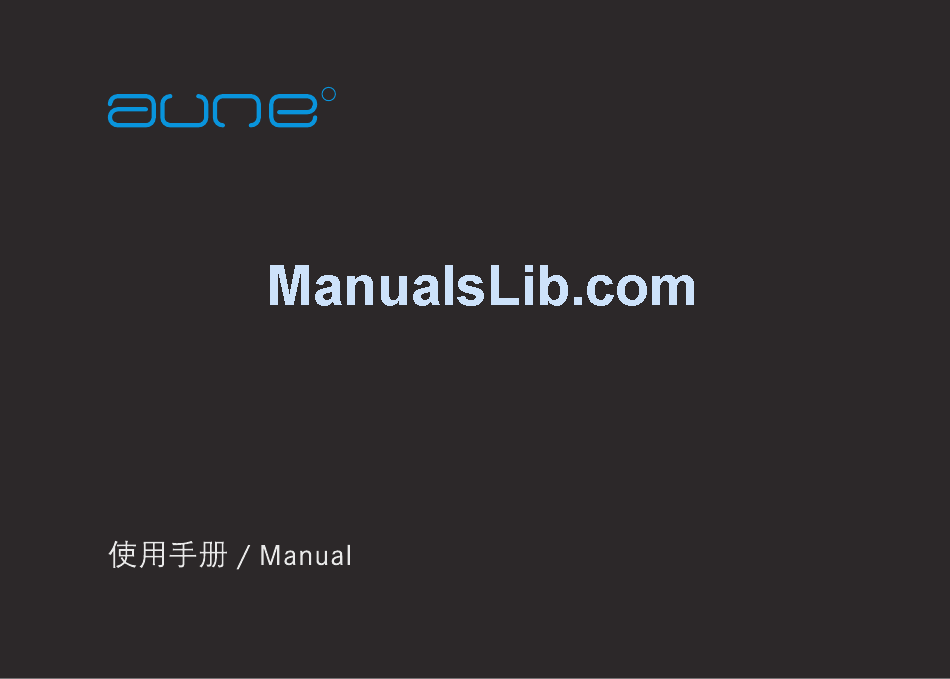

- Page 1 数字音频解码耳放一体机 An integral digital audio DAC headphone amplifier...
-
Page 2: Dear Customers
Preface Dear customers: Thank very much for buying S16 audio DAC of aune company. It really makes us feel proud of your choice. Hopes that S16 audio DAC will bring experience of hi-fi music and happiness to you. You are suggested to read this user’s manual before you could use all functions of S16 digital audio DAC properly. - Page 3 View of front panel and name of each part TFT display screen Mute press button Power supply indicator Power supply press button Digital volume knob Output connection of headphone Selection of signal input Note Turn the knob clockwise or counterclockwise to control volume; press the knob for one second to select 8 modes of wave filtering. Press power supply button for two seconds to turn on power and use the same way to shut off power.
- Page 4 View of rear panel and name of each part Balance output AES digital input Analog L/R output USB output Coaxial input 110V/220V input Optical input...
-
Page 5: Specifications
Introduction Specifications S16 is developed, tested and modified in Input connection：AES/Coaxial/Optical/USB aune audio laboratory. USB2.0 input of Output connection：Analog L/R，analog balance S16 supports 24BIT/192K and DSD128 Headphone output connection：6.5mm headphone hole decoding and its coaxial input supports Output impedance of headphone amplifier：32-600 Ω... - Page 6 3.1 3.2 3.3 3.4 3.5 Operation introduction of display interface SLOW SD1 MUTE HP 50 SLOW SD2 SLOW LD1 SLOW LD2 SLOW SD SHARP SD1 SHARP SD2 a USB input Current input mode b AES digital input Input channel SHARP LD1 c Coaxial input Mute indication SHARP LD2...
- Page 7 Operation introduction of display interface HP 50 HP 50 HP 050 SLOW LD SLOW LD Power switch on back panel Non-memory function Resuming previous state after turning off DAC and POWER SLOW SD Playing DSD128 could be AES/COS optical only turning on it again Refer to illustration 2.7 of back panel on page 16 only supported through USB...
-
Page 8: Operation Introduction
S16 DAC from service and support page on website www.auneaudio.com. First, USB2.0 must be used to connect PC to S16 DAC. Then install drive program and use PC to play music. After that, connect headphone to headphone... - Page 9 Operation introduction Headphone application for turntable Please use coaxial or optical cable to connect digital turntable to S16 DAC and play music with it. Then, connect S16 headphone output to headphone, and control volume with volume knob on front panel, you could enjoy...
- Page 10 S16 DAC from service and support page on website www.auneaudio.com. First, USB2.0 must be used to connect PC to S16 DAC. Then install drive program and use PC to play music. After that, SPEAKER connect analog output of S16 to analog output of amplifier, and control...
- Page 11 Operation introduction Application for turntable audio system Please use digital coaxial or optical cable to connect turntable to S16 DAC and play music with it. Then, connect analog output of S16 to analog input of amplifier, and control volume of amplifier, you could listen to beautiful music finally.
- Page 12 . a. As for usage information for PC, please refer to guidance of service and support page on website of aune company. b. Please use USB2.0 connection cable.
