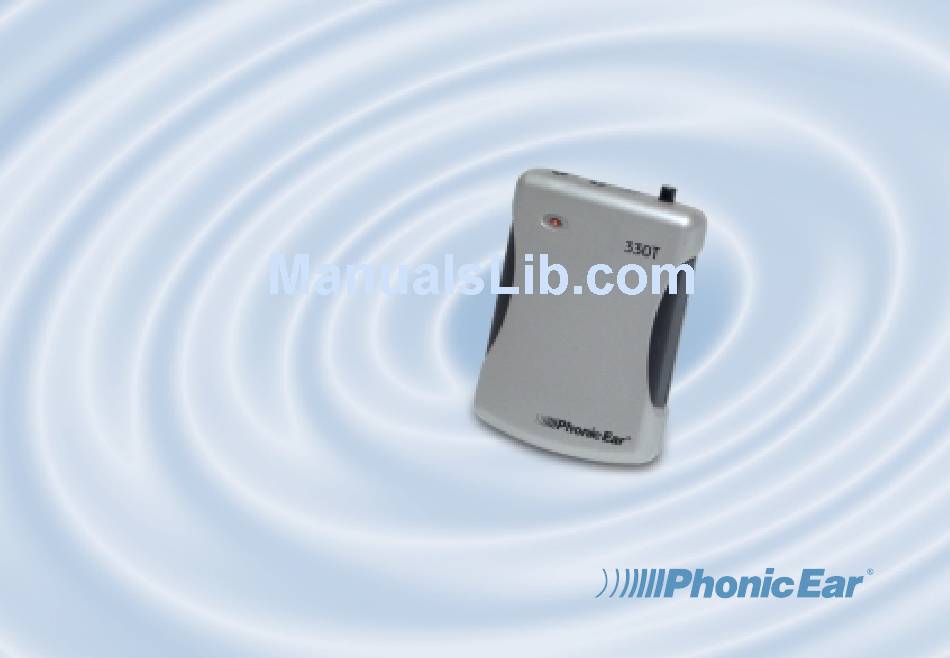

- Page 1 330T Transmitter 216MHz user guide...
-
Page 2: Table Of Contents
EasyListener 2 sound field system ..6-7 Phonic Ear channel numbers ..19-20 charging batteries using wall charger ..8 battery warnings ....21 wearing 330T . -
Page 3: 330T Transmitter Features
330T transmitter features front back... - Page 4 side channel number label belt clip serial number/part number/operating band battery compartment mute button ( off) charging input jack (1.3mm) on/off, low battery and charging indicator light auxiliary input jack (3.5mm) on = Dim red light low batt = Blinking red light indicates approximately 1 hour of battery life microphone input jack (2.5mm) remaining...
-
Page 5: 330T Available Accessories
330T available accessories... - Page 6 330T carrying case aux-in adaptor cord* (841-6440-101) (384-01-210-08) 3.5mm - 3.5mm connects 330T to external audio, CD player, stereo, computer, etc. rechargeable NiMH AAA batteries (374-30-310-09) aux-in adaptor cord* (300-6332-107) elastic belt 3.5mm - dual RCA connects 330T to external audio, TV, VCR, DVD (AT0712) antenna*...
-
Page 7: 330T Setup And Operation Inserting Batteries
330T setup and operation inserting batteries Open battery compartment door by pressing and sliding downwards. Insert rechargeable AAA NiMH batteries (or alkaline batteries) and replace door. Check polarity markings to confirm batteries are positioned correctly. NOTE: The 330T uses high performance NiMH (nickel-metal hydride) batteries. -
Page 8: Charging Batteries Using 230R
230R EasyListener 2 ™ sound field system Do NOT attempt to charge alkaline batteries in the 330T. Only Phonic Ear rechargeable batteries can be recharged. Push power button to turn 230R receiver off. NOTE: Sleep/standby power light on 230R receiver will remain lit during power off mode. -
Page 9: Charging Batteries Using 230R
230R EasyListener 2 ™ sound field system Do NOT attempt to charge alkaline batteries in the 330T. Only Phonic Ear rechargeable batteries can be recharged. Plug any end of 300-6497-105 charge cord (included with 230R system) into 330T charge/ jack. -
Page 10: Charging Batteries Using Wall Charger
Do NOT attempt to charge alkaline batteries in the 330T. Only Phonic Ear rechargeable batteries can be recharged. Switch 330T power to off (chg) position. Plug either end of AT0749 charging cord into charge jack on top of the 330T transmitter. -
Page 11: Wearing 330T
wearing 330T Clip to elastic belt (AT0712), pocket, pants or clothes. AT0712 Attach transmitter to necklace-style lavalier cord (AT0512-BK). AT0512-BK... -
Page 12: 330T Microphone Options
330T microphone options * Lapel style microphones are less resistant to feedback when used with a sound field system. AT0291-L* AT0814 AT0655 AT0816 lapel with lavalier earhook behind-the-neck collar cord boom ** Not recommended for use with sound field systems AT0164-L** AT0667-L** omni lapel with... -
Page 13: Plugging In Microphone And Using
plugging in microphone and using mute switch Plug microphone into jack on 330T unit. The microphone cord also acts as the antenna for the 330T. To ensure a consistent transmis- sion, keep the microphone cord as straight as possible. Position microphone approximately 3in/7.6cm from mouth. -
Page 14: Turning On 330T
turning on 330T Push power switch up to turn transmitter power on. Confirm red indicator light is on. indicator light features: = Dim red light low battery = Blinking red light indicates approximately 1 hour of battery life remaining battery charging = Bright red light improper charging = No light... -
Page 15: Verifying Channel Setting
verifying channel setting Locate channel number on back of receiver EXIS 330T transmitter. Confirm your receiver unit (L EXIS ISTENER or S ) is operating on ADIUM PRITE the same channel. ISTENER 230R NOTE: The 330T is available on 19 chan- 330T (back) nels in the 216MHz frequency. -
Page 16: Connecting Cd, Tv And Other Audio Sources
Using auxiliary inputs: connecting CD, TV and other audio sources The 330T auxiliary input jack (aux) allows AT0529A transmission of an external audio source such (antenna) as a CD player, TV, VCR, or computer. Plug external antenna (AT0529A) or any microphone into 330T jack. -
Page 17: Troubleshooting
No Sound Batteries NOT charging • verify the mute switch on the top of the unit • verify only Phonic Ear NiMH batteries are is in the off (up) position. being charged. 330T unit will not charge dis- posable alkaline or other rechargeable batteries. - Page 18 troubleshooting (cont’d) 330T won't turn on • lower the FM volume/gain control on the 2 or other receiver EXIS ISTENER • verify NiMH batteries are inserted properly and • turn O to medium, or low position fully charged OICE • have a sound professional adjust 3-band •...
-
Page 19: Caring For Your 330T
caring for your 330T cleaning Clean as needed, using a soft, damp cloth. Do not immerse in water storage Clean with a soft damp cloth and remove the batteries from the transmitter. Place the unit into the 841-6440-101 carrying case. other important notes •... -
Page 20: Product Specifications
product specifications transmitter: 330T transmitting 216MHz, Crystal Controlled (U.S./Canada) frequency modulation FM narrow-band operating range up to 50m/160ft user controls off/on; push button mute switch inputs/outputs 3.5mm auxiliary input jack 2.5mm microphone input jack 1.3mm charge jack battery life 15Hr (AAA alkaline) 12Hr (AAA NiMH) size ( 5.9 x 8.2 x 2.0 cm/2.3 x 3.3 x 0.8 in... -
Page 21: Frequencies And Corresponding Phonic Ear Channel Numbers
Phonic Ear channel numbers EasyListener 2 Lexis receiver frequency channel 330T Radium Sprite 230R • 216.0125 • 216.2125 • 216.2875 • 216.5875 • 216.7875 • 216.9125 • 216.9875 • • • • 216.025 • • • •... - Page 22 Phonic Ear channel numbers (cont’d) EasyListener 2 Lexis receiver frequency channel 330T Radium Sprite 230R • • • • • 216.525 • • • • 216.575 • • • • 216.625 • • • • • 216.675 •...
-
Page 23: Battery Warnings
battery warnings Caution • Remove all batteries when replacing. • Do not mix new and used batteries. • Do not mix alkaline and rechargeable batteries. • Remove batteries from the unit if the unit is not going to be used for an extended period of time, such as during summer break. -
Page 24: Product Warranty
product warranty time period of warranty what is not covered by this warranty This warranty will go into effect upon the This limited warranty does not apply to: date of purchase and will stay in effect as long 1. Malfunctions resulting from abuse, neglect as the instrument remains the property of or accident. - Page 25 (cont’d) Phonic Ear Inc. reserves the right to make changes in what to do if you need service the design or construction of any of its instruments at If you require service under the warranty terms, obtain a any time without incurring any obligation to make any service order form either online at www.phonicear.
- Page 26 Mississauga, Ontario in the 330T. Only NiMH batteries supplied by L5S 1E7 Canada Phonic Ear should be charged in the 330T. what to do if you have questions If you have any questions about service, call the service 800.227.0735, then press 7.
-
Page 27: Code Of Federal Regulations
code of federal regulations (United States only) transmitter IMPORTANT NOTE: To comply with FCC RF This transmitter is authorized by rule under the Low exposure compliance requirements, only use sup- Power Radio Service (47 C.F.R. Part 95) and must plied antenna that is sold with this transmitter. not cause harmful interference to TV reception or Use of any other antenna which has not been United States Navy SPASUR installations. -
Page 28: Regulatory Approvals
regulatory approvals The term "IC:" before the radio certification num- EasyListener 2 Transmitter 330T ber only signifies that Industry of Canada technical specifications were met. Tested to comply with FCC Standards FOR HOME OR OFFICE USE... - Page 29 800.227.0735, then press 5 • canada 800.263.8700 • international +45 3917 7101 © 2004 Phonic Ear Inc. Phonic Ear and the names of Phonic Ear products are trademarks or registered trademarks of Phonic Ear Inc. in the U.S. and other countries.
