  • Page 1: User Manual

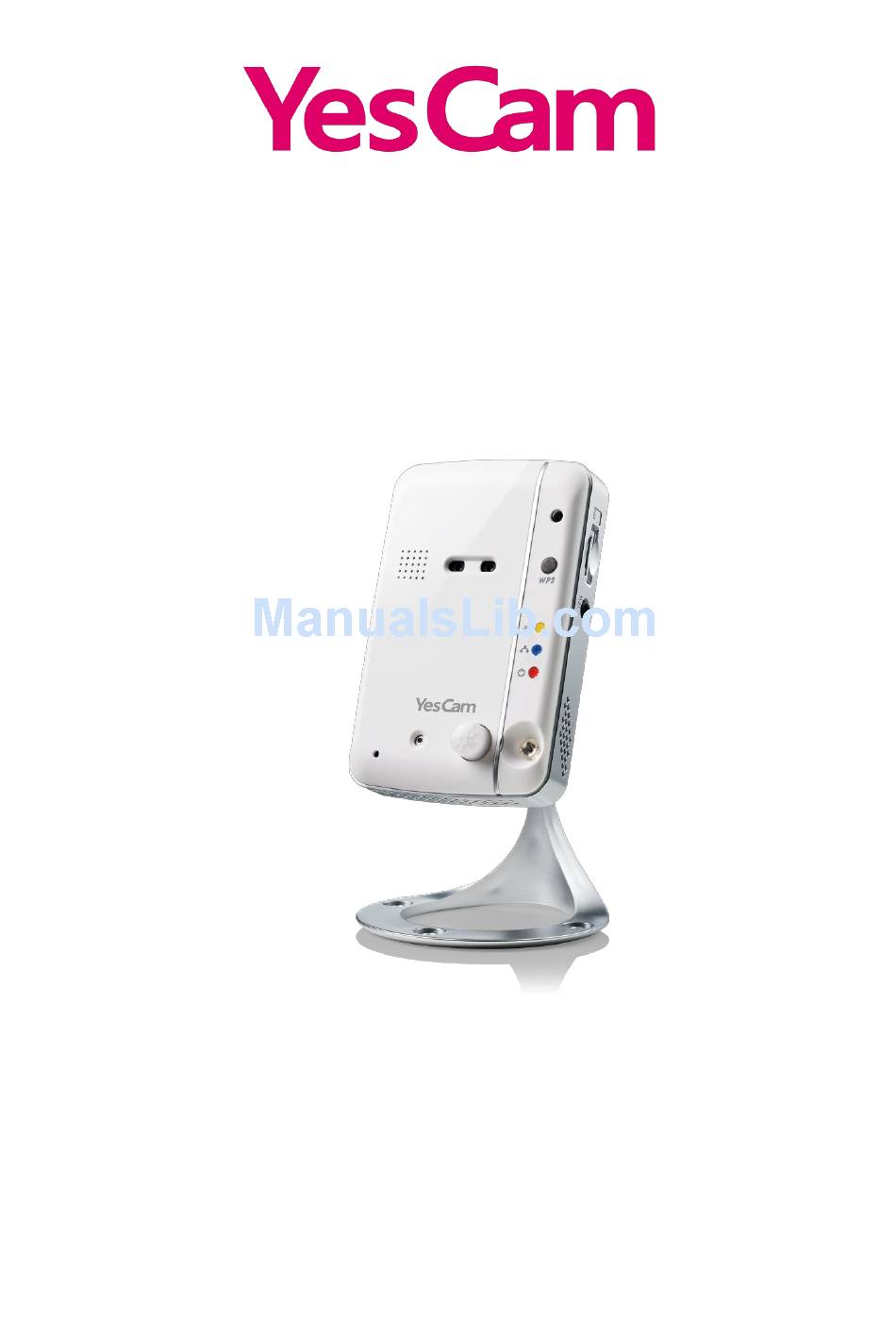

    Yes717 Dual Lens Mega-pixel IP Network Camera User Manual Date: 2015/01/21 For firmware version v030702...

  • Page 2: Table Of Contents

    Yes717 Dual-lens Mega-pixel IP Camera Table of Contents INTRODUCTION .......................... 6 HARDWARE DESCRIPTION AND QUICK INSTALLATION/USAGE ........ 8 2.1..................8 AJOR HARDWARE COMPONENTS 2.2..................10 UICK INSTALLATION AND USAGE 2.3. ) .......... 15 IRELESS CONNECTION IF ROUTER BUTTON 2.4.
  • Page 3 Yes717 Dual-lens Mega-pixel IP Camera APPENDIX C. PERFORMANCE INFORMATION ................. 56 APPENDIX D. TROUBLE SHOOTING .................... 58 APPENDIX E. THIRD PARTY AND EMBEDDED WEB PAGE INTEGRATION ....... 60 APPENDIX F. SNAPSHOT PICTURE ON ANY BROWSER ............61...
  • Page 4 Figure 2-8: Pop-up play-video password window Figure 2-9: Unplug the Ethernet cable to enable the WiFi function Figure 3-1: Open the web configuration page from YesCam View software Figure 3-2: IP CAM Web configuration login page Figure 3-3: IP CAM Information page...
  • Page 5 Yes717 Dual-lens Mega-pixel IP Camera Figure 3-28: System reboot under-going page Figure 3-29: Stick the reset button to set to the factory default Figure 5-1: The IP camera body Figure 5-2: Power Adaptor Figure 5-3: Quick installation guide Figure 5-4: Ethernet cable...

  • Page 6: Introduction

    Android mobiles/pads. The setup is truly 1-2-3 : 1. Connect the camera to the network 2. Download the app YesCam View into your iPhone/iPad or Android 3. View video by the camera ID/password The push notification is supported, so that you will get the notification from your iPhone/iPad and Android once there is any events detected through the PIR body sensor or sound detector on the camera, even when your mobile is on sleep mode.
  • Page 7 Yes717 Dual-lens Mega-pixel IP Camera environment of the camera. And you could setup the camera to trigger alarm when the environment temperature is out of a specified range. The IP camera is ideal for securing small businesses, home offices and residences.

  • Page 8: Hardware Description And Quick Installation/Usage

    Yes717 Dual-lens Mega-pixel IP Camera 2. Hardware description and quick installation/usage The IP CAM is designed to be very easy to install and use. First, let’s see the major components of the IP CAM products. 2.1. Major hardware components. The major components on the front panel of the IP CAM products are the followings : 1.
  • Page 9 Yes717 Dual-lens Mega-pixel IP Camera Figure 2-1: Major components in the front panel The major components on the back panel and bottom of the IP CAM products are the followings: 1. Bracket screw jack – this is the position to screw in the bracket of the IP CAM.

  • Page 10: Quick Installation And Usage

    1. Connect the IP CAM to the home/office network. 2. Install the YesCam View/app software on the notebook/PC/mobiles. 3. Key in the ID/password of the IP CAM(from the ID/Password card) on the YesCam View, and then you can see the video.
  • Page 11 “next” button to proceed with the installation. After the installation is complete, there will be a YesCam View icon on the desktop of your computer screen, please execute this icon. The YesCam View program will run...
  • Page 12 1. You can modify this play-video password by entering into the web configuration pages. Please refer to section 3.6 for more information. 2. You can also add the IP CAM into the CameraList in the YesCam View software to have more convenient video display, please refer to the user manual of the...
  • Page 13 All you need to do is add a camera item in the “CameraList” folder of the YesCam View software, key in the IP CAM ID and Password(from the ID/Password card). And then double click this camera item.
  • Page 14 Yes717 Dual-lens Mega-pixel IP Camera Figure 2-8: Pop-up play-video password window...

  • Page 15: Wireless Connection (If Router/Ap Has Wps Button)

    IP CAM is WEP(64 bits and 128 bits) and WPA-PSK(TKIP and AES). In most of the home/office WiFi environment, this is quite enough. The easiest way to set the WiFi settings on the IP CAM is through YesCam View software. Right-click the searched IP CAM in the “Auto Search” list and click the “Web Configure”...

  • Page 16: Push Notification

    Notice : 1. Please remember that the WiFi connection will use a different IP address, you will need to do the “Auto Search” function in the YesCam View again to find the IP CAM again after the WiFi is connected.
  • Page 17 Yes717 Dual-lens Mega-pixel IP Camera To enable the push notification, go to the settings page of the specific camera, choose “alarm notification”, key in the login account( default is “admin”, no password ), and enable the alarm condition( PIR, motion detection or sound detection) you want.

  • Page 18: Web Configurations

    You can login into the web configuration page by directly key-in the IP address of the IP CAM or right-click the searched IP CAM in the “Auto Search” list of the YesCam View software and click the “Web Configure” to open the login window of the IP CAM.

  • Page 19: Information

    The IP CAM can be viewed remotely by the YesCam View software only when the IP CAM is registered. If this IP CAM is not registered, please check the Ethernet wiring of your network environment.

  • Page 20: Network

    Yes717 Dual-lens Mega-pixel IP Camera 3.2. Network The Network page allows you to modify the network settings of the wired Ethernet. The default settings use DHCP to obtain an IP address automatically. In most of the home and office network environment, there is a DHCP server running. In this situation, by using this default settings, the IP CAM can work immediately in most of the time.
  • Page 21 Yes717 Dual-lens Mega-pixel IP Camera Figure 3-5: Network settings page for fixed IP address...

  • Page 22: Wifi Security

    Yes717 Dual-lens Mega-pixel IP Camera 3.3. WiFi security You can use the wireless to connect the IP CAM to the network. If your network environment has a 802.11 n router or AP running, you can check the “Enable WiFi function” button to use the wireless.
  • Page 23 Yes717 Dual-lens Mega-pixel IP Camera WPA2-PSK is also supported. But WPA Enterprise or WPA2 Enterprise is not supported. All the fields in this page must be filled correctly with the same settings the wireless router or AP using. Figure 3-7: WiFi security enabled page You can click the “WiFi test”...
  • Page 24 Yes717 Dual-lens Mega-pixel IP Camera Figure 3-8: WiFi testing page...

  • Page 25: Advanced Network

    Yes717 Dual-lens Mega-pixel IP Camera 3.4. Advanced Network In some special situation, your network environment only provides PPPoE connection(ADSL service), there is no NAT/router available. You will then need to set the PPPoE settings in the “Advanced Network” page. Only the PPPoE username and password are needed to let PPPoE work.

  • Page 26: Video Settings

    1. Password(play video) – this is the password needed for viewing the video from the YesCam View software. Together with the IP CAM ID, you can view the video of this IP CAM anywhere in the world through the Internet.

  • Page 27: Mobile Video Settings

    “Indoor+sun light” choice. 13. Enable/disable audio microphone – you can enable or disable the audio microphone on the IP CAM. If disable, there will be no voice on the YesCam View video viewing. 14. Enable/disable time display on video – if enabled, the date/time of the system will be displayed on the left-upper corner of the video.
  • Page 28 3.6. Mobile Video settings The IP CAM is able to be viewed from a 3G mobile phone, please download “YesCam View” software from App Store for iPhone/iPad and “ YesCam View ” from Android Market for Android Mobiles and pads..

  • Page 29: Night Mode Control

    Yes717 Dual-lens Mega-pixel IP Camera 3.7. Night mode control The IP Cam is able to work both in day time and night time. There is an IR led that can let the IP camera see the objects in the night time. This night mode control page is to control when the time the IR led will be on.

  • Page 30: Email/Ftp Alarm

    Yes717 Dual-lens Mega-pixel IP Camera 3.8. Email/ftp alarm The IP Camera provides the Email/ftp function, you can enable or schedule the Email/ftp ability in this page, the IP Camera will then send out an email with a jpeg picture attached in the email and/or send out the jpeg picture file to a ftp server. The related settings are explained below: 1.
  • Page 31 Yes717 Dual-lens Mega-pixel IP Camera 7. FTP server – this is the FTP server address to receive the jpeg file. 8. FTP username/password – this is the username/password to login into the FTP server, so, this triggered jpeg file will be allowed to reach this FTP server.
  • Page 32 Yes717 Dual-lens Mega-pixel IP Camera 3. SMTP server test – after the settings are filled, you could press “SMTP server test” to check if all the settings are correct. If the default SMTP server is choosed, it will test the default SMTP server.

  • Page 33: Speaker Alarm Settings

    Yes717 Dual-lens Mega-pixel IP Camera 3.9. Speaker Alarm settings The IP Camera provides speaker alarm function, a PIR or video motion detection could trigger the speaker alarm. The duration of the alarm could also be set. The related settings are explained below: 1.

  • Page 34: Nas Settings

    Yes717 Dual-lens Mega-pixel IP Camera 3.10. NAS settings The IP Camera provides the recording of the video files into a standard NAS ( Network Access Storage ) device. The IP camera connects to the NAS device using the standard LMX_NS/CIFS/SSN protocols that are the same as the Microsoft Windows network neighborhood protocols.
  • Page 35 The files are segmented every five minutes. Users can use the free bundled YesCam Play software to play back the video files. Figure 3-16: NAS Storage Settings page...
  • Page 36 Yes717 Dual-lens Mega-pixel IP Camera 3.11. Cloud Storage Settings The IP camera provides the recording of the video files into the Dropbox as the cloud storage. You can use your Dropbox account to do the recording and remotely playback the recorded video files on your mobile devices or computers.

  • Page 37: Sd-Card Settings

    Yes717 Dual-lens Mega-pixel IP Camera 3.12. SD-Card settings The IP camera provides the recording of the video files into a standard Micro SD-Card. Since this recording is directly to the SD-Card, there is no network packets loss problem when recording to remote device through internet.
  • Page 38 Yes717 Dual-lens Mega-pixel IP Camera Figure 3-19: SD-Card information page...

  • Page 39: Infrared Thermometer

    Yes717 Dual-lens Mega-pixel IP Camera 3.13. Infrared thermometer There is an infrared thermometer on the camera, it will display the environment temperature on the video display screen on the computer or mobiles. You could also set a range for the thermometer to trigger the schedule event.

  • Page 40: Scheduling

    Yes717 Dual-lens Mega-pixel IP Camera 3.14. Scheduling The IP camera provides the scheduling function for the motion detection triggered email/ftp sending and/or the NAS recording with the individual parameters set in the . “Email/ftp alarm” settings and the “NAS settings” page. Totally 12 schedule list items are allowed.
  • Page 41 Yes717 Dual-lens Mega-pixel IP Camera 6. For the scheduling period, can choose between “Every week”, “Every day” or “Fixed time” : For “Every week”, can choose week days of the week and set the time duration of each day. For “Every day”, can set the time duration of every day for the scheduling.

  • Page 42: Led Display Control

    Yes717 Dual-lens Mega-pixel IP Camera 3.15. LED Display Control The IP CAM provides the LED Display Control function, you can enable or disable the LED display/indication on the front panel of the IP cam device. The related settings are explained below: 1.

  • Page 43: Date/Time

    Yes717 Dual-lens Mega-pixel IP Camera 3.16. Date/Time The IP CAM can synchronize the date/time with the universally available time server( for example stdtime.gov.tw) through NTP protocol. The date/time will then be corrected with the time server anytime when the Internet is connected.

  • Page 44: Admin

    Yes717 Dual-lens Mega-pixel IP Camera 3.17. Admin In this page, you can modify the web login account. With this account, you can login to the IP CAM and do any modifications. The default account is “admin” without password. If the login account is forgotten, you can reset the IP CAM to the factory default settings by following the steps in section 3.19 and login with the “admin”...

  • Page 45: Upgrade

    Yes717 Dual-lens Mega-pixel IP Camera 3.18. Upgrade If there is some new firmware available from the supplier of this IP CAM, you can upgrade the firmware on this page. Please ask for the correct information about FTP server, username/password account and firmware filename from your supplier, and then do this upgrade.
  • Page 46 Yes717 Dual-lens Mega-pixel IP Camera Figure 3-26: Firmware upgrade status page...

  • Page 47: Reboot

    Yes717 Dual-lens Mega-pixel IP Camera 3.19. Reboot You can restart the IP CAM manually on this page. All the connected video viewing users will be disconnected. Figure 3-27: System reboot settings page Figure 3-28: System reboot under-going page...

  • Page 48: Set To Factory Default

    Yes717 Dual-lens Mega-pixel IP Camera 3.20. Set to factory default For some reason, for example you forgot the web login password, you may want to set the IP CAM to the factory default settings. The only thing you need to do is using a stick to press the “reset”...

  • Page 49: Features And Specifications

    Night mode control – support automatic, manual and scheduled modes  Connect up to 20 users simultaneously  Bundle with free video management software YesCam View  Push notification on iPhone/iPad and Android for PIR, temperature and sound detection ...

  • Page 50: Specifications

    Yes717 Dual-lens Mega-pixel IP Camera 4.2. Specifications Dual-lens Mega-pixel Models DC 5V/12V, 1A Power Processors RISC CPU, hardware video processing and compression. Network Ethernet 10BaseT/100BaseTX, Auto-MDIX, RJ-45 interface Wireless IEEE 802.11n 90 - 150 Mbps IEEE 802.11g 6 - 54 Mbps interface IEEE 802.11b 1 - 11 Mbps...
  • Page 51 Video display ID/password protection WiFi WEP and WPA/WPA2 security mode Plug & play by ID/password. Installation, management Video management software-YesCam View for video access and multi-camera management maintenance Firmware upgrades via FTP Built-in web server for standard web browser access...
  • Page 52 Yes717 Dual-lens Mega-pixel IP Camera Humidity 20 – 80% RH (non-condensing) conditions...

  • Page 53: Package Contents

    Yes717 Dual-lens Mega-pixel IP Camera 5. Package contents Figure 5-1: The IP camera Figure 5-2: Power Adaptor Figure 5-3: Quick installation guide Figure 5-4: Ethernet cable Figure 5-5: Anchors and Screws Figure 5-6: Screw Driver Figure 5-7: Installation CD Figure 5-8: ID/Password Card...

  • Page 54: Appendix A. List Of Tested Nat/Router Devices

    The followings are the list of tested NAT/router devices that can work with the IP CAM and YesCam View software when viewing in a remote location. You do not need to do any modification on the default settings of the NAT/routers. In some office environment, if some strict firewall function is enabled, it’s possible that you can not...

  • Page 55: Appendix B. Maximum Allowed Video Users

    Yes717 Dual-lens Mega-pixel IP Camera Table A-2: List of tested Wired NAT/router devices Appendix B. Maximum Allowed Video Users The maximum allowed video users for a single camera at the same time is 20.

  • Page 56: Appendix C. Performance Information

    Yes717 Dual-lens Mega-pixel IP Camera Appendix C. Performance Information 1. Video Performance Information The video quality is dependent on the video parameter settings and the network quality. If you want to have a better video quality, you will usually set higher resolution and higher frame rate.
  • Page 57 Yes717 Dual-lens Mega-pixel IP Camera detection area will trigger the PIR detection. But when the environment temperature is about the same temperature of human body( about 37 degree Celsius ), the PIR detection could fail. The PIR detection distance is about 7 meters.

  • Page 58: Appendix D. Trouble Shooting

    (2). Check if the microphone on the IP Cam is enabled. Please login into the web configuration page of the IP Cam or open the “video settings” from YesCam View, select the “video” settings, click the “Enable audio microphone” choice.
  • Page 59 IP Cam to do the modification. 9. Does the IP Cam provide the recording function? A: You can do the recording of the video/audio of the IP Cam from the YesCam View. Another software YesCam Play is needed to play the recorded vide/audio files.

  • Page 60: Appendix E. Third Party And Embedded Web

    Yes717 Dual-lens Mega-pixel IP Camera Appendix E. Third party and embedded web page integration For third party and embedded web page integration, the IP camera supports the standard RTSP protocol and video/audio codecs needed by most generally used video play software, including Apple QuickTime and VideoLAN. The supported media protocols including TCP and UDP.

  • Page 61: Appendix F. Snapshot Picture On Any Browser

    Yes717 Dual-lens Mega-pixel IP Camera Appendix F. Snapshot picture on any browser If you want to have the live snapshot picture on any browser, use the URL http://ip_address/snapshot.cgi to access the snapshot of the camera. The ip_address is the IP address of the camera. This works for all the browsers on computer or mobile device.
