Summary of Contents for Meinberg GPS-CON

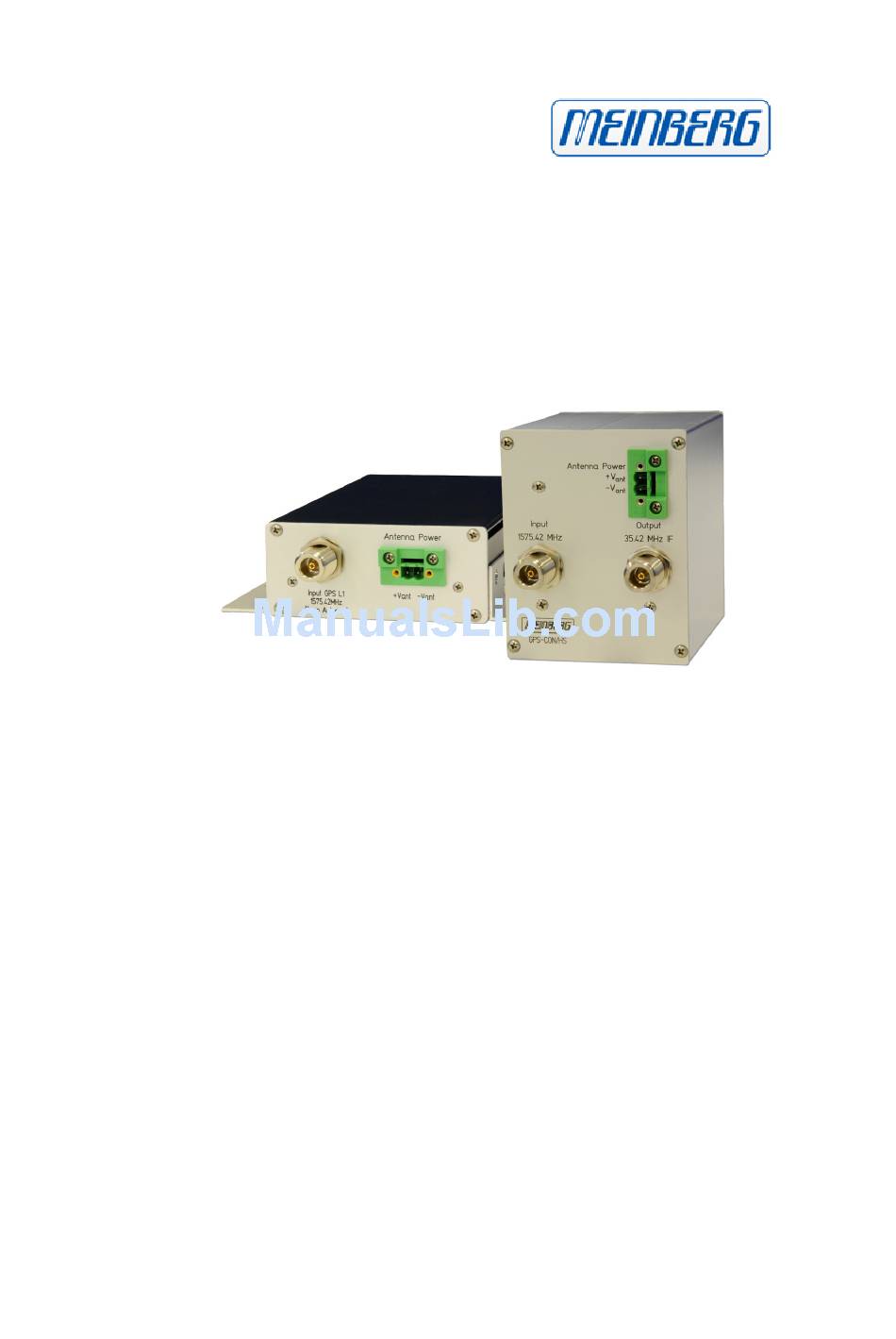

- Page 1 MANUAL GPS-CON External Power Supply Railmount or Wallmount 23rd September 2013 Meinberg Radio Clocks GmbH & Co. KG...
- Page 3 Front view (Frontansicht) GPS-CON Hutschienengehäuse / Railmount Housing Antenna Power Input Output 1575.42 MHz 35.42 MHz IF GPS-CON/HS/AA Wandmontage / Wallmount Antenna Power Input 1575.42 MHz (from Antenna) GPS-CON Output GPS-IF 35,4MHz (to Meinberg Receiver) ENGLISH DEUTSCH Spannungsversorgung einer aktive Antenne Power supply of an active antenna (Please read the manufacturer‘s specifications...
- Page 4 Page 0 Table of Contents 1 Impressum 2 Safety Instructions 3 Technical Specifications GPS CONVERTER Date: 23rd September 2013 GPS-CON...
- Page 5 Page 1 1 Impressum Meinberg Radio Clocks GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont - Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 30 Internet: http://www.meinberg.de...
-
Page 6: Safety Instructions
The antenna power terminal on the front panel is only to use for power supply of an external active antenna. The operating voltage of the converter is provided by the connected MEINBERG receiver. In order to avoid antenna damage, please read exactly the technical speci cations of the antennas manufac- turers. - Page 7 Page 3 3 Technical Specifications GPS CONVERTER The Meinberg GPS converter allows the connection of a GPS L1 antenna (1575.42MHz) of other vendors to a Meinberg GPS receiver. The module doesn't provide any DC voltage for powering active antennas, the DC voltage has to be applied externally via the 2-pin screw termminal.
