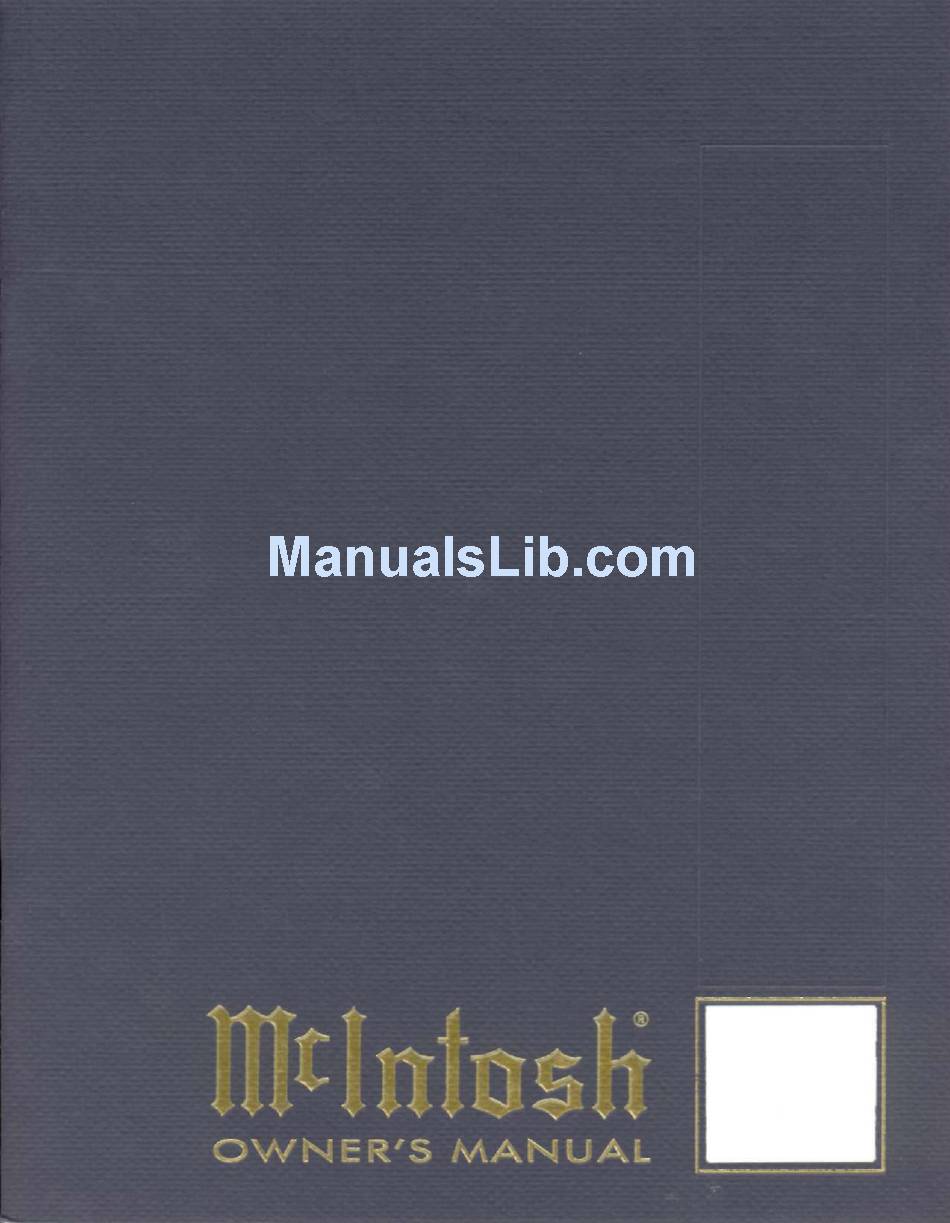

- Page 1 MQ108 CUSTOM ENVIRONMENTAL EQUALIZER...
- Page 3 MQ108 CUSTOM ENVIRONMENTAL EQUALIZER...
- Page 4 1. Read all instructions - Read the safety and operating instructions before operating the instrument. IMPORTANT 2. Retain Instructions - Retain the safety and operating instructions for future reference. 3. Heed warnings - Adhere to warnings and operating instructions. SAFETY 4.
-
Page 5: Table Of Contents
Your Mclntosh Authorized Service Agency can expedite repairs when you provide them with the Service Contract. SERVICE CONTRACT TABLE OF INTRODUCTION CONTENTS ROOM ACOUSTICS 5, 6 EQUALIZING FOR OPTIMUM LISTENING 6, 7 HOW TO CONNECT MEASURING THE ROOM ACOUSTICS HOW TO PROGRAM THE MQ108 SPECIFICATIONS RESPONSE CURVES 11, 12 CHARTS 13, 14... -
Page 6: Service Contract
TAKE ADVANTAGE OF 3 YEARS OF CONTRACT SERVICE. FILL IN THE APPLICATION NOW. Your MQ108 Custom Environmental Equalizer will give you many years of satisfactory perfor- mance. If you have any questions, please contact, Mclntosh Laboratory Inc. 2 Chambers Street... -
Page 7: Introduction
14. Each filter can be programmed for frequency, bandwidth and amplitude boost or cut. It has 1/3 octave selectivity capability. The MQ108 connects to a stereo system between a preamplifier or control center and the power amplifier. -
Page 8: Equalizing For Optimum Listening
resonances at different frequencies. It is essential for the frequency response of both speakers ROOM ACOUSTICS to be similar if you are to hear the full depth and space potential of your speaker systems. A loudspeaker system could be adjusted to measure an acoustically flat frequency response EQUALIZING across the entire audio range of 20Hz to 20,000Hz. -
Page 9: How To Connect
The MQ108 can also be connected between the preamplifier outputs and power amplifier inputs on a receiver or integrated amplifier-preamplifier. It is not recommended that the MQ108 be connected to a tape monitor loop or signal pro- cessing loop, since the high output levels could possibly overdrive the MQ108 inputs. -
Page 10: How To Program The Mq108
FREQUENCY PROGRAMMING table on the chart included in this manual and also attached to the inside of the MQ108 cover. If no capacitors are inserted in a filter section, turning the control will have no effect. Both capacitors must be used in the same section for proper operation. - Page 11 The first bank of sections is 1 through 4, and the second bank is 5 through 7. Once the programming has been finished, and the desired results achieved, the cover should be replaced on the MQ108. No adjustments or changes should be made to the MQ108 pro- gramming without using an analyzer to check the results.
-
Page 12: Specifications
(All specifications are valid with the MQ108 set for flat response.) SPECIFICATIONS FREQUENCY RESPONSE + 0, -0.5dB from 20Hz to 20,000Hz RATED OUTPUT 2.5V OUTPUT IMPEDANCE Balanced: 100 ohms Unbalanced: 250 ohms MAXIMUM VOLTAGE OUTPUT 8V from 20Hz to 20,000Hz TOTAL HARMONIC DISTORTION 0.002% maximum from 20Hz to 20,000Hz at rated output... -
Page 13: Response Curves
RESPONSE CURVES TWO NARROW CASCADED TYPICAL FILTER RESPONSE NARROW CHARACTERISTICS 200 Hertz Filters Shown WIDE - 1 0 - 1 5 - 2 0 - 2 5 1000 10000 20000 FREQUENCY IN HERTZ HIGH FREQUENCY COMPENSATION RESPONSE (SET AT MAXIMUM AND MINIMUM) - 1 0 - 2 0 10000 20000... -
Page 14: Response Curves
RESPONSE CURVES LEFT SPEAKER BAND FREQUENCY IN Hz Suggested Equalization Curves... -
Page 15: Charts
USE FOR CHARTING LOUDSPEAKER TESTS. GRAPHS LEFT SPEAKER RIGHT SPEAKER... -
Page 16: Charts
USE FOR CHARTING LOUDSPEAKER TESTS. GRAPHS L E F T SPEAKER RIGHT SPEAKER... - Page 18 04012400...
