Summary of Contents for Embertec Emberstrip AV+
- Page 1 Embertec Emberstrip™ AV + with Active Powerdown™ Instruction Booklet EBUSAV-ET-01 PATENTS GRANTED AND PATENTS PENDING...
- Page 2 Connect your incoming antenna, cable or DSS line to the Coax IN Connector on the unit. 6. Plug the Embertec Emberstrip™ AV + into a 110V or 120V power point. 7. Power is now applied to the 'Power Saver' sockets. The LED monitoring light on the Embertec Emberstrip™...
- Page 3 NOTE: Other appliances such as lamps, chargers etc, may be plugged into the 'Always On' sockets if needed, or with the 'Power Saver' if only needed when your AV system is being used. SmartSensor POWER SAVER Economie d'énergie Speakers Blu-ray or DVD Player Console Amplifier...
- Page 4 Turning OFF your AV Equipment • Simply turn your equipment off in the normal way. Once the Audio Visual (AV) components have been switched off, the Embertec Emberstrip™ AV + will remove power from the Power Saver sockets after a delay of approximately 1 minute.
- Page 5 Contents Quick Connection Guide What you need to know What is MusicMode™ Fast Facts Embertec Emberstrip™ AV + Specifications Troubleshooting Guide Warranty...

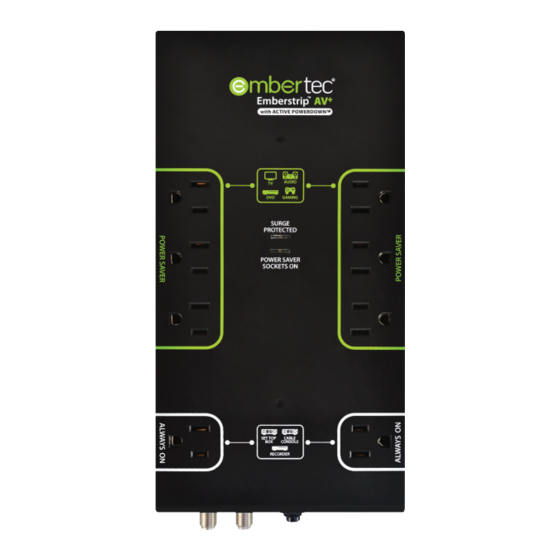

- Page 6 Your Embertec Emberstrip™ AV + Embertec Emberstrip™ AV + SmartSensor On/Off ‘Power Saver’ sockets indicator light Power Saver sockets Always On sockets Reset Button Coax In Coax Out...
- Page 7 DVDs, CDs, Blu-ray players, lamps). • The LED monitoring light indicates that power is available at the 'Power Saver' sockets of the Embertec Emberstrip™ AV + . • Overload protection circuit breaker re-set button. • 3 pins for use with standard North American wall sockets.
- Page 8 Emberstrip™ AV + remain tangle free. • It is recommended to regularly inspect the Embertec Emberstrip™ AV + for damage. The Embertec Emberstrip™ AV + must not be used if it shows any signs of damage. • This Embertec Emberstrip™ AV + is for indoor household use. Do not use outdoors.
- Page 9 When will Active Powerdown™ Switch the Audio Visual (AV) Equipment off? • If your Embertec Emberstrip™ AV + detects that your Audio Visual (AV) equipment is on but has not been used for a period of 1, 2 or 8 hours (depending on your settings), the LED light on the SmartSensor will flash for approximately 10 minutes to warn you that power down is imminent.
- Page 10 What Audio Visual Equipment Can Be Used With The Embertec Emberstrip™ AV + ? Always On sockets • Audio Visual (AV) equipment that requires constant power for timers, program guides and recording features, such as DVD recorders, pay TV and PVR units, set-top boxes, hard drives or digital receivers •...
- Page 11 Changing settings for Active Powerdown™ using the SmartSensor Your Embertec Emberstrip™ AV + is equipped with a number of settings to suit your lifestyle. You can set your timer to either 1 or 2 hours, depending on usage habits. This means the SmartSensor will flash after the set period, warning of imminent power down.
- Page 12 The Embertec Emberstrip™ AV + will revert to its previous setting of 1 or 2 hours after the 8 hour period or after a power down has occurred.
-
Page 13: Specifications
Overload Protection The Embertec Emberstrip™ AV + is fitted with a safety device that removes power in the event of overloading. Should this occur, turn off and unplug all units, and press the reset button. Then plug into the wall socket again. - Page 14 Embertec Emberstrip™ AV + Specifications At January 2014 Physical AV = Audio Visual (Product Code: EBUSAV-ET-01) Dimensions: 9.5" x 1.5" x 4.8" (242mm x 38mm x 124mm) Weight: 1.88 lbs (850g) 0.13 lbs (60g) SmartSensor Colour: Black body SmartSensor Cable Length: 9.84 ft (3 meters)
- Page 15 Saver' sockets, not into the ‘Always On’ sockets. in standby mode. • The Embertec Emberstrip™ AV + has not detected the equipment is in standby. Please repeat this process by switching on the Audio Visual (AV)
- Page 16 Embertec Emberstrip™ that is properly connected to an AC power line with a protective ground. If the initial purchase of the Embertec Emberstrip™ is by a utility or other entity that will not itself be using the device, this warranty is transferable to any customer of such entity who subsequently owns the device.
- Page 17 Embertec Emberstrip™ in accordance with the manual, or not installing or operating the connected equipment in accordance with its manual. • Any damage to equipment that is not properly connected to an Embertec Emberstrip™, or damage to equipment connected to an Embertec Emberstrip™ that is not properly connected to an AC power line with a protective ground.
- Page 18 Attention pour tv port partie Note a l’intention de i’installateur de teledistribution. For further assistance please contact us on customerservice@embertec.com Embertec USA LLC 7960 B Soquel Drive #389 Aptos, CA 95003 Telephone: 831-708-2621 Website: www.embertec.com E-mail: customerservice@embertec.com...
- Page 20 PATENTS GRANTED AND PATENTS PENDING...
