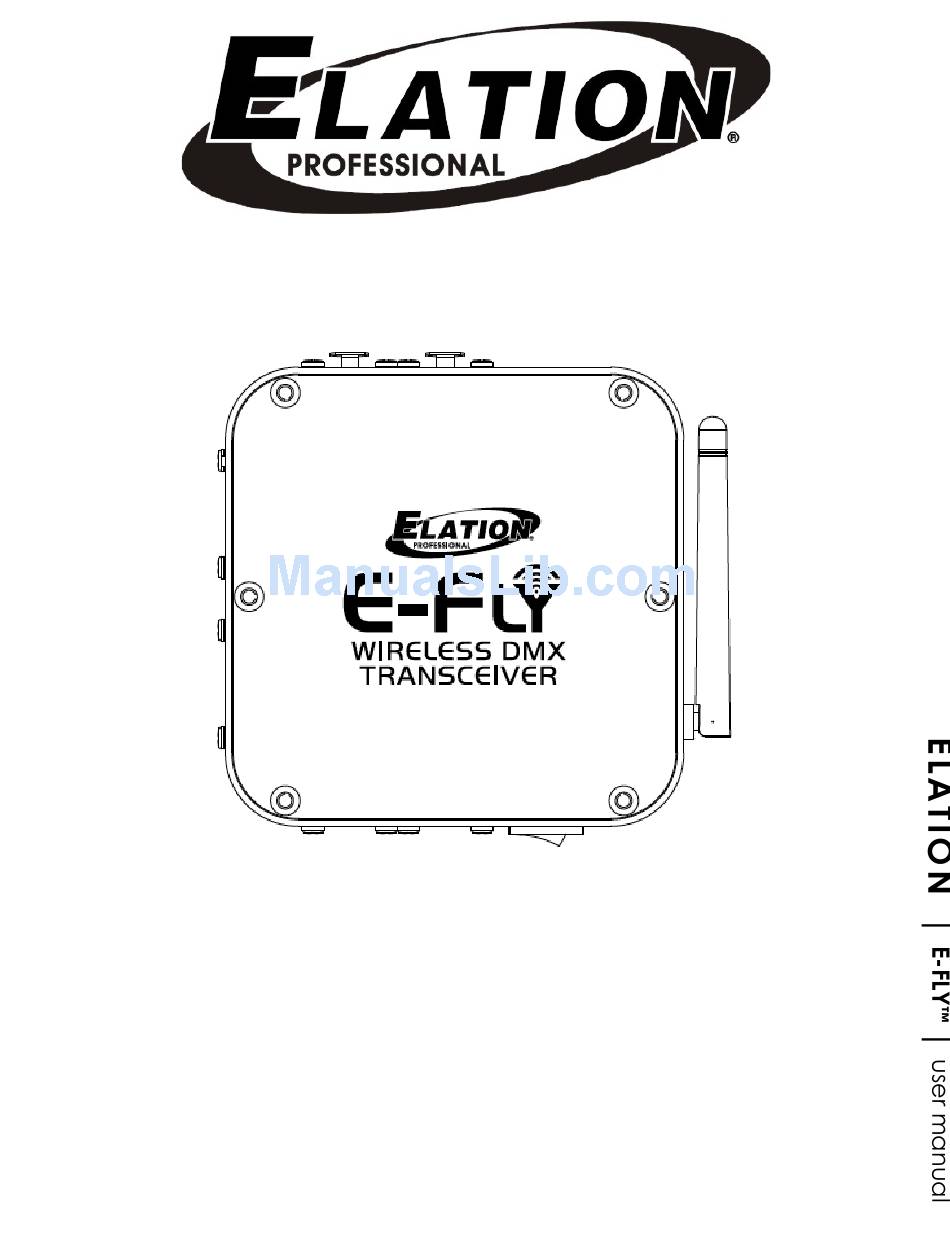

- Page 1 E-FLY™ user manual...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.
-
Page 3: Table Of Contents
. e l a t i o n l i g h t i n g . c o m C O N T E N T S General Information Warranty Safety Guidelines Battery Precautions Overview Installation Operation Set Up Technical Specifications Optional Accessories Notes E-FLY™ User Manual ver 1... -
Page 4: General Information
Please do not discard the shipping carton in the trash. Please recycle whenever possible. BOX CONTENTS (1) 12V DC Power Supply (1) Mounting Bracket & (2) Screws Manual & Warranty Card E-FLY™ User Manual ver 1... - Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
-
Page 6: Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 7: Safety Guidelines
D O N O T D I S A S S E M B L E T H E B A T T E R Y ! DISPOSE OF BATTERY PROPERLY ACCORDING TO LOCAL, STATE, AND COUNTRY REGULATIONS! E-FLY™ User Manual ver 1... -
Page 8: Battery Precautions
(180 days), from the original date of purchase. This warranty applies to the original purchaser. BATTERY DISPOSAL Dispose of battery properly according to local, state, and country regulations. BATTERY REPLACEMENT Contact Customer Support to order a replacement battery. E-FLY™ User Manual ver 1... -
Page 9: Overview
O V E R V I E W Power Save Button 3pin DMX Output Battery Life Indicator 5pin DMX Input E-FLY™ Signal Indicator 3pin DMX Input E-FLY™ Address Dip Switch 12V DC Power Input 5pin DMX Output Battery Power Switch E-FLY™ Antenna E-FLY™ User Manual ver 1... -
Page 10: Installation
(not included). (See images below) INCLUDED MOUNTING BRACKET INSTALLED ON BACK ATTACHED TO TRUSS WITH OPTIONAL CLAMP (CLAMP NOT INCLUDED) E-FLY™ User Manual ver 1... -
Page 11: Operation
DO NOT CHARGE THE BATTERY MORE THAN 4 HOURS! Overcharging may affect the battery performance and/or life. DO NOT LET BATTERY CHARGE FALL BELOW 30%! Keeping the device with less than a 30% charge will shorten the life of the battery. E-FLY™ User Manual ver 1... - Page 12 The more bars the indicator displays, the stronger the wireless DMX signal is. Signal strength may vary depending on the location of the E-FLY™ device and the fixture it is connected to, and the visible line of sight between them.
-
Page 13: Set Up
E-FLY™ device DMX INPUT. The first bar of the E-FLY™ Signal Indicator will flash SLOWLY when the E-FLY™ device is transmitting a wireless DMX signal. However the first bar of the E-FLY™ Signal Indicator will flash QUICKLY if there is no DMX signal input to the E-FLY™ device. - Page 14 S E T U P [ c o n t i n u e d ] ANTENNA POSITION This position of the E-FLY™ antenna (Up or Down) must match the positions of all other E-FLY™ compatible device antennas (Up or Down) connected in the same group.
-
Page 15: Technical Specifications
Back Panel Magnet for Easy Metal Surface Mounting Mini Omega Bracket For Clamp/Truss Mounting (Clamp not included) DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. E-FLY™ User Manual ver 1... -
Page 16: Optional Accessories
. e l a t i o n l i g h t i n g . c o m OPTIONAL ACCESSORIES ORDER CODE ITEM NARROW CLAMP PRO 2" Wrap Around Style Clamp AC3PDMX5PRO 5 ft. (1.5m) 3pin PRO DMX Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable Additional Cable Lengths Available E-FLY™ User Manual ver 1... -
Page 17: Notes
. e l a t i o n l i g h t i n g . c o m N O T E S E-FLY™ User Manual ver 1...
