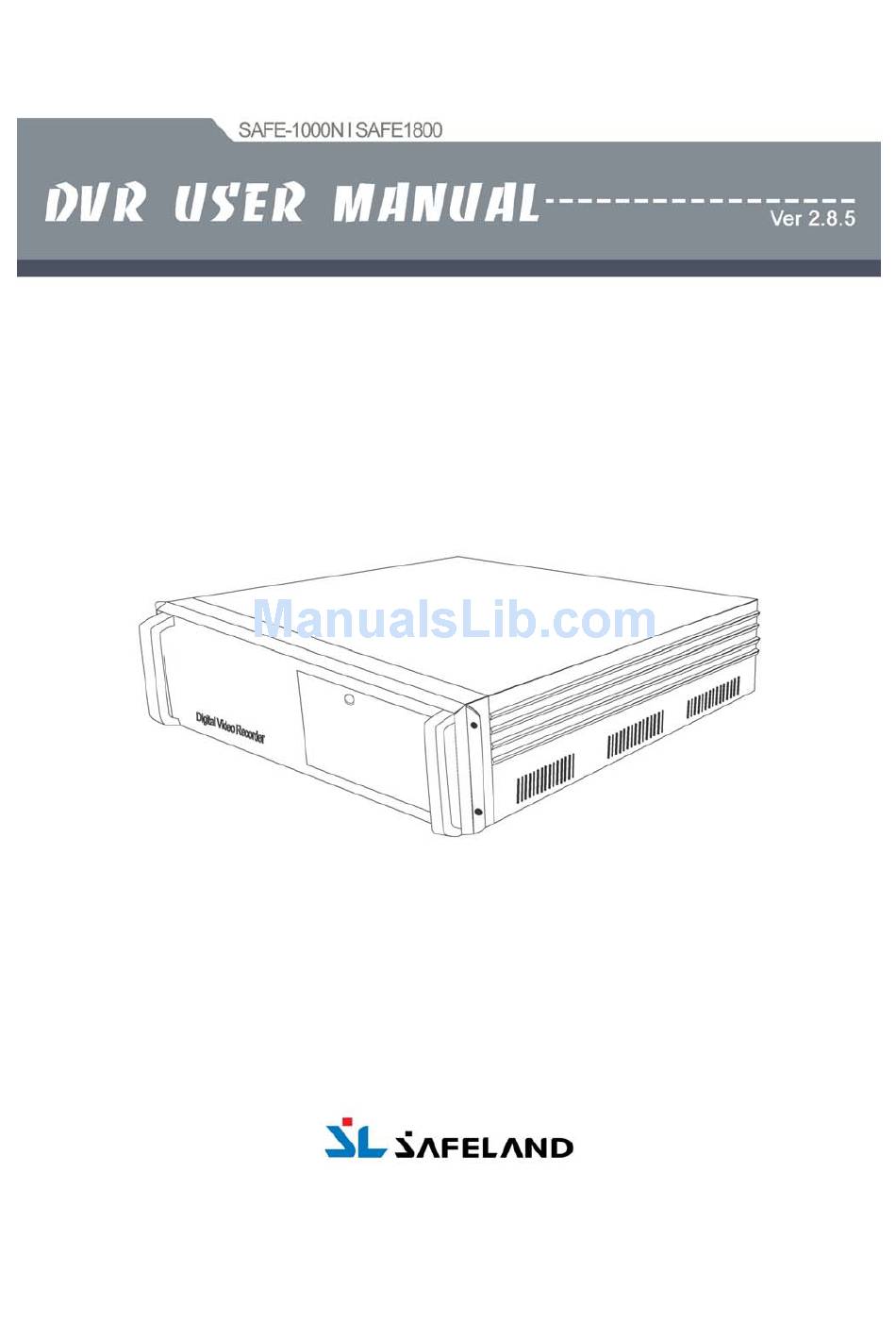

Safeland SAFE-1000N User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAFE-1000N and is the answer not in the manual?

Questions and answers

Summary of Contents for Safeland SAFE-1000N

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION PAGE 1.1 PROGRAM START.............................................1 1.2 PROGRAM EXIT ..............................................1 1.3 SHUT DOWN...............................................1 1.4 SHELL MODE ..............................................2 1.5 EZ UPDATE.................................................4 2.1 SETUP SCREEN..............................................7 2.2 SETUP MENU BAR............................................8 2.3 CAMERA SETUP ..............................................9 2.4 RECORD SPEED SETUP..........................................10 2.5 RECORD SCHEDULE SETUP ........................................11 2.6 MOTION SETUP .............................................
  • Page 3 6.1 INTRODUCTION TO PANORAMA SEARCH ..................................34 6.2 IMAGE PRINT..............................................35 6.3 PANORAMA ENLARGED-SCREEN ......................................36 6.4 IMAGE ADJUSTMENT ..........................................37 6.5 SMART SEARCH.............................................. 38 7.1 INTRODUCTION TO BACKUP......................................... 39 7.2 BACKUP SELECTED FILE.......................................... 40 7.3 BACKUP BY TIME............................................41 7.4 FILE SAVING STRUCTURE OF SAFE-DVR FOR BACKUP ............................

  • Page 4: Program Start

    1. SYSTEM START AND SHUT DOWN 1.1 PROGRAM START After installing the SAFE-DVR program, it will automatically run after rebooting the system. The program will be registered on the ‘START UP’ program and ‘Desktop’. 1.2 PROGRAM EXIT When exiting the program, please exit by pressing the [Exit] button. You will exit to the Windows 2000 desktop.

  • Page 5: Shell Mode

    1. SYSTEM START AND SHUT DOWN After exiting the SAFE-DVR program, press [Shutdown] icon. At the shutdown dialog box, select [Shutdown] and press the [OK] button. Within a minute, the system will be completely shut down. 1.4 SHELL MODE SAFE-DVR provides the shell mode that provides compulsory functions of Windows to keep a SAFE-DVR only as a surveillance device.
  • Page 6 1. SYSTEM START AND SHUT DOWN Open the Windows Explorer. Start the SAFE-DVR program. When user starts the [Tool Box], below window will appear. In [Tool box], user can 1. see working programs through ‘Task Manager’. 2. make/modify the network information of a SAFE-DVR including IP through ‘Network’. 3.

  • Page 7: Ez Update

    1. SYSTEM START AND SHUT DOWN To remove the icon, click the icon and press [Delete] key on a keyboard. Finish/Restart the system. Uninstall the program. Command window User can check the IP. 1.5 EZ UPDATE EZ update keeps you have the most newly updated SAFE-DVR program. User should operate ‘EZ update’ sometimes because it doesn’t work itself.
  • Page 8 1. SYSTEM START AND SHUT DOWN Below window will appear. Server administrator can appoint classes. For example, If you are operating a communication server (CS), you Class must select SVNS class. Select a model among 1000, 1800, 2000, 2200, 4000 and 4200. For more information on the version or the model, please refer to the tool Product box.
  • Page 9 1. SYSTEM START AND SHUT DOWN Update is proceeding. Update is completed. Press [OK] button to finish the update process. When you start the SAFE- DVR afterward, the updated information will be automatically applied. * EZ Update server is not registered at first. Please contact to a selling agency when you need an update through EZ Update server.

  • Page 10: Setup Screen

    2. SETUP 2.1 SETUP SCREEN [ Login Screen ] [ Setup Screen ] Press [Setup] button on the Monitoring Screen. The Login Window will appear. Select [Admin] on the [User Name] box and enter the password. (The default password is ‘1’) Then press [OK] button.

  • Page 11: Setup Menu Bar

    2. SETUP 2.2 SETUP MENU BAR The setup menu bar consists of 11 setting buttons, a cancel button and a confirm button.

  • Page 12: Camera Setup

    2. SETUP 2.3 CAMERA SETUP The Camera Settings are as following. Tip! 1. In case of [Recording] option, left click of the character “Recording” after changing just one camera setting drives the change of all camera setting. It is very convenient option when user wants to apply the change to all cameras.

  • Page 13: Record Speed Setup

    2. SETUP 2.4 RECORD SPEED SETUP Set the recording schedules in this menu. Tip! Capture frame : The number of frames when DVR card captures input signal from a camera. So, Recording or Network frames will be always set less than capture frames. Recording frame : The number of frames for DVR recording.

  • Page 14: Record Schedule Setup

    2. SETUP 2.5 RECORD SCHEDULE SETUP Set the recording schedules for each camera in this menu. Tip! You can select some cameras at the same time by clicking camera button with pushing [Ctrl] key on your keyboard. Settings will be identically applied to the selected cameras. Clicking day button(Sun/Mon/Tue/Wed/Thu/Fri/Sat) after selecting recording mode will take you to apply to the whole day.

  • Page 15: Motion Setup

    2. SETUP 2.6 MOTION SETUP Set the motion detection and sensitivity of each camera. User can also set the brightness and contrast of the camera.

  • Page 16: Av Monitor

    2. SETUP 2.7 AV MONITOR Set rotation option and display camera on AV monitor when especially using out monitor instead of PC monitor.

  • Page 17: Sensor & Alarm Setup

    2. SETUP 2.8 SENSOR & ALARM SETUP Set the sensor and alarm for better monitoring. The sensor will only activate when the sensor schedule is set. The alarm will activate at sensor and motion recording mode. [ SENSOR SETUP ] [ ALARM SETUP ] One sensor can link with 3 cameras.

  • Page 18: Audio Setup

    2. SETUP 2.9 AUDIO SETUP User can select cameras that will link with audio channels. To record the sound with the recording image, select the cameras and turn the Audios [On]. Tip! You cannot use audio option on the surveillance screen unless you set at least 1 channel audio as “ON”.

  • Page 19: Account Setup

    2. SETUP 2.10 ACCOUNT SETUP Admin user can add/modify/delete an ID and give it an authority for SAFE-DVR functions. Previously made IDs are on the left list and add/modify/delete for an ID is made on the right menu. Only Admin user can do the account setup. [Authority] Selected ID has an authority for a checked function.

  • Page 20: Network Setup

    2. SETUP 8. Safe Mode: An authority for access in Safe Mode. (Safe Mode authority is only given to one ID.) 9. Remote Search : An authority for access in M-Client 10.Setup:An authority for remote access to the camera channels unit as like as below picture. If you delete the communication users(1,2,3,4,5), you cannot create them again because user ID must Tip! be at least 3 characters.
  • Page 21 2. SETUP Permits the access through Internet to a SAFE-DVR. TCP/IP Permit the access through a modem. Modem Web Server Permit the image transmission using an web browser. User can see connected user IDs, IP and functions in use. User also can disconnect them with Users [disconnect] button.

  • Page 22: Diet Mode Setup

    2. SETUP 3. If you changed Stream port you have to change the HTML file in the SAFE1000N and SAFE1800 folder(C:₩SAFE1800₩html₩index.html). Please refer to the below picture. 2.12 DIET MODE SETUP User can minimize the monitoring screen using the diet mode function. Turns on access to SAFE-DVR with TCP/IP, Modem.
  • Page 23 2. SETUP * No use: Do not use this mode. Always puts the monitoring screen on top. Always on top Always record images. Always recording Use motion recording on Diet mode. Motion recording Use sensor recording on Diet mode. Sensor recording Right click on the Diet mode screen to see the menu.

  • Page 24: Etc Setup

    2. SETUP 2.13 ETC SETUP Set various functions on this menu.
  • Page 25 2. SETUP Power-Off Option There are 3 types of power options. Exit to window: Exit to window when the SAFE-DVR program is over. SAFE-DVR system restart: Restart the SAFE-DVR system when the SAFE-DVR program is over. SAFE-DVR power off: Power off the SAFE-DVR system when the SAFE-DVR program is over. Emergency Data Transfer If you installed a sensor board, you can use this function.

  • Page 26: Soft Keyboard

    2. SETUP User can select a CD-Writer program as below. Press ‘Search’ at [CD-RW Select]. A window will pop up after pressing the [Search] button. You can press [Search] on this window to find the program file you wan When the search is over, press [OK] to end the setting. Go to the Monitoring screen and press the [Backup] button.

  • Page 27: Confirm & Cancel

    2. SETUP to use. 2.15 CONFIRM & CANCEL Save all settings and exits the program Confirm Cancel all settings and exits the program Cancel...

  • Page 28: Introduction To Surveillance

    3. SURVEILLANCE 3.1 INTRODUCTION TO SURVEILLANCE Tip! When using SAFE-DVRX-1000, user can use Light On/Off function in the [ETC] button. In case of using this function, you can control the light connected with SAFE-DVRX-1000. Please set audio option on the setup mode to use audio in surveillance screen. Right click on sound button will show the sound selection option as below.

  • Page 29: Recording Status

    3. SURVEILLANCE 3.2 RECORDING STATUS Camera Name Recording Status [Display Recording Status] Audio Use No signature No Recording Continuous Recording Motion Recording Sensor Recording 3.3 SAFE-DVR INFORMATION WINDOW You can see the version and kind of the SAFE-DVR you have, by pressing [Ctrl + V]. You can see the version and the build date of the SAFE-DVR.
  • Page 30 3. SURVEILLANCE In the LOG2 you can find setup information like as camera, frame, schedule, motion, audio, network, authority and ETC.

  • Page 31: Connected User Status

    3. SURVEILLANCE 3.5 CONNECTED USER STATUS You can check the connected user state from remote sites by pressing [Ctrl+U].

  • Page 32: Search Screen Formation

    4. SEARCH 4.1 SEARCH SCREEN FORMATION 4.2 PLAY CONTROLS You can control playing by using Play Control buttons.

  • Page 33: Video Search

    4. SEARCH 4.3 VIDEO SEARCH Follow these steps to search and find video files. (1) Select a date to search using calendar.(The color of the date with recorded images are in blue) (2) Select a camera to search (3) Select a recording mode for filtering. (All, Always, Motion, Sensor) (4) Select a file on the list and press [Load] button.

  • Page 34: Introduction To Multi-Search

    5. MULTI - SEARCH 5.1 INTRODUCTION TO MULTI-SEARCH You can search the images of not only 1 channel but for up to 4 channels simultaneously. 5.2 MULTI - SEARCH Follow these steps to use the multi search function. (1) Select a date to search using calendar. (The date with recorded images turns to blue.) (2) Select a time to search using up-down buttons.

  • Page 35: Enlarge Mode

    5. MULTI - SEARCH (5) After selecting date, time and channel, press [Load] button. (6) Selected video data will be appeared like next picture. How to play is same with Search screen. 5.3 ENLARGE MODE Most of button functions are same.

  • Page 36: Bookmark

    5. MULTI - SEARCH 5.4 BOOKMARK This screen will be displayed when you click bookmark button in multisearch. Bookmark is useful when you want to remember a special point during multisearch process. After clicking bookmark button, press ‘Add’ button and enter the information on the space. Later, just double- click will take the slider bar to the bookmarked time point.

  • Page 37: Introduction To Panorama Search

    6. PANORAMA SEARCH 6.1 INTRODUCTION TO PANORAMA SEARCH Panorama is 1 channel - search for more specific playback. It is convenient to use panorama search for specific playback because it shows total 18 successive images in a screen and offers many functions, such as image adjustment, image print, FDD backup, smart search.

  • Page 38: Image Print

    6. PANORAMA SEARCH 6.2 IMAGE PRINT In the panorama mode, user can print desires frames by his/her preference in various mode – 1X2, 2X4, 3X6. First, click frames user want to print out in the panorama search screen. Then the selected frames are outlined with blue.

  • Page 39: Panorama Enlarged-Screen

    6. PANORAMA SEARCH 6.3 PANORAMA ENLARGED-SCREEN You can also use the zoom in function in the panorama screen. You can see the panorama search screen in full screen mode and go back to original screen.

  • Page 40: Image Adjustment

    6. PANORAMA SEARCH 6.4 IMAGE ADJUSTMENT <IMAGE ADJUSTMENT> Soften the selected image. Blur Focus blurry images by increasing the contrast of Sharpen adjacent pixels. Focus the color boundary line. Edge Detect Make the image appear raised or stamped by converting its fill color to gray and tracing the edges Embossing with the original fill color.

  • Page 41: Smart Search

    6. PANORAMA SEARCH Soften the boundary line and remove the little holes. Closing Brightness / Control the brightness and contrast of images. Contrast 6.5 SMART SEARCH Smart search can detect movements in consecutive frames. This function is useful for lots of recorded frames of zones with little movements (1) In the panorama search screen, press ‘smart search’...

  • Page 42: Introduction To Backup

    7. FILE BACKUP 7.1 INTRODUCTION TO BACKUP User can back up recorded video to a CD-RW, an External HDD, and a DVD. Note To back up recorded video to CD-RW, any kind of CD Writing program will be needed – Ahead Nero, CD creator or etc.

  • Page 43: Backup Selected File

    7. FILE BACKUP Backup Media Show user the list of video that the selected backup media currently has. Status Show user the list of video fit to option 5,6,7. User can select video to back File List up from this list. Allow user to back up selected video to the associated backup media.

  • Page 44: Backup By Time

    7. FILE BACKUP Press [File Backup]. In a while, backup process will be completed. To exit to Monitoring Screen, press [Exit] button after backup. To use HDD or DVD for backup, user must specify the [Drive]. If the media is not formatted please format that using [HDD FORMAT] or [DVD FORMAT] button prior to backup process.

  • Page 45: File Saving Structure Of Safe-Dvr For Backup

    7. FILE BACKUP 7.4 FILE SAVING STRUCTURE OF SAFE-DVR FOR BACKUP User is able to get the system to back-up as DVD or CD-RW type. In this case, hardware for the recording time should be setup and installed by software.( for example, user need to setup CD-RW hardware and install the software, ‘Easy CD Creator’...

  • Page 46: Open Protocol

    8. APPENDIX 1 8.1 OPEN PROTOCOL Open Protocol (user setup) is a function which enables user to customize and edit P/T/Z cameras’ protocols. It will make the user feel safe when he/she gets new P/T/Z cameras which is not embedded in SAFE-DVR. 8.2 STARTING OPEN PROTOCOL User can start the open protocol from the Setup Screen.

  • Page 47: Open Protocol Example

    8. APPENDIX 1 User must input each command values. Please note that user should calculate Command Info each value with the P/T/Z camera manual. Select a P/T/Z camera ID to work for. To set multiple cameras up, user must input each different value for each camera ID. (Ex: When there are 5 P/T/Z Camera ID camera named A, user might need to input 5 different Commands Set for each camera ID from1 to 5.)
  • Page 48 8. APPENDIX 1 4. Select the values for Serial Communication. (The most common values is 9600 / 8 / No / 1.)) 5. Select a camera ID. (4 channel SAFE-DVR user checks 1~4 camera IDs). In this example, we will check camera no.1 6.

  • Page 49: Hexademical Numeric System

    8. APPENDIX 1 8.5 HEXADEMICAL NUMERIC SYSTEM User can calculate hexadecimal numbers using a calculator provided with window. 1. Select [Start] → [Program] → [Accessories] → [Calculator]. 2. Select [View] -> [Scientific] to expand the default calculator. 3. Check [Hex] and [Byte] to calculate hexadecimal byte numbers.

  • Page 50: Safe-Dvr Web Wervice

    9. APPENDIX 2 9.1 SAFE-DVR WEB WERVICE Web service of SAFE-DVR is for remote monitoring without program in user’s PC. It properly works under Internet Explorer ver. 5.0 over. Type the SAFE-DVR IP in the address window of internet explorer and below window will appear. 9.2 WEB VIEWER WEB VIEWER is very accessible because it is receiving images using a web server function.
  • Page 51 9. APPENDIX 2 Show the images of camera No. 1 ~ 4. Control the P/T/Z camera – Pan/Tilt/Zoom and auto panning. Control the zoom of selected camera. To use this function, auto zoom lens should be installed first. Control the focus of selected camera. To use this function, auto zoom lens should be installed first.

  • Page 52: Tcp / Ip Filtering

    9. APPENDIX 2 10.1 TCP / IP filtering What’s ‘TCP/IP filtering’? ‘TCP/IP filtering’ function invests all packets coming into a computer and only accept authorized of them. (It’s only for a DVR system, not for a PC.) 10.2 TCP/IP setup for ‘TCP/IP filtering’ 1.
  • Page 53 9. APPENDIX 2 3. In [General] tab (in case you selected ‘Local Area Connection’) or another network tab (in case you selected another connection’ in previous step), select [Internet Protocol (TCP/IP)] and click [Properties]. Click [Advanced].
  • Page 54 9. APPENDIX 2 5. In [Option] tab, select [TCP/IP filtering] and click [Properties].
  • Page 55 9. APPENDIX 2 Follow one of below steps. If you want to use [TCP/IP filtering] over the entire adapters, select [Enable TCP/IP Filtering (All adapters)]. If you don’t want, deselect [Enable TCP/IP Filtering (All adapters)]. Set [TCP Ports], [UDP Ports] and [IP Protocols] for allowed traffic in accordance with the requirements of ‘TCP/IP filtering’...
