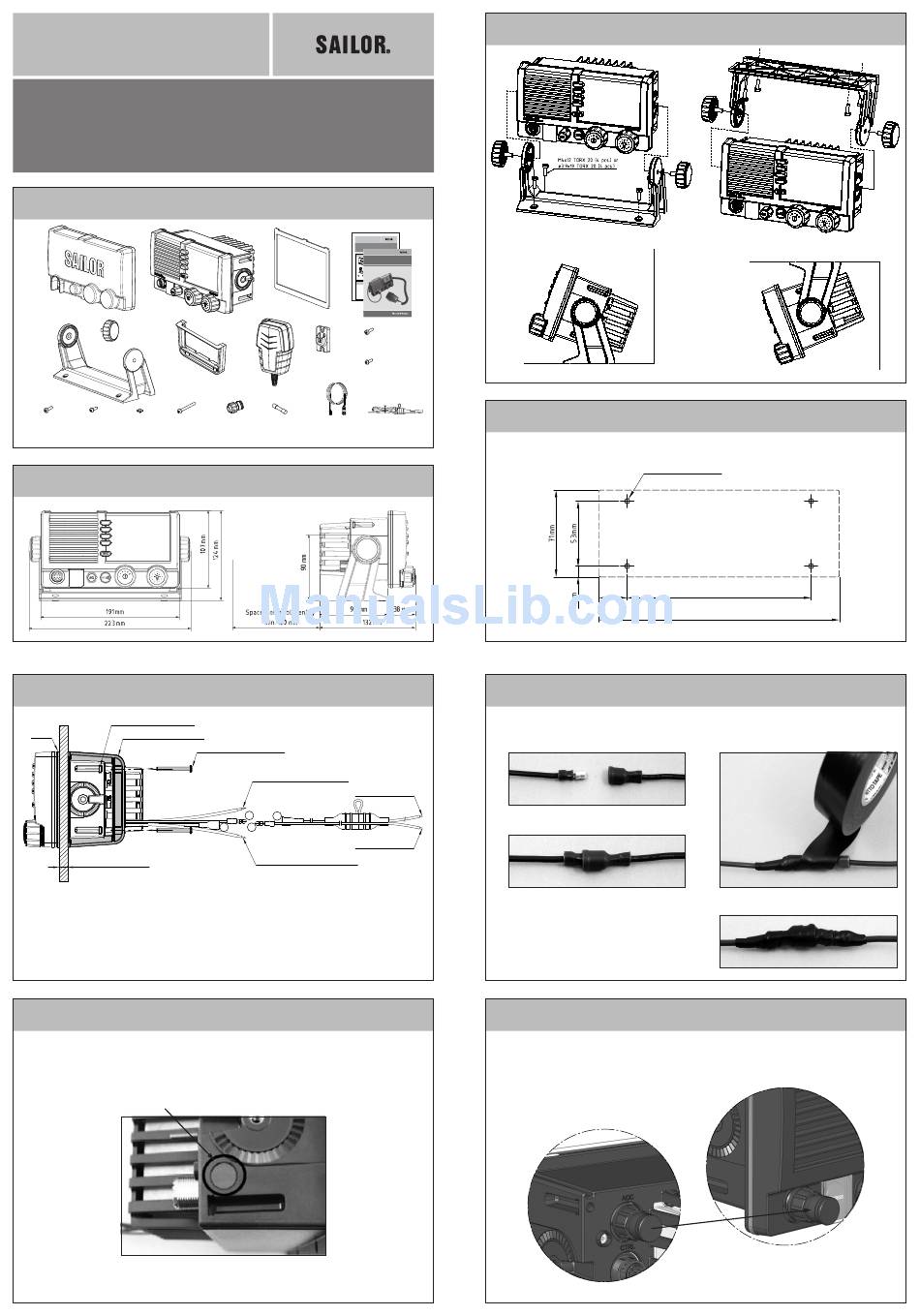

Sailor 6217 VHF Installation Manual

INSTALLATION GUIDE
SAILOR 6217 VHF DSC - AIS Receiver
What's in the box?
Sun Screen Transceiver
Wheel Knob
(2 pcs.)
U-Mounting
Bracket
Flush Mount
Bracket (2 pcs.)
Screw M4x12 Screw ø3.9x19 Square Nut Screw M4x45
TORX 20 TORX 20 M4x7x2.2 TORX 20
(5 pcs.) (5 pcs.) (5 pcs.) (5 pcs.)
Dimensions for the VHF

How to install the VHF flush mount

Square Nut M4x7x2.2 (4 pcs.)
Gasket Flush Mount Bracket (2 pcs.)
Max wall thickness 26mm
99-130248
Note!
- Firmly tie back and secure any wires not used in order to
avoid possibility for mutual shorting or shorting to ground!
- To ensure waterproof sealing:
If the surface isn't plane and/or rigid remove the gasket and
seal with silicone sealant between the VHF and the surface.

Very important information!

Do not remove the membrane.
If you remove the membrane the radio will not be waterproof.
Membrane
Installation Guide
INSTALLATION GUIDE
SAILOR 6217 VHF DSC - AIS Receiver
USER & INSTALLATION MANUAL
What's in the box?
SAILOR 6217 VHF DSC - AIS Receiver
Sun Screen Transceiver
Wheel Knob
(2 pcs.)
U-Mounting
Bracket
Flush Mount
Bracket (2 pcs.)
Screw M4x12 Screw ø3.9x19 Square Nut Screw M4x45
TORX 20 TORX 20 M4x7x2.2 TORX 20
(5 pcs.) (5 pcs.) (5 pcs.) (5 pcs.)
Very important information!
Do not remove the membrane.
If you remove the membrane the radio will not be waterproof.
Membrane
How to install the VHF flush mount
Gasket
Square Nut M4x7x2.2 (4 pcs.)
Gasket Flush Mount Bracket (2 pcs.)
User & Installation Manual
Max wall thickness 26mm
99-130248
Note!
- Firmly tie back and secure any wires not used in order to
avoid possibility for mutual shorting or shorting to ground!
- To ensure waterproof sealing:
If the surface isn't plane and/or rigid remove the gasket and
seal with silicone sealant between the VHF and the surface.
How To Install The Gps And The Chart Plotter - Cable Connections
Screw M4x12
TORX 20 (3 pcs.)
99-130891-B 99-130891-B
Description NMEA in+ Description Pin
NMEA out- NMEA in-
NMEA in+ NMEA out+ 1
NMEA in- Mike 2 / Line in EAR 2 / Line out 2
Cradle NMEA out- Hook_PTT Battery Supply when radio is on 3
NMEA out+ Internal GND = - Battery Internal GND = - Battery 4
Mike 2 / Line in 5
EAR 2 / Line out 6
Hook_PTT 7
Battery Supply when radio is on 8
Internal GND = - Battery 9
Internal GND = - Battery 10
Screw ø3.9x19
TORX 20 (3 pcs.)
Hand Microphone
Cap for LTW BD/BU Fuse Connection Cable,
Connector 6.3x3.2mm (10AT) 1 m
(2 pcs.)
Screw M4x45 TORX 20 (4 pcs.)
Connect to LOUD HAILER
(RED isolation on inner connector)
Connect to POWER +
A A
B B
Connect to POWER -
Connect to EXT. SPEAKER
(WHITE isolation on inner connector)

How to install the VHF on desktop and overhead

How to install the VHF on desktop and overhead
USER & INSTALLATION MANUAL
SAILOR 6217 VHF DSC - AIS Receiver
Gasket User & Installation Manual
Tilting ±20°
Screw M4x12
TORX 20 (3 pcs.)
Cradle
TORX 20 (3 pcs.) Screw ø3.9x19
Hand Microphone

Drilling plan on desktop and overhead

Cap for LTW BD/BU Fuse Connection Cable, Power Cable
Connector 6.3x3.2mm (10AT) 1 m
(2 pcs.)
4 x M4 or hole for
self-tapping ø3.9
23mm 150mm
196mm
99-130249

Cable assembly for waterproof installation

Connect the 4 cable connections with rubber vulcanizing tape as shown .....
1. 3.
Screw M4x45 TORX 20 (4 pcs.)
Connect to LOUD HAILER
(RED isolation on inner connector)
Connect to POWER + (RED wire)
A A 2.
B B
Connect to POWER -
(BLUE wire)
(WHITE isolation on inner connector) Connect to EXT. SPEAKER
4.
Green, Pin 4, NMEA out+
Chart Plotter White, Pin 3, NMEA out-
Pin 1 Wire color Brown Wire color Pin assignments Front View Pin assignments
2 3 Blue White Front View GPS Blue, Pin 2, NMEA in-
4 Green Brown Brown, Pin 1, NMEA in+
6 5 Yellow Grey Blue 7 8 9 2 1
8 7 Pink White Red 6 10 5 4 3
10 9 Orange - SCREEN (Drain) Black Green GPS Cable (NMEA 0183)/
Chart Plotter Cable
Yellow 8 1 For waterproof installation use
Grey 7 9 2 rubber vulcanizing tape
Pink 6 10 3 99-131043-B
Red 5 4 Note!
Black Firmly tie back and secure any wires not used in order to avoid
Orange - SCREEN (Drain) possibility for mutual shorting or shorting to ground!
Drilling plan on desktop and overhead
Power Cable
Cable assembly for waterproof installation
Connect the 4 cable connections with rubber vulcanizing tape as shown .....
1.
(RED wire)
2.
(BLUE wire)

How to prevent water ingress

Connector for Hand Microphone or Handset - If not used, put the cap
from the ACC connector on the front connector to prevent water ingress.
Tilting ±20°
4 x M4 or hole for
self-tapping ø3.9
23mm 150mm
196mm
99-130249
3.
4.
