This manual contains important safety instructions for the gasoline engine powered
READ SAFETY WARNINGS AND OPERATING INSTRUCTIONS CAREFULLY.
When you call the help-line you will need to have the following information:
Date of Purchase:
Location of Purchase:
Serial # - Snow Blower:
*Serial number is located on the engine block below the starter.

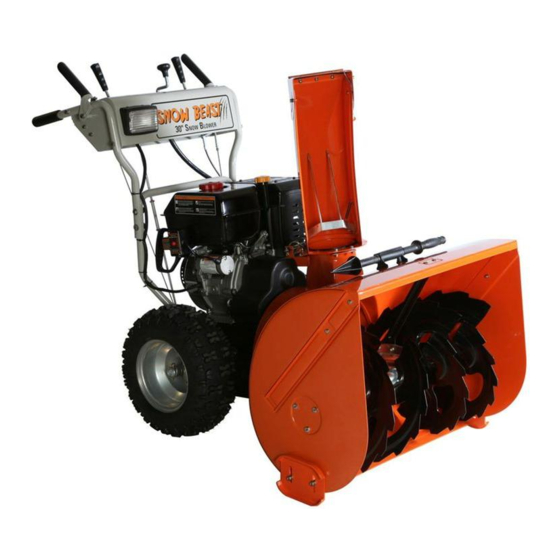

Snow Blower
Owner's Manual
snow blower models: 30SB, 36SB, 45SB
SAVE THIS MANUAL.
Need Help?
Parts, Service, and Technical Assistance call:
(919)-550-3221
Monday-Friday 8:00AM-5PM EST
DO NOT RETURN THIS SNOW BLOWER TO THE
_______________________
_______________________
_______________________
by
STORE!
Snow blower and engine life are
extended greatly by performing
frequent lubrications, oil changes and
regular maintenance. To protect your
investment perform routine
maintenance.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 45SB and is the answer not in the manual?

Questions and answers

Summary of Contents for Snow Beast 45SB

  • Page 1 Snow Blower Owner’s Manual This manual contains important safety instructions for the gasoline engine powered snow blower models: 30SB, 36SB, 45SB READ SAFETY WARNINGS AND OPERATING INSTRUCTIONS CAREFULLY. SAVE THIS MANUAL. Need Help? Parts, Service, and Technical Assistance call: (919)-550-3221...
