Summary of Contents for Atlas Learn AL-EAGLE
- Page 1 Atlas Learn Owner’s Manual AL-EAGLE IR Receiver AL-EAGLE 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasSound.com Specifications are subject to change without notice.
- Page 2 Atlas Learn AL-EAGLE Owner’s Manual IR Receiver Table of Contents Important Safety Instructions ............................2 Introduction ..................................4 Features ...................................4 Applications ..................................4 Functions ..................................4 Installation ..................................6 Wiring ....................................6 Specifications ..................................6 Warranty ...................................8 Important Safety Instructions The lightning flash with arrowhead symbol within an...
- Page 3 Atlas Learn Owner’s Manual AL-EAGLE IR Receiver CAUTION – When Installing the Product • Plugging in or unplugging the power cord with wet hands may result in electric shock. • Never move the device with the power cord plugged into the wall, as damage to the power cord may result.

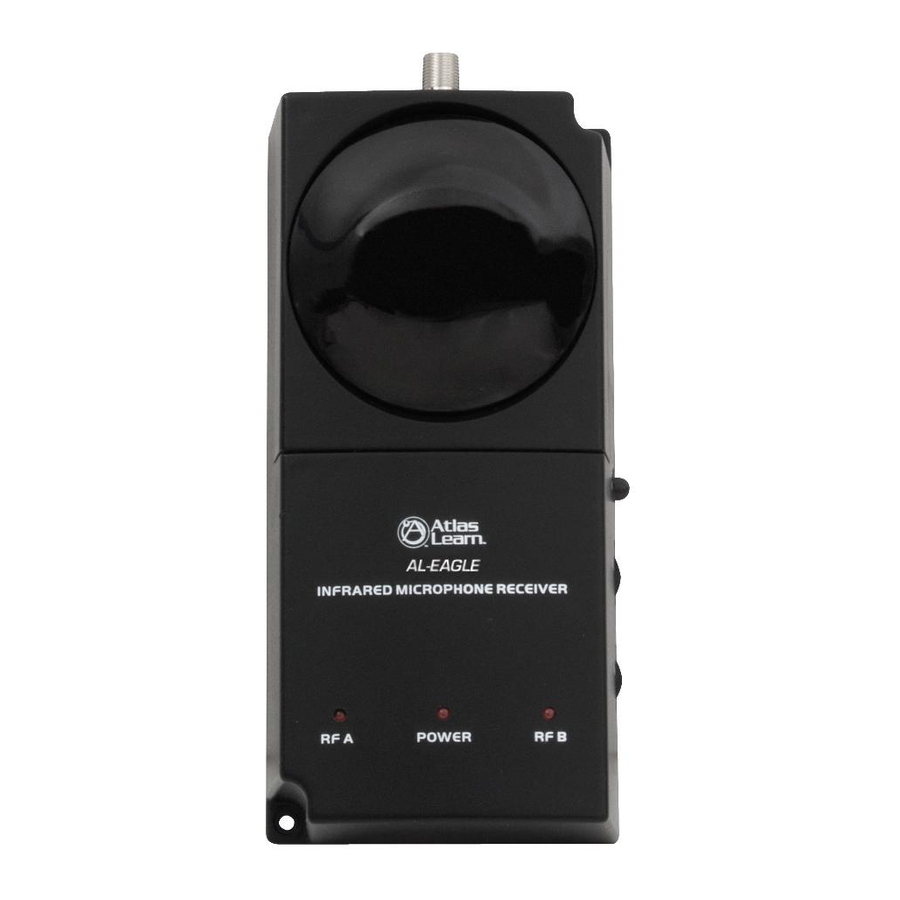

- Page 4 The Atlas Learn AL-EAGLE infrared receiver is an in-classroom sound reinforcement solution designed for use in K-12 and higher education facilities or where a room constrained public address system is required. This receiver is designed to work with Atlas Learn wireless infrared microphones, AL-MAGPIE and AL-MYNA, and a local audio amplifier to allow teachers and students to walk freely around the classroom with the infrared microphones/system control units and project their voices through connected, installed speakers.
- Page 5 This “F” type connector is used for input of an additional AL-IRDS antenna if improved coverage is needed. 6. Power This push button will turn the AL-EAGLE On or Off. 7. DC Input 18V AL-EAGLE power supply input. (NOTE: Use only included power supply) 8.
-
Page 6: Specifications
7. Speak into the microphone and press the Up Volume button on the wireless microphone until the desired volume is reached at the speakers. If the appropriate level cannot be attained, increase the side panel Channel A or B volume on the AL-EAGLE until maximum volume without feedback is reached and then adjust the microphone volume on the wireless microphone for proper listening level. - Page 7 Atlas Learn Owner’s Manual AL-EAGLE IR Receiver Notes 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 7 – AtlasSound.com Specifications are subject to change without notice.
-
Page 8: Limited Warranty
Visit our website at www.AtlasSound.com to see other Atlas products. ©2012 Atlas Sound L.P. All rights reserved. Atlas Sound and Atlas Learn are trademarks of Atlas Sound L.P. All other trademarks are the property of their respective owners. ATS004276 RevA 6/12 1601 Jack McKay Blvd.
