Summary of Contents for Vpon VP-8000
-

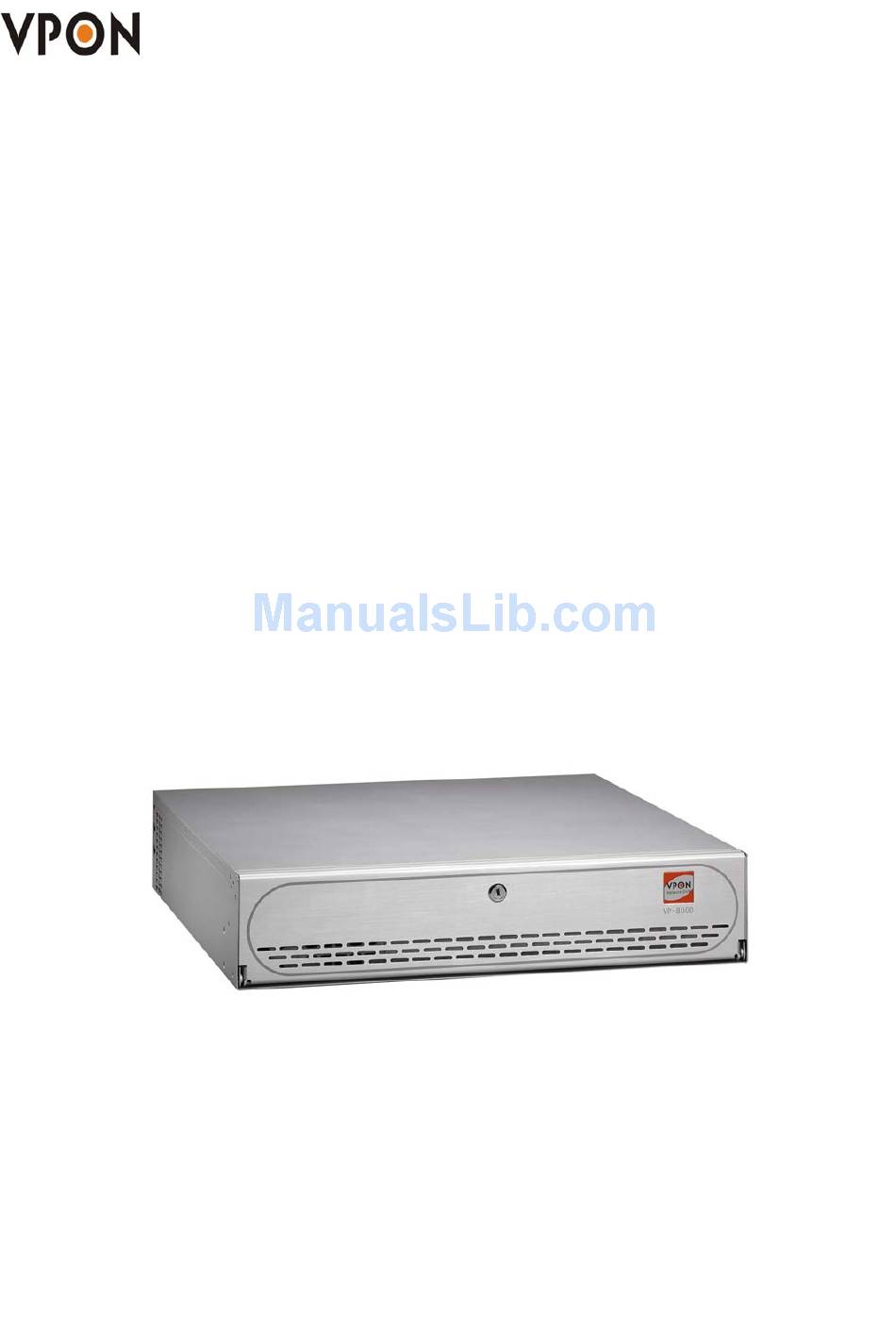

Page 1: User Manual
Network DVR System Your best choice for digital video recording and remote surveillance VP-8000 Intelligent Security System User Manual (Version:V2.0.1.1) www.vpon21.com... -
Page 2: Important Information
When unpacking your VPON unit, check for missing or damaged items. If any item is missing, or if damage is evident, DO NOT INSTALL OR OPERATE THIS PRODUCT. Contact your dealer or us for assistance. -
Page 3: Table Of Contents
1.1 Introduction-----------------------------------------------------------------------------------1 1.2 Features-----------------------------------------------------------------------------------------------1 1.3 Product specifications---------------------------------------------------------------------------1 1.4 Front view ----------------------------------------------------------------------------------------2 1.5 Rear view ------------------------------------------------------------------------------------2 2.Operation and Configuration 2.1 VP-8000 Main Screen-------------------------------------------------------------------------------3 2.2 Functions---------------------------------------------------------------------------------4 2.3 Normal View---------------------------------------------------------------------------------5 2.4 Zoom---------------------------------------------------------------------------------------5 2.5 Overlay----------------------------------------------------------------------------------------6 2.6 Set Intelligent Function---------------------------------------------------------------------------------7 2.6.1 How to enable Alerts ------------------------------------------------------------------------------------8 2.6.2 Customizing the Intelligent Features -----------------------------------------------------------------8... -
Page 4: Introduction
The VP-8000 Intelligent Security System is a standalone video analysis system. Up to 4 cameras can be connected to a single VP-8000 unit. Video can also be displayed on a local VGA monitor. VP-8000 is independent to any Network DVR. The interface between VP-8000 and DVR is its built-in 4IN / 4OUT GPIO pins. -
Page 5: Front View
Chapter 1: Overview 1.4 Front View 1 2 3 Reset switch Power switch HDD light and Power light Cooling fans Lock 1.5 Rear View 5 6 7 8 9 10 GPIO port Video in ports (composite) Power input Keyboard and mouse ports (PS/2) COM port (RS-232) Printer port VGA output... -
Page 6: Operation And Configuration
2.1 VP-8000 Main Screen After power up successfully, you can see the main screen of VP-8000 in multiple camera view as Fig. 2.1. You can get single camera view by clicking the “zoom” icon at the left bottom of main screen to get Fig. -
Page 7: Functions
VP-8000 basic information Date and Time Record To set up camera record schedule. It is NOT recommended to use VP-8000 as a recording device as DVR. Scheduler To set up date / time period for intelligent functions. Events Click to bring up event list... -
Page 8: Normal View
Chapter 2: Operation and Configuration 2.3 Normal View Display 4 cameras video on main screen. Fig. 2.4 2.4 Zoom Click to get single (selected) camera view as Fig. 2.5 Fig. 2.5... -
Page 9: Overlay
Chapter 2: Operation and Configuration 2.5 Overlay Click to toggle the overlay of user define area for alarm trigger on screen. Fig. 2.6 shows camera videos with alarm areas. And Fig. 2.7 shows normal video Fig. 2.6 Fig. 2.7... -
Page 10: Set Intelligent Function
Chapter 2: Operation and Configuration 2.6 Set Intelligent Function This feature allows each camera to be set with its own intelligent functionalities. Below is the screenshot for the “Set Intelligent Function” console. Fig. 2.8 – Set Intelligent Function Console 1. GPIO To set the length of alarm duration SMS/MMS* To activate SMS/MMS alerts;... -
Page 11: How To Enable Alerts
User will also be able to specify the minimum and maximum sizes of the object of interest. At the same time, there is a special feature, “Perspective Line” that allows the enhancement of the analysis process by telling the VP-8000 the depth of view of an area of interest. This is useful if the area of interest spans a... - Page 12 To indicate the depth of the image, it is necessary to draw the perspective line from the point nearer to the camera to the point that is further away from the camera. VP-8000 will then name the point near to the camera as “Near” and the other end as “Far”. The user will then need to define the expected minimum and maximum size of the object of interest in the near-end and far-end of the area of interest.
-
Page 13: Switch To Operation Mode / Admin Mode
“Alert reset time” is the time taken for the alarm to stop and for VP-8000 to relearn the new scene, which is the one with the unattended object or without the missing object, as normal. -
Page 14: Record
Note: It is NOT recommended to use VP-8000 as a general recording device because the file size is large and the system hard disk will be full in two days. For customers that need general recording functions, please use an external DVR. - Page 15 Chapter 2: Operation and Configuration Fig. 2.14 Camera Selects camera to apply schedule Function “None”, “Recording”, “Intrusion”, “Perimeter Defense”, “Missing Object”, “Unattended Object” or “Missing/Unattended” Clear Schedule Deletes all selections that has been made to the schedule To set the schedule for a camera, simply choose the camera to apply the schedule to and click on the desired function.
-
Page 16: Events
Chapter 2: Operation and Configuration Fig. 2.15 2.10 Events Click the Events button to display a list of all events stored on the VP-8000 as follows. Fig. 2.16... - Page 17 Chapter 2: Operation and Configuration Location Selects camera to view Time Selects view; Choose from “All Events”, “Last 1 Hour”, “Last 24 Hours” or “Last 7 Days” to view record View Event Click View Event to view selected event’s recording Delete Selected To delete selected events Delete All...
-
Page 18: Settings
VP-8000 hard disk properties, create alert messages, as well as configure the connection to a network. You’ll also be able to upgrade the VP-8000 software through this function and adjust the image quality of the cameras. Click the “Settings” button to display the Settings Setup menus. -
Page 19: Camera
Function to be activated as per schedule 2.11.2 Login / Storage VP-8000 is configured for open access (anonymous users), with default Administrator login name and password, set to “demo” and “password” respectively. The Administrator is advised to change the password after the first login. -
Page 20: Network
Login: Click Login button to enter login name and password. Storage: The storage information for VP-8000 can also be found in this window. Of special mention is the Auto Purge function, which automatically deletes the old event files when the hard disk space in use is more than 90%. -
Page 21: Video
Chapter 2: Operation and Configuration 1. Alert to be Enters Email address to that alert sent from this is to be sent from Email Address 2. Mail Server Enters mail server address 3. Message Enters preferred alert message 4. Proxy Name Enters proxy address and Port number if any 5.
