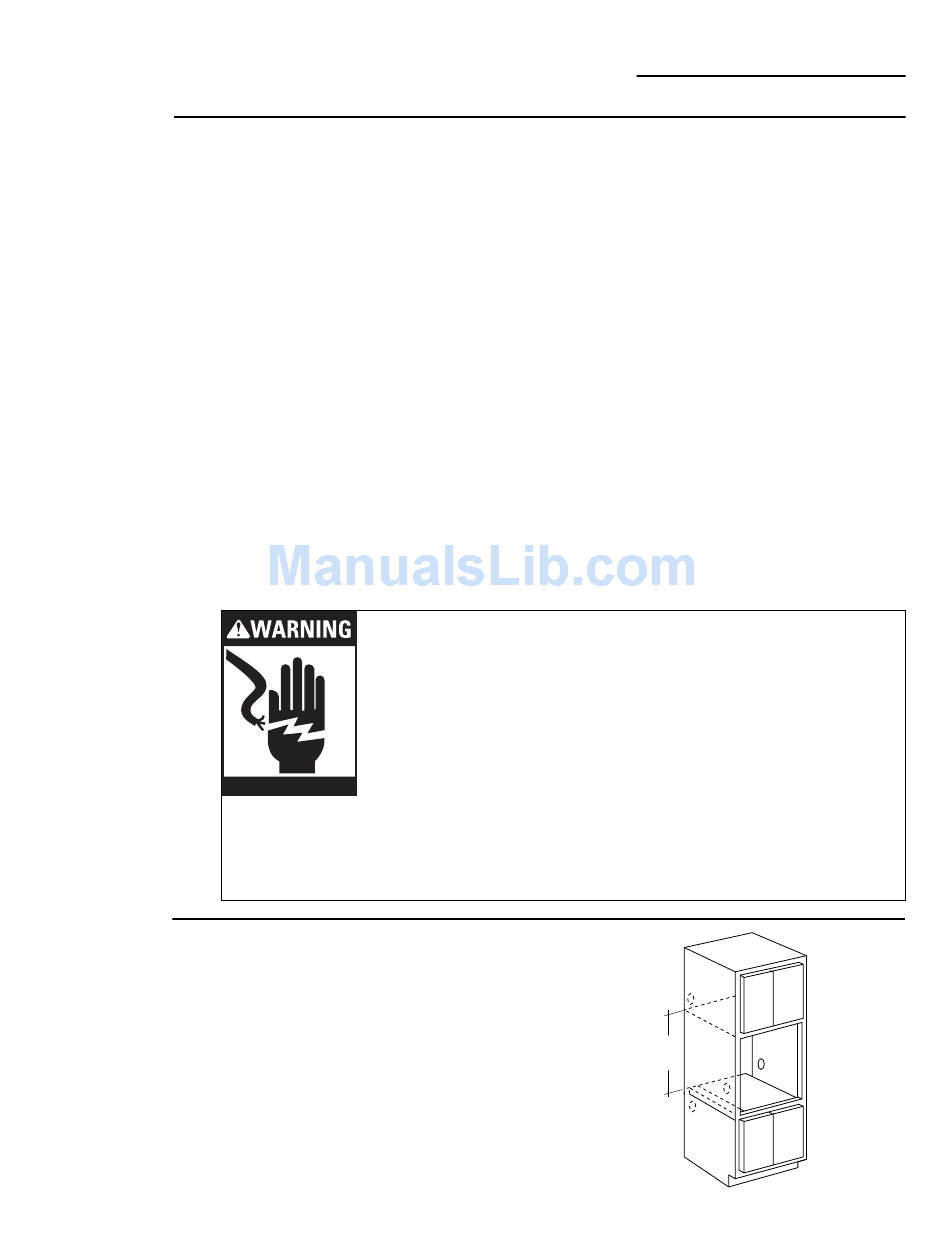

Installation Preparation; Electrical Requirements; Install Junction Box - GE Advantium SCB2000 Installation Instructions Manual

Electrical
Requirements
Install The conduit is located at the top right on the
back of the oven.
Junction Box
• Locate and install the junction box within
Single Speedcook Installation
Product rating is 120/208 or 120/240 volt, 60
Hz, 30 amps. This product must be connected
to a supply circuit of the proper voltage and
frequency and protected by a time delay fuse
or circuit breaker. The power supply should
be brought to a separate 30 ampere branch
circuit. Wire size must conform to the require-
ments of the National Electric Code or the
prevailing local code.
Electrical Shock Hazard
• The electrical power to
the oven branch circuit
must be shut off while
line connections are
being made.
• Use copper wiring only.
• Electrical ground is
required on this
appliance. The free end
of the green wire (the ground wire) must be
connected to a suitable ground. This wire
must remain grounded to the oven.
reach of the oven conduit.
– Through the left or right sides of the cabinet
wall and into adjacent cabinet.
– Or, through the cutout floor.
– Or, in the upper cabinet.

Installation Preparation

Built-In Speedcook Ovens
Combined Speedcook and Wall Oven
Installation:
When installed in combination with a GE/
Monogram single wall oven, use separate
electrical junction boxes,
OR,
Install a single junction box connected to 50
amp. supply circuit or properly rated supply
circuit.
• Refer to single oven installation instructions
for electrical requirements of that product.
• These connections must be made by a
qualified electrician. All electrical
connections must meet National Electrical
code or prevailing local codes.
Combined Speedcook and Warming Drawer
installation:
When installing the Speedcook oven over a
GE/Monogram electric warming drawer, a
separate 120V, 60Hz, properly grounded
receptacle must be installed. See instructions
packed with the warming drawer.
• If cold water pipe is interrupted by plastic,
non-metallic gaskets, union connections or
other insulating materials, DO NOT use for
grounding.
• DO NOT ground to a gas pipe.
• DO NOT have a fuse in the NEUTRAL or
GROUNDING circuit. A fuse in the
NEUTRAL or GROUNDING circuit could
result in an electrical shock.
• Check with a qualified electrican if you are
in doubt as to whether the appliance is
properly grounded.
Failure to follow these instructions could
result in serious injury or death.
21"
Min.
5
