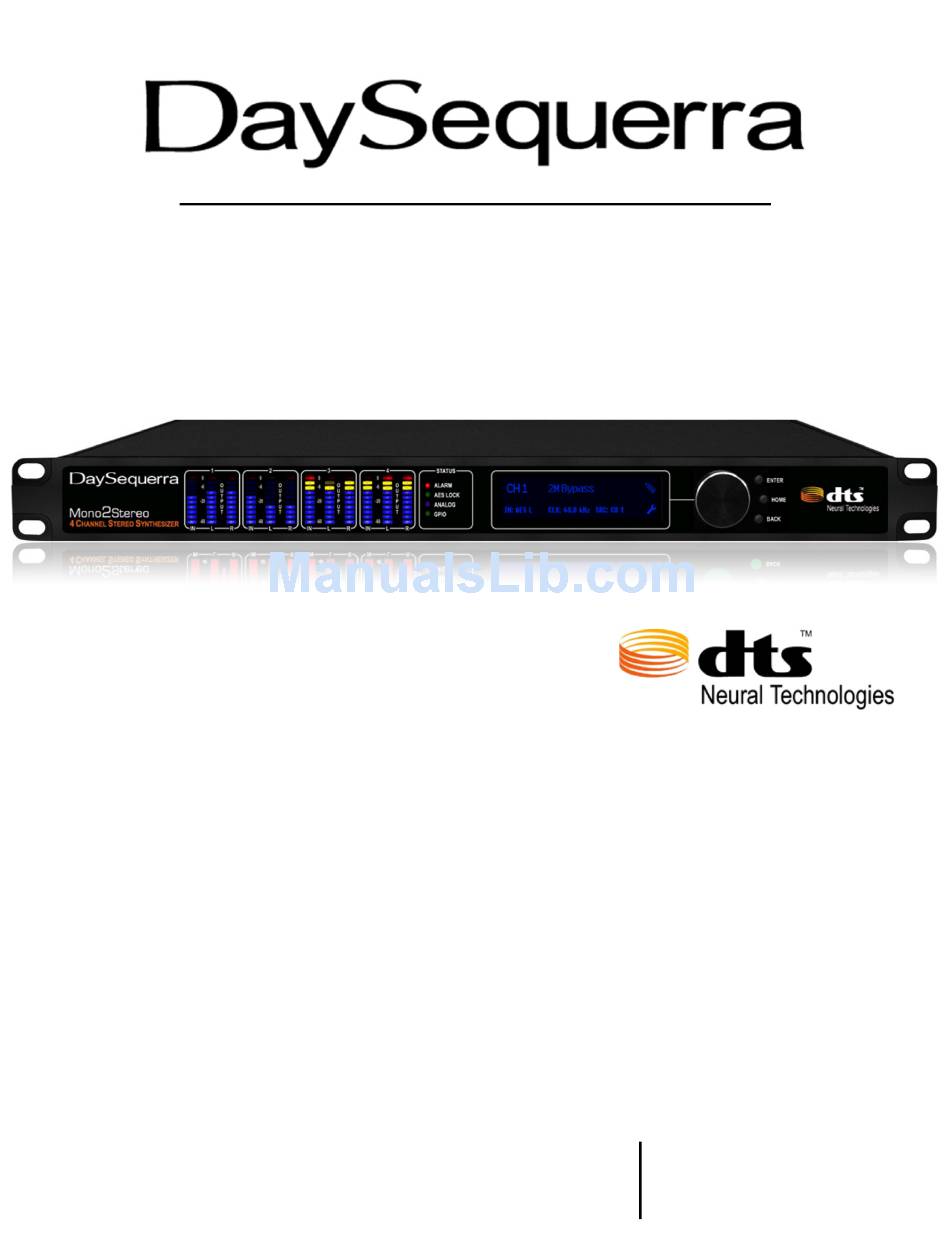

- Page 1 4 Channel Stereo Synthesizer Mono2Stereo User Manual...
- Page 2 Thanks for purchasing the DaySequerra Mono2Stereo. Our Mono2Stereo four channel stereo synthesizer uses a DTS Neural proprietary algorithm developed to produce an artifact-free, wide soundstage with perfect, spectrally balanced stereo from mono content. We design and build all of our...
-
Page 3: Table Of Contents
Table of Contents Important Safety Information Presets Service Information Home Screen Menu Functions M2S Technical Specifications System Menu Functions Introduction Faults Operational Diagram Advanced Routing Typical Applications Firmware Update Procedure Installation Warranty Front Panel Rear Panel Meter Display Home Screen Programming Menu Menu Tree Warranty... -
Page 4: Important Safety Information
ENTER key followed by BACK. Service Information The DaySequerra Mono2Stereo contains no user serviceable components inside the unit. Please contact DaySequerra for repair and upgrade information. In the event that your unit needs to be... -
Page 5: M2S Technical Specifications
Technical Specifications Latency of the DTS Algorithm: <1ms at 48k sampling rate Power Consumption: 25W Maximum Dimensions: Rack Mount; 1 RU (1.75” x 19” x 10.75”) Sample Rate: 32kHz-96kHz, 24-bit Dynamic Range: 140dB, DR any input to any output Regulatory: North America: Designed to comply with FCC Class A part 15 requirements. -
Page 6: Introduction
Introduction With an overwhelmingly large catalog of monaural material and broadcasts throughout the world, it was clear that there was a demand for an easy solution to create an accurate sounding stereo experience from a single channel input. Where conventional conversion techniques use comb filtering for stereo synthesis, with the result being an essentially flat frequency response is maintained for both channels under all conditions, Mono2Stereo is designed to produce an artifact-free, wide soundstage with perfect, spectrally balanced stereo from mono content. -
Page 7: Installation
Installation Immediately upon receiving your Mono2Stereo, please make a careful inspection for any shipping damage. If damage is found or suspected, please notify the carrier at once and then contact your dealer. Mono2Stereo is shipped in one carton, which contains: the Mono2Stereo unit, an AC power cable and supporting documentation. -
Page 8: Front Panel
Front Panel Bargraph Meters INPUT LEVELS - One 10-segment multi-colored LED meter per channel display the level of the inbound audio stream. OUTPUT LEVELS - Two 10-segment multi-colored LED meters per channel display the audio level for the Left and Right synthesized stereo output audio stream. -
Page 9: Rear Panel
Rear Panel AES INPUTS - Four 75Ω BNC connectors will accept an AES3 digital audio stream. AES OUTPUTS - Four 75Ω BNC connectors output the synthesized stereo AES3 digital audio stream. AES SYNC - Two 75Ω BNC connectors that allow Mono2Stereo to receive an AES REF or DARS clock signal from an external source and pass it on to other devices in the same stack. -
Page 10: Meter Display
Meter Display Figure 1. Metering display Mono2Stereo. The meter display on Mono2Stereo is arranged into four groups of three meters each, with each group representing a single channel. Display Digital Analog The table demonstrates which display matches up with 1 ... -
Page 11: Home Screen
Home Screen Figure 2. Home Screen on Mono2Stereo. Mono2Stereo has been designed with ease of use in mind. Most of the common settings are available for modification right on the home screen. While the unit is at this screen, press the HOME key to invoke home screen selection mode;... -
Page 12: Programming Menu
Programming Menu If AC line power is lost or momentarily interrupted, Mono2Stereo will revert to its previous state. To enter the programming menu, turn the rotary encoder in any direction while at the HOME screen. The ENTER key will enter the currently selected sub menu or enter the value mode for the selected option. -
Page 13: Presets
Presets Mono2Stereo contains three factory defined preset setting configurations to change the sound of the synthesized stereo. These presets were designed as starting points for you to become comfortable with the operation of Mono2Stereo. It is recommended that you start with one of these presets, and then tailor it to your preferences. -
Page 14: System Menu Functions
Preset Name: Sets the name of the preset, up to 12 characters. Press ENTER while the cursor is over this field to go into data entry mode. Turn the rotary encoder to scroll through the available choices of letters (A-Z, 0-9 and _ (underscore)) and press enter to move on to the next field. Turning the rotary encoder again will start to scroll through the choices for the next letter, or pressing ENTER accepts the name. - Page 15 Network Menu Mono2Stereo has several configurable network settings. All of the Mono2Stereo network settings are password protected. The password to change the network settings is m2stereo. Please take note when entering the password that the Mono2Stereo password is case sensitive. The Mono2Stereo is configured to take a DHCP address by default.
-
Page 16: Faults
Hardware Rev: Displays the hardware revision level of this unit. Firmware Rev: Displays the firmware revision level that is running on this unit. DTS Algorithm: Displays the specific DTS algorithm running. DTS Algorithm Rev: Version of the DTS algorithm running on this unit. Faults ... -
Page 17: Advanced Routing
Advanced Routing Advanced routing is an additional operating mode supported by Mono2Stereo. In short, advanced routing will allow Mono2Stereo to drive multiple physical outputs from one physical input source. The factory setting for advanced routing is disabled on Mono2Stereo. In this default configuration, each of the Mono2Stereo channels can be seen as directly relating to that respective physical input and output ports. -
Page 18: Firmware Update Procedure
Firmware Update Provided that you have completed warranty registration for your Mono2Stereo on our website, we will notify you as new firmware updates become available. The notification will contain the announcement of new firmware, issues corrected, and instructions on how to retrieve the update files. Update packages will be available as a single .ZIP file for download. -
Page 19: Warranty
DaySequerra – Three Year Limited Warranty DaySequerra warrants this product to be free from defects in materials and workmanship to its original owner for three (3) years from the date of purchase. DaySequerra will repair or replace such product or part thereof that upon inspection by DaySequerra, is found to be defective in materials or workmanship. - Page 20 Manufactured under license from DTS Licensing Limited. DTS is a registered trademark & the DTS Logos and Symbol are trademarks of DTS, Inc. © 2008-2009 DTS, Inc. All Rights Reserved. 20 M2S User Manual ...
