Summary of Contents for Swart Multi-tool SW2010

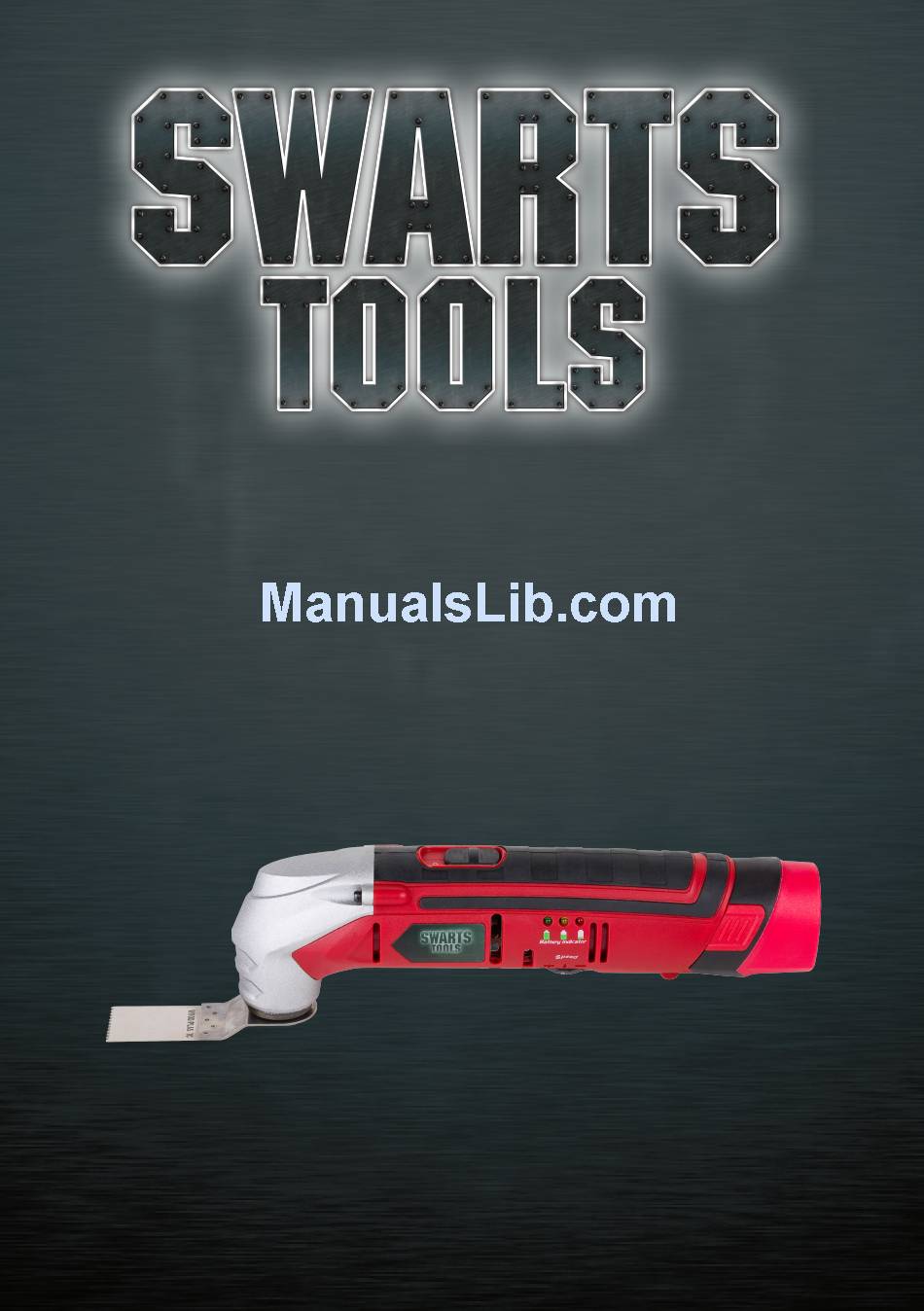

- Page 1 InstructIon booklet and warranty InformatIon multi-tool Part no.sw2010 Please read care and safety InstructIons before use...
-
Page 2: Table Of Contents
contents GettInG started 1.0..............................Important Safety Notes 2.0..................................Unpacking 3.0..................................Unpacking 4.0................................Description of Parts 5.0....................................Battery 6.0................................... Charging oPeratIon 7.0..................................Safety Notes 8.0..................................Fitting Tools 9.0..................................Operating care 10.0................................... Maintenance 11.0 ................................... Storage 12.0..................................Environment 13.0....................................FAQ 14.0..............................Technical Specifications 15.0..................................Warranty ImPortant note General Power tool safety WARNING: Read all safety warnings and all instructions. -
Page 3: Personal Safety
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of cord suitable for outdoor use reduces the risk of electric shock. Personal safety Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol or medication. - Page 4 or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water.
- Page 5 blade usaGe suGGestIons SW2033: 68mm High Speed Steel SW2027: 32MM Wide Stainless Flush Cutting Blade Steel Flush Cutting Blade This blade is great for doing flush and plunge This blade is great for doing flush and plunge cuts in timber, plastic and drywall. It is most cuts in timber, plastic and drywall.
-
Page 6: Unpacking
unPackInG InstructIon booklet... -
Page 7: Description Of Parts
descrIPtIon of Parts Charger Unit 68mm Flush Cutting Blade 52mm Scraper Blade Half Moon Blade Full Moon Cutting Blade Hex Key Locking Bolt 32mm Cutting Blade 28mm Cutting Blade 10mm Cutting Blade 20mm Cutting Blade 32mm Cutting Blade Fingertip Sander Triangle Rasp Fingertip Sandpaper x 3 Triangle Sandpaper x 3... -
Page 8: Battery
battery Note: The battery is supplied partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before first use. The Li-ion battery is protected against deep discharging by the “Electronic Cell Protection (ECP)”. When the battery is empty, the machine is switched off by means of a protective circuit. -
Page 9: Operation
charGer lIGhts IndIcator Power on charGInG charGed error = flashInG Place the charger in a safe position away from moisture, heat or any hazard to the charger or other danger. Connect to suitable power outlet and switch on. Turn the battery so the rails slide smoothly into place on the charger. Two solid GREEN LED’s show mains connection. -
Page 10: Safety Notes
safety notes before startInG work Sharp blades, heat buildup and flying debris are a danger to user and bystanders. Use of suitable protective clothing, gloves, footwear, eye and ear protection, as well as safe working practices can reduce these risks. Dusts from materials such as lead-containing coatings, some wood types, nerals and metal can be harmful to one’s health. -
Page 11: Operating
oPeratInG swItchInG on and off To start the machine, push the On/Off switch forward so that “ON” is indicated on the switch. To switch off the machine, push the On/Off switch toward the rear so that the “OFF” is indicated on the switch. Selecting the rate of oscillation use the thumbwheel to select the rate of oscillation. -
Page 12: Maintenance
scraPInG For scraping, select a high oscillation rate. Work on a soft surface (e.g. wood) on a flat angle and apply only light pressure. Otherwise the scraper can cut into the surface. sharP blades, heat buIlduP and flyInG debrIs are a danGer to user and bystanders. -
Page 13: Storage
storaGe 11.0 Store the tool, instruction manual and accessories in a secure, dry place. In this way you will always have all the information and parts ready to hand. neVer store the tool wIth a flat battery. the battery should Ideally be stored between 10°c and 24°c (50°f) and 75°f). -
Page 14: Faq
13.0 do I need to fully dIscharGe the battery before recharGInG It? No the Li-Ion system has no memory effect so you can charge it at any time. The charge will be retained in storage for much longer than older battery technology. my battery Is not charGInG, what’s wronG? Check to make sure the electrical outlet is “live”... -
Page 15: Technical Specifications
technIcal sPecIfIcatIons 14.0 Unit operating time cycle with full battery - 25 minutes with no load Oscillating speed - 5000 – 20000rpm Oscillating angle - 3.2° Sound Pressure Level (dB(A)) - 86dB Battery operating voltage - 12V DC (3 cells) Battery makeup - Lithium Ion (Li-ion) 1300Ah Charging period for fully discharged battery... - Page 16 Please read care and safety InstructIons before use...
