USER'S MANUAL

DEHUMIDIFIER

WDH-520HB

Table of Contents

Need help?

Do you have a question about the WDH-520HB and is the answer not in the manual?

Questions and answers

Summary of Contents for WDH WDH-520HB

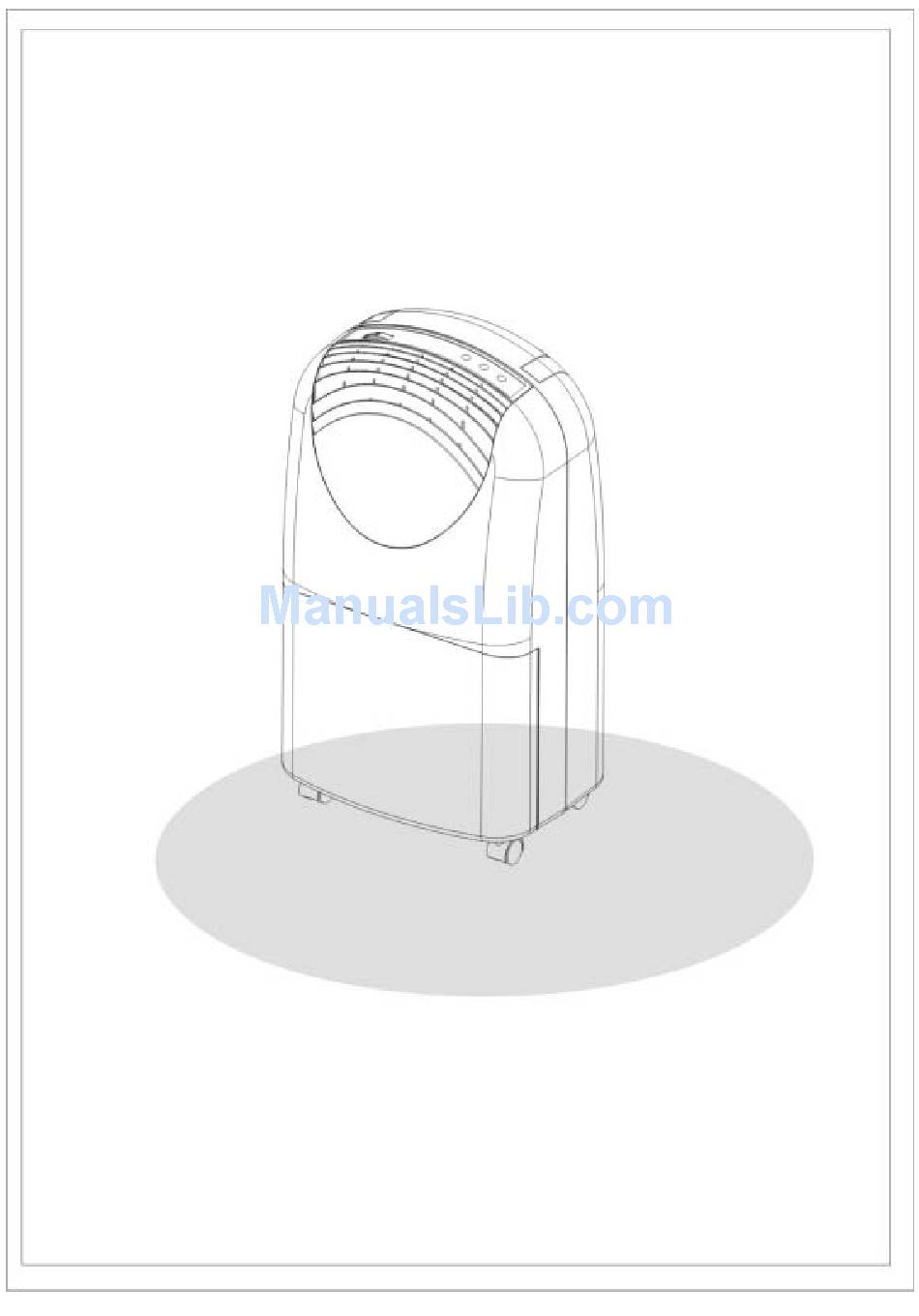

Page 1 USER'S MANUAL DEHUMIDIFIER WDH-520HB...
Page 2 ● Do not fold the power cord. ● Connect to a suitable ● Do not overload the power Fully uncoil before use. earthed 230-240 volt AC supply outlet. only. ● ● Ensure the plug is dry before ● Do not plug in with wet Disconnect from the power supply connecting.
Page 3 Indicates excessive ice Indicates dehumidifier is buildup. The appliance Dehumidifier will Humidity control operating. is operating in low operate continuously to between 50%~60% temperatures. remove moisture. Indicates the water Dehumidifier OFF. To control the operation bucket is full of the dehumidifier...
Page 4 Place the dehumidifier in a suitable position in the room. Position away from windows or door area. Connect to a suitable power outlet. Make sure the water tank is placed in the proper position. If the full bucket indicator is ON when first plugged in, pull the bucket out, then push the water tank tback to the proper position.
Page 5 ● Continuous Drainage. You will require a suitable length of drain hose, standard PVC with an inner diameter of 13mm. Carefully remove the removable knockout at rear of appliance. Feed the PVC hose into the back of the appliance and through into the water tank area. Place the hose over the water tank inlet drain.
Page 6 ● Do not pull the power cord to remove it ● Do not use harsh solvents or abrasive cleaners to from the power supply. Clean the appliance. Do not leave in direct sunlight. ● Install the appliance on a level firm surface. ●...
Page 7 Please make sure the dehumidifier is unplugged before cleaning! Outer Case： Wipe the outer case using soft damp clean cloth. Dry with a dry towel. Do not immerse in any liquid. Air Filter Air filter filters the dust and impurities from the air, which may hinder the dehumidifier operation and should be regularly cleaned.
Page 8 IMPORTANT SAFEGUARDS Carefully read these instructions before using your appliance • CAUTION. Keep out of reach of children. This appliance is not intended for use by young children or infirm persons. Young children must be supervised IMPORTANT SAFEGUARDS to ensure that they do not play with the appliance. •...
Page 9 MODEL WDH-520HB POWER AC 220~240V / 50Hz MOISTURE REMOVAL 16 (L/D) 30 C 80%RH POWER INPUT 350W SIZE OF SHELL 621 × 345 × 261 ( H × W × D ) 15.5 kgs WEIGHT OPERATING C~35 TEMPERATURE...
