Installation and Assembly:
PeerSound™ Wireless AV Wall System
PeerSound™ Wireless Audio Wall System
WL-AU-AVWS, WL-AU-AVWS-W, WL-AU-AVWSA, WL-AU-AVWSA-W
Models:
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com
ISSUED: 2012-10-11
SHEET #: 180-9041-2 2012-05-31
Advertisement
Table of Contents
Related Manuals for peerless-AV WL-AU-AVWS
Summary of Contents for peerless-AV WL-AU-AVWS
-
Page 1: Installation And Assembly

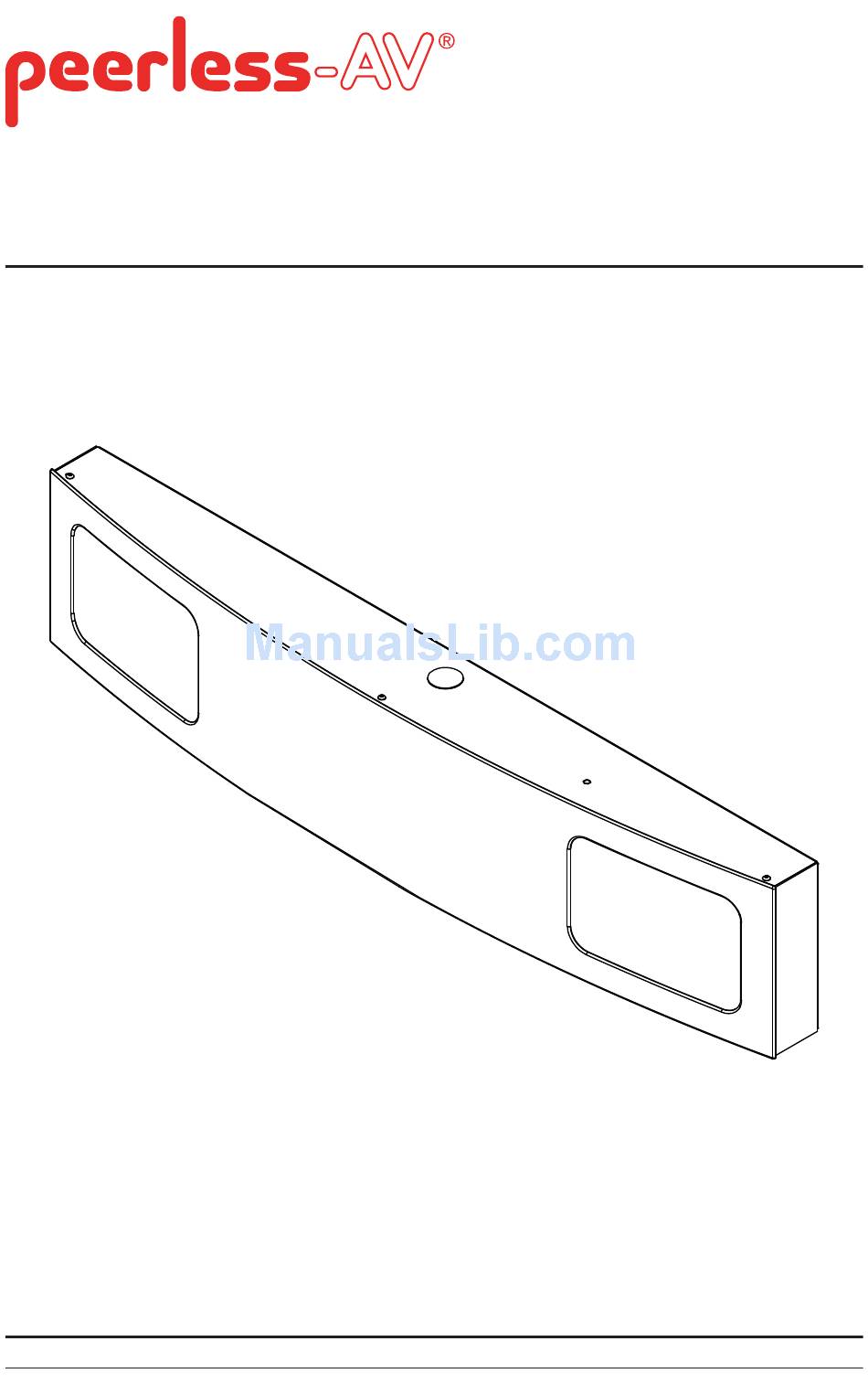

Installation and Assembly: PeerSound™ Wireless AV Wall System PeerSound™ Wireless Audio Wall System WL-AU-AVWS, WL-AU-AVWS-W, WL-AU-AVWSA, WL-AU-AVWSA-W Models: 2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com ISSUED: 2012-10-11 SHEET #: 180-9041-2 2012-05-31... -
Page 3: Table Of Contents
NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor. -
Page 4: Parts List
Before beginning, make sure you have all parts shown below. Parts List WL-AU-AVWS WL-AU-AVWS-W WL-AU-AVWSA WL-AU-AVWSA-W Qty. Part # Part # Part # Part # Description enclosure assembly 180-1201 180-2201 180-1201 180-2201 10mm concrete anchor 590-0321 590-0321 590-0321 590-0321 5/16" x 3" wood screw... -
Page 5: Parts List
Parts List WL-AU-AVWS WL-AU-AVWS-W WL-AU-AVWSA WL-AU-AVWSA-W Qty. Part # Part # Part # Part # Description AA wireless transmitter hds-200 180-1002 180-1002 — — BB wireless reciever hds-200 180-1003 180-1003 — — CC power adapter - 12v 2a 180-1004 180-1004 —... -
Page 6: Installation To Double Stud Wall
Skip to page 8 for Metal Stud Installation. Skip to page 10 for Concrete and Cinder Block Installation. Installation to Double-Stud Wall WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. •... - Page 7 Using the keyholes in the back of enclosure assembly (A), place enclosure assembly (A) on to the two screws (C). Slide enclosure assembly (A) over until the mark on the wall plate lines up with the center of the screw (C) as shown in detail A. NOTE: When mounting on 16" stud centers, use bottom set of slots.
-
Page 8: Installation To Metal Stud Wall
Installation to Metal Stud Wall WARNING • Drywall must be 1/2" or thicker, and metal stud must be 24 gauge or heavier. • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components (Not Evaluated By UL). Use a stud fi... - Page 9 Using the keyholes in the back of enclosure assembly (A), place enclosure assembly (A) on to the two 1/4"20 x 2.5" phillips screws (P) as shown in fi g. 2.6. Slide enclosure assembly (A) over until the mark on the wall plate lines up with the center of the 1/4"20 x 2.5" phillips screws (P) as shown in detail B.
-
Page 10: Installation To Solid Concrete Or Cinder Block
Installation to Solid Concrete or Cinder Block WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" (35 mm) of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"... - Page 11 Using the keyholes in the back of enclosure assembly (A), place enclosure assembly (A) on to the two screws (C). Slide enclosure assembly (A) over until the mark on the wall plate lines up with the center of the screw (C) as shown in detail C. NOTE: When mounting on 16" stud centers, use bottom set of slots.
- Page 12 Install power strip (D) onto mounting screws inside of enclosure assembly (A). If your power source is located outside of the enclosure (A), route the power cord from the power strip through the hole in the top or bottom of enclosure (A). Push the power cord through the bottom of the cable bushing (J).
- Page 13 Continue to step 4 for WL-AU-PST600(-W), WL-AU-PST1200(-W), WL-AU-PST1600(-W) Models. Skip to step 5 for WL-AU-PST600A(-W), WL-AU-PST1200A(-W), WL-AU-PST1600A(-W) Models. Slide the receiver mounting bracket (E) over the HDS200 receiver (BB) as shown. Install HDS200 receiver assembly into enclosure (A) using two M5 x 6mm screws (Q). Install amp brackets (F) into enclosure (A) using two M5 x 6mm screws (Q).
- Page 14 Install amp (JJ) between amp brackets (F) and secure using two M4 x 10mm screws (R) as shown. OPTIONAL. Install wireless mic receiver (not included) into area provided. ISSUED: 2012-10-11 SHEET #: 180-9041-2 2012-05-31...
- Page 15 IR extender (LL) to bottom of IR extender fi rst, then install to bottom of enclosure assembly (A) as shown. DOUBLE SIDED TAPE NOTE: IR extender (II) is used on WL-AU-AVWS(-W) models only. ISSUED: 2012-10-11 SHEET #: 180-9041-2 2012-05-31...
- Page 16 Route connector ends of IR extenders through holes in bottom of enclosure assembly (A) as shown. ISSUED: 2012-10-11 SHEET #: 180-9041-2 2012-05-31...
-
Page 17: Component Connections
Component Connections Use the following diagram to make the component connections. NOTE: For transmitter setup instructions, refer to the Installation and Operation section of the HDS200 user manual. (WL-AU-AVWS(-W)models only). SPEAKERS (PRE-WIRED) ISSUED: 2012-10-11 SHEET #: 180-9041-2 2012-05-31... -
Page 18: Amplifi Er
Amplifi er IR IN AMPLIFIER GAIN AUDIO-REMOTE Main POWER Button (Unit) Turns ON/OFF the unit’s main power. If the main power button on the unit is not turned on the unit will not respond to remote control. Note: If the power is turned OFF using the face button while the unit is in stand-by mode, and then turned back on via the push button, the unit will remain in stand-by mode till the remote is used to turn it on. -
Page 19: Amplifi Er Setup
Amplifi er Setup Connect the desired audio sources to the unit. Turn on the amplifi er using the Main Power Button (NOTE: Remote control function will not work unless the unit Main Power has been turned on). Ensure that the Power Indicator light is solid Green. Adjust volume to desired level. Setup HDS200 transmitter and AV sources. - Page 20 This page intentionally left blank. Página en blanco. Cette page a été laissée en blanc intentionnellement. Diese Seite wurde absichtlich freigelassen. Deze pagina is met opzet blanco gelaten. Pagina lasciata intenzionalmente vuota. Tato strana je záměrně prázdná. ČEŠ Táto strana je zámerne prázdna. Esta página foi intencionalmente deixada em branco.
-
Page 21: Limited Warranty
This warranty is in lieu of all other warranties, express or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless-AV ®... - Page 22 This page intentionally left blank. Página en blanco. Cette page a été laissée en blanc intentionnellement. Diese Seite wurde absichtlich freigelassen. Deze pagina is met opzet blanco gelaten. Pagina lasciata intenzionalmente vuota. Tato strana je záměrně prázdná. ČEŠ Táto strana je zámerne prázdna. Esta página foi intencionalmente deixada em branco.
- Page 23 This page intentionally left blank. Página en blanco. Cette page a été laissée en blanc intentionnellement. Diese Seite wurde absichtlich freigelassen. Deze pagina is met opzet blanco gelaten. Pagina lasciata intenzionalmente vuota. Tato strana je záměrně prázdná. ČEŠ Táto strana je zámerne prázdna. Esta página foi intencionalmente deixada em branco.
- Page 24 Peerless-AV 2300 White Oak Circle Aurora, IL 60502 Email: tech@peerlessmounts.com Ph: (800) 865-2112 Fax: (800) 359-6500 www.peerless-av.com © 2012, Peerless Industries, Inc.
