KPN Mobile Internet
Router 850
Quick Start Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mobile Internet Router 850 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KPN Mobile Internet Router 850

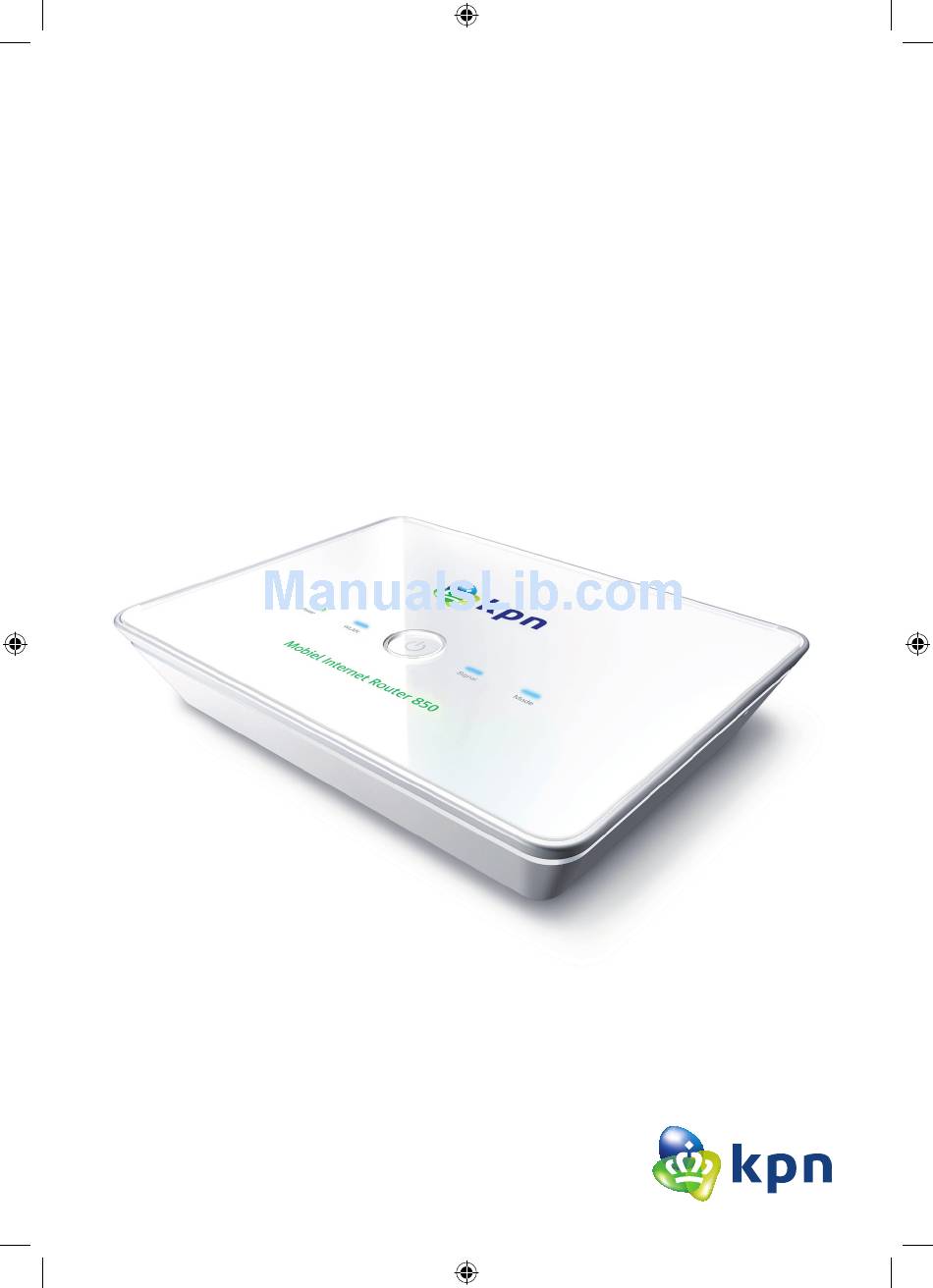

  • Page 1 KPN Mobile Internet Router 850 Quick Start Manual...

  • Page 2: Table Of Contents

    Index 1. Your Mobile Internet Router 850 (MIR850) on the outside 2. PC Configuration Requirements 3. In a few steps: connecting your MIR850 and use as a Mobile Router Step 1: Insert the SIM Card in your MIR850 Step : Connect to the Power Adapter Step 3: Connect to a PC Step 4: Connect to a telephone Set (Optional) Step 5: Place the MIR850 Step 6: Connect an External Antenna (Optional) Step 7: Power on the MIR850 Step 8: Make a call...

  • Page 3: Your Mobile Internet Router 850 (Mir850) On The Outside

    1. Your Mobile Internet Router 850 (MIR850) on the outside Analogue Phone connection Power indicator (LED) Ethernet computer WLAN indicator (LED) connections (4 ports) ON/OFF key Signal strength indicator (LED) Network mode indicator (LED) Antenna-switch Internal/External Connector for external Antenna...

  • Page 4: In A Few Steps: Connecting Your Mir850 And Use As A Mobile Router

    3. In a few steps: connecting your MIR850 and use as a Mobile Router Step 1: Insert the SIM Card in your MIR850 Note: Firstly remove all cables and the Power-supply from your MIR850 !! Now remove the plastic card slot out of the MIR850. Slide the SIM-card into the card slot with the golden contact facing upward.

  • Page 5: Step : Connect To The Power Adapter

    Important: By default, your (U)SIM-card is protected by a PIN-code, which is 0000. Your MIR850 will not make a connection to the mobile network and to the Internet, until this PIN is verified. Until that moment, the LED of the “Signal” will blink RED (see also chapter 4).

  • Page 6: Step 5: Place The Mir850

    Step 5: Place the MIR850 The MIR850 can be placed either horizontally on a table, hanging against the wall, or leaning against the pedestal. Place the MIR850 on a higher place or near the window, so it can receive stronger signals. This will result in a better coverage and higher speeds. Press the bayonet of the pedestal, and place the MIR850 into the pedestal as shown in the figure.

  • Page 7: Step 6: Connect An External Antenna (Optional)

    Step 6: Connect an External Antenna (Optional) To have an even better reception (and thus better coverage and higher speeds), an external antenna can be connected to the MIR850. Tighten the antenna to make sure that the antenna is well connected with the antenna jack. Depending on the external antenna used, sometimes an antenna cable accessory can be necessary to fit the antenna connector on the MIR850, which is type SMA.

  • Page 8: Step 8: Make A Call

    Step 8: M ake a call When you hear the dial tone after picking up the handset, you can make a call. No pre-dial numbers are necessary. Just dial the (general 10-digit) subscriber-number. Step 9: Connection to the Internet By default, with its pre-defined settings the MIR850 automatically makes a connection to the internet at power-ON.

  • Page 9: Viewing The Mir850 Running Status Trough The Indicators (Led's)

    Administrator: Has the rights to view and modify the configurations. Username = Admin, default password is admin. Normal User: Has the right to view only the basic information. Username = (Narmal) User, default password is user. To avoid the conflicting configurations, only one user is allowed to log in to the MIR850 management page at a time.

  • Page 10: Optionally Connect And Use Your Mir850 As A Usb-Modem

    - Steady on and in green: Internet-connection over (slow) G network (GPRS). Max. download speed around 5 kbps. - Blinking in dark-blue: Registering with the (faster) 3G network (UMTS). - Steady on and in dark-blue: Internet-connection over (fast) 3G network (UMTS). Max.

  • Page 11: Using The Extended User Guides

    The MIR850 and PC are connected successfully. Step 4: After a short while, automatically the installation of the “KPN Mobile Connect” communication program will start. After the installation, this program will start automatically, and a new KPN-icon will appear on your desktop.
