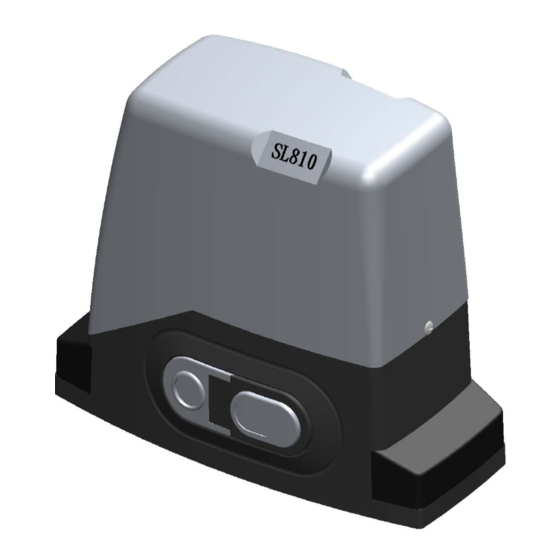

Sliding gate motor

Advertisement

Letron Auto Gates (Australia) Pty. Ltd.
User's Installation Manual
Sliding Gate Motor
• AUTOMATIC OBSTRUCT
• PHOTO ELECTRIC BEAM
• ROLLING CODE SYSTEM
• AUTO CLOSE DOOR
• SOLAR COMPATIBLE
( DC ONLY )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL810 and is the answer not in the manual?

Questions and answers

Summary of Contents for Letron Auto Gates SL810

  • Page 1 Letron Auto Gates (Australia) Pty. Ltd. User’s Installation Manual Sliding Gate Motor • AUTOMATIC OBSTRUCT • PHOTO ELECTRIC BEAM • ROLLING CODE SYSTEM • AUTO CLOSE DOOR • SOLAR COMPATIBLE ( DC ONLY )
  • Page 2: Table Of Contents

    Sliding Gate Motor – User’s Installation Manual Model – SL810 Installation Instructions & Owners Manual CONTENTS WARRANTY........................... 3 IMPORTANT SAFETY WARNINGS ................4 Features..........................5 Package List ......................... 6 Installation Procedure ...................... 7 QUICK MANUAL RELEASE OPERATION............... 11 Maintenance........................12 Letron Auto Gate (Australia) Pty.
  • Page 3: Warranty

    Sliding Gate Motor – User’s Installation Manual WARRANTY The warranty of this product commences from the date of purchase. The warranty is one year. Three months warranty on Remote Control. Invoice must retain for warranty to be honoured. The warranty is a Back to Base Warranty that covers defects of materials to the unit under normal and correct use.
  • Page 4: Important Safety Warnings

    Sliding Gate Motor – User’s Installation Manual IMPORTANT SAFETY WARNINGS - Please read these important safety warnings before installing or using this product • Never let children operate or play with the controls. • Keep the remoter control away from the children. •...
  • Page 5: Features

    Sliding Gate Motor – User’s Installation Manual Features Your automatic Slider Gate Motor has SECURITY CODE STORE many features which you will appreciate. The Sliding Gate Motor uses state of the The components and materials used in its Microchip® technology in storing your control board are of the latest technology Slider Code Transmitter Security Code.
  • Page 6: Package List

    Sliding Gate Motor – User’s Installation Manual Package List A standard kit contents: ITEM QUANTITY Sliding Gate Motor Battery (12VDC 7aH ) Transformer Emergency Release Keys Installation Instructions Limit Switch Brackets Remote Control Handset Gear Rack 4 metres Photo-electric Beam Optional (recommended) Technical Specifications Power supply: 15V AC Transformer or 12V Solar...
  • Page 7: Installation Procedure

    Sliding Gate Motor – User’s Installation Manual Installation Procedure Note: DO NOT switch on the power until the following 3 steps have completed successfully. Letron Auto Gate (Australia) Pty. Ltd. Page 7 of 14...
  • Page 8 Sliding Gate Motor – User’s Installation Manual 1. Installing the Gate Motor and Racks (1) Safely secure the Drive Motor onto a stable concrete slab/ground. (2) Mount the required lengths of the Racks to the gate. (3) Adjust the position of the racks so that the racks can be engaged correctly with the Pinion gear.
  • Page 9: Letron Auto Gate (Australia) Pty. Ltd

    Sliding Gate Motor – User’s Installation Manual 3.Confirm the Close and Open LED When the door Close the Red light should be on When the door Open the Green light should be on 4.Force Adjustment (sensitivity) Because of the obstruction sensing function of this Gate Opener, sensitivity adjustment may be required to allow for the effect of weather conditions (such as windy locations).
  • Page 10: Letron Auto Gate (Australia) Pty. Ltd

    Sliding Gate Motor – User’s Installation Manual 5. Auto Close Factory default is set to 0 sec. This can be increased up to approx 60sec by turning the dial clockwise. When using the auto-close function, it is recommended that a photoelectric beam (PE Cells) be installed to avoid accidental damage to property and personal injury.
  • Page 11: Quick Manual Release Operation

    Sliding Gate Motor – User’s Installation Manual QUICK MANUAL RELEASE OPERATION Disconnect battery before use! Engage Dis-engage Manual operation In case of power failure use manual release key to open or close gate manually, use the release key as follow: ...
  • Page 12: Maintenance

    Sliding Gate Motor – User’s Installation Manual Maintenance • All maintenance should be carried out by qualified personnel. Clean and lubricate any moving components. • In case of rust, use some grease on it. • • Ensure that the slider gate is always well balanced. •...
  • Page 13: Transformer

    Sliding Gate Motor – User’s Installation Manual Troubleshooting Problem Possible cause Solution Handset(remote control) Handset battery may be flat Replace BatteryCode Handset doesn’t work or has too Handset may not be coded to the (see Section 15) Extend Aerial short-a range Receiver Board Remove anypossible external Receiver antenna not be fully...
  • Page 14 Sliding Gate Motor – User’s Installation Manual Letron Auto Gate (Australia) Pty. Ltd. Page 14 of 14...
