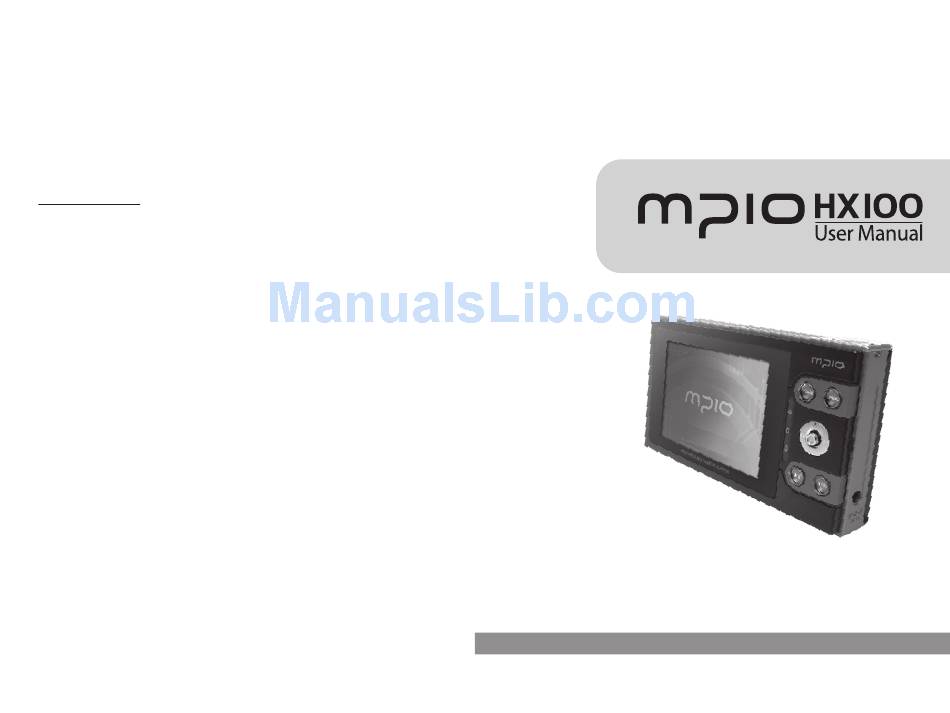

Mpio HX100 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MPIO Co., Ltd.
Head Office
Address: MPIO Co., Ltd.
10F Polaris2 B/D, 15-1 Jeongja-dong, Bundang-gu, Seongnam-si, Gyeonggi-do,
463-010 Korea
Tel: +82-31-785-9260
Website: www.mpio.co.kr
In Europe
Address: MPIO BV
Planetenweg 11-41, unit 23A, 2132 HN Hoofddorp, The Netherlands
Tel: +31-23-557-7889
Website: www.mpio.com
In USA
Address: MPIO USA
6440 Lusk Blvd., Suite D105, San Diego, CA92121, USA
Tel: +1-858-455-6775
Website: www.mpioamerica.com
In China
Address: MPIO Shanghai
E-23F Hudu Mansion, NO.838 Zhangyang Road Pudong, Shanghai, 200-122 China
Tel: +86-21-5058-6018
Website: www.mpio.cn
www.mpio.com
Thank you for purchasing this product.
Please read the manual carefully before use.
Portable Multimedia Player

Advertisement

Table of Contents
loading

Summary of Contents for Mpio HX100

  • Page 1 MPIO Co., Ltd. Head Office Address: MPIO Co., Ltd. 10F Polaris2 B/D, 15-1 Jeongja-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-010 Korea Tel: +82-31-785-9260 Website: www.mpio.co.kr In Europe Address: MPIO BV Planetenweg 11-41, unit 23A, 2132 HN Hoofddorp, The Netherlands Tel: +31-23-557-7889 Website: www.mpio.com...

  • Page 2: Customer Registration

    This guide will ensure that you get the most functions This site provides you diverse information and news of product. of HX100 with conveniences. Please do read through this guide before By online registration, you can receive diverse event or product using and contact our customer support center for any problem in use.

  • Page 3: Table Of Contents

    5-2-1 Play Photo File Limited Liability on alteration of functions 5-2-2 Button Usage The manufacturer, MPIO Co., Ltd may change the specifications or S/W 5-2-3 Setting Play Mode without individual’s consent or prior information. Copyright Notice / Trademark / Limited Liability...
  • Page 4 9-1 Setting Menu 9-2 Detailed Function Display System It is only recognized in the HX100, when the music file is stored Music in the Music_Box, video file in the Video_Box, Image file in the Video Photo_Box and text file in the Text_Box.
  • Page 5 Safety Instructions Safety in public transportation It may cause accidental damage using in bus, subway, Hearing Safety railway such as public transportation by caught Do not use headphones or earphones at high volume. earphones between the doors. Listening with loud Auditory injury can be caused.
  • Page 6 Prohibition of expose to water, humidity, rain, beverage, medicine and cosmetic Precaution against heavy lading This player, as a electronic product, is easily damaged Precaution against heavy lading. Do not place heavy by water. Do not power on if the player gets wet , then objects on the device to avoid breakage.

  • Page 7: Before Using 1-1 Accessories & Components

    1. Before Using 1-1 Accessories & Components HX100 Earphones Precaution against magnetic Magnetic may bring in damage in your player. Precaution against humidity or dust Power Adapter Line-in Cable USB Device Cable Do not leave the player where there are much humidity and dust.

  • Page 8: Minimum System Requirements

    Data Transfer recognized in PC explorer. Windows 98, ME, 2000, XP • It can be recognized in the HX100, when the music file * Under Windows 98 system, Operating System is stored in the music_box, video file in the video_box, you should install additional driver Image file in the photo_box.

  • Page 9: Getting Started

    2. Getting Started 2-1 Name of Parts Left Back Right Front Bottom Earphone Jack A/V Jack(connected to TV) USB 2.0(Device) Slot Internal Mic Navigation Key: Vol up / down, FF & REW Audio Line-in Jack Internal Stereo Speaker Select: press Upright Battery Lock Power On / Off Stop / Escape...

  • Page 10: Connecting & Installation

    2-2 Connecting & Installation Attaching / Removing battery Connecting Adapter and Charging Connect the adapter to the player’s DC Jack which is on the lower end of the right side from the front of player. Attaching the rechargeable battery If the LED which is on the lower end of the front illuminates with red Cover 4/3 of battery onto the Slide the battery to the arrow color, charging is in processing.
  • Page 11 Line-in Connection & Recording TV Connecting & Display Connect the Line-in jack to the Line-out(or earphone) jack of external Connect A/V cable to the image input terminal of TV. Yellow is Video, White is Audio left channel, Red is Audio right channel. audio device like stereo system or CD player and etc with Line-in cable.

  • Page 12: Main Screen

    PC. If no power source is input, the USB is not recognized. Power on when it is connected to PC. When it is connected to PC, it is recognized as a mass storage, HX100. Connecting Earphone You can transfer movie, music, image file from PC to audio box, video box, photo box folder in the player.
  • Page 13 Install USB Driver for Windows 98/SE Uninstall Windows 98/SE USB Driver ( Windows 98 SE Only) If User’s PC is Windows 98/SE, user has to install USB driver. You can To uninstall USB driver, move to Start-> Setting -> System Control -> install USB driver in application CD.
  • Page 14 2-3. Basic Function Separating product from PC 2-3-1 Power On / Off Click the ‘Safely removing device’ icon in the PC tray, If the tray icon is not displayed, click the ‘Display hidden icon’ to view the hidden icon. Power On Step Function Press power button about 3 seconds to make...

  • Page 15: Name & Functions Of Buttons

    2-3-2 Main Screen 2-3-3 Name & Functions of Buttons Main Screen Button Function Description Power Press when power on/off. Press about 3 seconds to make power on/off. Menu Use the [MENU] button to set play mode in Video Box, Photo Box, Text. You can execute the functions of each menu by using navigation button.

  • Page 16: Music Box 3-1 Music Player Screen

    3. Music Box 2-3-4. Navigation Button 3-1 Music Player Screen Below functions are realized by pressing Navigation button to desired You can listen stored music files(MP3,WMA,OGG etc) through music player. direction. Please refer to 14. Product specification of this manual for the information of playable music file.

  • Page 17: Button Usage

    3-2. Detailed Description 3-2-1 Play Audio File 3-2-2 Button Usage Select Music Box icon and press Select button Music Box FF / REW to listen audio file in Music Box folder. Icon Selection If you press [ ] while listening music, you can move to previous file.

  • Page 18: Setting Play Mode

    3-2-3 Setting Play Mode You can set paly mode by pressing [menu] key. Select file under the play list and the files in Shuffle Play [Play list] Play list are played consecutively. You can play files in present folder randomly. If you want to stop or pause a audio file, press Repeat Pause / Stop...

  • Page 19: Video Box 4-1 Video Box Screen

    4. Video Box 4-1 Video Box Screen 4-2 Detailed Function 4-2-1 Play Video File You can watch video file stored in Video Box folder. You can watch WMV or ASF file which is not played in this player Video Box Select Video Box icon and press Select button through conversion of Media Converter Program.

  • Page 20: Button Usage

    4-2-2 Button Usage 4-2-3 Setting Play Mode You set play mode by pressing [Menu] key. FF / REW If you press [ ] while playing video file, you can Resume Play move to previous(about 30 seconds) scene. If you move to recently played portion of press [ ], you can move to next scene of the file.

  • Page 21: Photo Box 5-1 Photo Viewer Screen

    5. Photo Box 5-1 Photo Viewer Screen 5-2 Detailed Function 5-2-1 Play Photo File You can see saved image file(JPG) through photo viewer. Select ‘Photo Box’ icon using navigation Please refer to the 14. Product Specification of this manual for the button.(By selecting the icon will be indicated.) Select Text icon information of playable image file.

  • Page 22: Button Usage

    5-2-2 Button Usage 5-2-3 Setting Play Mode You set play mode by pressing [Menu] key. FF / REW Zoom Mode If you press [ ] while playing photo file, you You can choose zoom mode by pressing [Menu] can move to previous file. If you press [ button.
  • Page 23 6.Text Box 6-1 Text Viewer Screen 6-2 Detailed Function 6-2-1 Play Text File Text Box is a function to view a stored Text file(.txt) in text_box folder. Select ‘Text’ icon using navigation button.(By If you want to view text file while listening music, please look up on selecting the icon will be indicated.) it will be Select Text icon 3.
  • Page 24 6-2-2 Button Usage 6-2-3 Setting Play Mode FF / REW If you press [ ] while viewing text file, you Resume play can move to previous page. If you press [ Move to recently played portion of the you can move to next page. file.

  • Page 25: Setting Recording Mode

    7. Recorder 7-2 Detailed Function 7-2-1 Select Recorder Function 7-1 Recorder Screen Recorder Select Recorder icon and press Select button to You can record conversation or lectures using built-in microphone or Icon Selection record audio file. make direct recording of music from audio device using line-in cable attached.

  • Page 26: File Manager Screen

    8. File Manager 8-1 File Manager Screen 8-2-2 Button Usage FF / REW You can select folder displayed above by pressing [ VOL(+/-) You can move up/down and select file by pressing [+/-]. You can stop playing file and move to main screen by pressing [ /ESC].

  • Page 27: Notice

    9. Setting 9-1 Setting Menu Copy to HDD Copying file to other folder displayed right or left section. Delete Delete selected file. Delete All Delete all files in present folder. Menu Function Menu Function 8-2-4 Notice Speaker Brightness Equalizer Contrast Balance File copy Display...

  • Page 28: Detailed Function Display

    9-2 Detailed Function Display System Function Description Default Value Default Value Function Description Product Shows product name. Brightness To select the LCD brightness. OS Version Shows version of firmware. Shows Hard Disk Drive usage. Free means empty HDD Usage Contrast To select the screen contrast.

  • Page 29: Music

    Music Video Function Description Function Description Default Value Default Value You can convert the setting value of the Speaker To set the screen size while playing. Screen Size Original built-in speaker. Range: Original/Full Screen Audio effect will be set when there is no Equalizer Standard setting value in the ID Tag while playing.

  • Page 30: Image

    10. Firmware Update Process Description When new firmware update file is released, save it New Firmware downloaded from web site(www.mpio.com). Check File download the firmware version before saving. Connect this player to PC with USB Cable. You Image should connect this player to USB 2.0 jack of PC.
  • Page 31 Recovery Notice: System recovery function is advisable only if the error message is While the power is turned on, connect the HX100 to the PC with a USB displayed repeatedly. When you format the HX100, or if it doesn’t work cable.
  • Page 32 12. HX100 Media Converter User Manual HX100 Media Converter is optimized for DivX 5.2.1. Thus, it is possible 12-1 Before start to introduce errors in conversion on the system with unified codec packs Software Requirements or older versions of DivX.

  • Page 33: How To Convert Media Files

    Click setup file in HX100 Media Converter folder. HX100 Media Converter is a tool for converting movies of various formats to those of DivX-AVI for HX100. It can handle all movie files playable with Windows Media Player. HX100 Media Converter has a simple, compact user interface as shown in the following figure.
  • Page 34 1-pass mode, for example, audios of the resulting clips are not noticeably synchronized with videos; the length of the The Media Converter suggests profiles optimized for HX100, which can resulting ones are very shorter than that of the sources; or audios are...
  • Page 35 This page is for troubleshooting against possible problems that may playing, recording, viewing photo or USB turned off. occur when you are using the HX100. Please take note and follow the connecting, the LCD is automatically turned off. procedures below.

  • Page 36: Product Specifications

    14. Product Specifications General Specifications Playable A/V Format Category Specifications Category Specifications Direct Play Storage 20GB 1.8” HDD MPEG1, MPEG2 MP@ML, MPEG4 SP & ASP Video Format 3.5” TFT LCD, QVGA(320X240) Video TV Out NTSC / PAL, D1(720X480) Video file with QPEL(Quarter Pixel motion) / Speaker Built-in Stereo Speaker GMC(Global Motion Compensation) /...

  • Page 37: Regulatory Information

    15. Regulatory Information conformance statement (Federal Communications Commission) compliance statement (Community European) This product has manufactured and tested to comply with limits for This product manufactured and tested or certified in Korea against a Class B Computing device according to the specification in FCC European requirements for CE as in EMC Directive 89/336/EEC rules Park 15.
  • Page 38 16. Warranty Notice Limits of Warranty Product Warranty period Remarks Main body & 1 Year Manufacturer shall not be responsible for any special, incidental or Remote controller consequential damages caused by natural disasters, fire, static Keeping period of Look following section. discharges, misuse, abuse, improper handling, unauthorized repair Service components: Adapter, Battery...
  • Page 39 Please take a brief moment to fill out the product registration card product as you need to present it in advance. Purchasing receipt is below and send to local distributor or you can register in MPIO needed to check the product delivery time.
