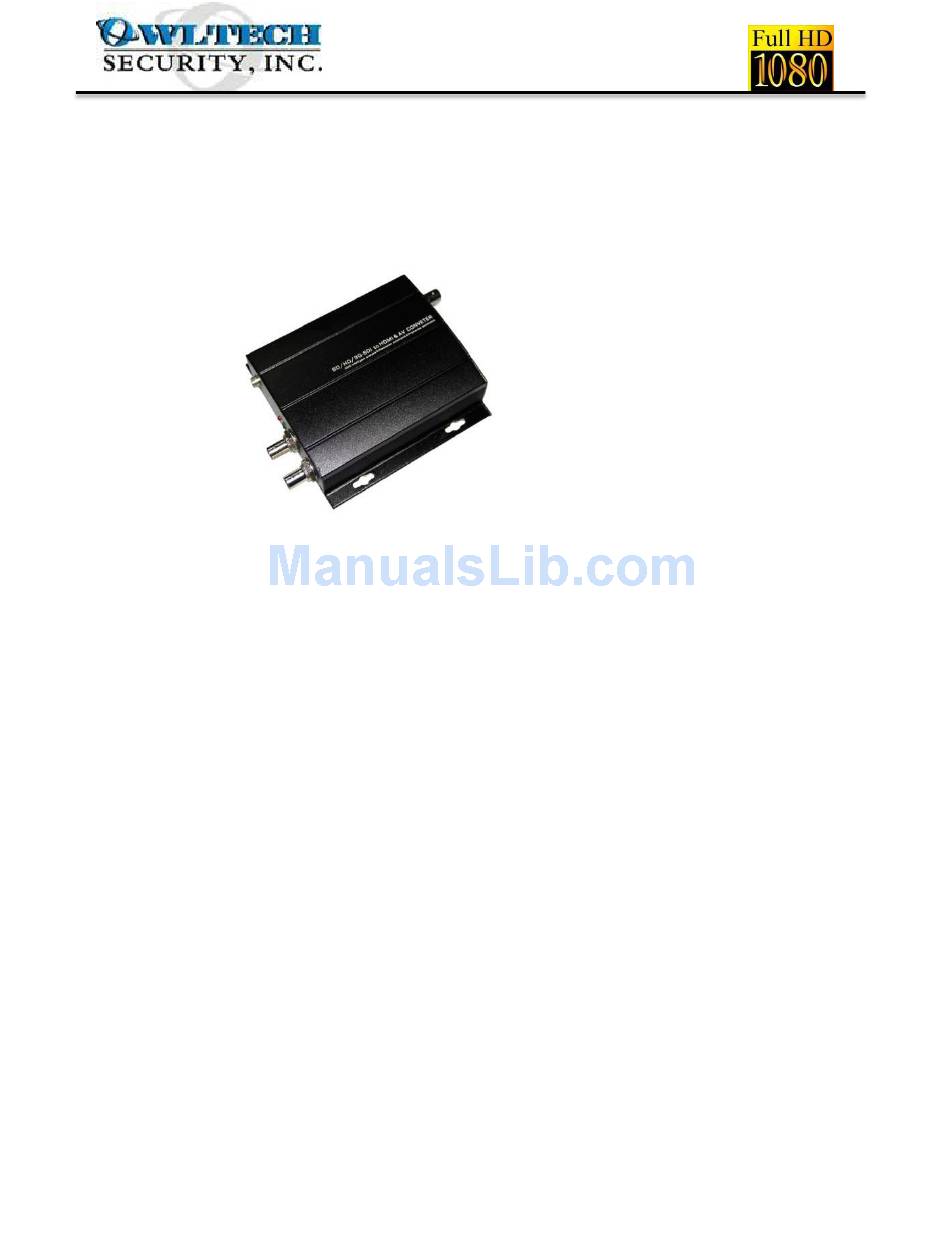

OWL–SDI–HVA01
This device converts a single channel SDI signal to different kinds of HD Multimedia HDMI signals and
CVBS signals .It integrates SDI Cable equalizer and relocked to enhance video performance and stability.
Simultaneously, it also separates and converts the audio signals of SDI, embedding it to HDMI signal or output
to analog audio DACs.
Features
Support SDI input format: All SDI Formats
SD:
525i @ 59.94Hz, 625i@ 50Hz
HD:
720p @ 23.98Hz /24Hz /25Hz /29.97Hz /30Hz
720p @ 50Hz /59.94Hz /60Hz
1080i @ 50Hz
1080p @ 23.98Hz /24Hz
3G:
1080p@ 50Hz /59.94Hz /60Hz
Support SMPTE 425M (A level and B level), SMPTE424M, SMPTE292M, SMPTE259M-C.
Carry 1channel SDl signal loop out.
Max. Cable length (Belden1694A): SD-SDI 400m/1300ft, HD-SDI 200m/600ft, 3G-SDI 140m/450ft
Automatically embed SDI audio signal to HDMI signal.
User selectable output format (HDMI and CVBS)
5V 24V DC
SD/HD/3G-SDI to HDMI & CVBS Converter
I
I
59.94Hz
60Hz
I
25Hz
1 / 8
User Manual
NOTE: The casing design is subject to
Change without notice
I
I
29.97Hz
30Hz
Advertisement
Table of Contents
Summary of Contents for OwlTech OWL–SDI–HVA01
- Page 1 OWL–SDI–HVA01 User Manual SD/HD/3G-SDI to HDMI & CVBS Converter NOTE: The casing design is subject to Change without notice This device converts a single channel SDI signal to different kinds of HD Multimedia HDMI signals and CVBS signals .It integrates SDI Cable equalizer and relocked to enhance video performance and stability. Simultaneously, it also separates and converts the audio signals of SDI, embedding it to HDMI signal or output to analog audio DACs.
- Page 2 Please read the Manual before attempting to use this produc t Specifications and appearance are subject to change without notice. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
-
Page 3: Package Contents
Never push objects of any kind into this product as this may touch dangerous voltage points of short out parts that could result in a fire or electric shock. Never spill any kind of liquid on the product. 5. Cleaning Do not use liquid or aerosol cleaners to clean this unit. - Page 4 Technical Specifications: Model OWL-SDI-HVA01 Input Interface 1x BNC SDI SD-SDI (270Mbps), HD-SDI (1.485Gbps), Input Signal Type 3G-SDI (2.97Gbps) SD: 525i @ 59.94Hz, 625i @5 0Hz HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 720p @ 50Hz / 59.94Hz / 60Hz Support Input Format 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @2 3.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz...
- Page 5 Key Components Components Made in USA for this product: Name of Component Manufacturer Gennum Multi-Rate SDI Adaptive Cable Equalizer Multi-Rate SDI Automatic Reclocker Gennum Multi-Rate Dual Slew-Rate Cable Driver Mindspeed & Gennum SDI SPD Bourns HDMI ESD Protection Semtech Micro Controller Unit Texas Instruments Components Made in Taiwan for this product: Name of Component...
- Page 6 HD MODE 720P30 6 / 8...
- Page 7 1080P30 7 / 8...
-
Page 8: Limited Warranty
IMPORTANT NOTE: Cable & Connector for SDI HD Camera In order to achieve the Best Quality and Long Range coax cable run of up to 200m / 600ft, you will need: 1. Good Quality Cable: We suggest using RGG Belden 1694A Low loss Serial Digital coax cable because RGG cables have better grounding than RG59 cables.
