Beam BlueEvolution S User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Look foward to it.
User Manual
960080.003
digi

Advertisement

loading
Need help?

Need help?

Do you have a question about the BlueEvolution S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Beam BlueEvolution S

Summary of Contents for Beam BlueEvolution S

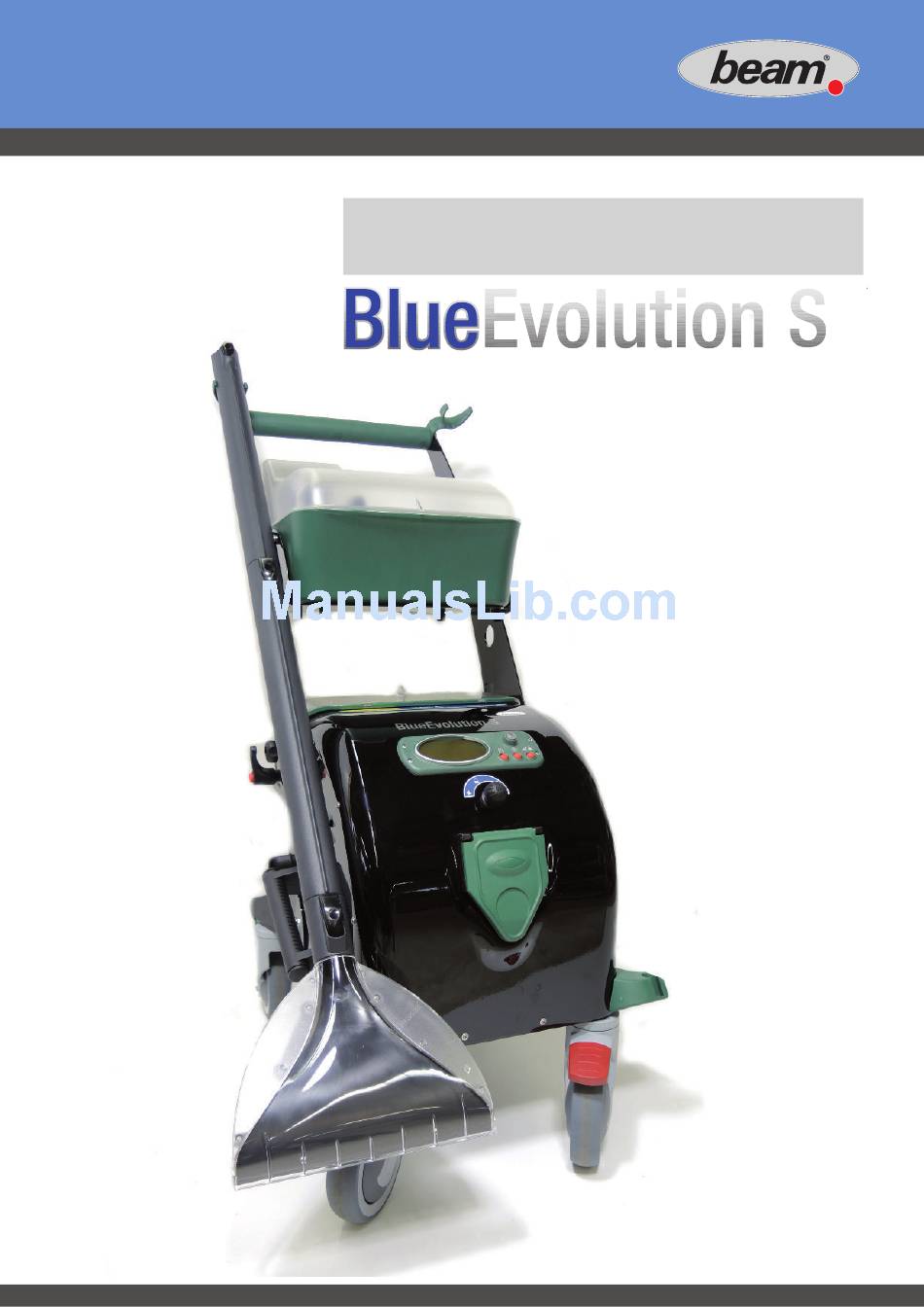

  • Page 1 Look foward to it. User Manual 960080.003 digi...
  • Page 2 The beam BlueEvolution also dissolves fat It's good for people to sweat. And thanks to the Restaurants in hard-to-reach places – with no strong beam BlueEvolution it's no longer a problem Wellness cleaning products. for others. All equipment and contact surfaces can be cleaned perfectly.

  • Page 3: Description Of Equipment

    Look foward to it. Description of equipment ➊ ON/OFF button boiler Driving handle ➋ ON/OFF button suction Locking screw driving handle ➌ ON/OFF button hot water module Locking lever driving handle ➍ Optical display suction mode Display ➎ Service indicator - probe cap Socket steam suction hose ➏...

  • Page 4: Important Advice For Users

    30 cm and clean in combination with suc- tion. If you would like more information or if specii c problems arise that are not covered in sufi cient detail in this User Manual, then please contact beam GmbH 3.3 Precautionary measures directly to request the necessary information.
  • Page 5 Look foward to it. Assembly / preparation Assembly of the driving handle and Fill the reservoir accessories box Fill the hot water module Attach the handle using the two ixing knobs. Tighten them • Open the cap and ill the water tank with normal tap by turning clockwise.
  • Page 6 Look foward to it. Assembly / preparation Filling the filter bowl • Re-insert the ilter bowl, ensuring the switch cam on the cover is in the correct position. Your appliance is itted with a hygienic water ilter. You must ill the ilter bowl with water before starting, in order to bind the extracted dirt in the water and to clean the suctioned air in the water bath as well.
  • Page 7 Look foward to it. Start-up steam Steam function Hold down steam leve r on the handle to emit steam. + or You can set the steam mode by pressing buttons on the side of the handle. There are 3 steam modes to choose from: Mode 1 = minimal steam volume, use on sensitive sur- faces like wood, parquet, upholstery etc.
  • Page 8 Look foward to it. Start-up steam with hot water module Start-up suction The soaking effect and, thus, cleaning performance can be Suction increased for heavy soiling by switching the hot water mo- Press button on the display to activate suction. dule to steam.
  • Page 9 Look foward to it. Standard accessories and use Extension pipe Extension pipe Item no.: 9615 Item no.: 9615 Steam suction hose Item no.: 9618 Upholstery, mattresses NO ATTACHMENT and carpet cleaning. Glass surfaces, windows (display windows), Extraction nozzle, 238 mm mirrors Item no.: 9620 Rubber lip with brush attachment...
  • Page 10 Look foward to it. Standard accessories and use Hard loors, e.g.: tiles, granite, catering and industrial loors, marble, Adapter wood, PVC, laminate, etc. Item no.: 802210 Rubber lip insert Item no.: 802201 Pre-cleaning of heavily soiled surfaces, rubber or synthetic doormats, etc. Brush insert Item no.: 802202 Floor nozzle,, w = 400 mm...
  • Page 11 Look foward to it. Reports Water shortage reservoir A lack of water in the reservoir is indicated by sym- l ashing on the display and by a simultaneous acou- stic signal. To restart work, i ll the tank as described in the section on “Filling reservoir Water shortage hot water module A lack of water in the hot water module is indicated by sym-...

  • Page 12: Shutting Down

    Look foward to it. Shutting down To ensure the functionality, cleanliness and hygiene of the INFO: appliance and accessories, follow this procedure to shut down the appliance: Repeat the rinsing process with clear water if there is a lot of foam. 1) Remove the i lter bowl, empty out the water and re-insert.
  • Page 13 580 x 380 x 930 mm Safety test incl. hot water module 2 litres for the stubbornest dirt beam reserves the right to make technical changes or chan- ges to accessories in the course of further development. Look foward to it.
  • Page 14 Error…. Cause Remedy Suction switches off, you hear an Filter bowl full Empty the filter bowl and refill with fresh tap acoustic signal and LED (D) flashes water up to the Max. fill level on the display Fluff, fibres or hair in the filter bowl Empty the filter bowl, clean out the hair and fluff and refill with fresh tap water up to the Max.
  • Page 15 Entkalkungsanleitung B Service/Maintenance table Use this table to document service and maintenance work performed, in order to improve overview and control. Service/Maintenance Date Comment Performed by: Hotwater module discaling Boiler discaling Filter change Additional work Hotwater module discaling Boiler discaling Filter change Additional work Hotwater module discaling...
  • Page 16 Entkalkungsanleitung B Service/Maintenance table Use this table to document service and maintenance work performed, in order to improve overview and control. Service/Maintenance Date Comment Performed by: Hotwater module discaling Boiler discaling Filter change Additional work Hotwater module discaling Boiler discaling Filter change Additional work Hotwater module discaling...
  • Page 17 Service/Maintenance Part Hot water module descaling...
  • Page 18 Entkalkungsanleitung B Descaling instructions hot water module Use of the hot water module causes lime scale to form over time depending on the hardness of the water used. To prevent a fault caused by lime scale in the steam hose we recommend that you descale regularly.
  • Page 19 Hot water module descaling 2. Descaling Mix 0.2 litres of vinegar essence and 0.3 litres of tap water in a measuring cup. Open the cap for hot water “Hot Water Extraction” and pour in the vinegar mixture. Insert the steam suction hose into the appliance. Now connect the appliance to the mains and press button (A) on the display.
  • Page 20 Hot water module discaling 3. Rinsing Pour 0.5 litres of clear tap water into the reservoir “Hot Water Extraction”. Hold the handle over a suitably sized container to catch the mixture. Now press steam lever (P) until all the water has rinsed through. Repeat the procedure to rinse out any limescale and vinegar residue.
  • Page 21 Service/Maintenance Part Boiler descaling...
  • Page 22 Descalers can be harmful. Read the information on the descaler packaging and follow the safety instructions. Descalers or vinegar may cause damage to surfaces. Wipe up drops immediately. Only use suitable and recommended descalers. Only perform descaling on a cooled appliance. Recommended descaler: beam descaler item no.: 8050...
  • Page 23 For thorough cleaning and descaling of the probe cap we recommend: 0.1 litres of beam descaler and 0.5 litres water (total 0.6 litres of descaling mixture). Pour the descaling mixture into a suitable container and...
  • Page 24 2. Descaling Cap (O) Open cap (O) “Water Only” and pour 0.4 litres of beam descaler into the “Water Only” reservoir. Now connect the appliance to the mains and press button (A) on the display. The pump runs for approx.
  • Page 25 Boiler descaling / step 3 3. Rinsing Fill the “Water Only” reservoir with 0.5 litres of clear tap water Fill the boiler with max. 1 litre of clear tap water Move the appliance gently from side to side to assist removal of loosened limescale residue.
  • Page 26 4. Re-assembly Remove the probe cap from the container and rinse well under clear running water. Then screw it back onto the boiler by pressing down and turning to the right at the same time. Insert the HEPA filter (U) at the back of the sound- proofing casing.
  • Page 27 Service/Maintenance Part HEPA-filter; water filter and O-rings...

  • Page 28: Maintenance & Cleaning

    Look foward to it. Maintenance / cleaning Replacing the air filter (HEPA filter) WARNING: The HEPA ilter should be replaced if suction power drops Cleaning the filter dramatically, but at least once per year. Both reservoirs are protected from contamination by Proceed as follows to inspect the ilter: a ilter.
  • Page 29 Check the O-rings on all extension pipes for damage: Pos.(4): 1: O-ring on the suction pipe Pos.(5): 2 O-rings on the steam spout Pos.(4) Pos.(5) You can order a suitable set of O-rings from our online shop at www.beam.de or by telephone on +49 (0)8337-7400-21. Item no.: 96300...
