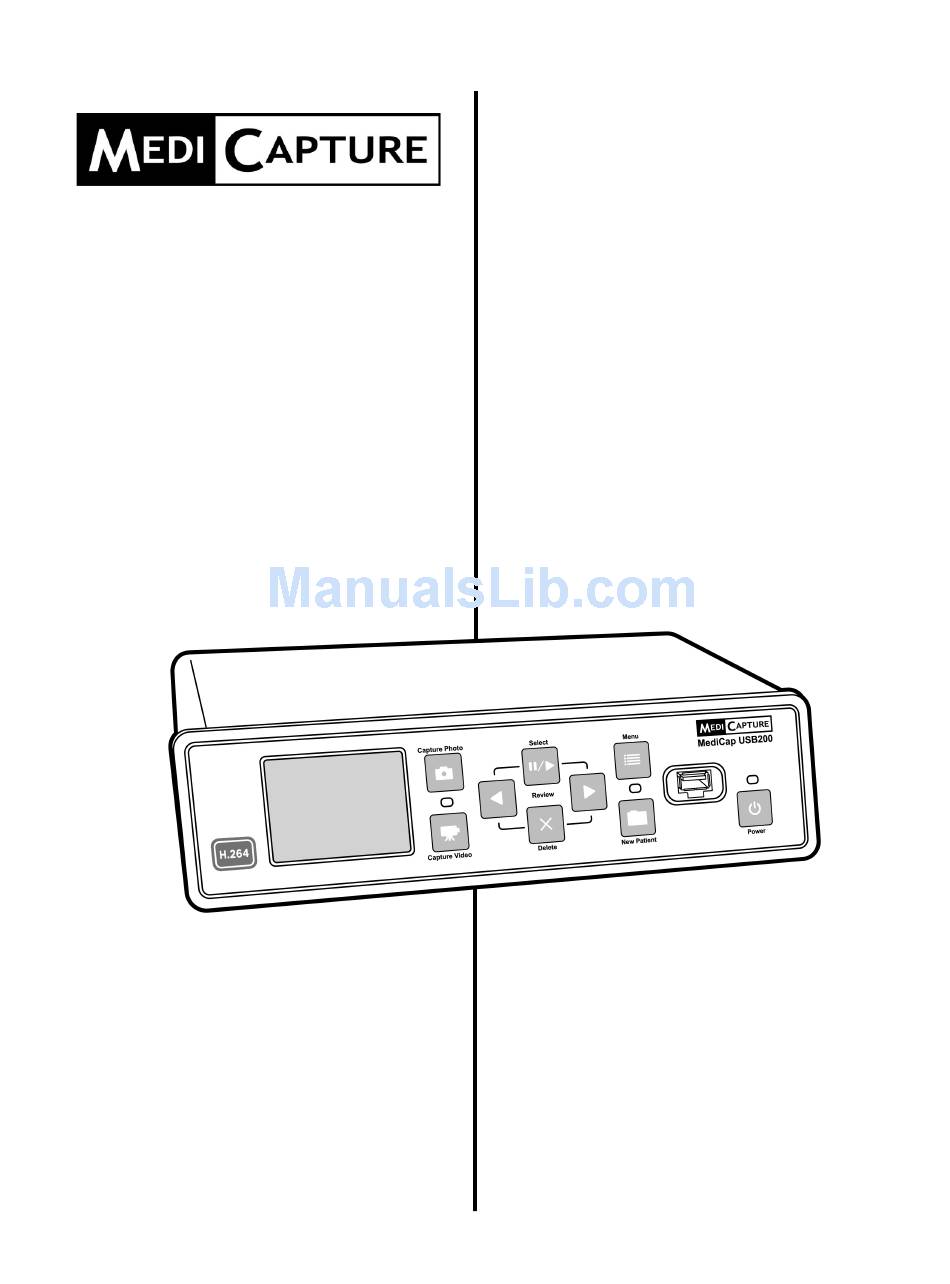

- Page 1 MediCap ® USB200 Medical Digital Video Recorder User Guide H.264 Edition USB200H-UG01-EN-140120-MC...
- Page 2 ® MediCap USB200 User Guide – English Precautions for Use WARNING: To reduce the risk of fire or shock hazard, do not expose this equipment to rain or moisture. CAUTION: To reduce the risk of fire or shock hazard and annoying interference, use the recommended accessories only.
- Page 3 ® MediCap USB200 User Guide – English Important Safety Instructions 1. Read all of these instructions. 2. Keep these instructions. 3. Heed all warnings in these instructions. 4. Follow all of these instructions. 5. Do not misuse this apparatus. 6. Clean only with a dry cloth. 7.
-
Page 4: Table Of Contents
Front Panel........................6 Back Panel ........................6 Typical Connections ......................7 Quick Start Guide ......................8 Connecting the MediCap USB200 ..................9 Inserting a USB Flash Drive ....................9 Capturing Images ......................9 Capturing Videos......................10 Reviewing Images and Video Clips ................. 10 Creating Patient Folders .................... -
Page 5: Introduction
® MediCap USB200 User Guide – English Introduction Quick Start: Review the front and back panels, and the connection ® The MediCap USB200 allows you to easily capture digital medical diagrams on the images and video clips from virtually any analog medical imaging device following pages. -
Page 6: Front Panel
® MediCap USB200 User Guide – English Front Panel Back Panel 6 of 20 USB200H-UG01-EN-140120-MC... -
Page 7: Typical Connections
® MediCap USB200 User Guide – English Typical Connections Important Note: There is a very brief delay (0.06 sec.) between the time when the video signal enters the USB200 and when it is displayed on a monitor connected to the USB200. If this delay is not suitable for your medical environment, do not connect your monitor to the USB200. -
Page 8: Quick Start Guide
3. Insert the supplied MediCapture USB flash drive in the front panel. (This is a small “stick” with a silver connector on one end.) To best configure your MediCap USB200, see 4. Use your imaging equipment as you normally do, except now you the Menu sections in can capture images and video clips onto the USB flash drive. -
Page 9: Connecting The Medicap Usb200
Connecting the MediCap USB200 To connect the MediCap USB200, see the diagram on page 7. The MediCap USB200 is easy to set up. It connects “in-line” between a monitor and a video source (for example, an ultrasound camera, surgical video camera, etc.) 1. -
Page 10: Capturing Videos
® MediCap USB200 User Guide – English Each time you press the Capture Photo button, one image is captured. Two things will help you confirm that you have captured an image: • A recording indicator (still camera icon) will be displayed in the upper- left corner of the monitor, along with the image number and the remaining free space on the disk shown in gigabytes (GB). -
Page 11: Creating Patient Folders
This gives you the Using the Menus opportunity to enter the patient’s name, etc. See Settings and options for the MediCap USB200 can be accessed via the Menus. page 16 for more information. Menu button Press the Menu button to display the Main menu. You can scroll through the menu choices using the Back and Next buttons on the front panel. -
Page 12: Main Menu
® MediCap USB200 User Guide – English Main Menu To display the Main Menu, press the Menu button on the front panel. Then you can use the Next and Back buttons to navigate through the submenus. Use the Select button to make a choice. The submenus to the Main Menu are: •... -
Page 13: Setup Menu
® MediCap USB200 User Guide – English Setup Menu Setup • Date / Time Set Date/Time Time stamp (Yes / No) • Language English, German, French, Spanish, Italian, Portuguese, Japanese, Chinese • Input Options Input Source (Composite / S-Video / Auto) ... -
Page 14: Video Options Menu
® MediCap USB200 User Guide – English Video Options Menu Video Options • Quality High (DVD+) Normal (DVD) Low (DVD-) • Time Limit Unlimited, 5 sec., etc. Use the Video Options Menu to configure how your USB200 captures video clips. •... -
Page 15: Volume Menu
® MediCap USB200 User Guide – English Volume Menu The Volume Menu allows you to set the system volume (this affects the internal speaker and the audio output to an external speaker). When using an external speaker, it is recommended that you leave this setting at a medium volume and use the volume controls on the external speaker to adjust the volume levels. -
Page 16: Other Features
® MediCap USB200 User Guide – English Other Features Using a Footswitch Standard footswitch connectors are located on the back panel. Using a footswitch will allow you to capture images and video clips “hands free.” The two footswitches serve the same function as the corresponding Capture Photo and Capture Video buttons on the front panel. -
Page 17: Using An External Hard Drive
® MediCap USB200 User Guide – English When you finish entering information, press the Enter key on the keyboard. If you don’t want to enter any information, simply press the Enter key as soon as the Patient Information screen is displayed. Accessing Patient Information Patient Information for each imaging session is stored in a text file named Patient_Info.txt in the same folder as the images. -
Page 18: Connecting To A Network
® MediCap USB200 User Guide – English Connecting to a Network You can connect the USB200 to a network by using an adapter which is available from MediCapture. Making the connection requires knowledge of computer networks. It is recommended that you contact a computer professional to make the connection. -
Page 19: Appendix A: Specifications
Audio Format AAC, 2 channels, 16 bits, 22050 Hz sample rate, 128 kbps bit rate Kit Contents MediCap USB200, USB flash drive, video cables, power cable, user guide Certifications Conforms to Medical Devices Directive 93/42/EEC Medical Equipment with respect to electrical shock, fire and mechanical hazards only in accordance with IEC 60601-1:2005, ANSI/AAMI ES60601-1:2005, CAN/CSA C22.2 No.60601-1:2008,... -
Page 20: Appendix B: Medicapture Limited Warranty
® MediCap USB200 User Guide – English Appendix B: MediCapture Limited Warranty MediCapture Inc. (“MediCapture”) warranties the product(s) listed below to be free of defects in materials and workmanship for a period of one (1) year. Should warranty service be required, the warranty period will be extended by the number of days required to restore normal operation and return the product(s).
