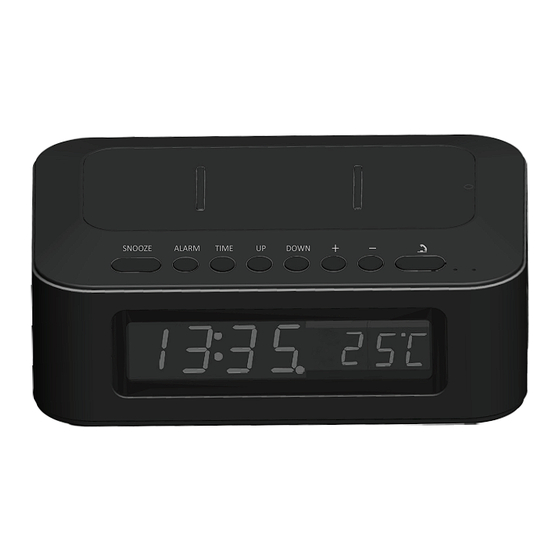

LuguLake -03 Quick Manual

尺寸：125x120mm
Feature
1：metal wire drawing process, high light treatment
2：Integrate clock,alarm,speaker and thermometer
function in one
LUGULAKE-03 Wireless Charging
3：Support A2DP protocol to play music, built in mic, handsfree.
4：3.5mm stereo line-in cable (included) for playing
BT Speaker
other audio devices
5：+5V Power output, can charge your smart phone, tablet etc.
6: Support NFC-Near Field communication
7：Support QI wireless charging function
Speci cation
1:BT version: BT V4.0
2:BT protocol:A2DP,AVRCP,HFP,HSP
3:BT distance:10M
4: Horn power 5W*2 ,SNR≧90DB；Frequency range:60HZ ~ 18KHZ；TH≦0.5%
5: Wireless charging rated power :5V*1A=5W
6:External power source:5V/3A
Key, outer end interface, LED display screen
1
5、 3.5mm audio input
4、Brightness Ajustment
Plug the 3.5mm audio cable into the AUX IN, audio change to AUX mode
Press SNOOZE key to adjust the brightness under non-alrm status.
automatically, support external audio input.
ALARM clock function
6
6
2 4
1 3 5 7
Serial number Name
1 Snooze key Switch to sleep function, display light from the darkness
2 The ALARM clock Settings key Set the alarm clock time/o the alarm
TIME the TIME set key
3 Set a time/o the alarm
4 Set UP time key Adjust time/time format conversion/o the alarm
5 The DOWN time Settings key Adjust the time/open alarm clock/o the alarm clock
6
The volume and key Increase the volume
7 The volume reduction of key Reduce the volume
8 Power key Play/pause/phone/hang up/o the phone
2 3
6、 BT function
Long press POWER key three seconds, enter BT mode automatically,
switch on BT function of your BT device, then search
"LUGULAKE-03" (wireless charging speaker) or "LUGULAKE-03A"(BT speaker)
from the list of found devices, status indicator lights blink between red and
blue. For initial pair, you can search the speaker within 2 minutes, Select
"LUGULAKE-03" or "LUGULAKE-03A" and pair, status indicator lights blink blue
slowly after paired. Now you can play music, press POWER key to play or pause.
Press + or – to adjust the volume.Press POWER/PHONE key to receive a call, press
POWER/PHONE key again to hang up the call
Working indicator light Microphone
7 8
9 10 11
8
Serial number Name Function
DC 5V 1A USB output DC 5 V 1 A charging interface
9
DC 5V Input DC 5 v power supply interface
10
Function
AUX interface Support other audio input
11
Minutes
Hours
alarm clock
4
7、Support Near Field Communication (NFC)
If your device supports NFC, switch NFC on, and touch the NFC area of the
speaker with the NFC area of your device. The speaker connects to your device
automatically.
8、USB DC5V output function
+5V power output, can charge your smart phone, tablet etc digital products.
.
BT
9
Instruction
1、Time settings
Press UP key, enter 12/24 hours format conversion; Press TIME key, hour
numbers blinking, press UP/DOWN key to adjust the hour; Then press TIME key,
minute numbers blinking, press UP/DOWN key to adjust the minute. Lastly press
TIME key or wait 15 seconds to exit TIME set up, LED screen shows current time.
2、Alarm setting
Press DOWN key to open the alarm. Press once, LED shows alarm function,
blinking once every 2 senconds, it means only one alarm. Second Press, LED
shows alarm and last long time, it means one alarm every day. Third press, LED
turns o , it means alarm o .
Press ALARM key to set the alarm, hour numbers blinking, press UP/DOWN
key to adjust the hour; Then press ALARM key, minute numbers blinking, press
UP/DOWN key to adjust the minute. Lastly press ALARM key or wait 15 seconds
to exit ALARM set up, LED screen shows current time
Alarm will sound and last for one hour when it's alarm time. Press SNOOZE key
shortly, will snooze 9 minutes, LED screen blinks ALARM clock once a second.
Press SNOOZE key three seconds to cancel snooze function. Press any key of
ALARM/TIME/UP/DOWN to close the alarm.
temperature 3、Temperature setting
Press UP+DOWN three seconds to switch Fahrenheit or Celsius
5
9、QI wireless charging function
Place your phone or other compatible device on the wireless charging are a
on top of the speaker.The charging indicator light turn red while charging.
Charging indicator
