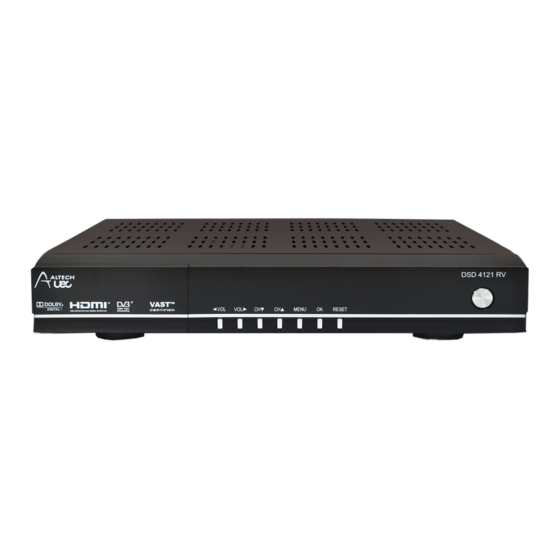

Altech DSD 4121 RV Manual

Austrian vast certified hd digital satellite receiver
Hide thumbs Also See for DSD 4121 RV:

Advertisement

Quick Links

See also: User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the DSD 4121 RV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Altech DSD 4121 RV

Summary of Contents for Altech DSD 4121 RV

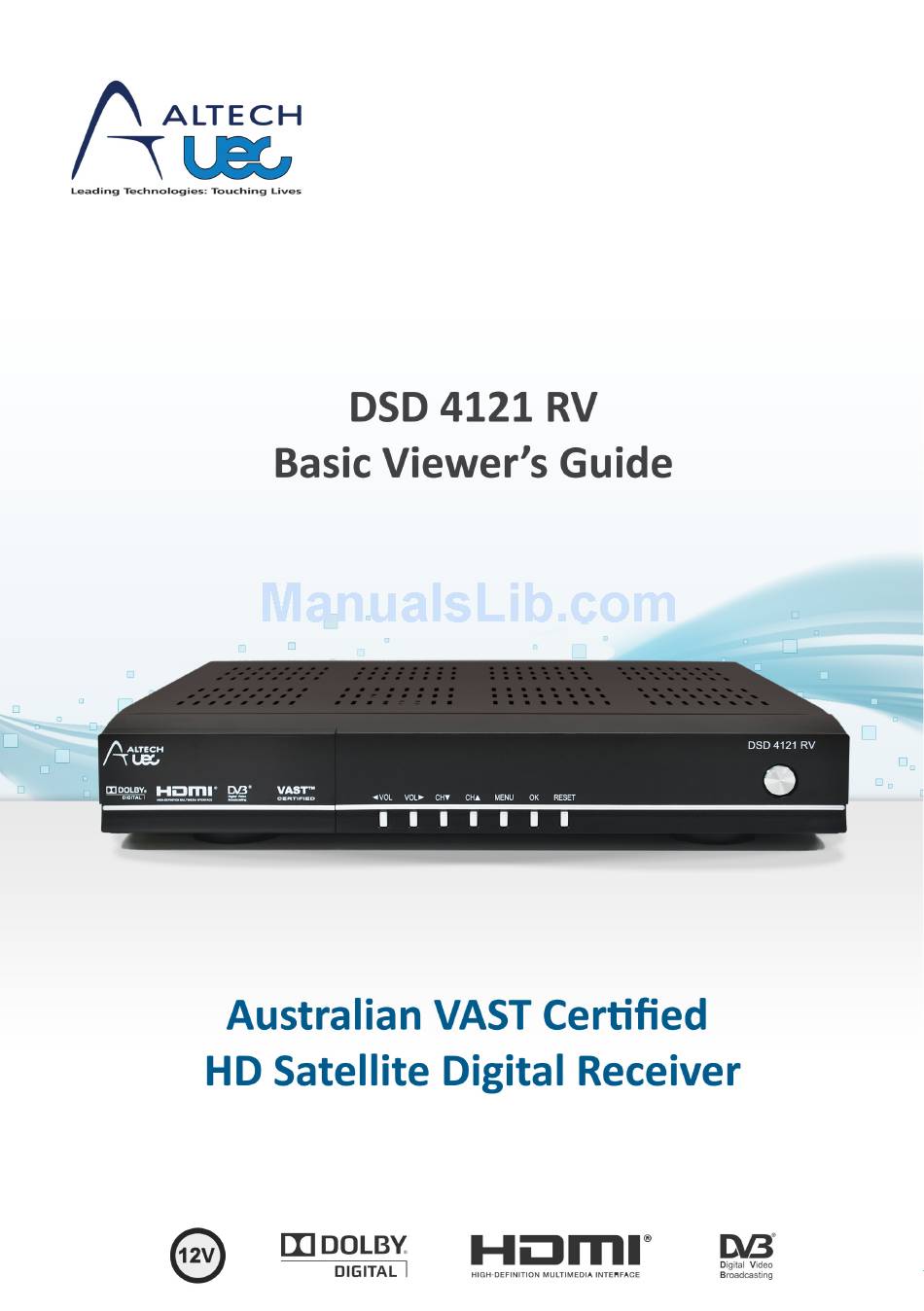

  • Page 2 2／28 DSD 4121 RV...

  • Page 3: Table Of Contents

    DSD 4121 RV Decoder : Features and menu....................13 Legal Matters .............................. 24 Help and Information ..........................26 The DSD 4121 RV Basic Viewer’s Guide is the subject of intellectual property rights, including copyright, under domestic law and international conventions. All rights are reserved.

  • Page 4: Important Safety Information

    MPORTANT AFETY NFORMATION This DSD 4121 RV Decoder meets International Safety Standards. Please read the following recommended safety precautions carefully. MAINS SUPPLY The powerpack supplied with this decoder. It operates within the range 100-250 V AC 47-63 Hz mains supply only.

  • Page 5: Front And Back Panels

    Connects to the high definition (HDMI) input on TV or AV home theatre system Data Services Connects to RS232 (for software upgrade) Power Input connector Connect to your home AC mains outlet LNB OUT Connect to another receiver DSD 4121 RV 5／28...

  • Page 6: Install & Connect The Dsd 4121 Rv Decoder

    INSTALL & CONNECT THE DSD 4121 RV DECODER CONNECTING THE DSD 4121 RV DECODER QUICK START GUIDE FOR EXISTING AURORA INSTALLATIONS Remove decoder from packaging. Insert supplied batteries into the remote control. Connect to existing TV and dish installation - verify the LNB setup in the menus and adjust and re-scan if necessary.
  • Page 7 This is either because the dish isn’t aligned properly and signal is weak, or the LNB on the DISH is a frequency other than 10.7GHz. In order to configure your alignment, or change LNB settings, just press ‘HELP’ button on the remote and the following screen will appear; DSD 4121 RV 7／28...
  • Page 8 Press ‘OK’ on the remote once more to change the LNB setting and the following screen will appear; Now Press the number on the remote which corresponds to your LNB frequency (usually #1) and press ‘OK’. 8／28 DSD 4121 RV...
  • Page 9 If ‘Signal Found’ is displayed at the top of the screen then the unit will begin to scan in services and channel 800 will appear. The smart card can then be registered and activated at http://myswitch.digitalready.gov.au/. For any issues with activation call VAST on; PH:1300 99 3376. DSD 4121 RV 9／28...
  • Page 10 LNB value, then press OK again to deselect the option. Press OK on the “Accept these settings” button. You will be returned to the Satellite installation menu. Press OK on “Satellite Rescan” to rescan the decoder with the new LNB settings. 10／28 DSD 4121 RV...
  • Page 11 The decoder will reboot after a few seconds and display “boot” on the front panel while it starts up. MHEG The ability to launch MHEG applications will be supported by the DSD4121 RV in the future. User instructions will be available on the website (www.uec.com.au) once this feature becomes available. DSD 4121 RV 11／28...

  • Page 12: The Remote Control

    Functions as required by application buttons or context Numerical data entry of channel Digits 0-9 number, PIN Opens freeview program guide TV Guide TV Guide application For other buttons in the remote see the PVR extension manual or visit www.uec.com.au. 12／28 DSD 4121 RV...

  • Page 13: Dsd4121 Rv Decoder Features And Menu

    You can set the timeout value for the information plate (i-Plate) from the Information Display Timeouts menu. NOTE: The i-Plate will only timeout when changing channels from the “+P-” button. If you have manually opened the i-Plate, the “EXIT” button must be pressed to remove it. DSD 4121 RV 13／28...
  • Page 14 The extended i-Plate displays a short description about the currently selected i-Plate programme, see screen below. To remove the extended i-Plate, you must press the “i” button again or the “EXIT” button to remove both the extended and i-Plates, see diagram below. i-Plate Toggling Diagram 14／28 DSD 4121 RV...
  • Page 15 How to Delete Reminder Highlight the programme which the reminder was set on in the i-Plate, then press the “OK” button until the Cancel reminder appears. You can also delete a reminder from the TV Guide. DSD 4121 RV 15／28...
  • Page 16 You may cancel the reminder by pressing the “EXIT” button or tune immediately to the selected programme by pressing the “OK” button, if you do nothing, the decoder will automatically tune to the selected channel and the pop-up will timeout, see autotune screen below. 16／28 DSD 4121 RV...
  • Page 17 If this occurs you must proceed by carrying out a factory reset of the STB. The PG pin code pop-up will appear when changing channels to a parental blocked program or when a parental blocked program begins. DSD 4121 RV 17／28...
  • Page 18 After the factory reset, the pin entry attempts is reset to 3 as soon the correct PG pin code is entered. NOTE-1: All programs that are blocked must comply with the Australian Broadcast standard. NOTE-2: A valid PG PIN code is required to enter the Parental Control Menu. 18／28 DSD 4121 RV...
  • Page 19 The menu is used to set up the decoder for the user’s environment and preference. Launch the menu by pressing the MENU button on the remote. Navigate through the menu using the UP, DOWN, OK and EXIT keys. DSD 4121 RV 19／28...
  • Page 20 If the HD Output Format option has been changed, it will temporarily switch the resolution and launch a popup on the screen. Press “OK” on this popup to confirm that the settings are correct. Press ‘EXIT” or let the popup time out and the resolution setting will be restored to the previous setting. 20／28 DSD 4121 RV...
  • Page 21 For a permanent setting, change the aspect ratio on the menu. TIME ZONE SETUP Time zone setup options can be found by navigating to: Advanced Options Local Time Select the correct region and the local time will be adjusted automatically. DSD 4121 RV 21／28...
  • Page 22 Press OK on this option (if it is available) and the new code download will start. Follow the instructions on the download screen. ERROR BANNERS An error banner is displayed when there is a network error or input error from the user, or in the instance where signal is lost. 22／28 DSD 4121 RV...
  • Page 23 ALTECH UEC DSD 4121 RV SET TOP BOX – Error Codes On Screen Error Message Condition/Explanation "The Smartcard is invalid for this country or network. An invalid smart card has been inserted. Please contact your nearest contact center for assistance.”...

  • Page 24: Legal Matters

    Australian broadcast footprint, and installed so as to receive the network specific signal. The network operator is entitled to amend the software incorporated in the DSD 4121 RV Decoder from time to time by means of software downloads for a number of reasons, including preventing the DSD 4121 RV Decoder from being used to receive services other than the network operator services.
  • Page 25 About adapter： Model：GSBP3000S012V36A Input：AC 100-240V~1.0A Max 50/60Hz Output：DC 12V/3A Approval NO.：A/13831EA More information please visit www.uec.com.au for a list of power supplies and regulators. DSD 4121 RV 25／28...

  • Page 26: Help And Information

    Digital Satellite Technology is rapidly evolving. As a result of this, it is not possible to predict what the requirements will be in a few years' time. The manufacturer cannot guarantee that this DSD 4121 RV Decoder will be able to run all available services in future.
  • Page 27 DSD 4121 RV 27／28...
  • Page 28 ALTECH UEC PTY. LTD LEVEL 2, 27 SIRIUS RD, LANE COVE WEST, NSW 2066 SYDNEY, AUSTRALIA THE LATEST VERSION OF THIS USER MANUAL CAN BE DOWNLOADED AT: www.uec.com.au 28／28 DSD 4121 RV...
