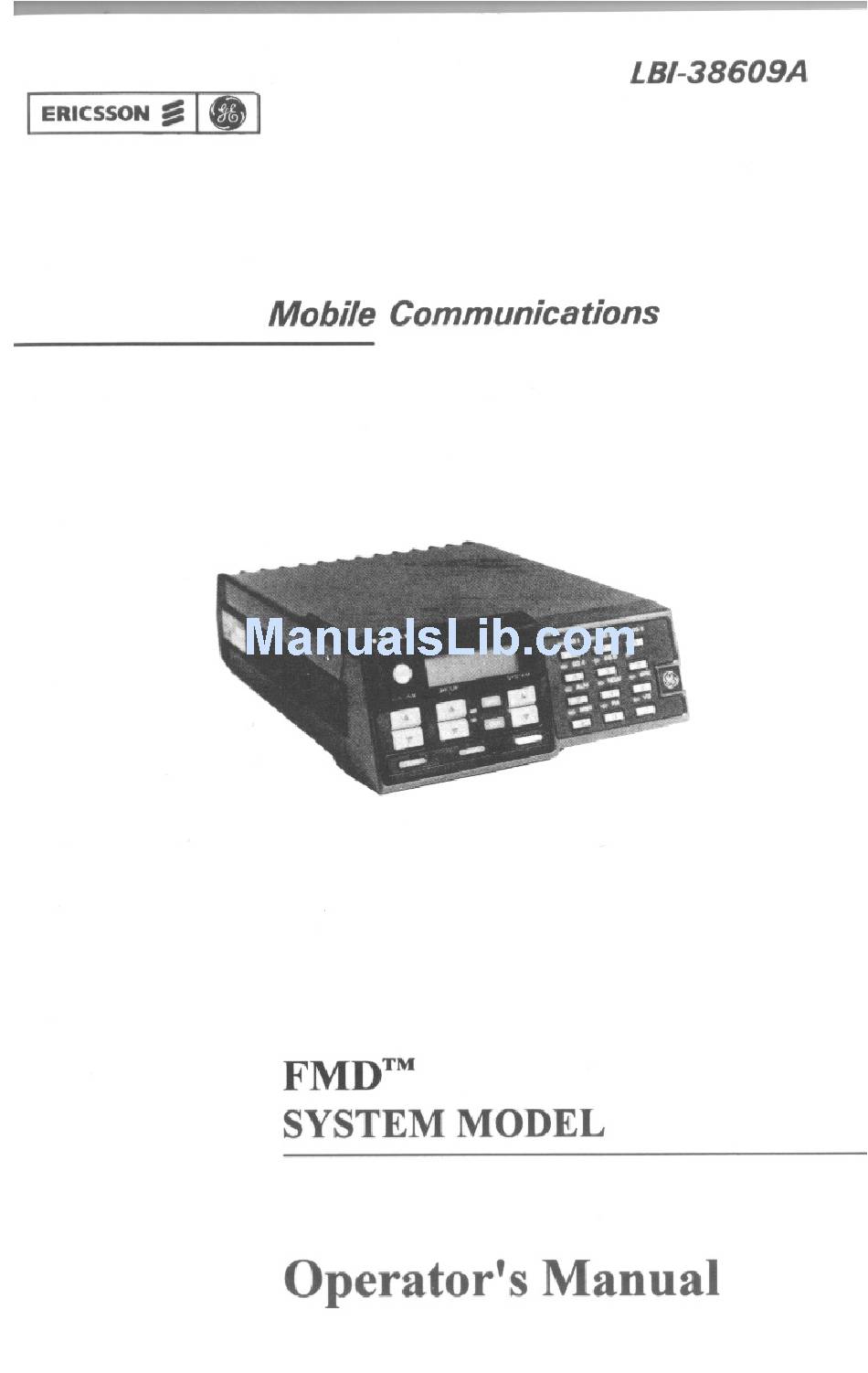

Ericsson GE FMD LBI-38609A Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMD LBI-38609A and is the answer not in the manual?

Questions and answers

Related Manuals for Ericsson GE FMD LBI-38609A

Summary of Contents for Ericsson GE FMD LBI-38609A

  • Page 2: Table Of Contents

    OPERATING PROCEDURES ... . . OPERATING TIPS ....Copyright © July 1991, Ericsson GE Mobile Communications Inc.

  • Page 3: Safety Information

    SAFETY INFORMATION The operator of any mobile should be aware of certain hazards common to the operation of vehicular radio transmissions. A list of the possible hazards are: • Explosive Atmospheres Just as it is dangerous to fuel a vehicle with the motor running, be sure to turn the radio off while fueling the vehicle.

  • Page 4: Introduction

    INTRODUCTION The Ericsson GE FMD mobile radio is a synthesized radio that uses microcomputer technology to provide high reliability and performance. The radio is designed to provide mobile dispatch service in both trunked and conventional operation. The FMD consists of a radio assembly and control unit in a single housing.

  • Page 6: Indicators

    GROUP Two momentary switches (auto ramping). The GROUP UP and GROUP DOWN switches are used to select the current group/channel selection. (See wrap around note from SYSTEM.) Momentary switch. The SPC (Special Call) switch is used to enable special call mode if programmed in the radio.

  • Page 7: Keypad Leds

    ON indicates that the radio cannot locate a trunked system. This indicates that the radio is not functional for voice or data communications. FLASHING indicates that the radio is operating in trunked failsoft mode and some of the features of the system may not be available for use (e.g.
  • Page 8 ID ##### If programmed, displayed when your unit receives an individual call where ##### is the unit id of the calling radio (Note: If the ID is in your Special Call list, it may show an 8 character name instead of the number). GR ##### If programmed, displayed when a call is received to your selected group where ##### is the unit ID of the calling...

  • Page 9: Alert Tones

    ALERT TONES The FMD mobile generates a number of alert tones to indicate its current state. These tones are described below: CALL ORIGINATE A short tone is sounded whenever you key the microphone Push- To-Talk (PTT) switch and the radio has acquired a channel. This tone indicates that you may proceed to talk (both conventional and trunked operation).

  • Page 10: Operating Nomenclature

    OUT OF RANGE/SYSTEM INOPERATIVE (Trunked Operation Only) If you hear a single low pitched tone immediately after you key the microphone, this indicates your mobile unit is out of range of the repeater. Your radio will try to place the call for a short period after the initial attempt.
  • Page 11 SYSTEM - (Trunked Operation Only) The term system refers to the particular group of station repeaters and set of group/special calls providing service to the radio. Radios can be preprogrammed to work in different systems by changing the System selection or through wide area roaming. GROUP OR SUBFLEET (Trunked Operation Only) A group of users share the same preprogrammed group identifica- tion number in their radios.

  • Page 12: Operating The Radio

    Each trunked system may also have a priority trunked system associated with it. When set to a system with that priority system programmed, the radio will check for the priority system periodically. If found, it will automatically switch to that system. The timer is reset every time the PTT switch is pressed to avoid interrupting a conversa- tion.

  • Page 13: Adjusting Squelch (Conventional)

    System Selection: Press either SYSTEM switch to bring up the currently selected system. Press and hold that SYSTEM switch until the desired System selection appears. System-Group Selection: Assuming the SG1-SG5 functions are mapped to the primary keypad and the primary keypad is selected, simply press and release one of the System-Group keys.

  • Page 14: Trunked Operation

    2. Press the GROUP UP or DOWN switches until the desired level of backlighting (off, low, medium, or high) is obtained. 3. Release the CLR switch. The backlight level is stored when the radio is turned off. TRUNKED OPERATION RECEIVING A TRUNKED DISPATCH CALL 1.

  • Page 15: Conventional Mode Operation

    4. After you have finished your call, releasing the PTT switch ends the call automatically. CONVENTIONAL MODE OPERATION RECEIVING A CALL 1. Make sure that the radio is turned ON, and the proper channel is selected using the GROUP UP/DOWN and SYSTEM UP/DOWN switches.

  • Page 16: Emergency Operation

    NOTE Emergency and Special Call are not operational during conventional failsoft. Also, the GROUP control will not operate. communications channel, or use emergency or special call. When trunking is restored, you will automatically be returned to normal opera- tion. EMERGENCY OPERATION RECEIVING AN EMERGENCY MESSAGE From the Selected Group When you receive an emergency call from a member of the selected...

  • Page 17: Clearing An Emergency

    3. Release the PTT switch when the transmission is completed, and listen for any reply. The TX indicator will go out when you release the PTT switch. CLEARING AN EMERGENCY If your radio has been programmed as a supervisory unit, you may clear emergency calls.
  • Page 18 NOTES Your FMD radio is capable of simplex (one way) conversation only. The person you are talking to can hear you ONLY when you have the PTT switch pressed. You can hear the person on the telephone ONLY when the PTT switch is released.

  • Page 19: Receiving A Telephone Interconnect Call

    5. To terminate the call, momentarily press the CLR switch or hang up the microphone. RECEIVING A TELEPHONE INTERCONNECT CALL 1. Receiving a telephone interconnect call is identical to receiving an individual trunked dispatch call (see RECEIVING A TRUNKED DISPATCH CALL section). When the telephone call is received, the radio will display "PHN CALL".

  • Page 20: Group Scan Operation

    Receiving an Individual Call will also cause the BSY indicator to turn on. After the transmission, the BSY indicator will go out. The display will continue to show the above until the predefined timeout for calling back expires. During the callback period, press the PTT switch to return the call.

  • Page 21: Starting Or Stopping Scan

    To delete a Group/Channel from Scan 1. Select the Group or Channel to be removed from Scan using the GROUP switches. 2. While holding the SCAN switch, press the GROUP DOWN to delete the group or channel from scan. The S, 1, or 2 Icon will go out.

  • Page 22: Emer Switch

    EMER SWITCH The Emergency switch is used to send an Emergency message (see Sending An Emergency Message). It can also be used to select a Home Group or Channel. Be sure to understand operation of this switch prior to using the radio. KEYPAD FUNCTIONS PRIMARY KEYPAD (Assume User Options) SYSTEM-GROUP SELECTION...
  • Page 23 If a mobile data device is attached to your radio, there are occasions when the radio will automatically disable mobile data (see Mobile Data). If you want to disable data for some other reason, you may press the NDAT (No Data) switch on the keypad. The LED will illuminate and the display will temporarily show "*NO DATA".

  • Page 24: Alternate Keypad (Assume Status Operation)

    3. Press keypad switch to return to normal operation. The display will return to the selected group. VOICE GUARD When a Voice Guard Module is attached to an FMD this switch can be used to toggle a group or channel between private and clear transmit operation.

  • Page 25: Mobile Data

    SPECIAL CALL OPERATION When in Special Call mode, the keypad is automatically selected for DTMF keypad operation. To select Primary or Alternate operation, use the 2nd switch. To dial a number, follow the procedures below: INDIVIDUAL CALLS: Use the keypad to enter the ID of the radio to be called (from 1 to 5 digits).

  • Page 26: Operating Procedures

    3. Declaring an Emergency (not to be used unless an actual emergency condition exists). 4. Press the NDAT button on the keypad. When entering the no-data mode, the display will show "*NO DATA" if a Radio Data Interface (RDI) is attached. This will remain displayed for a programmable period.

  • Page 27: Operating Tips

    3. It is against the law to send false call letters, or a false distress or emergency message. 4. The FCC requires that you keep conversations brief and confine them to business. To save time, use coded messages when- ever possible. 5.
  • Page 28 NOTES...
  • Page 29 Printed in U.S.A.
  • Page 30 Printed in Japan...
  • Page 31 POWER ON-OFF VOLUME INCREASES/DECREASES VOLUME LEVEL GROUP SELECTS: GROUP/CHANNEL SPECIAL CALL SCAN PRIORITY BACKLIGHT TOGGLES BETWEEN PRIMARY AND ALTERNATE KEYPAD OPERATION CLEAR TERMINATES A CALL EXIT SPECIAL CALL CLEAR EMERGENCIES MONITOR IN CONVENTIONAL MODE ADJUST BACKLIGHT SCAN SCAN ON-OFF ADJUST PRIORITY SPECIAL CALL ENTERS SPECIAL CALL TO PLACE TELEPHONE...
  • Page 32 POWER ON-OFF VOLUME INCREASES/DECREASES VOLUME LEVEL GROUP SELECTS: GROUP/CHANNEL SPECIAL CALL SCAN PRIORITY BACKLIGHT TOGGLES BETWEEN PRIMARY AND ALTERNATE KEYPAD OPERATION CLEAR TERMINATES A CALL EXIT SPECIAL CALL CLEAR EMERGENCIES MONITOR IN CONVENTIONAL MODE ADJUST BACKLIGHT SCAN SCAN ON-OFF ADJUST PRIORITY SPECIAL CALL ENTERS SPECIAL CALL TO PLACE TELEPHONE...
