4) Remove prefilter from the solution and continue pumping another 5 to 10 strokes to
remove remaining water from the pump body and hoses.
5) Remove and clean the ceramic prefilter by brushing with the supplied cleaning pad.
Allow to air-dry completely.
6) Remove cartridge and allow to dry.
7) Rinse the black plastic housing and remove any dirt.
8) Lubricate the piston o-rings with silicone lubricant provided.
9) Re-assemble the filter.
10) Wrap hoses around body and store in carry bag.
Note: When removing unit from long-term storage, flush the system with one liter of
water to remove any stale tasting water.
Cartridge Capacity
Cartridge capacity depends on water quality. The Katadyn Vario was tested at 500 gallons
(1875 liters) and found effective for removal of bacteria (Klebsiella terrigena) and
protozoan cysts (Giardia and Cryptosporidium). To extend the life of your cartridge, always
use the Vario filter in LONGER LIFE mode. The cartridge should be replaced after 500
gallons (1875 liters) or when the output becomes too slow.
Replacement Cartridge Installation
Replacement cartridges are available where you purchased your Katadyn Vario.
1) Detach pump head from filter housing. Remove ceramic prefilter and cartridge from
housing by turning and lifting it. Detach ceramic prefilter unit from cartridge. Discard
used cartridge in trash receptacle. Note: If removal of cartridge is difficult, detach
bottom cap first and push on the outlet barb.
2) Rinse inside of Vario housing by swishing with clear water (non-filtered water is ok).
Discard water. Wipe inside of housing with soft cloth to remove sediment.
3) Remove new cartridge from packaging and apply a small amount of silicone lubricant
to cartridge o-ring set before attaching ceramic prefilter unit. Note: A new cartridge is
already filled with activated carbon.
4) Next insert the new cartridge making sure the pointed ridge in the filter housing is
aligned with the triangular notch in the cartridge. Now reinstall the ceramic prefilter
and reattach the pump head. (Picture E)
5) Choose FASTER FLOW or LONGER LIFE mode by turning the ceramic prefilter unit until
the white arrow points to your preferred setting. Note: To extend cartridge life, we
recommend using the Vario in LONGER LIFE mode. (Picture D)
6) Reattach pump head with handle and close tight.
7) Screw bottom cap back on housing. To protect the inside from dirt, turn bottom cap
until outlet port is covered.
8) Flush cartridge by pumping and discarding the first liter of water.
(5)
Refill of Carbon Core
Carbon refill packs are available where you purchased your Katadyn Vario.
1) Follow instruction 1 from Cartridge Installation above. Remove red cover and green
foam underneath to reveal activated carbon.
2) Discard used activated carbon. Use more force if the carbon is wet. Rinse inside of
cartridge with filtered water. Do not remove white filter disc from the bottom of the
cylinder.
3) Open package of new activated carbon and pour into the cartridge. Cover with green
foam and red lid. (Picture F) Note: Apply a small amount of silicone lubricant to o-ring
of red cover.
4) Flush unit by pumping 1 liter of water to remove carbon dust.
Activated Carbon Capacity
Activated Carbon capacity depends on water quality. Normal effective lifespan of carbon
is 50 gallons (200 liters). High chemical or odor concentration can reduce the capacity of
the carbon. Replace the carbon when you notice a change in taste or odor after filtering or
after 6 months of constant use - whichever comes first.
When You Travel Abroad, Camp or Backpack...
...you run a risk of illness ranging from the inconvenience and discomfort of diarrhea to
more serious illnesses caused by protozoan cysts (i.e., Giardia, Cryptosporidium), viruses
and bacteria.
The microorganisms that cause these diseases are often found in the food and water you
consume. Lakes, streams and the local water supply may be contaminated.
To minimize the risk of contracting these illnesses, we suggest that you consult with your
physician, state health department or travelers' clinic 4-6 weeks before you depart.
And while you are traveling...
• Make sure that prepared food is thoroughly cooked.
• Select non-cooked foods (fruits, nuts, etc.) that have intact shells or skins, and
clean your hands before peeling the food.
• Disinfect your hands with soap and water (or Katadyn Klean Hand Sanitizer)
thoroughly and often, especially before you eat. Filter all drinking water with your
Katadyn Vario Water Microfilter.
• If there is any risk of viruses in the water, use an EPA-registered disinfectant such
as Micropur MP1 after filtering.
The Katadyn Vario Microfilter is an essential piece of outdoor equipment. We hope it makes
your outdoor experience more enjoyable. For questions or suggestions, please contact us at
1-800-755-6701.
(6)
Product Registration
Please take a moment to register your new Katadyn product by completing the short product
registration form online at www.katadyn.com/productregistration. The information you
provide will enable us to better serve you with products developed to meet your needs and
interests. Register your Katadyn product online and you will be automatically entered into
a drawing to win a free Katadyn product.
Limited Warranty
Your Katadyn Vario Microfilter is warranted for one (1) year from the date of purchase
against defects in materials and workmanship. Should your Katadyn Vario prove defective
within one year from the date of purchase, return it to the Katadyn retailer from whom it
was purchased. If you do not receive a satisfactory resolution, contact Katadyn Consumer
Relations at 1-800-755-6701 for service assistance. Katadyn, at its discretion, will replace
or repair the damaged item. Please retain your purchase receipt as proof of date
purchased. This warranty gives you specific legal rights and you may have other legal rights
which vary from state to state.
Contact North America:
Katadyn North America Inc.
9850 51st Avenue North
Minneapolis, MN 55442 / USA
1-800-755-6701
outdoor@katadyn.com / www.katadyn.com
Contact International:
Katadyn Products Inc.
Birkenweg 4
8304 Wallisellen / Switzerland
info@katadyn.ch / www.katadyn.ch
Print No. 8015061/0
(7)

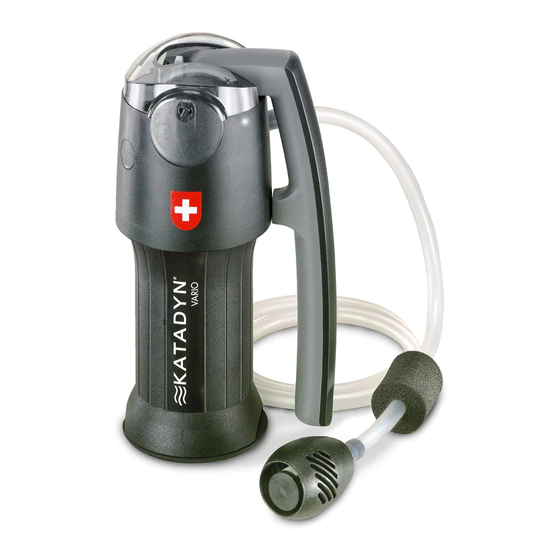

Vario Water Microfilter
(Model #8014931)
Vario Replacement Cartridge
(Model #8014933)
Replacement Prefilter Disc
(Model #8015035)
Replacement Activated Carbon
(Model #8015036)
Cut of Katadyn Vario
Dual Action Pump - Dual piston
technology provides maximum
output with minimum effort
Multi-Stage Filtration System - A
simple turn engages a ceramic
prefilter for longer life in dirty
water or a pleated glassfiber filter
in normal conditions
Fast Water Flow - Produces up to
2 qt (2 l) per minute in "Faster
Flow" mode and 1 qt (1 l) per
minute in "Longer Life" mode
Carbon Core - Replaceable
carbon keeps water tasting fresh.
Reduces chemicals, odors and
toxins through life of cartridge
Adaptor Base -
Attaches directly
to water bottles
or output hose
can be used to
fill hydration
systems or larger
containers
