Summary of Contents for Marv MW10EU1

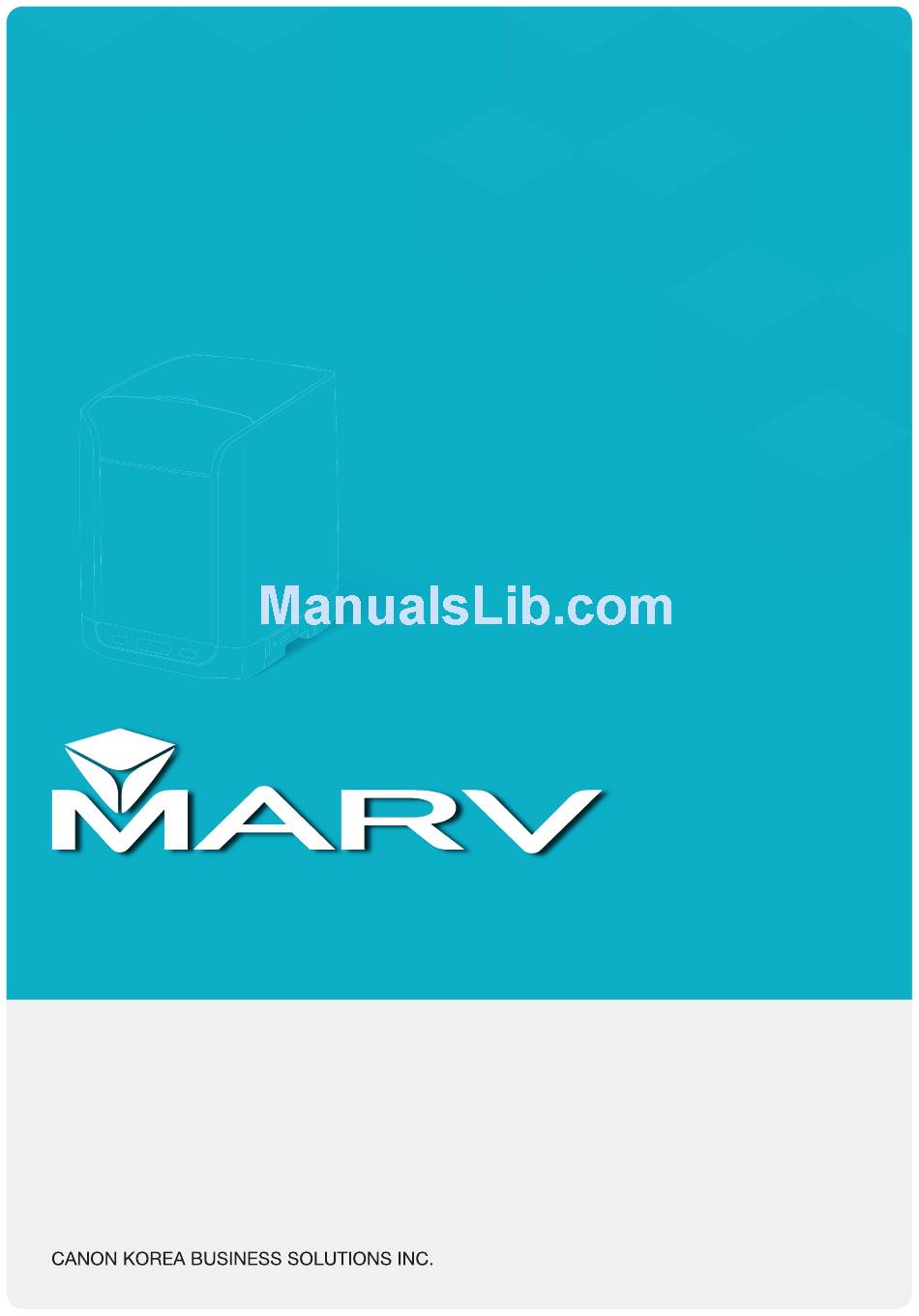

- Page 1 User's Manual Read this manual first. Please read this manual before operating this product. After you finish reading this manual, store it in a safe place for future reference.
-
Page 2: Table Of Contents
Handling an Object after Printing Model Names Removing the object from the Disclaimers print bed Removing the raft and support Copyright structures (if necessary) Trademarks Using the MARV Software Main screen FCC (Federal Communications Editing functions Commission) Settings FCC WARNING AC Adapter MARV Maintenance... -
Page 3: How To Use The Manual
Note Notes indicate useful tips or additional information for procedures and product use. This symbol represents control buttons on the computer screen and the machine. e.g., [Import], [OK] MARV User Manual... -
Page 4: Legal Notices
Legal Notices Model Names MARV: MW10EU1, MW10EU2, MW10EU3, MW10EU4, MW10EU5, MW10U1, MW10U2 Disclaimers The content of the manual is subject to change without prior notice. CANON KOREA BUSINESS SOLUTIONS INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, EITHER EXPRESS OR IMPLIED, EXCEPT AS... -
Page 5: Fcc (Federal Communications Commission)
FCC (Federal Communications Commission) MARV: MW10U1, MW10U2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. -
Page 6: Ac Adapter
• Do not use an AC adapter other than the one provided with the printer. Do not use the AC adapter provided with the printer with other products. • If you have any questions regarding the power supply, contact your local authorized or service representative for further information. MARV User Manual... -
Page 7: Important Safety Instructions
• When printing stops due to a shortage of filament, replace the filament. If a printing job is discontinued, it cannot be resumed. Before using the machine, check that there is enough material available on the filament. MARV User Manual... -
Page 8: Supplied Accessories
• The shape, positioning, and quantity of packing materials may change without prior notice for quality improvement purposes. Machine Print bed Filament Manual and driver Quick Setup Guide Adhesive tape CD-ROM Adapter Power cable USB cable SD card Nozzle maintenance pin Calibration sheet Warranty card MARV User Manual... -
Page 9: Machine And Installation Information
Machine and Installation Information Make sure there is sufficient space to install the device. Caution Do not install the machine on an unstable surface, such as an unstable shelf or uneven floor. Installation Space MARV User Manual... -
Page 10: Names Of Parts
Names of parts Exterior Top cover USB port SD card slot Front cover Power plug-in Power switch Firmware switch [▼] button [OK] button MARV User Manual... -
Page 11: Interior
Interior Nozzle Print bed Filament mount Left cover Staging bracket Nozzle unit Feeding tube Cable Filament Filament insertion hole insertion lever MARV User Manual... -
Page 12: Removing The Packing Materials
It may cause the machine to malfunction or damage sensors. Close the front cover. Push the front cover in until you hear a click from the right side. Close the top cover. Push the top cover to make sure it is completely closed. MARV User Manual... -
Page 13: Installing The Software And Connecting The Usb Cable
Installing the Software and Connecting the USB Cable The software must be installed to use all MARV functions. Install the software on your computer using the enclosed CD-ROM. Note Supported operating systems • Windows XP 32 bit SP3 • Windows 7 (32 bit/64 bit) •... -
Page 14: Basic Operation
Push in the cartridge until you hear a click to make sure that it is fixed on the cartridge mount. Note Install the filaments so that filament will release in a left direction. If installed in the reverse direction, the filament may not feed properly. Left direction MARV User Manual... - Page 15 (appr. 3 inch) Left & Top covers open While pressing down on the insertion lever of the filament nozzle unit with one hand, insert the end of the filament into the insertion hole. Insertion lever Filament insertion hole MARV User Manual...
- Page 16 • Printing may not work if the filament is not fully inserted into the nozzle unit. • If the end of the filament is deformed or bent, cut it cleanly so that it will fit into the insertion hole in the nozzle. MARV User Manual...
- Page 17 Cable Note If the feeding tube is higher or lower than the cable, this may affect printing quality. Make sure the height of the feeding tube and the cable are the same and close the top cover. MARV User Manual...
-
Page 18: Print Bed Preparation
Place the print bed on the left and right staging brackets and push the print bed until it meets the back of the machine. Caution Insert the print bed securely on the left and right staging brackets. Failure to do so may result in an uneven printing bed. MARV User Manual... -
Page 19: Connecting Power
Connect MARV to an electric outlet. O FF And then turn on the power. After the power is on, the LCD screen turns on and the machine starts to initialize. After the initialization is complete, [MARV is Ready] appears on the screen. MARV User Manual... -
Page 20: Printing From The Computer
Printing from the Computer Print settings can be changed using the MARV software installed on the computer. For more information about the functions of the MARV software, refer to 'Using the MARV Software' on P.24. Caution If the computer enters Sleep Mode during printing, printing stops. If a print job stops, it cannot resume. -
Page 21: Printing From The Sd Card
Use an SD card to easily print without a computer or a software software. Note • With an SD card, files with a .marv extension only can be printed. Convert .stl files to .marv files in the MARV software and store them in the SD card. -
Page 22: Canceling Printing
To cancel printing, press [OK] on the machine for approximately three seconds. Print job will stop and the print bed and the staging brackets lower and [MARV is Ready] is displayed on the LCD screen, put on gloves when removing the output results to prevent burns. -
Page 23: Handling An Object After Printing
Handling an Object after Printing Removing the object from the print bed When the print bed and the staging brackets lower and [MARV is Ready] is displayed on the LCD screen, put on gloves and remove the product from the print bed. Remove the object from the print bed. -
Page 24: Using The Marv Software
Using the MARV Software Main screen ➊ ➋ ➌ ➍ ➎ ➏ ➐ ➑ ➒ ➓ [Open] [Save] ➊ ➋ Opens the .stl file to be edited and Saves the edited files. printed. You can import up to five files. -
Page 25: Settings
When the nozzle is warm, the filament can be removed from the nozzle unit. [Print Information] Displays information about the design being printed, the completion time, and dimensions of the finished object. This information is for reference only and may not be precise. MARV User Manual... -
Page 26: Editing Functions
Click [Apply] to confirm the settings or click [Return to Details] to cancel them. [Color] tab ➍ Use this tab to change the color of the 3D object. Click [Apply] to confirm the settings or click [Return to Details] to cancel them. MARV User Manual... -
Page 27: Settings
If you set the print speed to [Fast], the machine prints 2 or 3 times faster than the [Standard] setting depending on the model. Note Printing at Fast speed may reduce the print quality. The slower the printing speed, the better the quality of the parts. MARV User Manual... -
Page 28: Settings
If the stage is not level, use this feature, use this This feature adjusts the distance between feature and manually rotate the bolts to adjust the stage and the nozzle by using the MARV the stage. software. The applied value is saved and the next printing job uses the same position. -
Page 29: Marv Maintenance
To prevent burns, use gloves and tweezers when you remove the filament from the nozzle unit. Remove the filament from the machine. Mount the new filament on the machine. For more information about replacing a cartridge, refer to 'Filament Installation' on P.14. MARV User Manual... -
Page 30: Replacing The Filament While Printing
• [Load] and [Unload] cannot be used when printing is paused. Remove the filament from the nozzle and insert the material manually. From the MARV software, press [Pause Printing will stop and the stage will lower. Remove the filament from the nozzle. Press [Pause ] and remove the filament immediately. -
Page 31: Calibrating The Nozzle
If the gap between the nozzle and the stage is not approximately 0.3 mm, you can conduct this process by using the MARV software’s ‘Auto Calibration’ feature. If you use this feature, the modified value is saved and the same gap between the stages is automatically used for the next printing job. -
Page 32: Cleaning The Machine
The staging brackets lower, the nozzle is heated, and then the filament inside the nozzle extrudes automatically. (This method takes approximately 3 minutes.) After the filament is extruded from the nozzle, remove the filament from the insertion hole while pressing the insertion lever. MARV User Manual... -
Page 33: Cleaning Method 2: Cleaning The Nozzle Without A Computer Software
Turn on the machine. Press [OK] to heat the nozzle. (This method takes approximately 3 minutes.) When the nozzle is warm enough, [MARV is Ready.] is displayed on the LCD and the filament extrudes from the nozzle. Open the top cover. -
Page 34: Updating The Firmware
[Property] - [Hardware] - [Driver] - [Update Driver], and then select [Search manually]. Browse through the list that is displayed, select C:\Software Files\Atmel\ Flip 3.4.7, and then click [Install driver]. Run Flip 3.4.7. When Flip 3.4.7 is running, connect your computer to the machine via the USB cable. MARV User Manual... - Page 35 Click to search for the connected machine. When the computer has detected the machine, the display changes: (The Atmel logo changes to blue.) Click Open and run the firmware update file that you saved in step 6. MARV User Manual...
- Page 36 SW' switch to the left. (O ← -) Note Slide the 'Firm update SW' switch to the right only while the firmware is updating. When you slide the switch to the right, the power turns off and the machine cannot be used. MARV User Manual...
-
Page 37: Specifications
AC Adapter Specifications ● Adapter Type: AC Adapter (100 to 240 V type) ● Model Number: KPL-060F ● Manufacturer: Channel Well Technology Co., Ltd. ● Input: AC 100 to 240V, 50/60Hz 1.7A ● Output: DC +12V 5.0A MARV User Manual... -
Page 38: Troubleshooting
If the USB cable is connected, remove it and then continue with the installation. ⊅ ⊅ For Windows XP, if "Found New Hardware" is displayed, disconnect the USB cable ⊅ ⊅ from the computer. Then, click [Cancel] and wait until the message disappears before you continue the installation. MARV User Manual... -
Page 39: A File Cannot Be Located After An Sd Card Is Inserted
⊅ ⊅ Check that the file extension is .marv. Files with an extension other than .marv are not displayed on the screen. If you ⊅ ⊅ want to use a customized or downloaded .stl file, run the MARV software to read the file. -
Page 40: Files Will Not Print
Files Will Not Print Make sure the file extension is .marv. The MARV software can only read .stl files. Save the file to the SD card as a ⊅ ⊅ .marv file and then print it. The software cannot read or print files with other file extensions. -
Page 41: Printing Quality Is Not Satisfactory
If Safe Mode is activated, printing stops when the front cover is opened. You can ⊅ ⊅ activate or deactivate Safe Mode in the Marv software via the [Settings] tab. Note Safe Mode is the default mode. You can turn off Safe Mode during nozzle preheating or object printing processes only. - Page 42 1. With the adhesive tape facing up on the print bed, mount the print bed on the stage. 2. With the printer connected to your computer, run the MARV software. 3. Click the menu icon, and then click the button to use the ‘Manual...
- Page 43 The new color can be contaminated by the residual color. To avoid color contamination when you change the filament, remove the filament residue from the nozzle using the supplied nozzle maintenance pin. To prevent burns, wear gloves when you clean the machine and replace the filament. MARV User Manual...
-
Page 44: The Filament Does Not Extrude During Printing
(at approximately 50℃) for about 1 minute. Then, try to remove the object from the print bed again. Caution When you remove the printed object from the print bed, wear gloves to prevent hand injuries from any sharp edges on the object. MARV User Manual... - Page 45 http://www.canon-bs.co.kr 6F6-0004-010 Customer Care Center TEL 1588-2500 / FAX (031) 499-0371 Website http://www.canon-bs.co.kr Cyber Service Center http://svc.canon-bs.co.kr...
