BEFORE YOU START

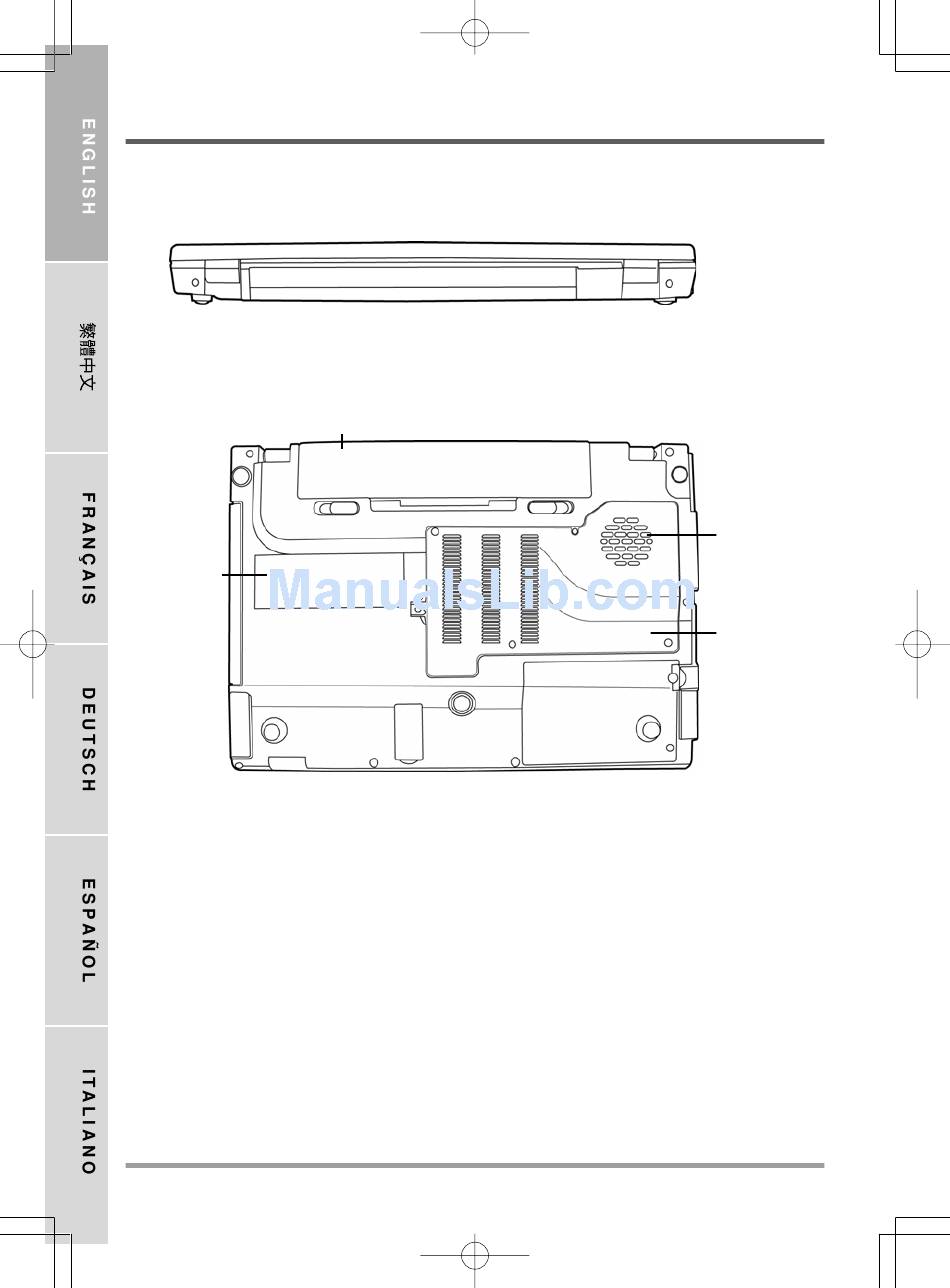

BACK OVERVIEW

The following is an overview of the back of the notebook.

BOTTOM OVERVIEW

The following is an overview of the bottom of the notebook.
Rating Label
Fan Outlets
These are open ports for the fan to dissipate heat from the computer's internal components. Do
not block or place the computer in such a position that you inadvertently allow the outlets to
become blocked.
Rating Label
The label shows the model number and other information about your notebook.
Compartment Cover
The Wireless LAN compartment contains the Wireless LAN card. The memory compartment
contains the computer's memory modules. The internal hard disk drive is accessible through the
hard disk drive bay. The CPU sits in the CPU bay.
Lithium-Ion Battery Bay
The battery bay contains the internal Lithium-Ion battery. It can be opened for the removal of the
battery when stored over a long period of time or for swapping a discharged battery with a
charged Lithium-Ion battery.
12
Lithium-Ion Battery Bay
Fan Outlets
Compartment
Cover
