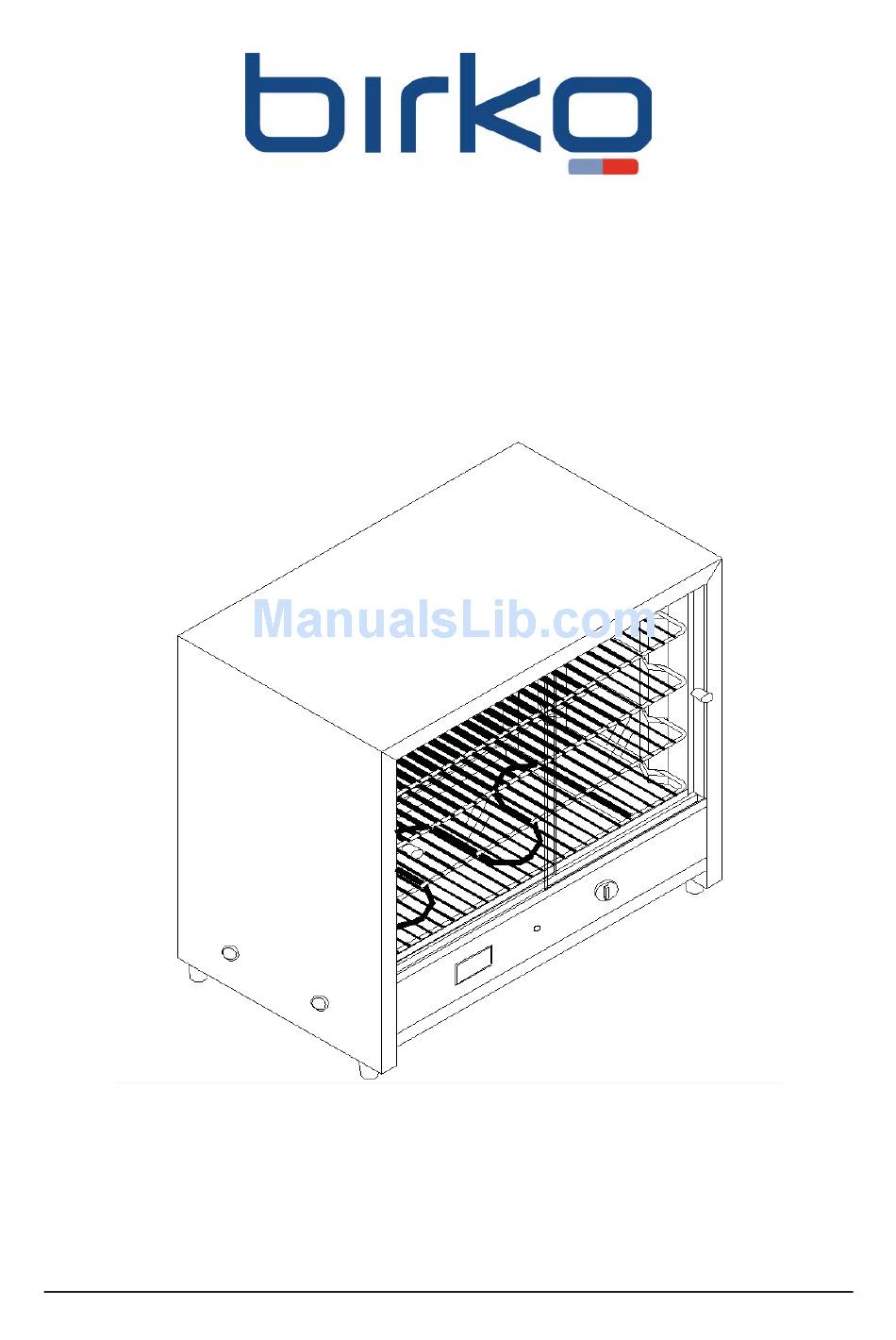

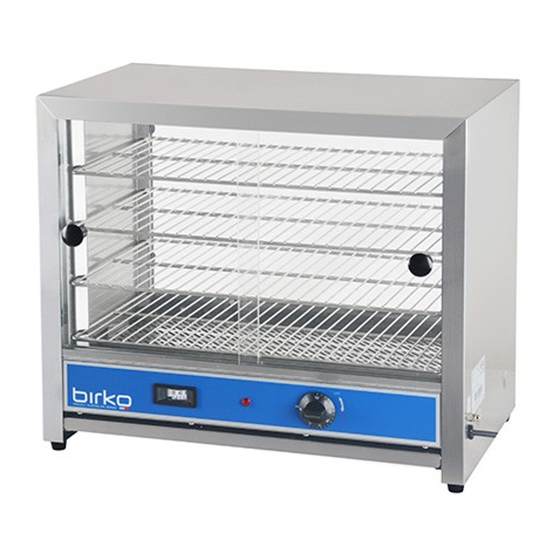

- Page 1 Pie Warmer OPERATION MANUAL 800504 - Birko Pie Warmer- April 2012 v1.02 Page 1 of 12...
-
Page 2: Table Of Contents
Compliance ..... . . 11 Contact Details ....12 Page 2 of 12 800504 - Birko Pie Warmer - April 2012 v1.02... -
Page 3: Introduction
*The machine has not been handled and cleaned correctly. Packaging Birko prides itself on quality and service, ensuring that at the time of packaging all products is supplied fully functional and free of damage. Provided in this package are the following:... -
Page 4: Electrical Connection
Doors. Angle the door and slide the glass up and into the top track. One the glass is high enough, level the glass evenly into the unit and slowly and carefully slides down into the bottom track. Repeat for the second door. Page 4 of 12 800504 - Birko Pie Warmer - April 2012 v1.02... -
Page 5: Operation
Children should be supervised to ensure they do not play with the appliance. A Birko dealer or a Recommended Qualified Service Technician should carry out repairs if required. If the power cord is damaged, it must be replaced by Birko Service Agent or Recommended Qualified Technician in order to avoid a hazard. -
Page 6: Trouble Shooting
Trouble Shooting If your Birko Pie Warmer does not operate, please check the following before placing a service call. Fault Probable Cause Remedial Action Check the unit is plugged correctly and switched 1. Unit is not switched on on; be sure to read the operation guide on pages 4 of the instruction manual. - Page 7 Heat Up Times Model 90 degrees 160 degrees 1040090 5 mins 11 mins 1040091 5 mins 11 mins 1040092 4 mins 11 mins 1040093 3 mins 9 mins Page 7 of 12 800504 - Birko Pie Warmer - April 2012 v1.02...
-
Page 8: Electrical Diagrams
The above circuit diagram and principle diagram have been provided to assist qualifi ed technicians. A Recommended Qualifi ed Service Technician should carry out repairs if needed. Do not remove any components or service panels on this product Page 8 of 12 800504 - Birko Pie Warmer - April 2012 v1.02... -
Page 9: Explosion View
Explosion View Models: 1040090 /1040091 /1040092 /1040093 Page 9 of 12 800504 - Birko Pie Warmer - April 2012 v1.02... -
Page 10: Spare Part List
1315062 1315062 Back Baffl e 1315177 1315177 1315177 1315177 Baffl e Recess Rubber Coil Back Panel 1310612 1315064 1310613 1315311 Plug & Lead 1315011 1315011 1315011 1315011 Page 10 of 12 800504 - Birko Pie Warmer - April 2012 v1.02... -
Page 11: Compliance
Compliance Birko products have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities. As testimony to such compliance, Birko products carry the following marks/symbols: Page 11 of 12 800504 - Birko Pie Warmer - April 2012 v1.02... -
Page 12: Contact Details
Local Ph: 1300 724 955 www.zenithheaters.co.nz Local Fax: 1300 735 259 sales@birkoheaters.com www.birkoheaters.com The term ‘Birko’ is a registered trade mark of Birko Heaters Australia Pty Ltd. Page 12 of 12 800504 - Birko Pie Warmer - April 2012 v1.02...
