AV Tech AVC307R Operating Instructions

Thank you for choosing this high quality camera, before attempting to connect or operate this product,
please read these instructions completely the instruction carefully.

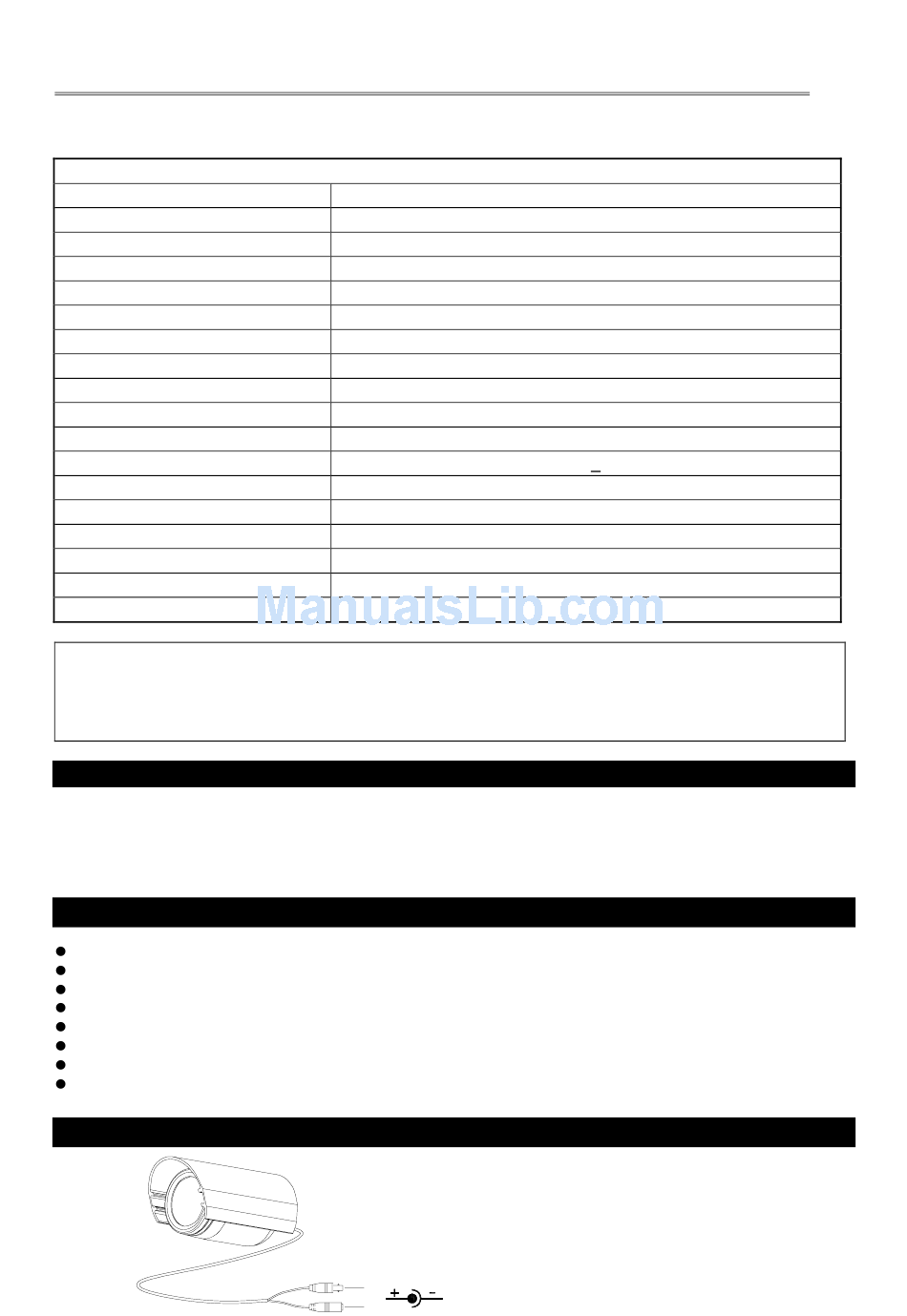

B/W CCTV CAMERA OPERATING MANUAL

SPECIFICATION
Pick up Element
Number of Pixel
Resolution
Min. Illumination
S/N Ratio
Electronic Shutter
Gamma Correction
AGC
Standard Board Lens
Lens Angle
Video Output
Power Source
Current Consumption
Water Resistance
IR LED
Effective Range
Dimension (mm)
Weight
WARNING:
Please use correct power adaptor, DC12V (regulated) to operate this unit. It's not recommended to use
input DC power voltage larger or less than DC12V. If the input DC power voltage is larger than DC12V, it
may reduce the IR LED life time. If the input DC power voltage is less than DC12V, it may reduce the IR
LED effective distance
General
This is a B/W CCD video camera employs a B/W charge coupled device solid-state imaging device which
provide extremely long life and high reliability. The camera offers excellent reproducibility with low lag and
high burn resistance, and is not subject to distortion from magnetic fields and the camera functions reliability
in wide temperature range.

Features

1/3" B/W CCD image sensor
380 TV lines.
0.25 Lux / F2.0, 0 Lux (10 meter IR ON).
Water Resistance: IP57
IR LED: 12 units Infrared LED
Effective Range: Over 10 Meters
Automatic IR trigger-on under low illumination
Automatic IR off under normal illumination

Major operating controls and functions

1/3" B/W CCD image sensor
510(H)x492(V) <EIA> / 500(H)x582(V) <CCIR>
0.25 Lux / F2.0; 0 Lux (10 meter IR ON)
More than 48dB (AGC off)
1/60(1/50) to 1/100,000 sec.
F4.0mm / F2.0
1.0 Vp-p composite, 75Ω
DC12V + 10%
85 mA (IR OFF), 245 mA (IR ON)
12 units Infrared LED
Over 10 Meters
64.6 (Ø) x 105 (L)
2
1
380 TV lines
0.45
Yes
o
80
IP 57
550 g
