Summary of Contents for Northern Industrial tmt-36

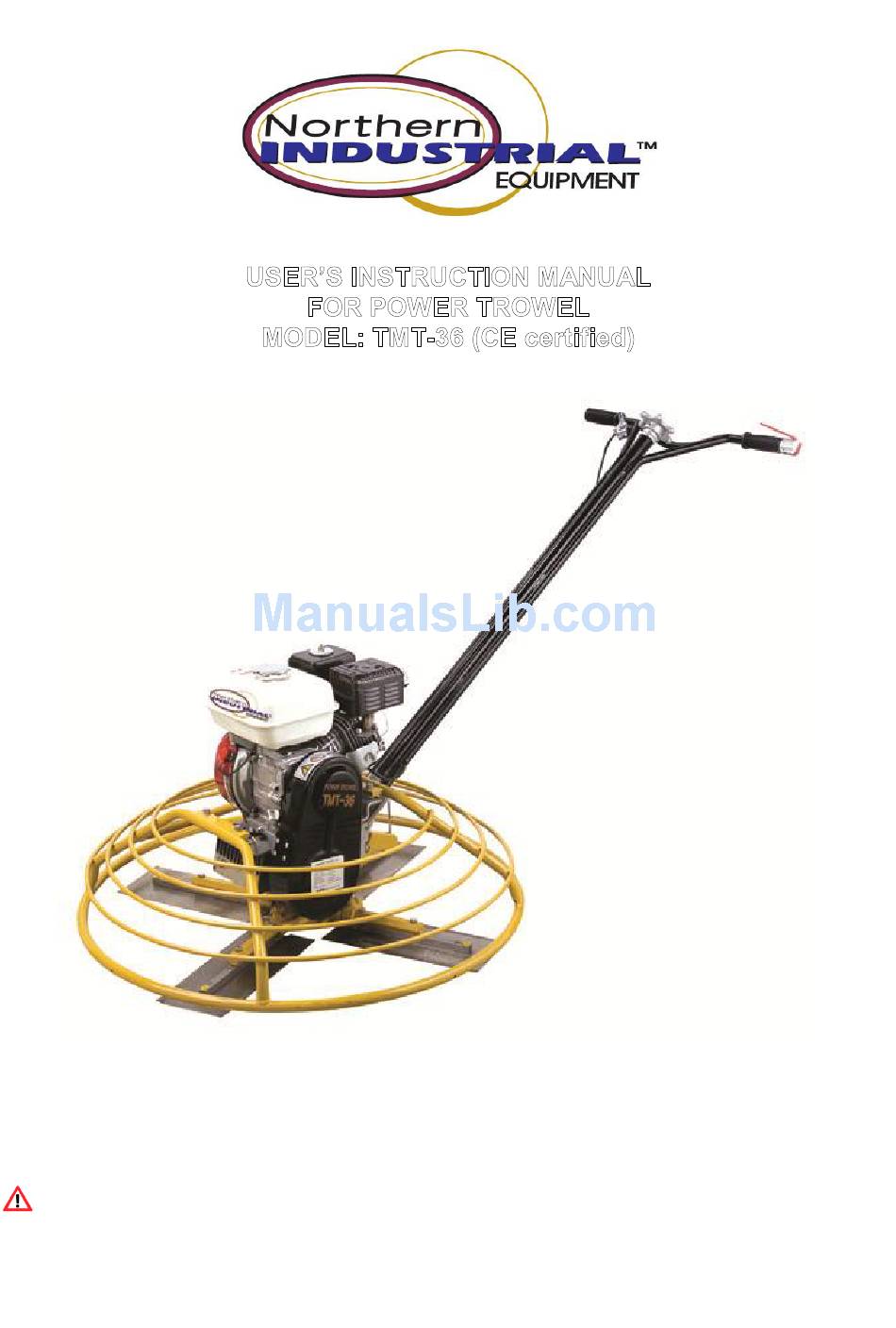

- Page 1 It is USER’S RESPONSIBILITY to communicate proper information on the SAFE USE and GOOD OPERATION of this machine.
-
Page 2: Table Of Contents
(or information) which must be precisely perceived by the operator and the servicing personnel. It is USER’S RESPONSIBILITY to communicate proper information on the SAFE USE and GOOD OPERATION of this trowel. Please contact NORTHERN INDUSTRIAL EQUIPMENT in this manual directly for further information. Table of Contents... -
Page 3: Safety Information
Safety Information Trowels are only allowed to be operated under the intended conditions of floating, finishing and combining the surface of concrete. It is prohibited to use it for any other purpose. Although the product is designed with special attention to the safety, it still is the user’s responsibility to read the safety information THOROUGHLY AND CAREFULLY in this manual for safe use before operation. -
Page 4: Warnings
are assessed to be able to carry out their duties reliably. People are not allowed to enter into the danger zone of the trowel. The operator has to monitor the danger zone all the time. It is not allowed to operate if there is a person in the danger zone. -
Page 5: Safety Label Locations
Safety Label Locations 5. Specifications 5-1 Specifications ** CE CERTIFIED PRODUCT ONLY POWER TROWEL TMT – 24 MODEL TMT-36 WEIGHT 47 Kg 80 Kg OUT DIMENSION (L x W x H) 1,630 x630 x 980 1,890 x 960 x 1,040 WORKING BLADE DIAMETER 610 m/m (24”) -
Page 6: Engine 5~6
5-2 Major External Dimension Outline Configuration 6. Engine 6-1 Recommended Fuel The trowel engine requires regular unleaded gasoline. Use only fresh, clean fuel. Fuel containing water or dirt will damage the fuel system. Consult engine owner’s manual for complete fuel specifications. 6-2 Before starting Read and understand safety and operating instructions manual of engine. -
Page 7: Operation 6~7
6-4 Stopping the engine Reduce the engine RPM to idle by moving throttle completely to the right. Press stop button until engine stops completely. Close the fuel valve. Please see the instruction manual of engine for further detailed information. 7. Operation All safety instructions must be read and observed clearly before starting to operate;... -
Page 8: Transportation
Caution ** If the engine has been running hard, do not stop it abruptly from the full load. ** Cut down the speed (load) and allow the engine to run idle for a few minutes. 8. Transportation Transport the trowel by vehicle or lift crane after securely fasten with rope or chain on the motor vehicle. Make sure to hold the transportation grip (or lifting lug) properly when lifting the trowel. -
Page 9: Periodic Maintenance Schedule
10. Periodic Maintenance Schedule ** The following chart is based on the normal operation schedule. 1. Dust off the engine and the body of the trowel to clean after each use. 2. Cover up with dry cloth completely for storage. 3. -
Page 10: Troubleshooting
Troubleshooting Please check the list below before addressing the problems to servicing personnel including local dealer. And if the problem continues after the troubleshooting as described below, call your local dealer for future assistance. Failure Possible Cause Remedial Measure -Engine throttle control - Open the engine throttle control does completely... -
Page 11: Warranty
Warranty policy for the Products shown in the following table. NORTHERN INDUSTRIAL shall supply all necessary parts for the replacement or repair at free of charge, when defects shall be proved that main problems are derived from mill defect by 3rd Party inspection company or joint inspection of the two (2) Parties.
