Summary of Contents for LevelOne BLH-1200

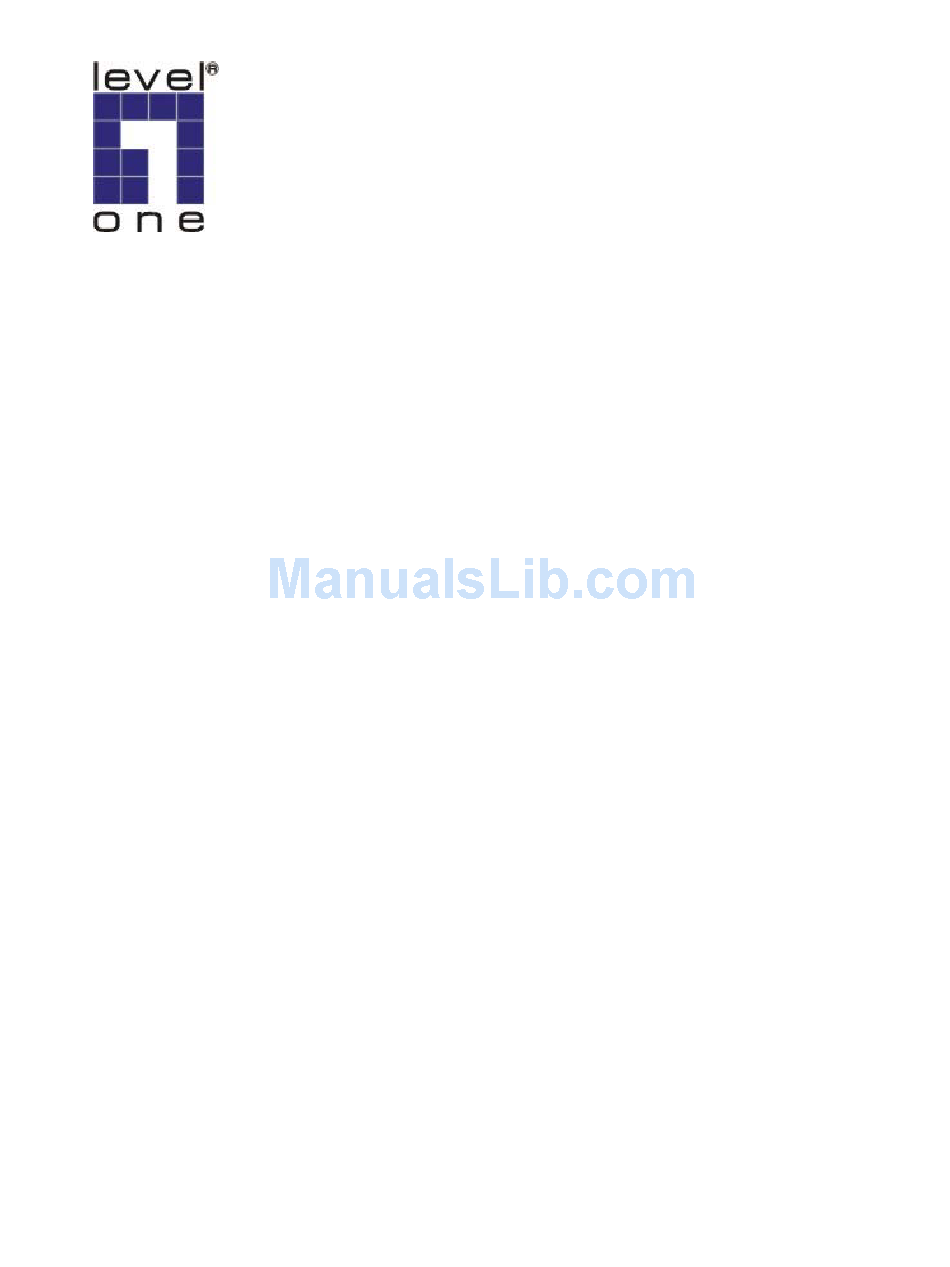

- Page 1 LevelOne BLH-1200 Bluetooth Stereo Headset User Manual Ver 1.0.0 - 0601...
- Page 2 Stereo Headset Stereo Headset & Dongle with Bluetooth wireless technology Copyright This publication, including all photographs, illustrations and software, is protected under interna- tional copyright laws, with all rights reserved. Neither this manual, nor any of the material con- tained herein, may be reproduced without written consent of the author. Copyright 2005 Version 1.0, Dec.
- Page 3 Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system's manufacturer could void the user's authority to operate the equipment.
-
Page 4: Table Of Contents
Table of Contents GETTING STARTED WITH THE HEADSET KIT............. 6 UNPACKING AND CHECKING THE CONTENTS ........... 6 HEADSET PARTS......................7 TRANSMITTER PARTS ....................8 HEADSET STATUS LEDS MAIN FUNCTIONS ............9 TRANSMITTER STATUS LEDS MAIN FUNCTIONS..........9 CHARGING THE HEADSET AND TRANSMITTER BATTERIES ....... 10 CHARGING THE HEADSET WITH THE USB CABLE.......... - Page 5 ........29 EADSET AND RANSMITTER ETAILED ESCRIPTIONS LED......................29 EADSET USB CONNECTOR ..................... 29 AUDIO JACK....................... 29 ..................... 29 VAILABLE ERVICES AUDIO CONNECTION....................29 USB CONNECTION WITH IVT BLUESOLEIL............30 SPECIFICATIONS......................30 TRANSMITTER HEADSET ..................30...
-
Page 6: Getting Started With The Headset Kit
GETTING STARTED WITH THE HEADSET KIT Congratulations on your purchase! This section covers unpacking the Headset Kit and identifying components. Unpacking and Checking the Contents Unpack the Headset Kit and check that the following items are included: Transmitter Headset Travel Charger Utility CD-ROM (Contains drivers, Manual) USB Cable Quick Installation Guide... -
Page 7: Headset Parts
HEADSET PARTS Pair/answer button Press to pair with a device “Pairing Devices” on page 22 Press to answer incoming “Answering Calls” on page 27 call Microphone Next “Skipping Tracks” on page 27 Previous “Charging the Headset with the USB Cable” USB Connector on page 10 Reset Button... -
Page 8: Transmitter Parts
TRANSMITTER PARTS Stabilizer pin (4) “Connecting the Transmitter to an Audio Device” on page 21 Mode switch (3) “Mode Switch” on page 9 Link LED (2) “Transmitter Status LEDs Main Functions” on page 9 Power LED USB connector “Charging the Transmitter with the USB Cable” on page 10 “Pairing the Headset with the IVT BlueSoleil Program”... -
Page 9: Headset Status Leds Main Functions
HEADSET STATUS LEDS MAIN FUNCTIONS For more details on the status of the LEDs, see “Headset and Transmitter LEDs Detailed Descriptions” on page 25 LINK LED POWER LED Color Function Yellow flashing Power on, searching Blue flashing Connected to device Color Function Charging... -
Page 10: Charging The Headset And Transmitter Batteries
nect to your computer to charge the battery. See “Charging the Transmitter with the USB Cable” on page 11 Set to USB when you want to link with the IVT BlueSoleil program on your computer. See “Pairing the Headset with the IVT BlueSoleil Program” on page 23 Charging the Headset and Transmitter Batteries The headset and the transmitter both have a built-in rechargeable battery. -
Page 11: Charging The Transmitter With The Usb Cable
CHARGING THE TRANSMITTER WITH THE USB CABLE Refer to the following to charge the transmitter with the USB cable. 1. Connect the small connector on the USB cable to the transmitter. 2. Set the mode button to Power. 3. Connect the other end of the cable to a USB connector on your computer. MOST NOTEBOOK COMPUTER USB CONNECTORS ARE HORIZONTAL. -
Page 12: Charging The Headset With The Travel Adapter
CHARGING THE HEADSET WITH THE TRAVEL ADAPTER Refer to the following to charge the headset with the travel adapter. 1. Connect the small USB connector on the travel adapter to the headset. 2. Connect the adapter to an electrical outlet. THE TRAVEL ADAPTER CAN BE USED WITH 110V AND 220V (AUTO SWITCHING). -
Page 13: Software And Driver Installation
THE TRAVEL ADAPTER CAN BE USED WITH 110V AND 220V (AUTO SWITCHING). IF YOU NEED TO USE A SOCKET ADAPTER, BE SURE THE ADAPTER IS CORRECTLY GROUNDED FOR YOUR LOCATION. The Power LED lights red to indicate charging. 3. Unplug the travel adapter when the Power LED changes to green. SOFTWARE AND DRIVER INSTALLATION Installing the IVT BlueSoleil™... - Page 14 Choose the language you want and click OK. Click Next to continue...
- Page 15 Read the license agreement and click Yes. Click Next to start the installation. The installation takes a few minutes, and then the following screen appears...
- Page 16 Click Finish to complete the installation and reboot your computer. When your computer restarts, the following screen appears. Click OK to continue. The IVT BlueSoleil program opens. Click File -> Exit to close the program.
-
Page 17: Installing Drivers For The Transmitter
To learn about this program, click Help on the main toolbar. The IVT BlueSoleil help application opens. The program includes many service such as using your computer as a server. Look in the Help application for instructions on how to enable these services. Installing Drivers for the Transmitter Refer to the following to install drivers for the transmitter. - Page 18 1. Connect the transmitter to a USB connector on your computer. 2. Set the mode switch on the transmitter to USB. 3. The system detects the new hardware and the following screen appears.
- Page 19 4. Select the No, not this time radio button and click Next. 5. Select the Install from a list or specific location (Advanced) radio button and click Next. 6. Browse to the WindowsXP folder (or the folder for your OS) on the CD: Cyber Headset -> IVT BlueSoleil ->...
-
Page 21: Operation
OPERATION This section covers pairing the transmitter and headset for use with audio devices, pairing the headset with your computer, and pairing with your mobile phone. Connecting the Transmitter to an Audio Device THE 3.5-MM (1/8 INCH) AUDIO JACK ON THE TRANSMITTER IS THE SAME SIZE AS THE STANDARD JACKS ON COMPUTERS AND ON MOST AUDIO DEVICES. -
Page 22: Pairing Devices
3. Plug the transmitter into the audio out connector on the device. Pairing Devices Connect the transmitter to an audio device, now you can you can pair the headset with the trans- mitter or with a Bluetooth-enabled phone. PAIRING THE HEADSET AND TRANSMITTER Refer to the following to pair the headset and transmitter. -
Page 23: Pairing The Headset With The Ivt Bluesoleil Program
3. Press and hold the Pair/answer button on the headset until the link LED flashes yellow. When the link LEDs on both devices flash blue, the devices are paired. 4. Put on your headset and enjoy the music. (See “Adjusting the Volume” on page 27.) (See “Skipping Tracks”... - Page 24 In order to connect and share services via Bluetooth wireless technology, the two devices must support the same Bluetooth Profile(s). One device must be act as a server; the other must be the client. Refer to the IVT BlueSoleil Help utility for more information. Note the following when pairing with devices: •...
-
Page 26: Using The Headset With Your Computer
USING THE HEADSET WITH YOUR COMPUTER Once you have paired the headset with your computer, you can listen to music on your computer, or talk with friends using network meeting tools. PAIRING WITH A BLUETOOTH ENABLED PHONE Refer to the following to pair the headset with a Bluetooth enabled phone. 1. -
Page 27: Answering Calls
ANSWERING CALLS Refer to the following to answer a call. 1. When your phone rings, press Pair/answer ( ) on the headset. 2. Adjust the volume as you want. 3. Press Pair/answer to end your call. Headset Operation Once you have paired with a device, operating the headset is easy. You can skip tracks and adjust the volume without removing the headset. -
Page 28: Appendix
Press the left side of the skip button to go to the previous track. Press the right side of the skip button to go to the next track. Previous Next APPENDIX Troubleshooting Try the following if the headset or transmitter do not work: •... -
Page 29: Usb Connector
Headset and Transmitter LEDs Detailed Descriptions EADSET Function LED Status Power on/off mode Yellow quick flash interval 0.1s Audio streaming mode Blue slow flash interval 0.3s Searching (pairing) channel Yellow quick flash interval 0.1s Connection mode Blue slow flash interval 0.3s Disconnection mode Yellow Slow flash interval 0.3s Idle mode... -
Page 30: Usb Connection With Ivt Bluesoleil
Music (A2DP) voice, but no transfer to mobile — microphone phone Mobile phone (talking/ Not available Not available — standby) Mobile phone Available Available Available (standby) USB CONNECTION WITH IVT BLUESOLEIL Skype Music Mobile phone Mixed mono music Skype (headset) —... - Page 31 Weight 22 grams Dimensions (L x W x H) 67 mm x 26 mm x 15 mm Built-in Battery 3.7V / 370mAh / Li-Polymer, rechargeable Battery Life Up to 5.5 hours (factors such as distance between devices, and type of mobile phone used increase power consumption). Dynamic Power Manage- Automatic power consumption control ment...
- Page 33 33 33...
