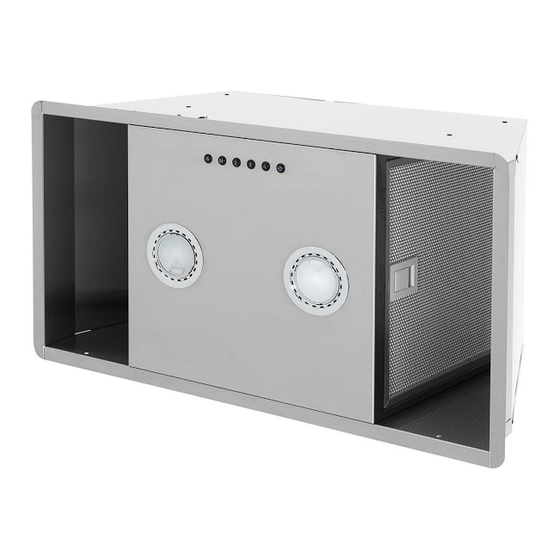

- Page 1 Rangehoods: Installation, Operation & Care Rangehoods Models: 6575100, 6578500 Installation Operation & Maintenance Models: 6575100, 6578500 Model: 6575100 Model: 6578500 Page 1 of 12...
-
Page 2: Safety Precautions
Rangehoods: Installation, Operation & Care Models: 6575100, 6578500 Safety Precautions This rangehood has been designed to be ceiling-mounted above a cooking hob. It can work either by ducting system (discharging exhaust to the outside air) or by Recirculation (where exhaust vapours are returned to the kitchen). -
Page 3: Installation
The filter can be removed by pushing the special filter handle toward the back side of the cooker hood and turning it downwards so as to unfasten it from its slot. Model: 6578500 – Grease Filter Model: 6575100 – Grease Filter Mounting the Rangehood... - Page 4 Once the Rangehood is holding itself in place, insert the four fixing screws to finally lock to appliance in. At this stage, all fine adjustments should be made to be sure the Rangehood will sit where it is intended to. Model: 6575100 – Fixing Screws Model: 6578500 – Fixing Screws Page 4 of 12...
-
Page 5: Ducted Installation
150mm diameter piping can be connected directly; 120mm diameter piping can be connected using the adaptor provided. St George recommends using activated carbon filters for all recirculated rangehood installations. Electrical connection The hood is equipped with a plug. This can be connected to a nearby power socket. The power socket must be adequately earthed. -
Page 6: Finishing Off
Carbon Filters This section relates to rangehoods installed for recirculation only. St George have activated charcoal filters available to further clean the cooking vapours before being recirculated back into the kitchen. If these are required by the consumer, you can order them directly from St George. -
Page 7: Operation
Rangehoods: Installation, Operation & Care Models: 6575100, 6578500 Operation To Turn on the Light Turn the light on using the button marked with a light symbol. To Operate the Extraction Fan Select one of four speeds from the numbered buttons. -
Page 8: Basic Maintenance
Allow filters to dry thoroughly before replacing them. When replacing, ensure the filters are put back in their correct position, as shown below. Model: 6575100 – Grease Filter Model: 6578500 – Grease Filter Page 8 of 12... - Page 9 These filters cannot be washed. Once they are spent, they must be replaced. Failure to do so can create a fire hazard in extreme cases. Contact your retailer or St George Appliances directly for replacement filters. Cleaning the Drip Tray This stage of cleaning is only applicable to the 6578500 model.
- Page 10 Rangehoods: Installation, Operation & Care Models: 6575100, 6578500 Changing the Light Bulb BEFORE YOU START: UNPLUG THE APPLIANCE. There are a number of different models in this range, each requiring a slightly different method of accessing the light bulb. In each case, however, the old bulb must be replaced with an identical 40W bulb.
-
Page 11: Technical Data
Rangehoods: Installation, Operation & Care Models: 6575100, 6578500 Technical Data Model 6575100 Motor: 1000 m /hour o Aluminium die-cast motor housing Power Consumption: 300W Pressure: 480 Pa Noise Level: 62 dBA Lighting: 2 x 20 W Halogen Lamps Control Panel: 4 Speed push-button... - Page 12 Lighting: 2 x 20 W Dichroic Lamps Control Panel: 4 Speed push-button + timer + light switch Grease Filter: Stainless Steel Stainless Steel: AISI 430 © St George Appliances 3-5 Birmingham Ave Chester Hill NSW 2162 Ph 1300-305-366 www.sga.com.au REV: 090630...
