O
PERATOR
S
AND
ERVICE

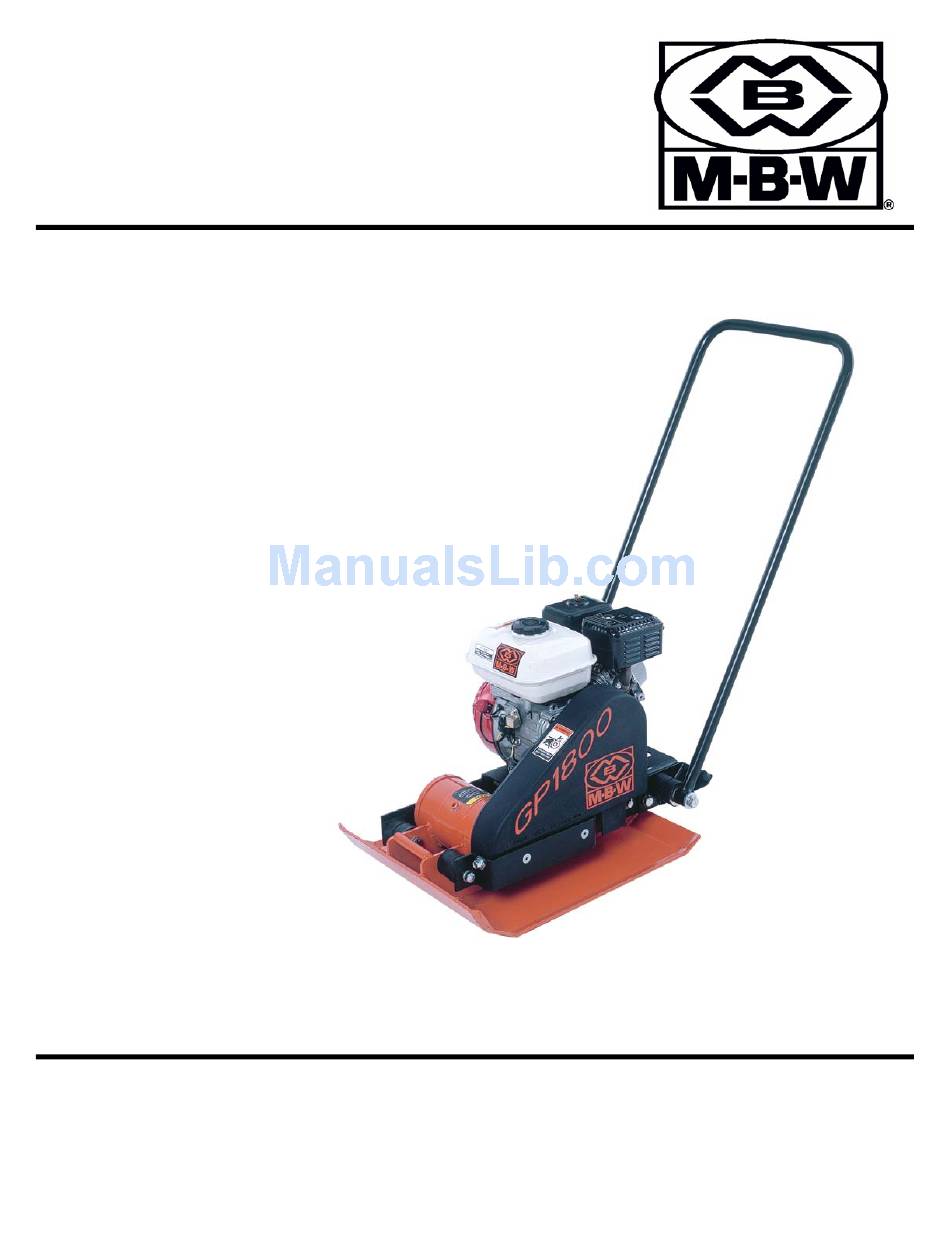

AP1400 &
GP1800
This manual covers the following serial numbers
and higher for each model listed:
1400............................................1230050
1800............................................1800154

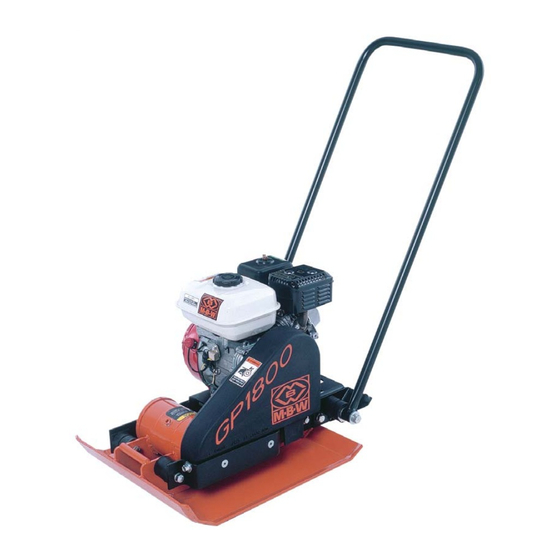

VIBRATORY PLATES
MBW, Inc.
250 Hartford Rd • PO Box 440
Slinger, WI 53086-0440
Phone: (262) 644-5234
Fax: (262) 644-5169
Email: mbw@mbw.com
Website: www.mbw.com
'
S
S
AFETY
M
ANUAL
MBW (UK) Ltd.
Units 2 & 3 Cochrane Street
Bolton BL3 6BN, England
Phone: 01204 387784
Fax: 01204 387797
MBW FRANCE S.A.R.L.
Z.A. d'Outreville
11 rue Jean Baptiste Néron,
60540 BORNEL
FRANCE
Teléfono: +33 (0) 3 44 07 15 96
Fax: +33 (0) 3 44 07 41 28
Correo electrónico: mbwfrance@free.fr
L 18677/ 04.08.G
©MBW, Inc. 2008
Printed in the USA
Advertisement
Table of Contents
Related Manuals for MBW AP1400
Summary of Contents for MBW AP1400
- Page 1 ’ PERATOR AFETY ERVICE ANUAL AP1400 & GP1800 This manual covers the following serial numbers and higher for each model listed: 1400..........1230050 1800..........1800154 VIBRATORY PLATES MBW FRANCE S.A.R.L. MBW, Inc. MBW (UK) Ltd. Z.A. d’Outreville 250 Hartford Rd • PO Box 440 Units 2 &...
-
Page 2: Table Of Contents
ABLE ONTENTS Safety Information ..... . 1 Service....... . 7 Introduction . - Page 3 WARNING CALIFORNIA PROPOSITION 65 WARNING Engine exhaust and some of its constituents are known in the state of California to cause cancer, birth defects, and other reproductive harm.
-
Page 4: Safety Information
MBW does monoxide, a poisonous, odorless, invisible not by the publication of these precautions, imply or in any gas. Death or serious illness may result if way represent that these are the sum of all dangers present inhaled. - Page 5 Use HOT SURFACE handles on deck and base to lift. DO NOT TOUCH GP1300 = 129 lbs (59kg) GP1400 = 132 lbs (60kg) AP1400 = 149 lbs (68kg) SURFACE CHAUDE GP1800 = 140 lbs (64kg) 16162 NE PAS TOUCHER 16162...
-
Page 6: Specifications
PECIFICATIONS 1800 SERIES 1400 SERIES AP1400 GP1400 GP1800H GP1800R CENTRIFUGAL FORCE 1925lbs/873kg 1925lbs/873kg 2300lbs/1043kg 2300lbs/1043kg EXCITER (VPM) 5240 5240 4710 4710 85 ft./min. 85 ft./min. 100 ft./min. 100 ft./min. TRAVEL SPEED (26 m/min.) (26 m/min.) (30 m/min.) (30 m/min.) 10 in. -
Page 7: Operation
• AIR CLEANER - Check to ensure element is in good condition and properly installed. MBW equipment is intended for use in very severe applications. They are powered by four cycle engines and • FUEL SUPPLY - The engines on MBW equipment are available in different sizes and a selection of engines. -
Page 8: Lifting/Transporting
LIFTING/TRANSPORTING WARNING The unit can be lifted by the handles in front and back Always stop the engine before: of the unit as shown in figure 2. Adding fuel. The unit must be transported in the upright position. DO NOT lay machine on its side or top. Leaving the equipment unattended for any amount of time. -
Page 9: Maintenance
4 oz MBW Ground Pounder Exciter Oil Engine Refer to engine operator/owner manual MBW #01058 ---- 6-Pack (8 oz bottles) MBW #17320 ---- 1 quart (32 oz) Engine Maintenance Engine Speed Refer to the engine owner’s manual for maintenance The engine speed is factory reset according to the intervals and procedures. -
Page 10: Service
If the oil level is low add lbs x 0.1383 = kg • • MBW Inc. Ground Pounder® exciter oil to bring the oil lbs x 1.3558 = N • • up to the proper level. Drain any excess oil (see Changing Exciter Oil section). -
Page 11: Changing Exciter Oil
Do not get debris in the exciter drain hole. Remove hardware and beltguard as described in earlier section. Fill the exciter housing with 4 oz. (120 ml) of MBW Inc. Grounder Pounder® exciter oil. DO NOT Remove (4) bolts securing engine to engine deck. -
Page 12: Exciter Assembly
Replace if cracked, torn, or stretched to the point the belt won’t tension properly. Replace once every season or every 250 hours. Use 4 ounces of oil from the 6-pack Exciter Oil of MBW Inc. #01058 Grounder Pounder® Exciter Oil. - 9 -... -
Page 13: Replacement Parts
Their sales engineers are available for professional consultation. If you cannot locate an MBW distributor in your area, contact MBW or one of our Sales Branches listed below. When ordering replacement parts, be sure to have the following information available: •... - Page 14 This page intentionally left blank. - 11 -...
-
Page 15: Exciter Assembly
OPTIONAL PAVER PAD KIT EXCITER ASSEMBLY - 12 -... - Page 16 ITEM PART NO. DESCRIPTION 1400 1800 00348 PULLE, EXCITER 00062 WASHER, SEAL 01002 SEAL, OIL 01070 BEARING, BALL 01072 FILTER, FELT 01191 RETAINING RING, INTERNAL 01283 KEY, 1/4 SQUARE X 1-1/4, ROUND ENDS 13318 EXCITER SHAFT 13974 EXCITER SHAFT 14993 WASHER, COUNTERUNK 18629 BOTTOM PLATE...
-
Page 17: Main Assembly
MAIN ASSEMBLY - 14 -... - Page 18 ITEM PART NO. DESCRIPTION 1400H 1400R 1800H 1800R 00031 ENGINE MOUNTING BAR 00032 KEY, 3/16” SQ. x 1-5/8” LG. 01011 SHOCK MOUNT 01099 WASHER 6931 V-BELT (31) 07636 EXHAUST DEFLECTOR 12860 ENGINE, HONDA, 4HP 17210 ENGINE, ROBIN, 4.5HP 16105 CLUTCH, CENTRIFUGAL, 3/4” DIA. BORE 18633 BELTGUARD, 1400 16902...
-
Page 19: Handle Assembly
1400 SERIES 1800 SERIES HANDLE ASSEMBLY - 16 -... - Page 20 ITEM PART NO. DESCRIPTION 1400 1800 01018 NYLON BUSHING, OUTER 01019 NYLON BUSHING, INNER 01056 HAIR PIN, 1/8 DIA. X 2-3/8 LG. 15248 RUBBER BUMPER, 3/4 X 5/8 16759 RUBBER MOUNT 16906 HANDLE STOP, LEFT (1800) 16907 HANDLE STOP, RIGHT (1800) 16908 RUBBER SHOCKMOUNT, 2 O.D.
-
Page 21: Warranty
1.This warranty does not cover any Used Equipment. "Used Equipment" before shipment to MBW. means any MBW machine or equipment that is not a New Machine or a Demonstration Machine. All Used Equipment is sold AS IS/WHERE IS WHAT WILL MBW DO? MBW's obligation under this warranty is limited to WITH ALL FAULTS.
