Summary of Contents for ExtenHD XSW41

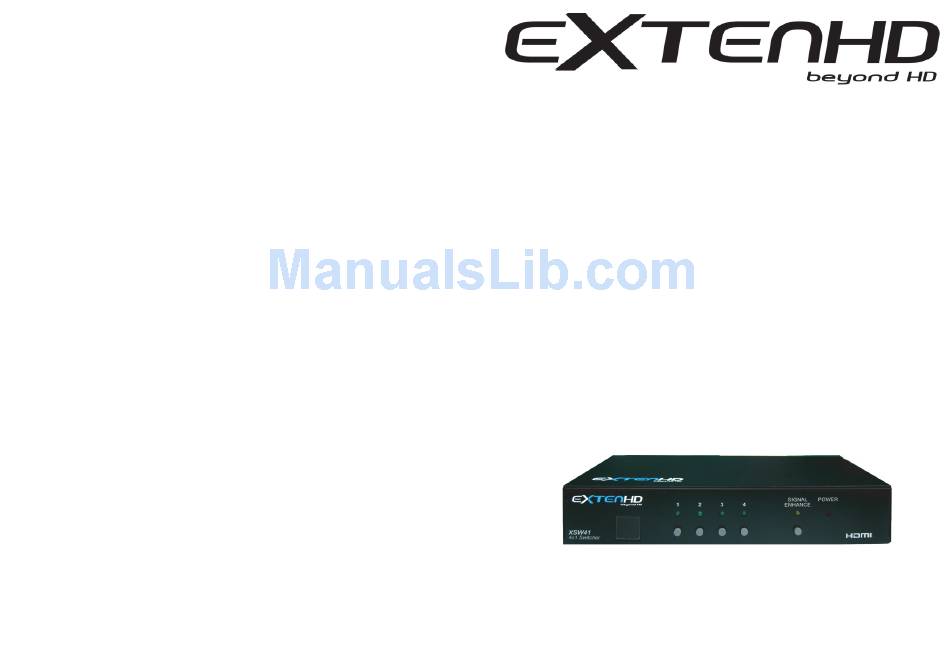

- Page 1 4-in 1-out HDMI/ Digital Audio Switcher Model XSW41 Operation Manual ©2007 Sima Products Corporation 140 Pennsylvania Ave. Bldg #5 Oakmont, PA 15139 www.extenhd.com ExtenHD™ is a registered trademark of Sima Products Corporation PN 21766...
- Page 2 ExtenHD XSW41 User Manual ExtenHD XSW41 User Manual Caution: IMPORTANT SAFEGUARDS FOR AUDIO PRODUCTS. PLEASE READ CAREFULLY THE One year Limited Warranty FOLLOWING IMPORTANT SAFEGUARDS THAT ARE APPLICABLE TO YOUR EQUIPMENT 1. Read instructions - All the safety and operating instructions should be read before the appliance is operated.
-
Page 3: Specifications
ExtenHD XSW41 User Manual Introduction Connection and Installation XSW41 is a high performance HDMI switcher with separate digital DVD 1 audio input and output. It allows your various HDMI sources to share DVD 3 one HDTV display. Simply pressing one button to select your desired DVD 2 HDMI source for display on the HDTV. -
Page 4: Operation Controls And Functions
Input select/Indicators: Press the “ INPUT” button repeatedly to switch to your desired input source and the LED will illuminate to * The connection between XSW41 and remote controller through RS-232 modem cable. indicate which input source is being selected.
