™ T

ANTARO

ABLE

ELE

Assembly Instructions &

Quick Start Guide

MantaroBot™

20410 Century Boulevard  Suite 120  Germantown Maryland 20874

 info@mantarobot.com

www.MantaroBot.com

Phone 301 528 2244  Fax 301 528 1933

Table of Contents

Need help?

Do you have a question about the TableTop TeleMe and is the answer not in the manual?

Questions and answers

Summary of Contents for MantaroBot TableTop TeleMe

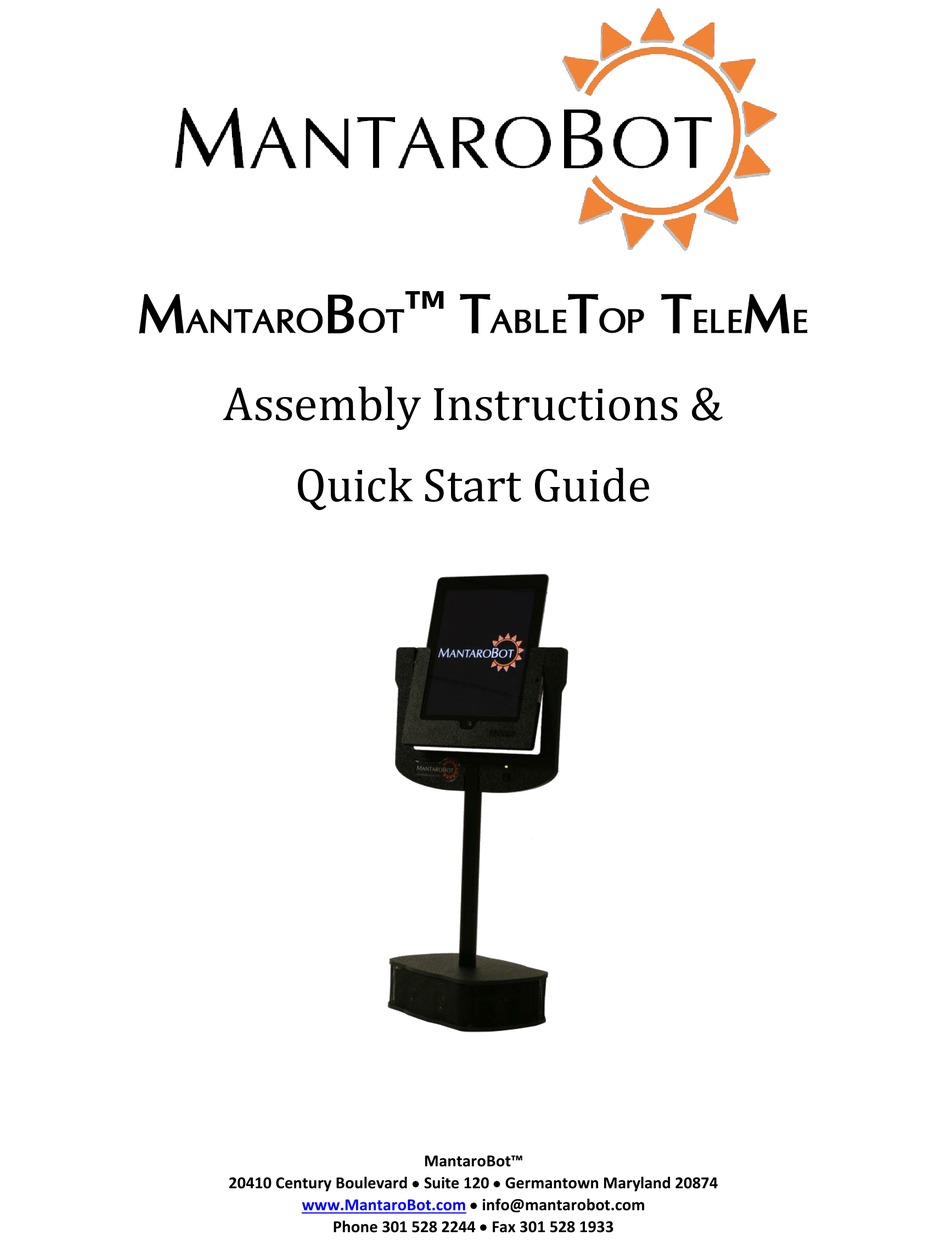

Page 1: Quick Start Guide
™ T ANTARO ABLE Assembly Instructions & Quick Start Guide MantaroBot™ 20410 Century Boulevard  Suite 120  Germantown Maryland 20874  info@mantarobot.com www.MantaroBot.com Phone 301 528 2244  Fax 301 528 1933...
Page 2: Table Of Contents
Quick Start (when using Android tablets) ....................15 Quick Start (for TableTop TeleMes with WiFi option) ................22 MantaroBot™ 20410 Century Boulevard  Suite 120  Germantown Maryland 20874  info@mantarobot.com www.MantaroBot.com Phone 301 528 2244  Fax 301 528 1933...
Page 3: Assembly Instructions
Quick Start Guide Assembly Instructions 1. Carefully unpack the contents in which your TableTop TeleMe was shipped. DO NOT throw away the shipping materials. Store them safely so they can be used to ship or transport your TableTop in the future.
Page 4: Assembly Without Floor Base And Mast Extension
2. Slide pole of device holder (B) all the way down over the base pole (A) while aligning the two screw holes in both (A) and (B). MantaroBot™ 20410 Century Boulevard  Suite 120  Germantown Maryland 20874  info@mantarobot.com www.MantaroBot.com Phone 301 528 2244  Fax 301 528 1933...
Page 5 5. If the optional internal battery option was purchased it was already shipped installed into your unit. However, the battery was disconnected for shipping. Remove the two screws holding the MantaroBot™ 20410 Century Boulevard  Suite 120  Germantown Maryland 20874  info@mantarobot.com www.MantaroBot.com Phone 301 528 2244  Fax 301 528 1933...
Page 6 Put the two screws back holding the battery module in place. MantaroBot™ 20410 Century Boulevard  Suite 120  Germantown Maryland 20874  info@mantarobot.com www.MantaroBot.com Phone 301 528 2244  Fax 301 528 1933...
Page 7: Assembly With Floor Base And Mast Extension
2. Align the feet of TeleMe base (A) with holes in the Floor Base (F) as shown in the picture below. MantaroBot™ 20410 Century Boulevard  Suite 120  Germantown Maryland 20874  info@mantarobot.com www.MantaroBot.com Phone 301 528 2244  Fax 301 528 1933...
Page 8 Quick Start Guide Using thumb screw (E) attach the Floor base to the TeleMe base as shown below. MantaroBot™ 20410 Century Boulevard  Suite 120  Germantown Maryland 20874  info@mantarobot.com www.MantaroBot.com Phone 301 528 2244  Fax 301 528 1933...
Page 9 (A) while aligning the two screw holes in both (A) and (D). See picture on the right. MantaroBot™ 20410 Century Boulevard  Suite 120  Germantown Maryland 20874  info@mantarobot.com www.MantaroBot.com Phone 301 528 2244  Fax 301 528 1933...
Page 10 (D) is a female connector. Plug male connector from device holder (B) into female connector of mast (D). See picture below. MantaroBot™ 20410 Century Boulevard  Suite 120  Germantown Maryland 20874  info@mantarobot.com www.MantaroBot.com Phone 301 528 2244  Fax 301 528 1933...
Page 11 TableTop base. Plug the other end of the power supply cord to a wall outlet. MantaroBot™ 20410 Century Boulevard  Suite 120  Germantown Maryland 20874  info@mantarobot.com www.MantaroBot.com Phone 301 528 2244  Fax 301 528 1933...
Page 12: Installing User Device
1. Install your tablet or smartphone into the device holder (B). If your device holder has the charging connector at the bottom, slide in the tablet as shown below. MantaroBot™ 20410 Century Boulevard  Suite 120  Germantown Maryland 20874  info@mantarobot.com www.MantaroBot.com Phone 301 528 2244  Fax 301 528 1933...
Page 13 Slide tablet all the way down first and then slide towards the charging connector and connect. On the backside of the device holder, rotate the lock in the direction of the “L”. MantaroBot™ 20410 Century Boulevard  Suite 120  Germantown Maryland 20874  info@mantarobot.com www.MantaroBot.com Phone 301 528 2244  Fax 301 528 1933...
Page 14 Improper installation could result in your device falling out of the holder and breaking!!! MantaroBot™ 20410 Century Boulevard  Suite 120  Germantown Maryland 20874  info@mantarobot.com www.MantaroBot.com Phone 301 528 2244  Fax 301 528 1933...
Page 15: Quick Start (When Using Android Tablets)
Quick Start Guide Quick Start (when using Android tablets) The instructions below are a quick outline for getting your TableTop TeleMe up and running. 1. Turn ON the TableTop by pressing the Power ON/OFF push button on the front of the device holder.
Page 16 2. Ensure your tablet has the Wifi enabled and configured. Also, configure the Android tablet so that no lock screen is used. Then, go to Google Play Store and search for ‘mantarobot’. Download and install the ‘The MantaroBot TeleMe Robot Application’ on to your Android tablet.
Page 17 Bluetooth on. If it does not, please manually turn on Bluetooth. 4. Now, the Bluetooth connection from the tablet to the Tabletop TeleMe must be established. Select ‘Bot Management’ on the left and then press ‘Scan for Device’. The Bluetooth scan will begin and populate the list with available Bluetooth devices in your vicinity as shown below.
Page 18 Assembly Instructions & Quick Start Guide 5. Select your TableTop TeleMe once you see it listed in the display (in this example, tabletopteleme05 is shown) and press the ‘Connect to Device’ button. 6. If it’s the first time the tablet is being paired to this TableTop, a small window may be displayed asking for permission to connect to the desired TableTop (see picture below).
Page 19 9. To activate the MCS Controller Connection, the MantaroBot Communications Service (MCS) subscription key must be loaded into the application. An email with the MCS key should have been sent from MantaroBot Support if the subscription plan was purchased. Download and store the key in downloads folder of your Android tablet.
Page 20 Left/Right for Pan and Up/Down for Tilt. In the example pictured below, the pan correction value is 6 and tilt correction value is -5. MantaroBot™ 20410 Century Boulevard  Suite 120  Germantown Maryland 20874  info@mantarobot.com www.MantaroBot.com Phone 301 528 2244  Fax 301 528 1933...
Page 21 Quick Start Guide 14. Now, select ‘About’ on the left of the Robot Application window to view the details of your TableTop TeleMe. Your TableTop TeleMe is now configured for normal operation. MantaroBot™ 20410 Century Boulevard  Suite 120  Germantown Maryland 20874 ...
Page 22: Quick Start (For Tabletop Telemes With Wifi Option)
Power ON/OFF push button 2. To begin configuration of the TableTop TeleMe’s WiFi radio that is located inside the base, quickly press the Power ON/OFF push button twice. After a few moments, there should be an audible series of beep-tones indicating the button was pressed. Wait for the LED on the device holder to blink in a repeating pattern: two blinks and a pause.
Page 23 4. Once the Wifi connection is established, open a web browser on the device used above, type http://192.168.0.1 in the address bar, and hit Enter. The browser will show the MantaroBot MantaroBot™ 20410 Century Boulevard  Suite 120  Germantown Maryland 20874 ...
Page 24 ANTARO ABLE Assembly Instructions & Quick Start Guide TeleMe main page webpage as shown below. MantaroBot™ 20410 Century Boulevard  Suite 120  Germantown Maryland 20874  info@mantarobot.com www.MantaroBot.com Phone 301 528 2244  Fax 301 528 1933...
Page 25 5. Click on the ‘Wifi Connection Page’ link at the bottom of the webpage and the screen shown below will appear. 6. From the list shown, select the Wifi network that the MantaroBot TableTop TeleMe should use for normal operation and click ‘Connect'. You may be required to enter an administrator username and password.
