Dual Load Cell Amplifier
Six pin mini-
DIN connector
Included Equipment
Dual Load Cell Amplifier
Compatible Sensor
Load Cell, 100 N
Load Cell, 5 N
Recommended Items
PASPORT Extension Cable
Truss Set
Bridge Set
Advanced Structures Set
See the PASCO catalog or web site at www.pasco.com for compatible PASPORT interfaces.

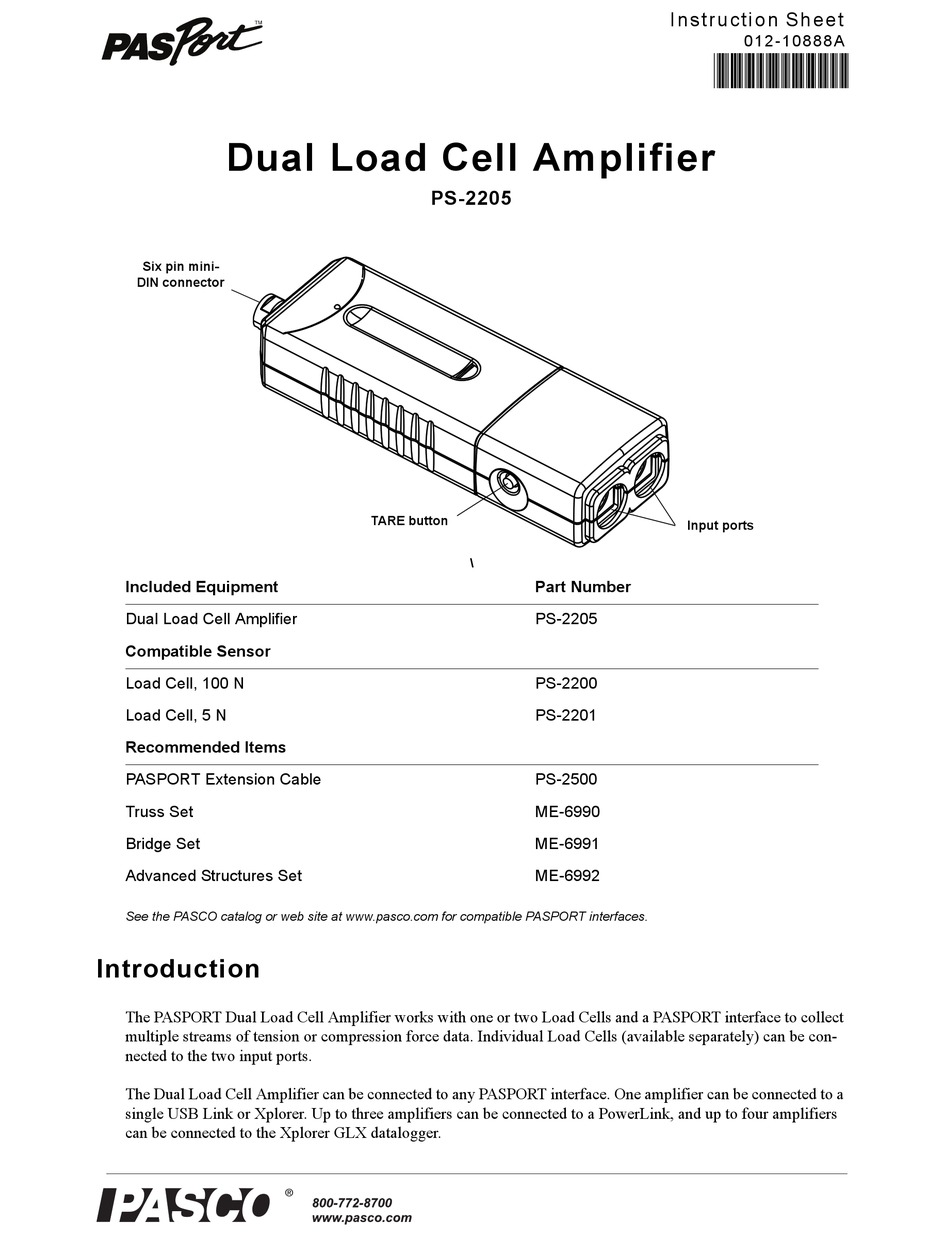

Introduction
The PASPORT Dual Load Cell Amplifier works with one or two Load Cells and a PASPORT interface to collect
multiple streams of tension or compression force data. Individual Load Cells (available separately) can be con-
nected to the two input ports.
The Dual Load Cell Amplifier can be connected to any PASPORT interface. One amplifier can be connected to a
single USB Link or Xplorer. Up to three amplifiers can be connected to a PowerLink, and up to four amplifiers
can be connected to the Xplorer GLX datalogger.
PS-2205
TARE button
®
\
Part Number
PS-2205
PS-2200
PS-2201
PS-2500
ME-6990
ME-6991
ME-6992
Instruction Sheet
012-10888A
*012-10888*
Input ports
