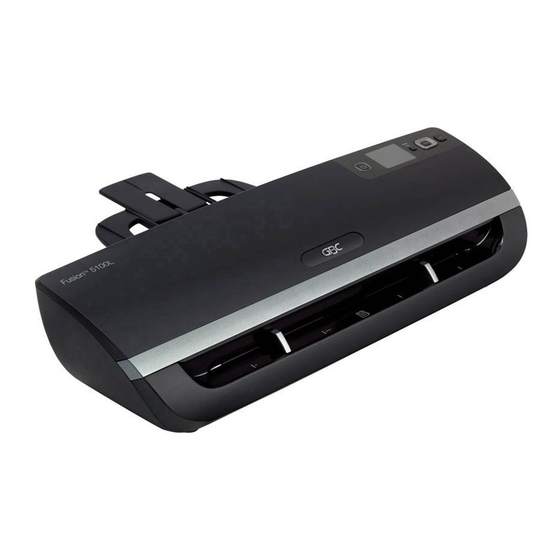

GBC FUSION 5100L Instruction Manual
A 3 laminators
Hide thumbs
Also See for FUSION 5100L:
- Start here manual (145 pages) ,
- Manual (77 pages) ,
- Start here manual (108 pages)
Table of Contents
Related Manuals for GBC FUSION 5100L
Summary of Contents for GBC FUSION 5100L
- Page 1 F U S I O N 5 1 0 0 L ™ A 3 L A M I N A T O R S start here commencer ici hier beginnen inizia da qui beginnen hier empieza aquí começar aqui buradan başlayın ξεκινήσει...
- Page 3 F U S I O N 5 1 0 0 L ™ A 3 L A M I N A T O R S instruction manual manuel d’utilisation bedienungsanleitung manuale d’istruzioni gebruiksaanwijzing manual de instrucciones manual de instruções kullanım kılavuzu οδηγίες...
-
Page 4: Safety Instructions
Welcome to the new GBC 5100L laminator which allows lamination to be completed quickly and simply with GBC quality lamination output. Perfect for novice users choosing automatic self setting to expert users with multiple pouch thicknesses and document sizes. -
Page 5: Points To Note
• Ensure the machine is clear of pouches prior to starting the next pouch • Clean the lamination rollers on a regular basis • Maximum A3 document pouch 426x303mm on GBC Fusion 5100L A3 Laminator • Active anti jam feature may not detect issue on smaller items •... -
Page 6: Getting Ready To Laminate
Take the electrical plug and place in an appropriate power source, which is near the table you intend to use. The laminator will briefly flash the GBC logo on the control panel and will make an audible beep. To use the laminator gently tap the ‘power on’ button. - Page 7 Intelligent Pouch Select Auto Pouch Select ( ) - the laminator automatically measures document and pouch thickness and self set accordingly. NOTE: The machine will not take any pouch during warm up. NOTE: In both Manual Select and Auto Pouch Select modes during warm up the Wait indicator will flash until ready.
- Page 8 laminating On the front of the laminator there are adjustable guides to help you feed your pouch accurately. Move the guides to appropriate line which matches your pouch/ item to be laminated. Accurate Feed Guides Feed the sealed edge of the pouch, into the laminator between the guides. The laminator will grip the pouch and guide it through to the exit tray.
-
Page 9: Additional Features
additional features Intelligent Pouch Reverse If pouch misfeed or jam starts to occur a constant beep will be emitted and the laminator will automatically reverse the document out. Intelligent Status Alert If you try to laminate a 40mic pouch without a carrier the pouch will be automatically reversed out. If you wish to recover a partially fed pouch press and hold the “Reverse”... - Page 10 settings Professional Control From the main menu select ( ) and the following options will appear: SPEED LANGUAGE ADJUST COUNTER SELECT Scroll through the menu to select the required setting and press enter: Speed Adjust - Allows you to fine tune speed if required for optimal results. Use arrows to adjust the speed, up (+) or down (-).
- Page 11 Intelligent Power Off For added safety and environmental reasons the laminator will automatically go into sleep mode after 30 minutes of inactivity. You will hear a single beep before this occurs cleaning WARNING: UNPLUG THIS PRODUCT BEFORE CLEANING THE EXTERIOR. WIPE EXTERIOR ONLY WITH A DAMP CLOTH AND DO NOT USE DETERGENTS OR SOLVENTS.
