Five Beam DMX Light Bar
Model 555-16210
The Stellar Labs Five Beam Light Bar offers many possibilities to achieve the effects desired by top DJs, bands, nightclubs
and other performers who want a complete LED wash light system. Please read the manual before operation.
A. SPECIFICATIONS
•
Power input: 100~240VAC, 60Hz/50Hz
•
Power consumption: 53W
•
LEDs: (5) 9 Watt Cool White
•
Beam angle: 3°
•
DMX Channels; 1 / 5 / 9
•
Weight: 8 lbs.
•
Size: 15-3/4" x 9" x 3-1/4"

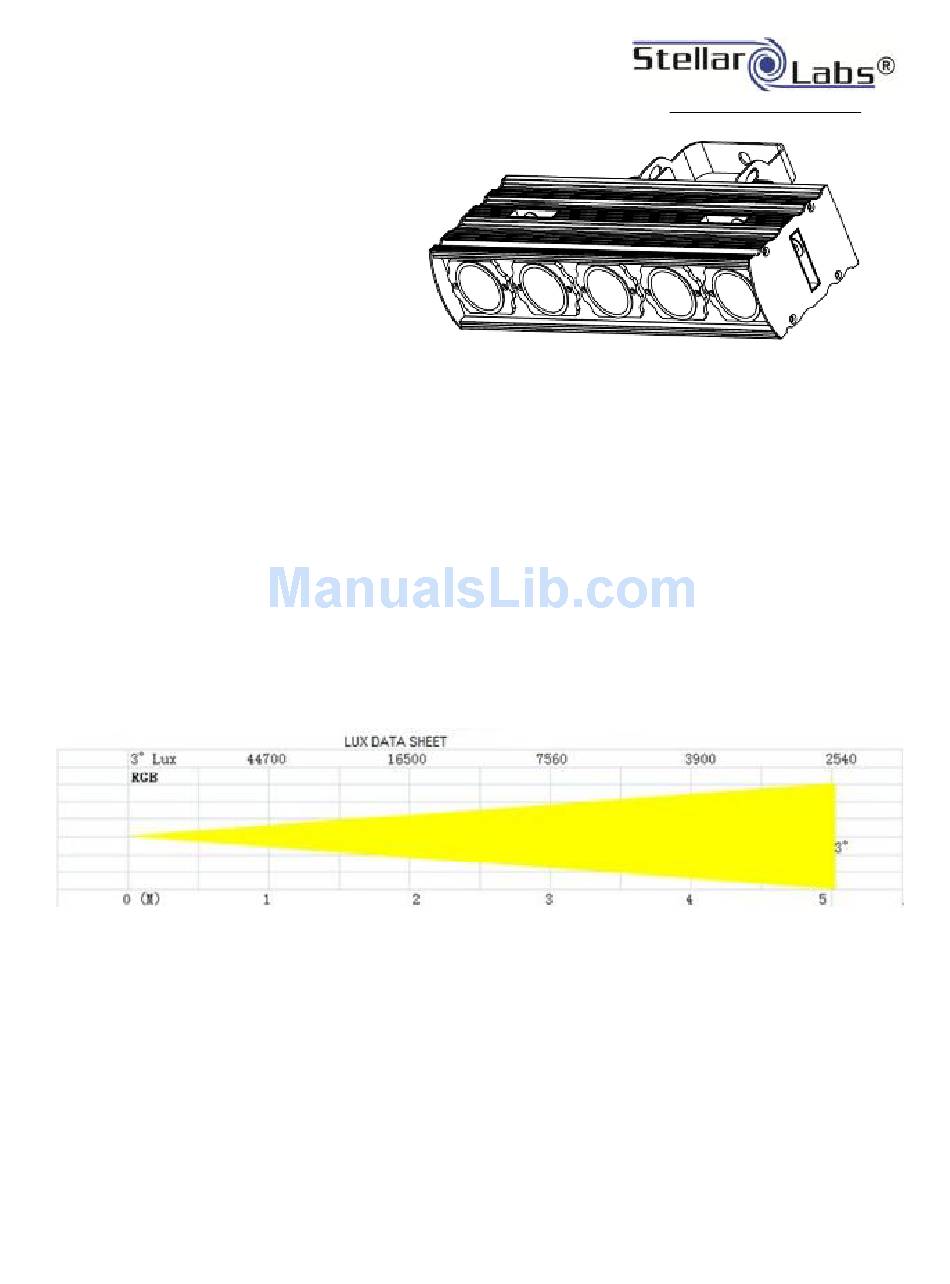

B. PHOTOMETRIC CHART
C. OPERATION
This product provides five different modes of operation making is suitable for use in simple stand-alone environments,
as well as sophisticated DMX controlled systems.
•
built-in programs
•
auto run
•
DMX mode (DMX control or master control of other lamps)
•
slave mode (DMX control or control from another lamp)
•
sound active
C. PROGRAM MENU
www.mcmelectronics.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for stellar labs 555-16210
Summary of Contents for stellar labs 555-16210
-
Page 1: User Manual
Five Beam DMX Light Bar Model 555-16210 The Stellar Labs Five Beam Light Bar offers many possibilities to achieve the effects desired by top DJs, bands, nightclubs and other performers who want a complete LED wash light system. Please read the manual before operation. - Page 2 • Press MODE to choose the desired operating mode. Repeatedly pressing the MODE button will scroll through the various modes: DMX Channel, Slave, Sound Activated, Static Color, Preprogrammed, and Automatic • Once in a desired mode, press SETUP to make changes, using the UP or DOWN buttons Built-in Program Mode •...
- Page 3 Channel Value Function 0-19 LED close 20-29 Program 1 30-39 Program 2 40-49 Program 3 50-59 Program 4 60-69 Program 5 70-79 Program 6 80-89 Program 7 90-99 Program 8 100-109 Program 9 110-119 Program 10 120-139 LED close 140-255 Sound active 0-255 Ajust the speed, larger value, faster speed...
- Page 4 Channel Value Function 0-255 Whole dimming 0-255 LED1 0-100% 0-255 LED2 0-100% 0-255 LED3 0-100% 0-255 LED4 0-100% 0-255 LED5 0-100% No function 10-19 Auto run 20-29 Program 1 30-39 Program 2 40-49 Program 3 50-59 Program 4 60-69 Program 5 70-79 Program 6 80-89...
- Page 5 , means no temperature control When shows , means normal temperature control When shows , means temperature control dysfunction Warranty This Stellar Labs device is warranted, by MCM Electronics against defects for a period of 365 days from the date of...
- Page 6 purchase. This warranty includes manufacture defects and failure due to normal use and operation. Failure due to misuse, excessive wear or damage, improper installation or other external factors is not covered under this warranty. MCM Electronics is not responsible for any consequential on inconsequential damage to any other unit or component incorporated with this device.
