Summary of Contents for COBHAM Veta Network Adapter (VNA)

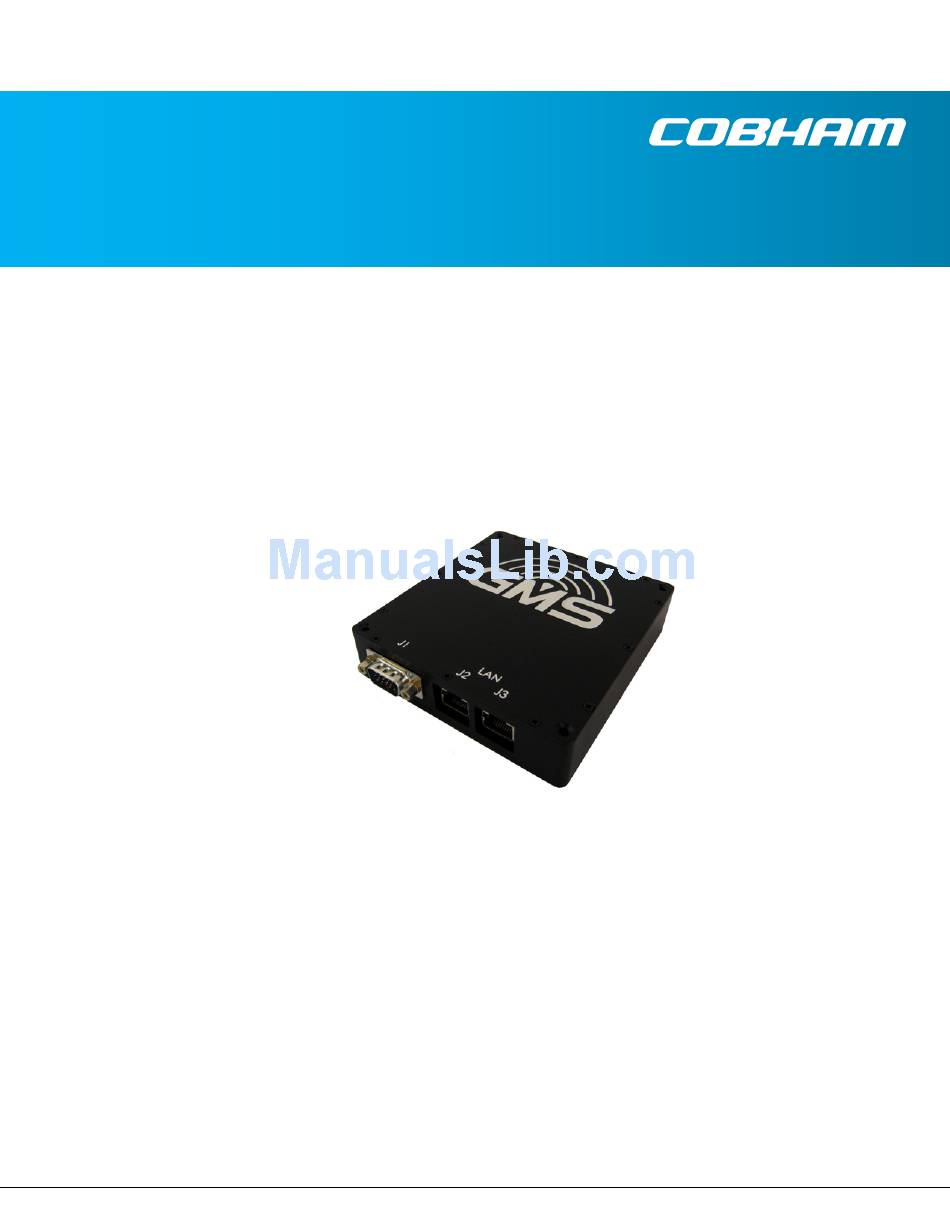

- Page 1 Cobham Surveillance GMS Products 1916 Palomar Oaks Way Ste 100 Carlsbad, CA 92008 100-M0105X1 T: 760-496-0055 06/11/09 F: 760-496-0057 www.cobham.com/gms...
-
Page 2: Table Of Contents
IP Data Auto Rate (Optional) ............................ 18 SOFTWARE DECODER ............................. 19 7.1 General Information ................................19 7.2 Decoding Multicast Streams ............................19 7.3 Player ......................................19 7.4 AES Encrypted Streams ..............................20 SPECIFICATIONS .............................. 23 100-M0105X1 2 of 23 www.cobham.com/gms ... - Page 3 Table 4 Packet Structure from PC ..............................13 Table 5 Packet Structure Reply from controlled device ....................... 13 Table 6 Command List ..................................14 Table 7 Streamer Mode Commands .............................. 14 100-M0105X1 3 of 23 www.cobham.com/gms ...
- Page 4 Revision History Version Date Main Changes from Previous version Created by X1 03‐09‐2010 Initial Release 100-M0105X1 4 of 23 www.cobham.com/gms ...
-
Page 5: Acronyms
MPEG Moving Picture Experts Group MVRD Messenger VETA Receiver Decoder NTSC National Television System Committee PAL Phase Alternation Line QPSK Quadrature Phase Shift Keying QAM Quadrature Amplitude Modulation RF Radio Frequency RX Receiver S/N Signal‐to‐Noise Ratio THD Total Harmonic Distortion TX Transmitter VDC Volts (Direct Current) VR VETA Receiver VT VETA Transmitter VDR VETA Digital Repeater CSM Compact Surveillance Modem UDP User Datagram Protocol VNA VETA Network Adapter 100-M0105X1 5 of 23 www.cobham.com/gms ... -
Page 6: Introduction
Operate within the environmental limits specified for the product. Only authorized, trained personnel should open the product. There are no functions that required the User to gain access to the interior of the product. 100-M0105X1 6 of 23 www.cobham.com/gms ... -
Page 7: Theory Of Operations
VNA can be used for the following Simplex applications; IP Streaming Audio/Video/User Data from a GMS VETA Receiver (VR) or VETA Transmitter (VT-C or VT-2W through Chaining Output). IP Streaming Audio/Video/User Data from LAN to a GMS VETA Wireless Link 100-M0105X1 7 of 23 www.cobham.com/gms ... -
Page 8: Figure 1 Compact Surveillance Bridge
Wireless Long or Short distance LAN Bridging Simultaneous Wireless Audio/Video Transmission w/ LAN Bridging Both the VT and VNA can be mounted on the bottom of the VR receiver. VNA interfaces with RJ-45 connector to IP nodes. 100-M0105X1 8 of 23 www.cobham.com/gms ... -
Page 9: Hardware Overview
The connectors are described in Table 1 Table 2. and P – Power Pin; I – Input; O – Output; I/O – Bidirectional All logic is active high unless stated otherwise All logic levels are 3.3V LVTTL * indicates analog signal 100-M0105X1 9 of 23 www.cobham.com/gms ... -
Page 10: Network
J3 is active. The network interfaces automatically switch between 10 Base T and 100 Base T as required. The network interfaces do not automatically compensate for Ethernet crossovers. The VETA Network Engine network interfaces are wired for straight connection to 100-M0105X1 10 of 23 www.cobham.com/gms ... -
Page 11: Vna Chaining Interconnection
Encoded Video/Audio/Data is sent to the VNA for IP streaming via its Chaining In connections. The encoded Video/Audio/Data can be chained out from a VETA Receiver (Figure 5) or chained in a VETA Transmitter (Figure 4) 100-M0105X1 11 of 23 www.cobham.com/gms ... -
Page 12: Figure 4 Chaining Out Tx To Chaining In Vna
Use individual screened cables (type RG 174 or better) for each signal and connect each screen to the corresponding ground pin as shown in Figure 6 (RX example). The lengths of the cables should be matched and they should not exceed 20cm in length for reliable system operation. Figure 6 VNA Connectors Layout 100-M0105X1 12 of 23 www.cobham.com/gms ... -
Page 13: Control Protocols
Higher order bytes are ignored and the final byte result is modified to prevent ASCII control characters being sent. Bit 7 (highest) is forced high. Status byte will indicate command performed OK, or indicate an error: ASCII Meaning All OK General error, Command could not be auctioned. 100-M0105X1 13 of 23 www.cobham.com/gms ... -
Page 14: Table 6 Command List
Chaining Bit rate Table 7 Streamer Mode Commands Description Type Block Command Data Sent Data Type xxx.yyy.zzz.kkk String Multicast Address xxx.yyy.zzz.kkk String SAP Address Port Number 0 - 65535 String 1 - 255 String Time to live 100-M0105X1 14 of 23 www.cobham.com/gms ... -
Page 15: Web Browser Control
The URL of the configuration page is http://192.168.0.71/index.htm. To access the control page, the user is required to follow a login procedure. When prompted, enter the following login details: User Name: admin Password: ipradio Figure 7 Login Screen 100-M0105X1 15 of 23 www.cobham.com/gms ... -
Page 16: Figure 8 Ip Streamer Browser
Figure 8 IP Streamer Browser Figure 8 and Figure 9 show the configuration pages displayed by the browser for IP Streamer and Radio mode Figure 9 IP Radio Browse 100-M0105X1 16 of 23 www.cobham.com/gms ... -
Page 17: Streamer Configuration Parameters
Description – Optional URI (Universal Resource Identifier) pointing to a web page on the network containing additional information about the multicast Default is www.cobham.com/gms Bitrate – textual information indicating the bitrate in kbits/s of the stream. Default is user kbits/s. The default values : o IP Address. -
Page 18: Ip Radio Configuration Parameter
This feature is not currently supported and should be left in the “OFF”. Table 7 Bitrates Available IP System Transmitter Mode Bitrate (Mb/s) Delay Bandwidth Modulation Guard (ms) (mhZ) Mode Level 1.25 QPSK 2.45 1/32 1.15 1.25 16 QAM QPSK 16 QAM 1/32 ¾ 64 QAM 24.1 100-M0105X1 18 of 23 www.cobham.com/gms ... -
Page 19: Software Decoder
PC. If no multicast streams are located by the application, then the stream list window will appear empty. See Figure 10 and Figure 11: Figure 10 Player with one stream 100-M0105X1 19 of 23 www.cobham.com/gms ... -
Page 20: Aes Encrypted Streams
The user is prompted with a Windows standard “File Save” dialogue box. When recording is active, this menu option is changed to “Stop Recording” which can be used to stop writing to disk. See Figure 13. 100-M0105X1 20 of 23 www.cobham.com/gms ... -
Page 21: Figure 12 Decoder Options Window
(regardless of whether multicast streams are available or not) then the “Play from File” button should be pressed. This opens a standard Windows “Open File” dialogue box to make the selection. See Figure 14. The default file extension is *.mpg. 100-M0105X1 21 of 23 www.cobham.com/gms ... -
Page 22: Figure 13 Record File
Figure 13 Record File Figure 14 Play File 100-M0105X1 22 of 23 www.cobham.com/gms ... -
Page 23: Specifications
Dimensions: 4.15” wide x 4.5” long x 1” high Weight: 0.666lbs 0.302grams Environmental Operational Temperature: -20 to 70 deg C Humidity: Up to 95% non-condensing DC Power DC Voltage Range: 12VDC (+/-0.5V) Reverse Polarity Protection: Power Consumption: 300mA 100-M0105X1 23 of 23 www.cobham.com/gms ...
