OPERATING MANUAL
OPERATING MANUAL
Read and follow all instructions in User's Manual. It is the responsibility of the owner to make sure all personnel
read this manual prior to using the device. It is also the responsibility of the device owner to keep this manual intact
and in a convenient location for all to see and read. If the manual or product labels are lost or not legible, contact
Sunex Tools
read and discussed with the operator in the operator's native language by the purchaser/owner or his designee,
making sure that the operator comprehends its contents.
PARTS LIST
PARTS LIST
Examine box contents, then proceed with following instructions.
Locking Drawer
Assembly
Bottom Tray
WARNING
Read and follow all instructions in User's Manual. • Do not load
carts beyond rated capacity (500 lbs.). • Lock lid and drawers before
moving. • Apply brake on locking casters anytime cart is in place.
• Units can tip or fall causing damage or personal injury. • Cart is
designed to roll easily on flat surfaces and should not be used on
uneven or inclined surfaces. • Do not open more than one
loaded drawer at a time. • Do not stand on or step in drawers. • Keep
children away from unit. • Wear gloves when lifting edges. • This
product may contain one or more chemicals known to the State of
California to cause cancer and birth defects or other reproductive
harm. Wash hands thoroughly after handling. • Failure to heed these
warnings may result in personal injury and/or property damage.
8045/8045BK/8045BL

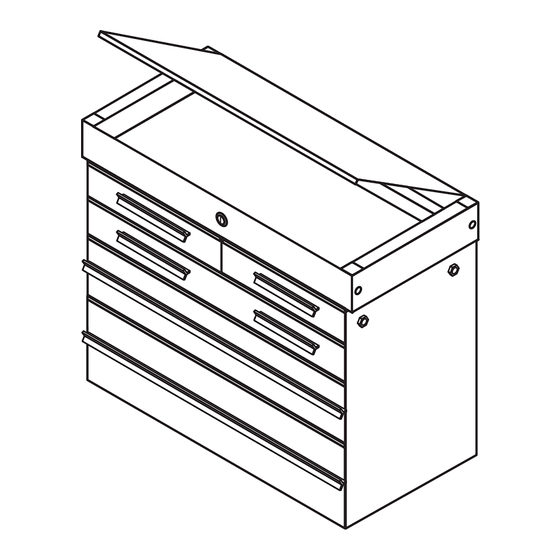

HEAVY DUTY 5 DRAWER SERVICE CART
INCLUDES PRY BAR HOLDER AND SIDE WORK BENCH
for replacements. If the operator is not fluent in English, the product and safety instructions shall be
®
Chrome Legs
Side Work
Bench
Pry Bar
Holder
MODEL 8045, 8045BK, 8045BL
Keys
Non-Locking Casters (2)
(Attached to Legs)
Liners
M6x40 Bolts, Washers, & Nuts
(8 Pcs. Bolts and Nuts, 16 Washers)
TOOLS NEEDED
Rubber Mallet
Table or Workbench
Locking Casters (2)
Long Drawer
Handle (2)
Short Drawer
Handles (4)
(2)
(2)
(2)
(1)
Drawer Handle
Screws (12)
Phillips Head
10mm Wrench
Screwdriver
2 People
© Copyright 2014, Sunex Tools
Rev 7/3/14
®
